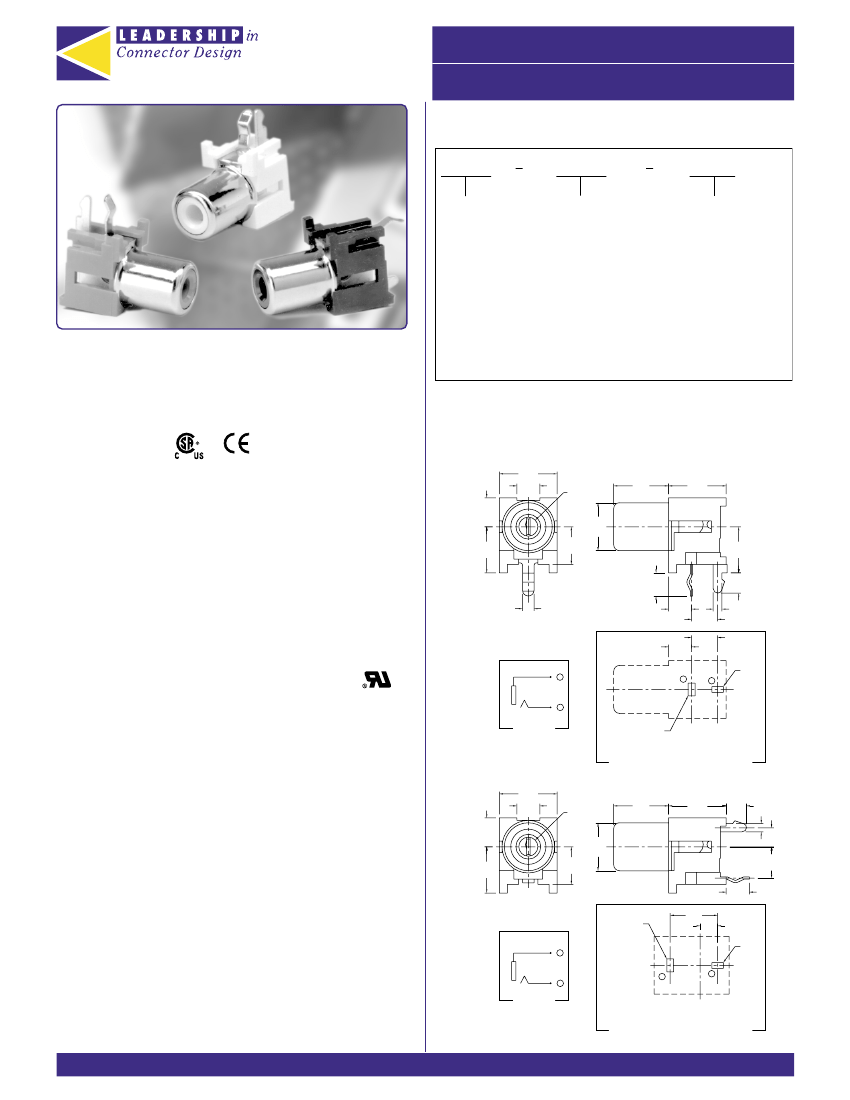

RCA PHONO JACKS
KYCON
KLP Series
Ordering Information
KLP
Series
0848A-2
Type
B
Color
Series
KLP - RCA Phono Jack
KLPHT - Reflow Compatible Version
Type
0848-2 - Single, Vertical
0848A-2 - Single, Right Angle
KLP Series
RCA Phono Jack
PCB Mount
Features
LR78160
Colors
B - Black
R - Red
W - White
Y - Yellow
O - Orange
KLP Series Dimensions
Dimensions in mm
KLP-0848A-2
10.00
4.00
• Audio Applications for Computers and Multimedia
5.00
Ø3.30
9.50
10.00
• Two Contact Cost Efficient Design
• Right Angle and Vertical Mount Available
• CSA/NRTL Certified File No. LR78160
8.00
6.50
¯8.30
4.00
Performance Specifications
Materials and Finish
Housing:
KLP - PBT Thermoplastic, UL94V-0 Rated, Black, Red,
Yellow, Orange and White Colors
KLPHT* - Zytel HTN, High Temperature Nylon, UL94V-0 Rated,
Black, Yellow, Red and White Colors
Terminals:
Copper Alloy, Tin over Nickel Plating
2.00
4.00
4.50
4.50
4.00
1.50
1
1
2
2
Schematic
2.2*1.2
(Top View)
Mechanical Characteristics
Insertion Force:
0.3kg - 5.0kg
Extraction Force:
0.3kg - 3.0kg
Durability:
5000 Mating Cycles
Recommended PCB Layout
KLP-0848-2
10.00
Ø3.30
5.00
1.40
4.00
9.50
10.00
3.50
3.50
8.00
1*2
Contact Resistance:
Before Durability Test:
30 Milliohms Max
After Durability Test:
60 Milliohms Max
Insulation Resistance:
100 Megohms Min. at 500V DC
Dielectric Strength:
250V AC for 1 Minute
Operating Temperature:
-25˚C to +80˚C
* Only Available in Right Angle
Schematic
8.00
6.50
Electrical Characteristics
¯8.30
4.00
8.70
2.2*1.2
3.30
1
2
1*2
1
2
(Top View)
Recommended PCB Layout
2002
116
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
