614-43-650-31-007000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 614-43-650-31-007000

614-43-650-31-007000: DescriptionIC u0026 Component Sockets 50P DIP CARRIER SKT .146L LOW PROFILE; CategoryThe connector socket; File Size351KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

614-43-650-31-007000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	614-43-650-31-007000	-	-	View	Buy Now

614-43-650-31-007000 Overview

IC u0026 Component Sockets 50P DIP CARRIER SKT .146L LOW PROFILE

614-43-650-31-007000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP50
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	50

Preview

Download Datasheet

View All

DUAL-IN-LINE

SOCKETS

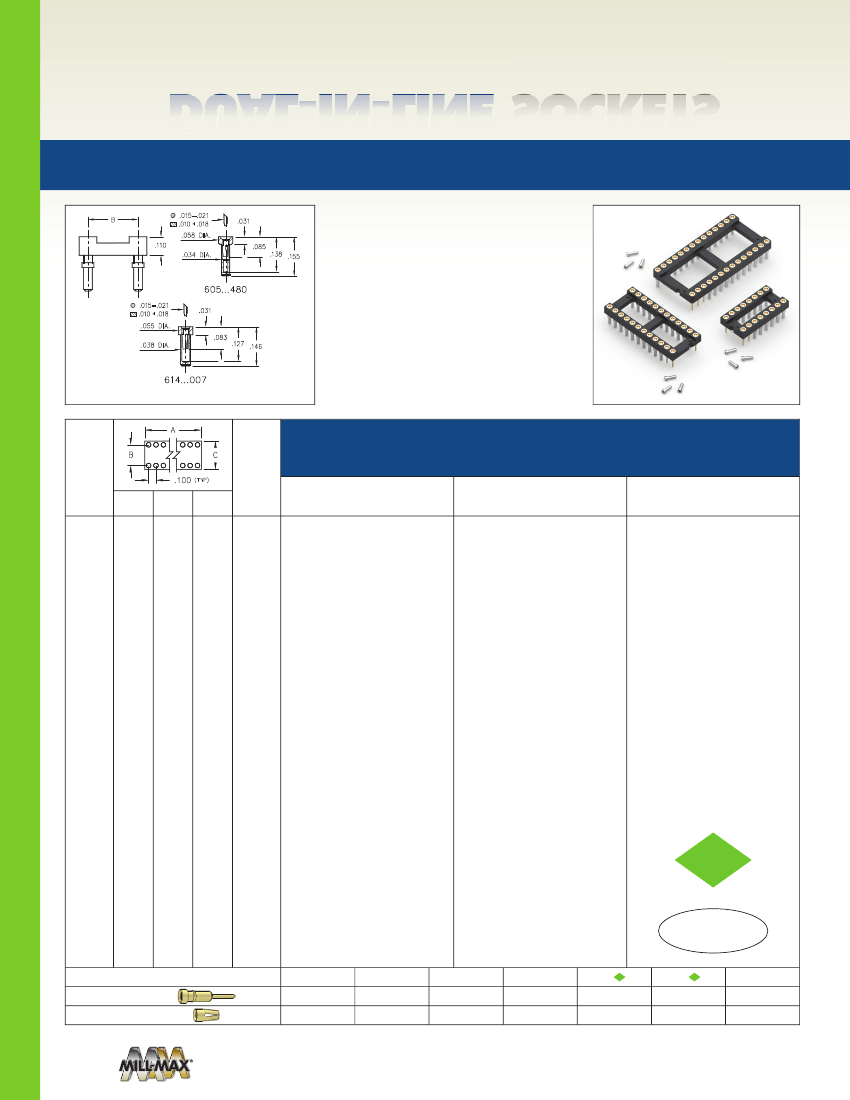

SERIES 605, 614 • CARRIER TYPE, LOW PROFILE • OPEN FRAME

.015-.021

.010 .018

.058 DIA.

.110

.034 DIA.

.085

.138 .155

.031

•

Low pro le receptacles sit only .031” high

above the board

reloading

•

Removable plastic carriers can be returned for

•

Hi-Rel, 3- nger BeCu #11 contact is rated at

3 amps. See page 251 for details

pins. See page 157 for details

.015-.021

.010 .018

.055 DIA.

.038 DIA.

.031

•

Series 605 and 614 use MM #1407 & #0548

.083

.127 .146

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

Data, see page 264 for details

See page 130 for Insulator Details

•

For Electrical, Mechanical and Environmental

Total number

of pins

.100

Quantity

per tube

ORDERING INFORMATION

(.039 Min. Mounting Hole)

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

Length = .146

(.035 Min. Mounting Hole)

605-XX-210-11-480000

605-XX-304-11-480000

605-XX-306-11-480000

605-XX-308-11-480000

605-XX-310-11-480000

605-XX-314-11-480000

605-XX-316-11-480000

605-XX-318-11-480000

605-XX-320-11-480000

605-XX-322-11-480000

605-XX-324-11-480000

605-XX-328-11-480000

605-XX-420-11-480000

605-XX-422-11-480000

605-XX-424-11-480000

605-XX-428-11-480000

605-XX-432-11-480000

605-XX-624-11-480000

605-XX-628-11-480000

605-XX-632-11-480000

605-XX-636-11-480000

605-XX-640-11-480000

605-XX-642-11-480000

605-XX-648-11-480000

605-XX-650-11-480000

605-XX-652-11-480000

605-XX-950-11-480000

605-XX-952-11-480000

605-XX-964-11-480000

200

µ”

Sn/Pb

µ”

Length = .155

102

614-XX-210-31-007000

614-XX-304-31-007000

614-XX-306-31-007000

614-XX-308-31-007000

614-XX-310-31-007000

614-XX-314-31-007000

614-XX-316-31-007000

614-XX-318-31-007000

614-XX-320-31-007000

614-XX-322-31-007000

614-XX-324-31-007000

614-XX-328-31-007000

614-XX-420-31-007000

614-XX-422-31-007000

614-XX-424-31-007000

614-XX-428-31-007000

614-XX-432-31-007000

614-XX-624-31-007000

614-XX-628-31-007000

614-XX-632-31-007000

614-XX-636-31-007000

614-XX-640-31-007000

614-XX-642-31-007000

614-XX-648-31-007000

614-XX-650-31-007000

614-XX-652-31-007000

614-XX-950-31-007000

614-XX-952-31-007000

614-XX-964-31-007000

200

µ”

Sn/Pb

µ”

PAGE 114 | IC SOCKETS / TO SOCKETS

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

200

µ”

SPECIFY PLATING CODE XX =

Sleeve (Pin)

Contact (Clip)

200

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
