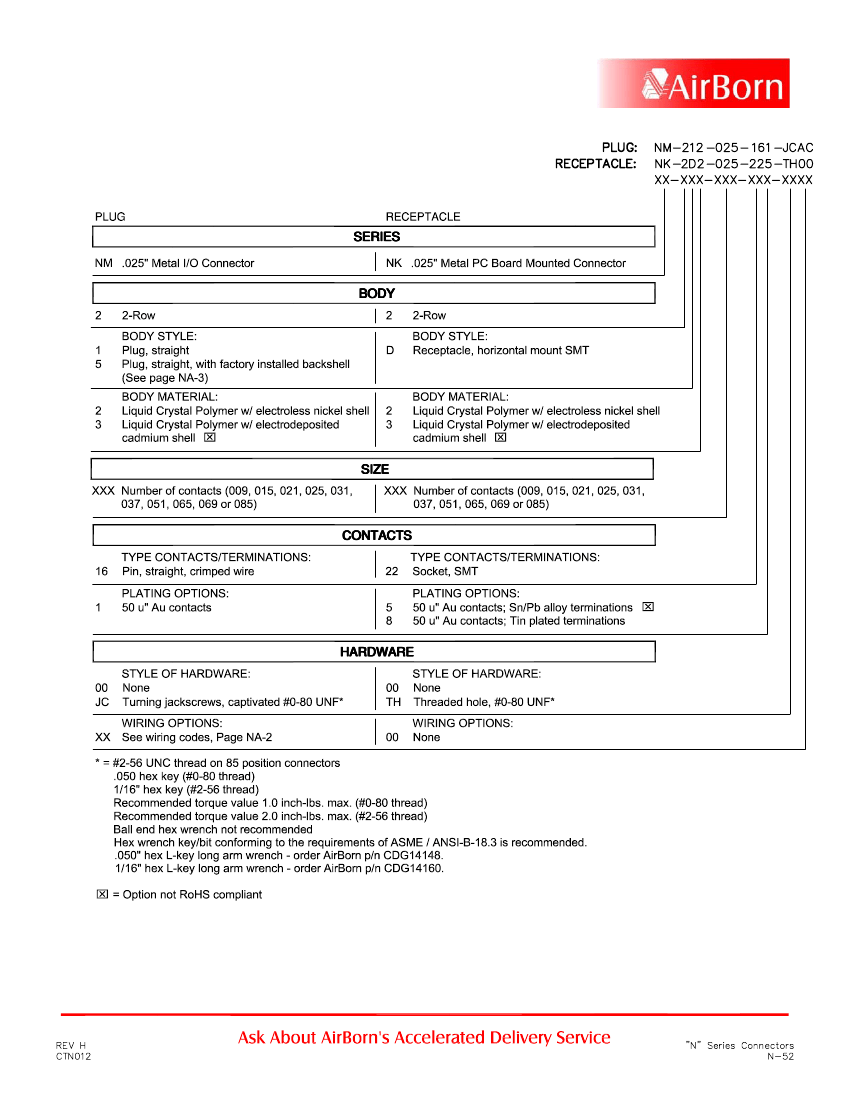

NK-2D2-021-225-TH00 datasheet, PDF

NK-2D2-021-225-TH00: DescriptionRectangular MIL Spec Connectors CONNECTOR, NANO; CategoryThe connector; File Size389KB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

NK-2D2-021-225-TH00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NK-2D2-021-225-TH00	-	-	View	Buy Now

Rectangular MIL Spec Connectors CONNECTOR, NANO

Parameter Name	Attribute value
Product Category	Rectangular MIL Spec Connectors
Manufacturer	AirBorn
RoHS	No
Product	I/O Connectors
Number of Positions	21 Position
Number of Rows	2 Row
Termination Style	SMD/SMT
Mounting Style	Mounting Flange
Contact Gender	Socket (Female)
Contact Plating	Gold
MIL Type	MIL-DTL-32139
Mounting Angle	Right Angle
Contact Material	Beryllium Copper
Current Rating	1 A
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Resistance	5 GOhms
Pitch	0.635 mm
Factory Pack Quantity	1

	NK-2D2-021-225-TH00	NK-2D2-015-225-TH00	NK-2D2-009-225-TH00	NK-2F2-015-445-TH00
Description	Rectangular MIL Spec Connectors CONNECTOR, NANO		Rectangular MIL Spec Connectors	Rectangular MIL Spec Connectors Nanominiature Series .025
Is it lead-free?	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible
Reach Compliance Code	-	compliant	compliant	compliant
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	-	D NANOMINIATURE CONNECTOR	D NANOMINIATURE CONNECTOR	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	-	GOLD (50)	GOLD (50)	GOLD (50)
Contact completed and terminated	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Contact point gender	-	FEMALE	FEMALE	FEMALE
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	-	NO	NO	NO
empty shell	-	NO	NO	NO
Filter function	-	NO	NO	NO
IEC compliance	-	NO	NO	NO
insulator material	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	-	e0	e0	e0
MIL compliance	-	NO	NO	NO
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	-	NO	NO	NO
Installation type	-	BOARD	BOARD	BOARD
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	-	NICKEL	NICKEL	NICKEL
Shell material	-	METAL	METAL	ALUMINUM ALLOY
Termination type	-	SURFACE MOUNT	SURFACE MOUNT	SOLDER
Total number of contacts	-	15	9	15
