The Company
Amphenol Commercial Products Group of Amphenol Canada Corp., a subsidiary of Amphenol Corporation,
is an ISO 9001 certified facility located in Toronto, Canada. Our activities are dedicated to the design, devel-
opment, and manufacturing of interconnect products intended for use in the data communications and
telecommunications markets. Our expertise in understanding and supporting our customers’ interconnect
needs has earned Amphenol Canada a reputation of quality and excellence among the world’s leading users
of electronic components.
About the Catalogue
This modular jack catalogue represents some of our more popular products within this product category.
Other product categories include, but is not limited to: D-Sub, Micro-Ribbon, USB, Headers and Sockets,
and rugged connectors (RJ, USB, D-Subs, and bulkhead adapters).
All of our modular jacks are RoHS compliant.
All drawings in this document are measured in inches [mm], unless otherwise indicated.
Notice:
Specifications are subject to change without notice. Contact your nearest Amphenol sales office for the latest specifications. All statements, information, and data
given herein are believed to be accurate and reliable, but are presented without guarantee, warranty, or responsibility of any kind, expressed, or implied. Statements or sug-
gestions concerning possible use of our products are made without representation or warranty that any such use is free of patent infringement, and are not recommended
to infringe any patent. The user should not assume that all safety measures are indicated or that other measures may not be required. Amphenol and RJ vista are registered
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
CONTENTS
Right Angle (Side Entry)
THROUGH-HOLE
RJHSE
RJESE
RJE37
RJE39
RJE01
RJSBE
FRJAE
RJE02
RJE03
RJE05
RJE09
RJULE
RJE73
Tab Up, Multiport
Tab Up, Standard Profile
Tab Up, Single Port, Low Profile
Tab Up, Narrow, 2 and 8 Port
Tab Up, RJ11 (six position)
Tab Down, 1, 2 and 4 Port
Tab Down, Filtered and Shielded
Tab Down, Single Port, High Profile
Tab Down, Single Port, Low Profile
Tab Down, Ultra Low Profile
Tab Down, Standard Profile
Tab Down, Recessed, Low Profile
Tab Down, Single Port, Low Profile
4-7
8-10
11-12
13-14
15-16
17-19
20-22
23-24
25-26
27-28
29-31
32-33
34-35
Vertical (Top Entry)
THROUGH-HOLE
RJHSE
RJE06
RJE08
RJE74
RJE88
RJE1J
Tab Up, Multiport
Single Port, Slim Profile
Single Port, Standard Profile
Single Port, Standard Profile
Single Port, Low Profile
Single Port, Narrow Profile
4-7
49-50
51-52
53-54
55-56
57-58
SURFACE MOUNT
RJE23
Single Port, Surface Mount
59-60
Category 5e
RJE48
RJE58
RJE72
Right Angle, Low Profile
Right Angle, Standard Profile
Right Angle, Recessed, Low Profile
66-67
68-70
71-72
SURFACE MOUNT
RJSSE
RJCSE
RJLSE
RJE07
RJE15
Tab Up, with Light Pipes
Tab Up, Standard Profile
Tab Down, Ultra Low Profile
Tab down, Single port
Tab Down, Single Port, Low Profile
36-38
39-40
41-42
43-44
45-46
Category 6
RJE45
RJE49
RJE59
RJE71
Vertical, Single Port, Low Profile
Right Angle, Low Profile
Right Angle, Standard Profile
Right Angle, Recessed, Low Profile
73-74
75-76
77-79
80-81
PRESS FIT
RJE56
Tab Down, RJ45
47-48
Category 6A
RJE60
Right Angle, Standard Profile
82-84
Stacked
RJSAE
RJSNE
2, 4 and 8 ports with Shield Options
4 over 4 ports with Shield Options
61-63
64-65
Additional Products
RJE17
RJ45 Coupler
85-86
88-89
3
Coming Soon & Other
LED OPTIONS
Note:
Denotes LEDs are available for connectors in the series
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
2

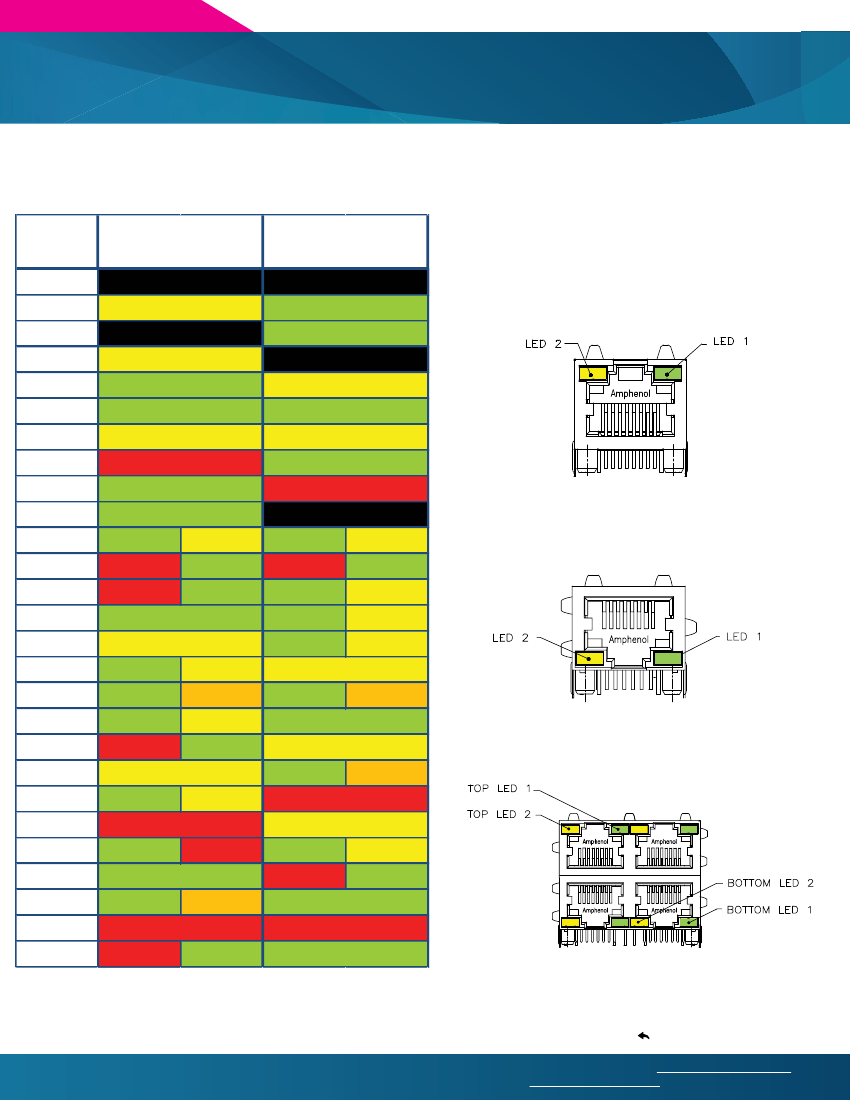

LED OPTIONS
LED Designation
Ex. RJHSE - 538X*
LED OPTIONS
*LED Designation Code
Note: A black X in the part number refers to the LED
designation code for all drawings in this catalogue.
All speci cations are subject to change without notice. Catalogue is
Telephone: (416) 291-4401
refer
Fax:
www.amphenolcanada.com for the most recent edition.
All specifications are subject to change without notice. Catalogue is updated regularly. Please refer to www.amphenolcanada.com for the most recent edition.
TAB UP, MULTIPORT, WITH LED
s
TAB UP, MULTIPORT, WITH LEDs
RJHSE
THROUGH - HOLE

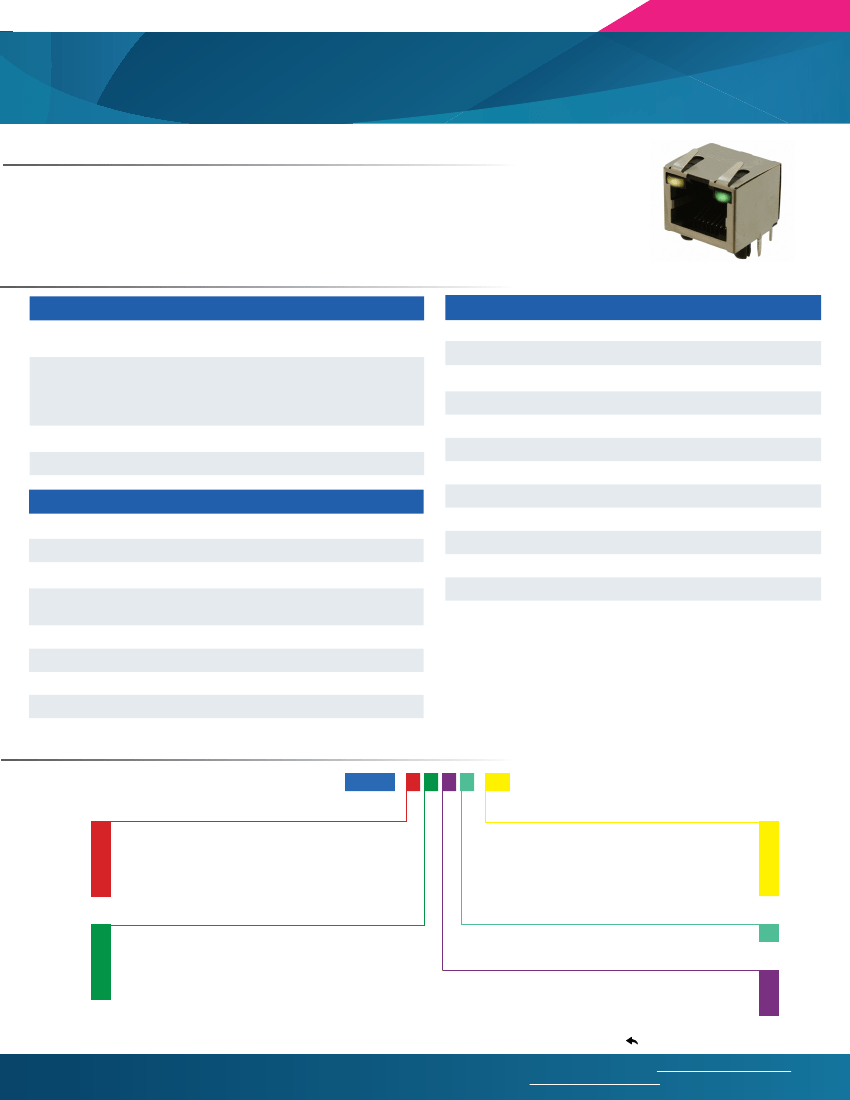

A series of EMI Quiet Modular Jack connectors with built-in LEDs. This product is ideal for
