NOTES:
1. MATERIAL:
BODY - ALUMINUM, TIN PLATED
SCREW - ALUMINUM, TIN PLATED
(NOTE: LAMA6-14-QY & LAMA2-14-QY HAVE TIN PLATED
STEEL SCREWS)
2. cULus LISTEDFOR USE UP TO 600V & TEMPERATURE
RATED 90 C (AL9CU)
3. DUAL RATED FOR USE WITH COPPER OR ALUMINUM
STRANDED CODE CONDUCTOR
4. THESE PARTS ARE RoHS COMPLIANT
5. USE OF OXIDE INHIBITING JOINT COMPOUND LIKE
PANDUIT CMP-100 RECOMMENDED FOR PAD TO PAD
AND CONDUCTOR SURFACES
C
E
F
D
B
G RAD
A
STUD SIZE
6. SEE PACKAGING LABEL FOR TIGHTENING TORQUE
INFORMATION
7. PKG QTY:
Q = 25
C
US
DIMENSIONS ‐ IN [mm]
PART
NUMBER
WIRE RANGE
COPPER/ALUMINUM
WIRE STRIP
LENGTH IN[mm]
STUD SIZE
IN
A
B
C
D
E
F
G
HEX KEY*
A
I
G
F
E
D
C
B
LAMA6‐14‐QY
LAMA2‐14‐QY
LAMA1/0‐14‐QY
LAMA1/0‐56‐Q
LAMA2/0‐14‐QY
LAMA250‐56‐QY
14 AWG ‐ 6 AWG
14 AWG ‐ 2 AWG
14 AWG ‐ 1/0 AWG
14 AWG ‐ 1/0 AWG
14 AWG ‐ 2/0 AWG
6 AWG ‐ 250 kcmil
.38 [9.7]
.47 [11.9]
.62 [15.7]
.62 [15.7]
.62 [15.7]
1.00 [25.4]
1/4
1/4
1/4
5/16
1/4
5/16
.25 [6.4]
.31 [7.9]
.42 [10.7]
.25 [6.4]
.44 [11.2]
.45 [11.5]
1.06 [27.0]
1.16 [29.5]
1.47 [37.3]
1.47 [37.3]
1.47 [37.3]
2.01 [51.0]
.38 [9.7]
.47 [11.9]
.62 [15.7]
.62 [15.7]
.62 [15.7]
1.00 [25.4]
.09 [2.4]
.10 [2.5]
.19 [4.8]
.19 [4.8]
.19 [4.8]
.25 [6.4]
.50 [12.7]
.50 [12.7]
.62 [15.7]
.62 [15.7]
.62 [15.8]
1.00 [25.4]
.50 [12.7]
.55 [14.0]
.79 [20.0]
.79 [20.0]
.79 [20.0]
1.13 [28.6]
.43 [10.9]
.38 [9.7]
.43 [10.9]
.60 [15.2]
.41 [10.4]
.56 [14.2]
SLOTTED
SLOTTED
SLOTTED
SLOTTED
3/16
5/16
* HEX SIZE MAY DIFFER FROM CHART. DIFFERENCE IN SIZE WILL NOT AFFECT FIT, FORM, OR FUNCTION OF PART
10N006AR-NC/00B
H
10
9/10
JHNU JHNU
J. REVISED NOTES
I. REMOVED FIGURE NO. COLUMN
10N006AR-NC
FLD
FLD
09
7/10
JHNU JHNU
H. REVISED DWG NUMBER: 10N006AR-NC WAS C41566
G.REVISED LAMA6-14-QY DIM: E WAS .38
F. REVISED LAMA2-14-QY DIM'S: A WAS .32, D WAS .09, F WAS .56, G WAS .37
E. REVISED LAMA1/0-14-QY DIM'S: WIRE STRIP LENGTH WAS .63, A WAS .44, C WAS .63,
F WAS .81, G WAS .40
D. REVISED LAMA1/0-56-Q DIM'S: WIRE STRIP LENGTH WAS .63, C WAS .63, E WAS .63,
10N006AR-NC
F WAS .78, G WAS .59
C. REVISED LAMA 2/0-14-QY DIM'S: WIRE STRIP LENGTH WAS .63, C WAS .63, F WAS .81,
G WAS .40, HEX KEY WAS SLOTTED
B. REVISED LAMA250-56-QY DIM'S: A WAS .44, B WAS 2.00, D WAS .22, E WAS .90,
F WAS 1.06, HEX KEY WAS 3/8
A. REMOVED TORQUE COLUMN FROM TABLE
TINLEY PARK, ILLINOIS

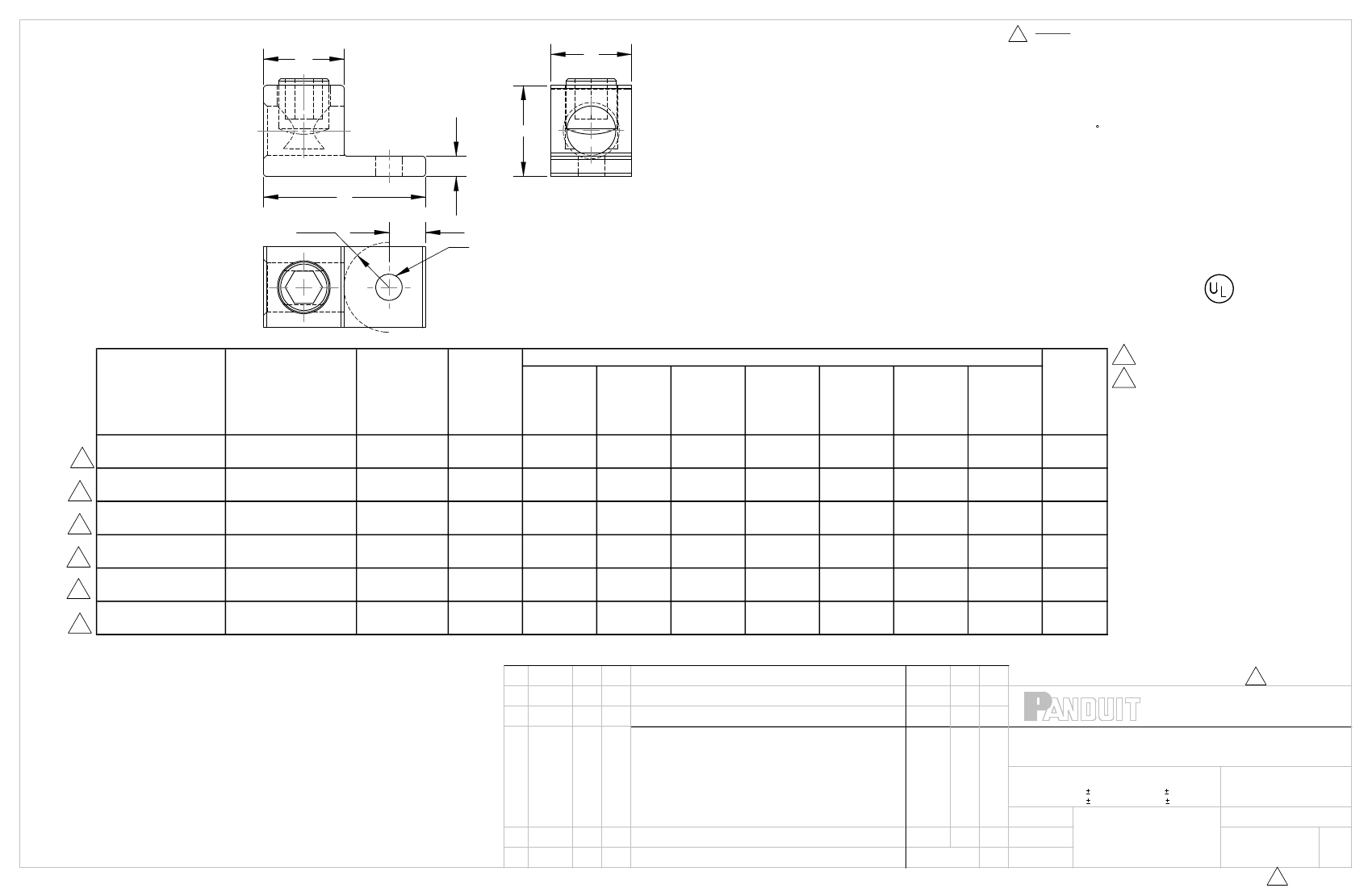

LAMA SERIES 6AWG THRU 250kcmil
ALUMINUM MECHANICAL LUGS
CUSTOMER DRAWING
UNLESS OTHERWISE SPECIFIED
DIMENSIONAL TOLERANCES ARE:
(.X)
(.XXX)
---
---
(.XX)
---
ANGLES
---
DRAWN BY
DATE
UNLESS OTHERWISE SPECIFIED,
ALL DIMENSIONS ARE GIVEN IN
INCHES, THIRD ANGLE PROJECTION
CORP.
FLD
FLD
JHNU
2/06
MAT'L:
SCALE
NONE
DWG
08
9/09
JHNU JHNU
ADDED LAMA1/0-56 TO DRAWING
SEE NOTES
DRAWING NO / CAD FILE
REV
DATE
BY
CHK
DESCRIPTION
ECN
-R
SUP
CHK'D
10N006AR-NC
H
B
SIZE
MCU
