30700-5101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 30700-5101

30700-5101: DescriptionAutomotive Connectors HDAC64 DR RA HDR 10 R 10 CKT BLACK POL 2; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

30700-5101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30700-5101	-	-	View	Buy Now

30700-5101 Overview

Automotive Connectors HDAC64 DR RA HDR 10 R 10 CKT BLACK POL 2

30700-5101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Board mount options	PEG
body width	0.734 inch
subject depth	1.243 inch
body length	0.815 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	75.1712 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.131 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	109.8656 N
Base Number Matches	1

Preview

Download Datasheet

View All

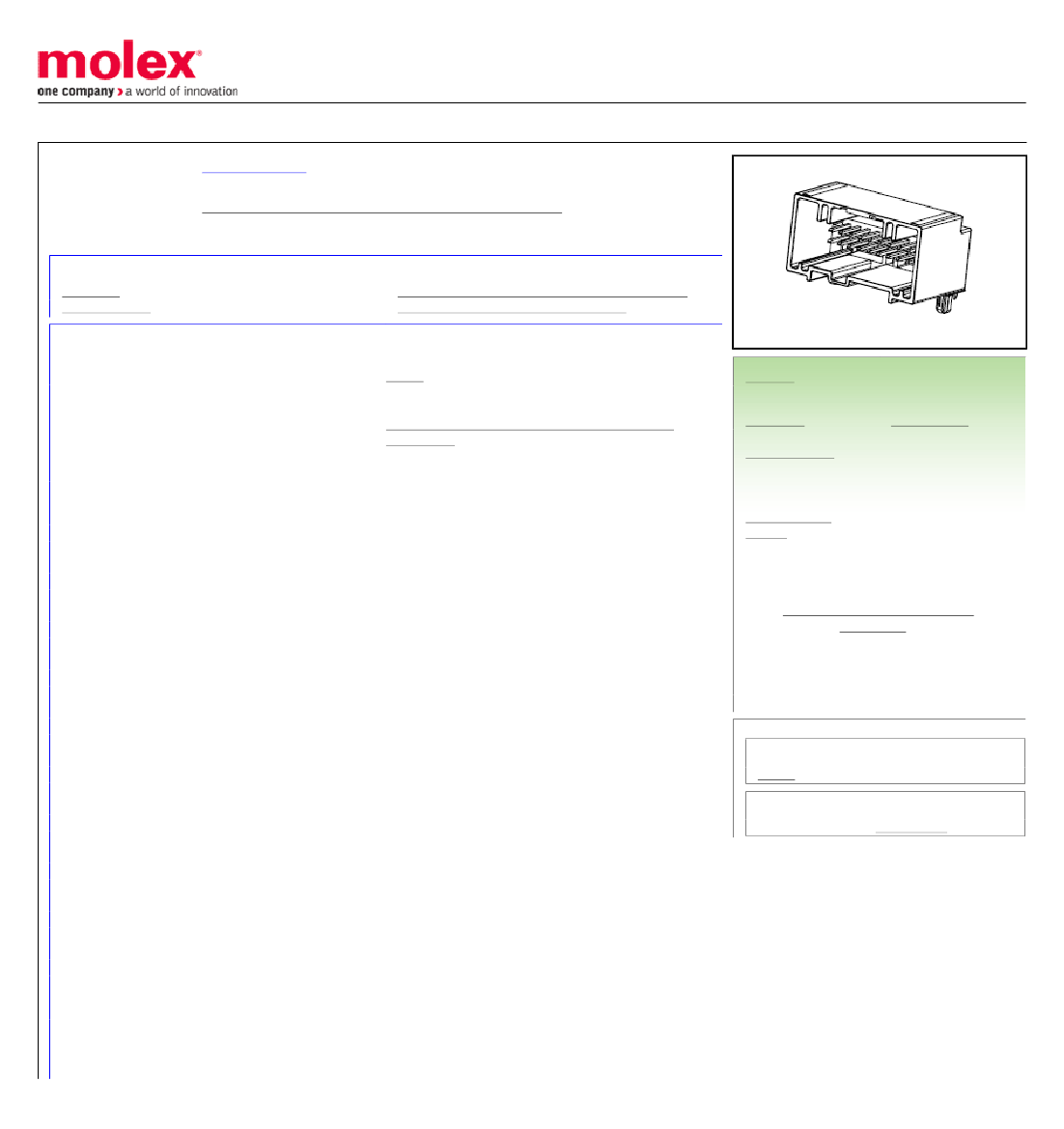

This document was generated on 12/05/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0307005101

Active

H-DAC 64™ Dual-Row High Density Automotive Connectors

2.54mm Pitch, H-DAC 64 High Density Automotive Header, Dual Row, Right Angle, 10

Circuits, Polarization Option 2, Black, Tray

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Product Specification PS-30700-0001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

30700

Power, Wire-to-Board

Polarization Option 2

H-DAC 64™ Dual-Row High Density Automotive

Connectors

H-DAC 64

800754871310

Black

None

Yes

Copper

Tin

Nickel

Modified Polystyrene

4.777/g

Right Angle

3.69mm

Yes

1.57mm

Tray

2.54mm

Yes

Fully

-40°C to +100°C

Through Hole

7.0A

500V DC

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Search Parts in this Series

30700 Series

Mates With

H-DAC 64 Housing 30700-1101
