76829-0002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76829-0002

76829-0002: DescriptionFuse Clips ACS 2AG OR 5X20MM FUSE CLIP; CategoryThe connector The connector; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76829-0002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76829-0002	-	-	View	Buy Now

76829-0002 Overview

Fuse Clips ACS 2AG OR 5X20MM FUSE CLIP

76829-0002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Samacsys Description	MOLEX - 76829-0002 - CONNECTOR, HEADER, 2POS, 2ROW, 5.7MM
Board mount options	SPLIT BOARD LOCK
body width	0.552 inch
subject depth	0.583 inch
body length	0.606 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	2200VAC V
Durability	200 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	76829
Mixed contacts	YES
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.147 inch
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 10/23/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

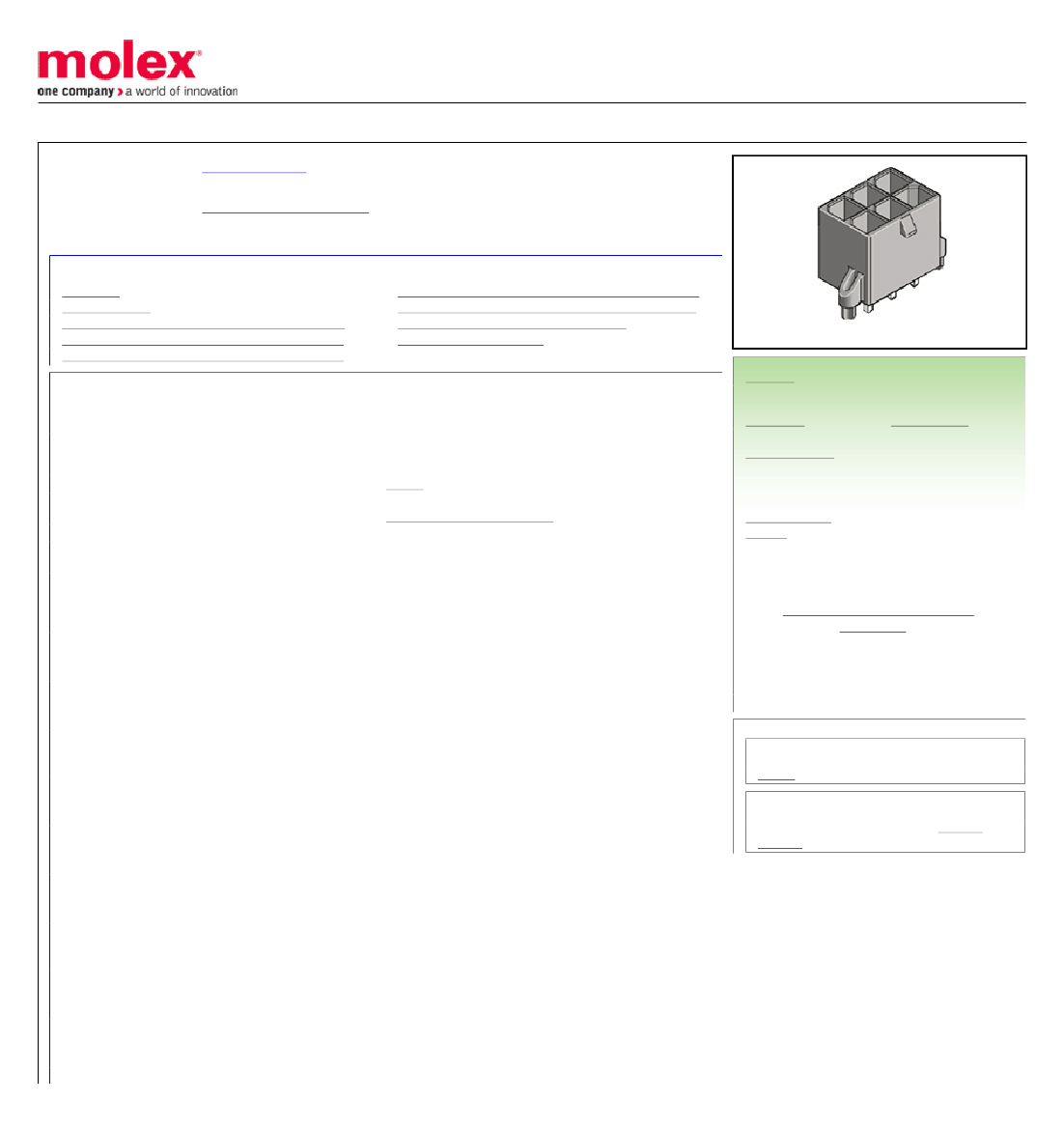

0768290002

Active

Mega-Fit Power Connectors

Mega-Fit Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 2 Circuits, 1.52µm

Tin (Sn) Plating, Glow Wire Capable, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76823-100-001 (PDF)

Product Specification TS-76823-100-001 (PDF)

Product Specification TS-76829-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Application Specification AS-76823-100-001 (PDF)

Packaging Specification PK-31301-976-000 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Not Relevant

LR19980

E29179

PCB Headers

76829

Power, Wire-to-Board

Mega-Fit Power Connectors

987650-5401

Mega-Fit

887191454184

Black

94V-0

Yes

16.78mm

High Conductivity Copper

Matte Tin

Liquid Crystal Polymer

1.808/g

Vertical

3.73mm

Yes

1.58mm, 2.36mm

Tray

5.70mm

1.524µm

Yes

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

76829 Series

Mates With

Mega-Fit Receptacle Housing 171692 ,

170001

Recommended Resources
