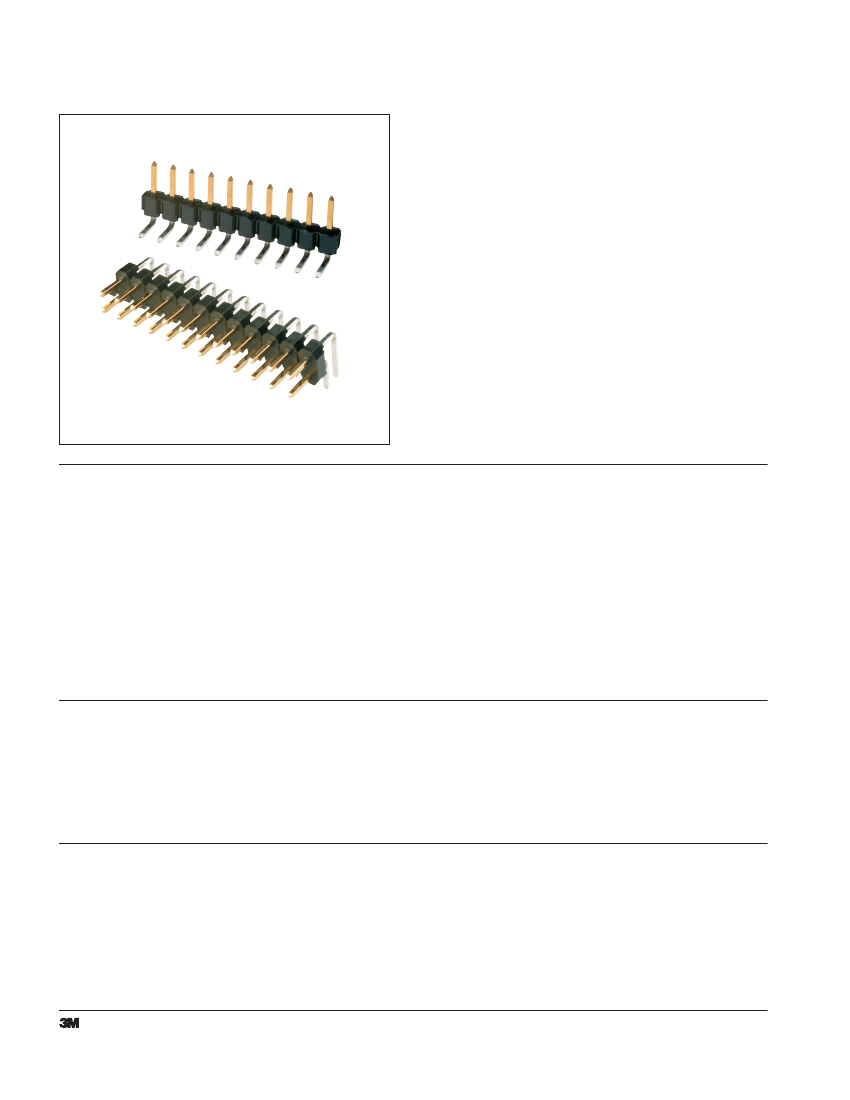

3M
™
Pin Strip Header
2.54 mm and 2.54 mm x 2.54 mm, Right Angle, Solder Tail
961 Series
•
High temperature dielectric
•
No lead” wave and reflow solder compatible
“
•
nd stackable feature
E
•
Single- and dual row version
•
ates with boardmount and wiremount products
M
•
oHS Compliant. See the Regulatory Information
R
Appendix (RIA) in the RoHS compliance section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 26, 2012
TS-2182-C
Sheet 1 of 2
Physical
Insulation
Material: High Temperature Thermoplastic
Flammability: UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating: 1.25–2,5 µm [50–100 µ’’] Nickel
Wiping Area: Flash Gold
Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin
Electrical
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
ax. 260 °C (Profile per J-STD-020C)
m
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Interconnect Solutions
www.3Mconnectors.com
3M
™
Pin Strip Header
2.54 mm and 2.54 mm x 2.54 mm, Right Angle, Solder Tail
961 Series

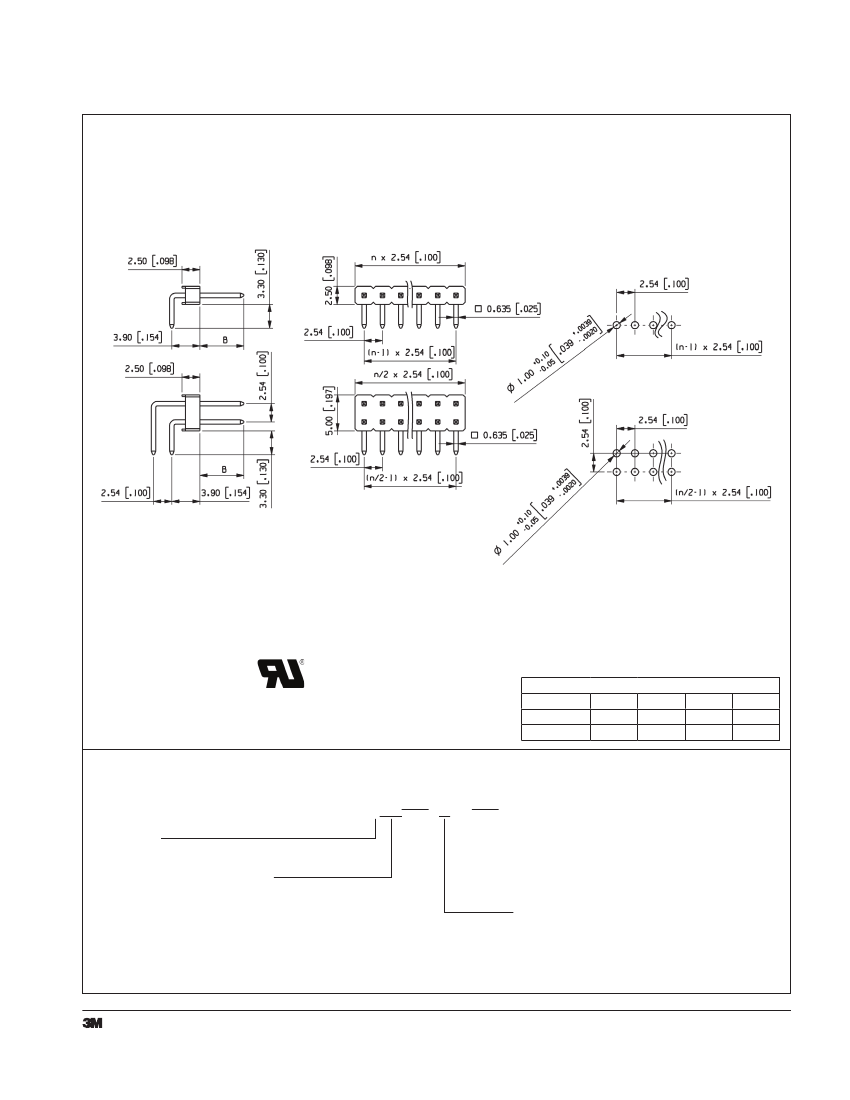

PCB Layout
n = No. of Contacts
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
961XXX
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
02–36 Pins / 1 Row
04–72 Pins / 2 Row
Mating Pin Length:
Dim ‘B’
6 = 6.1 mm [.24]
8 = 6.9 mm [.27]
TS-2182-C
Sheet 2 of 2
5X04
AR
(RIA E1 & C1 Apply)
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
