891-006-37PS-BST1T datasheet, PDF

Datasheet> All Categories > The connector> The connector> 891-006-37PS-BST1T

891-006-37PS-BST1T: DescriptionHeaders u0026 Wire Housings SNG ROW VERT MNT PLG BST .110" FEMALE THR; CategoryThe connector The connector; File Size180KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

891-006-37PS-BST1T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	891-006-37PS-BST1T	-	-	View	Buy Now

891-006-37PS-BST1T Overview

Headers u0026 Wire Housings SNG ROW VERT MNT PLG BST .110" FEMALE THR

891-006-37PS-BST1T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	17 weeks 1 day
Other features	STANDARD: MIL-DTL-32139
Body/casing type	PLUG
Connector type	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

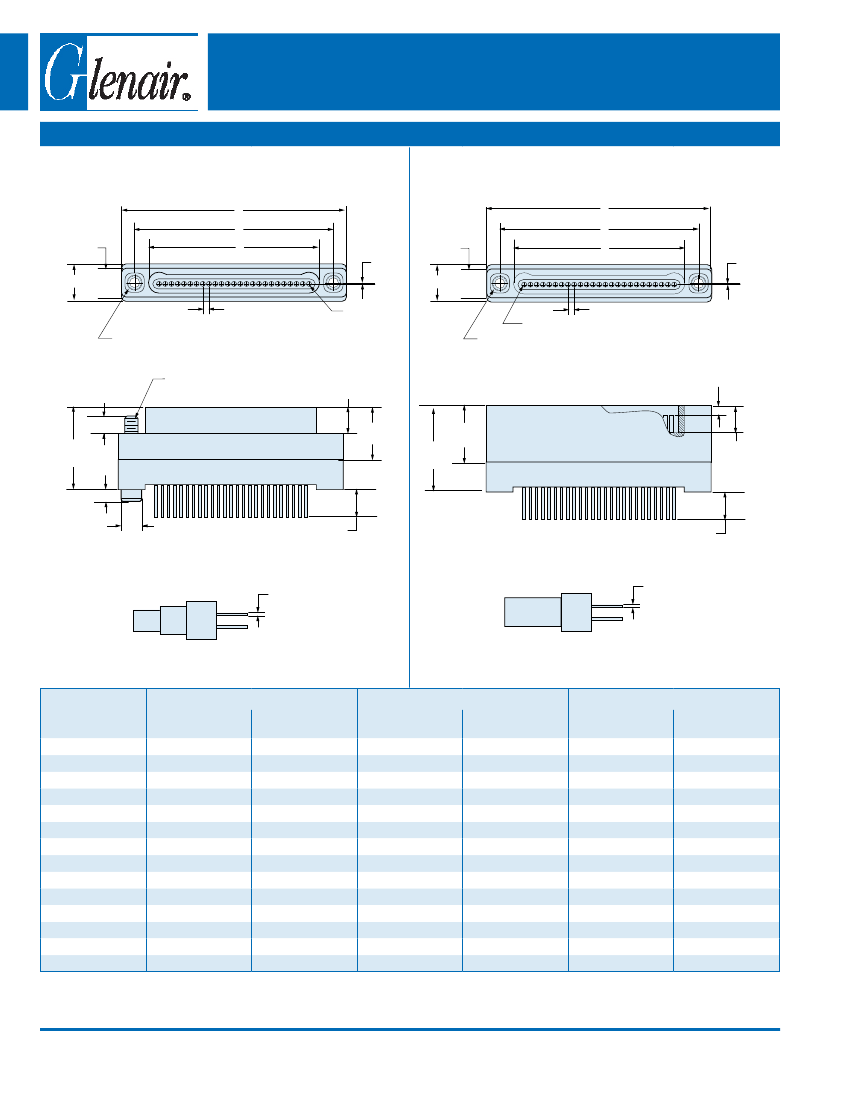

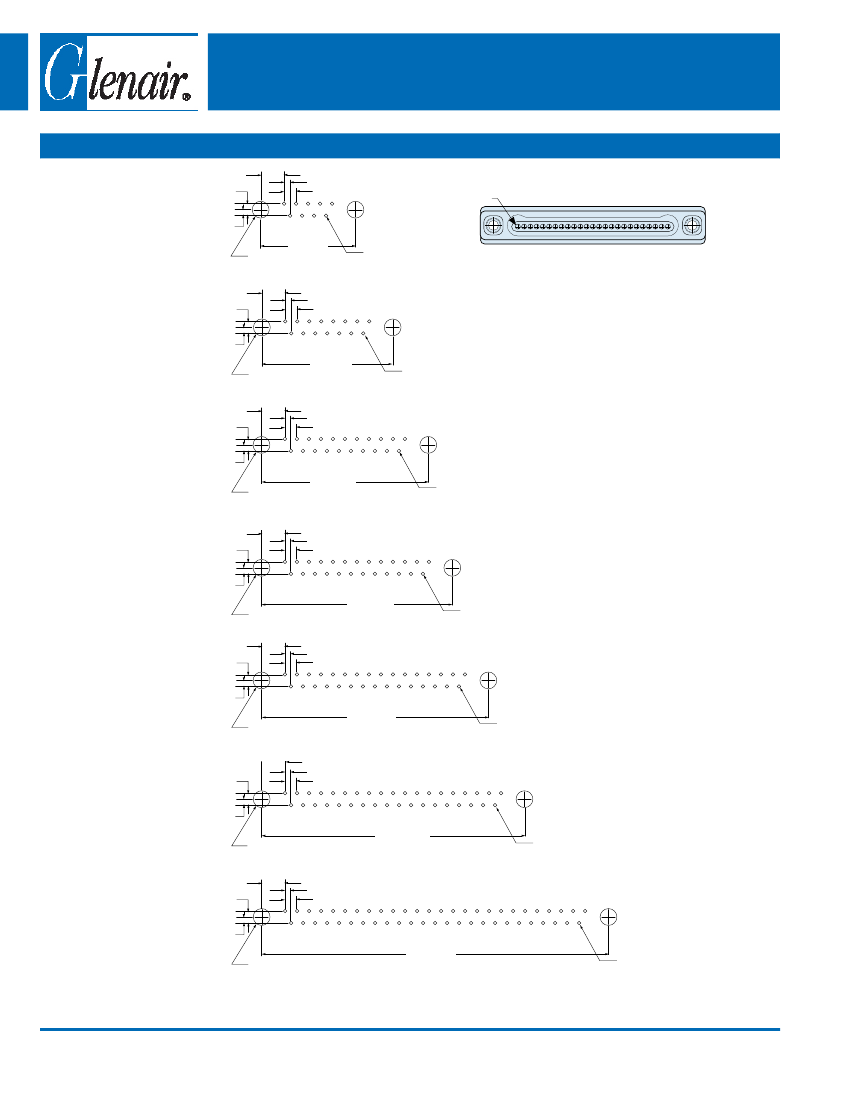

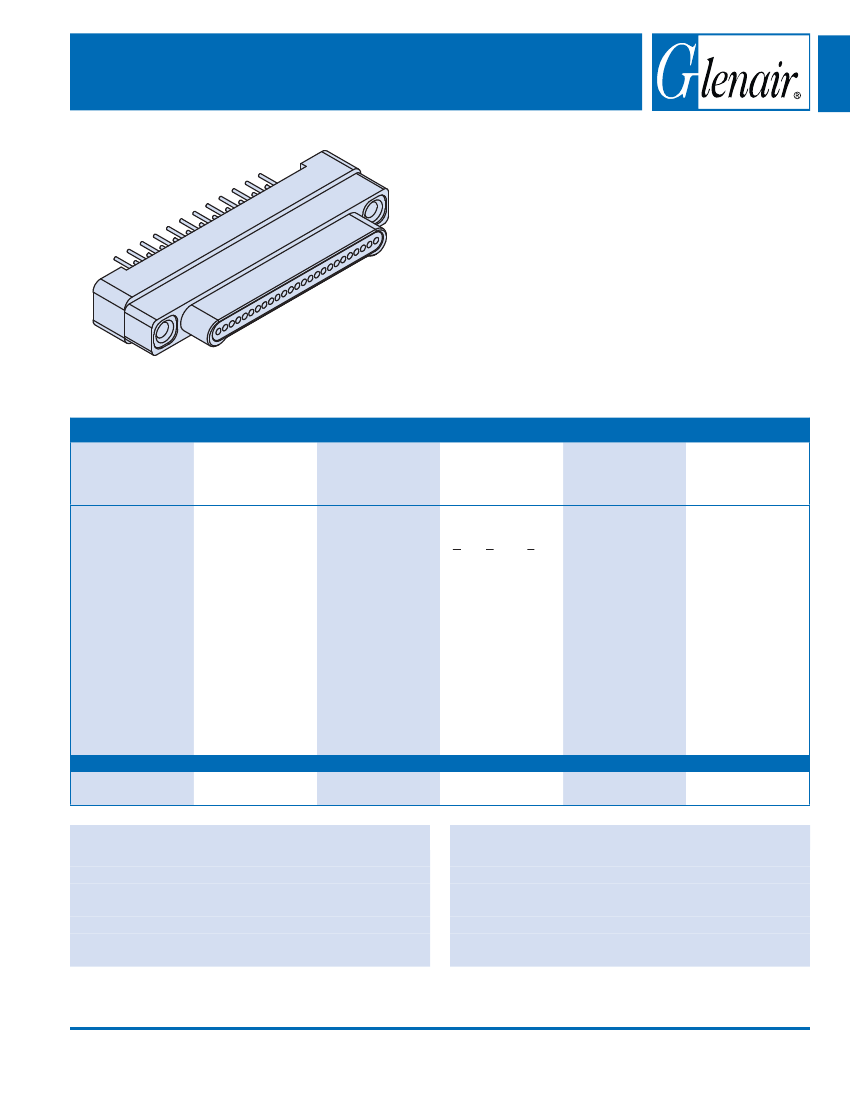

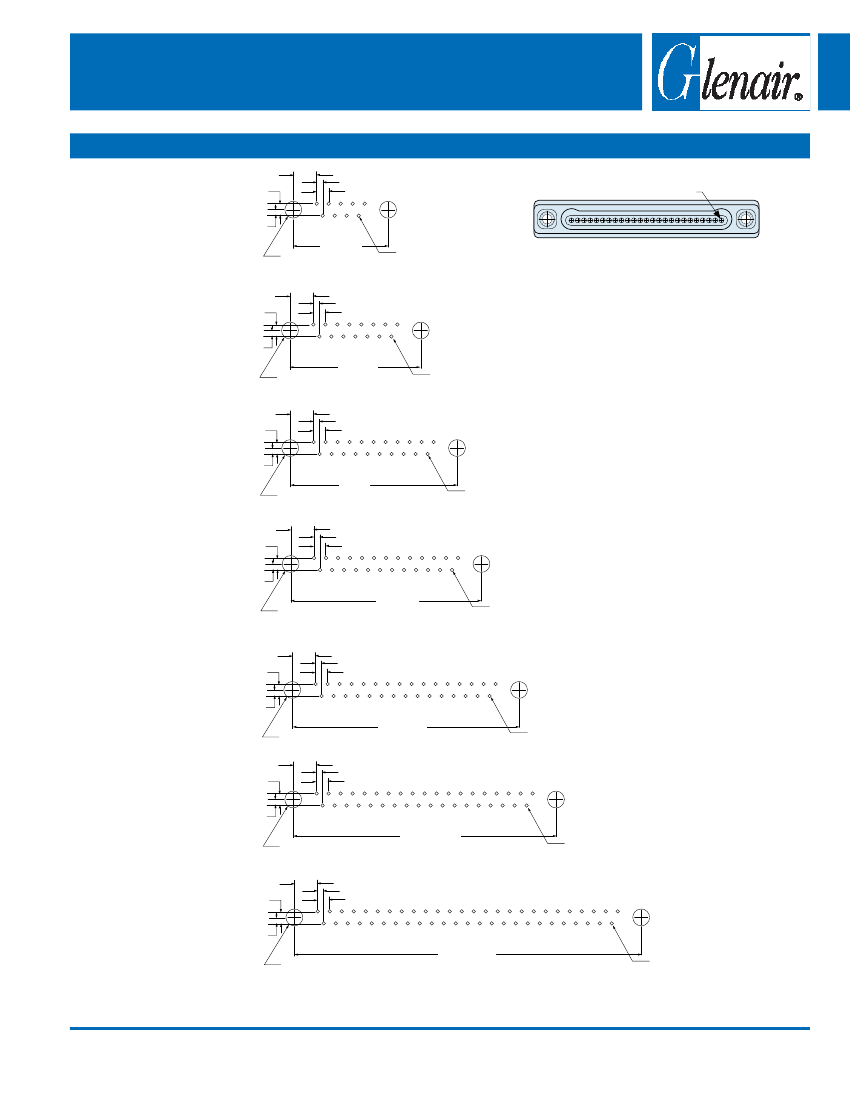

890-006 and -007

Series 89 Nanominiature Connectors

Single Row Vertical Mount Printed Circuit Board

Vertical Mount PCB Nano Connectors

feature gold

alloy TwistPin contacts. These nanomimiature connectors

offer premium performance and reliability for demanding

applications. Available with #0-80 female threads, or with

jackscrews for use with ﬂexible circuits.

Pre-Tinned PC Tails

are coated with Sn63Pb37 tin-lead

for excellent solderability.

Choose Aluminum, Titanium or Stainless Steel Shells

in seven layouts from 9 to 51 contacts. Complies to the

requirements of MIL-DTL-32139. These connectors are

intermateable with any corresponding Glenair Series 890

single row metal shell nanominiature connector.

HOW TO ORDER VERTICAL MOUNT PCB CONNECTORS

Series

Insert

Arrangement/

Contact Type

Plugs (890-006)

Shell Material

and Finish

Termination Type

PC Tail Length

Hardware

890-006

Plug, Pin Contacts,

Single Row, Vertical

PCB Nanominiature

15P

21P

25P

31P

37P

51P

Receptacles (890-007)

Aluminum Shell,

Cadmium Plating

BST

”Board

Straight Thru-

Hole”

.110 Inch (2.79 mm)

Jackscrew,

#0-80

Aluminum Shell,

Electroless Nickel

Plating

.172 Inch (4.37 mm)

#0-80

Female

Thread

890-007

Receptacle, Socket

Contacts, Single

Row, Vertical PCB

Nanominiature

15S

21S

25S

31S

37S

51S

Titanium Shell,

Unplated

Stainless Steel Shell,

Passivated

Sample Part Number

890-007

– 31S

– BST

MATERIALS AND FINISHES

Connector Shell

Insulator

Contacts

Hardware

PC Tails

PCB Trays

Encapsulant

See Ordering Information

Liquid Crystal Polymer (LCP),30% Glass-Filled

Gold Alloy, Unplated

300 Series Stainless Steel

#30 (.010 Dia.) Copper Wire, Solder Dipped

Liquid Crystal Polymer (LCP) or Epoxy

Epoxy

Durability

SPECIFICATIONS

200 Cycles Minimum

1 AMP Maximum

300 VAC RMS Sea Level

5000 Megohms Minimum

-55° C. to +125° C.

71 mV. @1 AMP #30 AWG Wire

1.0% Max TML, 0.1% Max. VCM

Current Rating

Voltage Rating (DWV)

Insulation Resistance

Operating Temperature

Contact Resistance

Thermal Vacuum Outgassing

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Single Row

Connectors

891-006-37PS-BST1T Related Products

	891-006-37PS-BST1T	891-007-9SS-BST1T	891-006-9PS-BST1T
Description	Headers u0026 Wire Housings SNG ROW VERT MNT PLG BST .110" FEMALE THR	Headers u0026 Wire Housings SNG ROW VERT MNT RCP BST .110" FEMALE THR	Headers & Wire Housings SNG ROW VERT MNT PLG BST .110" FEMALE THR
Is it Rohs certified?	conform to	conform to	conform to
Maker	Glenair	Glenair	Glenair
Reach Compliance Code	compliant	compliant	compliant
Factory Lead Time	17 weeks 1 day	17 weeks	17 weeks
Other features	STANDARD: MIL-DTL-32139	STANDARD: MIL-DTL-32139	STANDARD: MIL-DTL-32139
Body/casing type	PLUG	RECEPTACLE	PLUG
Connector type	D NANOMINIATURE CONNECTOR	D NANOMINIATURE CONNECTOR	D NANOMINIATURE CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	FEMALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0	e0	e0
MIL compliance	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	37	9	9
