FUJITSU SEMICONDUCTOR
DATA SHEET
DS07-10203-1E
Resonator
Piezoelectric Resonator
(4 to 23.9 MHz)
FAR Family (C4 series N type)
s
DESCRIPTION
Fujitsu resonators C4 series (N type) feature originally developed single crystals with a high electro-mechanical
coefficient (LiNbO
3
: lithium niobate), the result is very compact packaging.
C4 series (N type) with built-in capacitors for exclusive use in microcomputer clocks, and this series is ultra low
profile CHIP type device for surface-mount (SMT).
s
FEATURES
•
•
•
•
•
Ultra low profile H = 1.6 mm
Direct oscillation in 4 to 23.9 MHz frequency.
Suitable for the source of microcomputer clock
Emboss-typed pack for automatic mounting
Superior shock and vibration resistance, preventing damage during automatic mounting
s

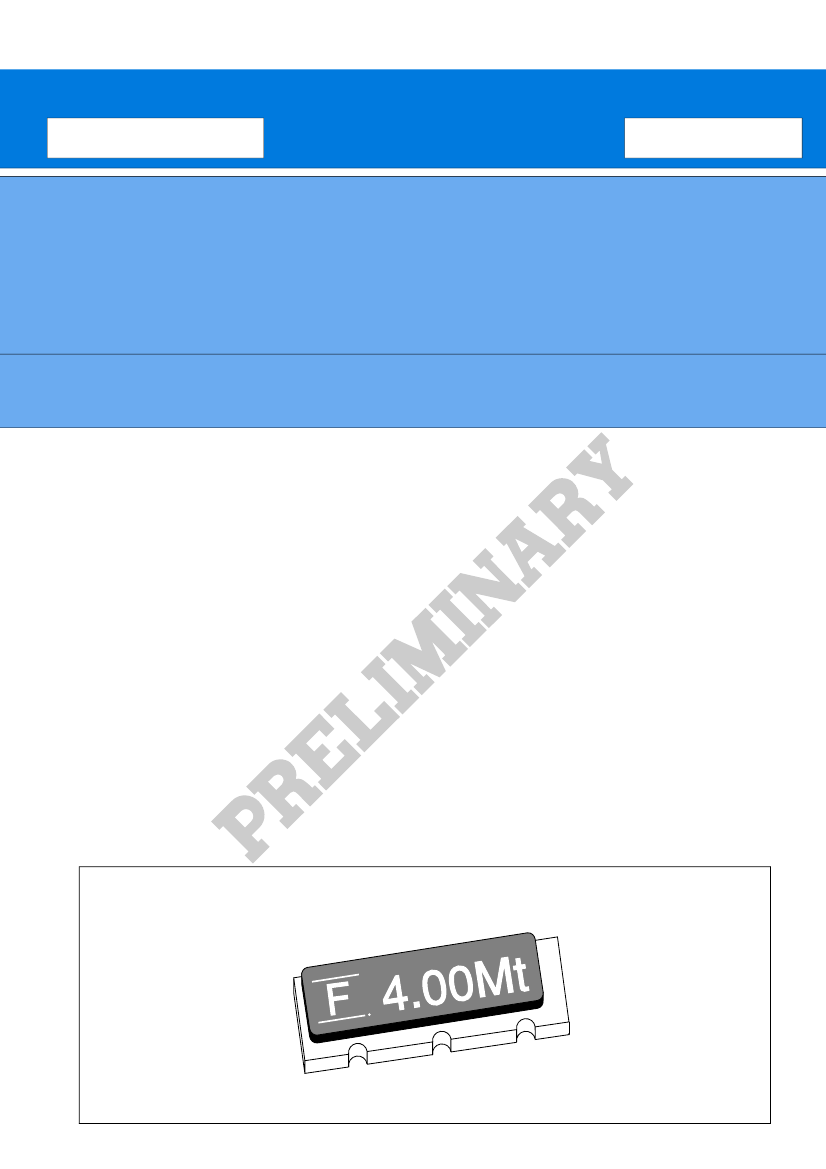

PACKAGE
FAR Family (C4 series N type)
s
STANDARD CHARACTERISTICS
Series
Parameter
Material
Frequency
Standard frequency
Initial frequency deviation
Temperature characteristic
(–20°C to +60°C)
Capacity of built-in capacitor
Aging stability
Operating temperature
Storage temperature
Standard measuring circuit
C4 series (N type)
Lithium Niobate (LiNbO
3
)
4 to 17 MHz
±0.3%
(K)
±0.5%
(M)
±1.0%
(L)
±0.5%
10±4 pF, 30±8 pF are also available.
Capacity is specified by Fujitsu,
considering matching data with
applied IC (mainly microcomputer).
17.1 to 23.9 MHz
When a frequency of more than
17.1 MHz, only L deviation type can
be made.
See “s Standard Frequency.”
±1.0%
(L)
Remarks
20±8 pF (standard)
Within
±0.1%
–30°C to +85°C
–40°C to +100°C
• Resonant frequency
1 MΩ
Less than 4 MHz to 10 MHz
IC: 1/6MB84069B×2
10 MHz to 20.0 MHz
IC: 1/6MC74HC04×2
20.1 MHz to 23.9 MHz
IC: 1/6MC74HCU04×2
R
C
1
C
2
• V
CC
: 5 V DC
• R: Resonator
• C
1
, C
2
: Loading capacitors (built-in)
FAR
• Serial resonant resistance
R
75
Ω
OSC
C
1
C
2
75
Ω
LM
R: Resonator
Measuring instrument: Network analyzer
2
FAR Family (C4 series N type)
s
STANDARD FREQUENCY
Standard frequency (kHz)
4,000
4,194
4,915
6,000
6,144
7,373
8,000
8,388
9,830
10,000
11,059
12,000
12,288
14,746
16,000
16,934
19,661
20,000
Package size
N
Resonant resistance
300
Ω
max.
(Symbol: 0)
N
75
Ω
max.
(Symbol: 2)
Notes:
• Fujitsu can also develop applicable device in addition to standard devices if it’s oscillation frequency is
from 4 to 23.9 MHz.
• Resonant resistance of the part other than standard, Fujitsu should specify its resonant resistance
according to applied frequency. (See “• Frequency and standard resonant resistance.”)
• Frequency and standard resonant resistance
Frequency
4.00 to 5.99 MHz
6.00 to 23.99 MHz
Standard resonant resistance
300
Ω
max. (Symbol: 0)
75
Ω
max. (Symbol: 2)
Note:
Resonant resistance of custom designed part should be specified considering matching condition with
applicable IC by Fujitsu.
s
NOTES ON USE
• Handle carefully
• Solder under the following conditions.
5 seconds max. at 230°C (PCB)
Recommended preheating is 150°C for one minute in order not to apply extreme heat to the resonator.
• Avoid extreme fluctuations in temperature.
• There is no specific direction in resonator mounting.
• Oscillation data should be examined when used in oscillation circuit with micon or other ICs.
• This is for reflow solder, not for flow solder.
3
FAR Family (C4 series N type)
s
PART NUMBERING SYSTEM
FAR — C 4 C N —
(1) (2) (3)
—
(4)
—
(5) (6) (7) (8) (9)
(1) Series
Series
C4
(2) Package Type
Specification
C
(3) Package Type
Specification
N
(4) Frequency
(Example) Unit: kHz (Specify in five digits.)
Frequency
7.373 MHz
See “s Standard Frequency”.
(5) Initial Frequency Deviation
Specification
K
M
L
(6) Built-in Capacitor
Specification
0
1
2
(7) Resonant Resistance
Specification
0
2
4
Resonant resistance
300
Ω
max.
75
Ω
max.
Capacitance
20±8 pF
10±4 pF
30±8 pF
Deviation
±0.3%
±0.5%
±1.0%
Specification
07373
Size
8.0
×
3.2
×
1.6
Type
CHIP
Single crystal
LiNbO
3
Capacitator
With built-in capacitator
FAR Family (C4 series N type)
(8) User-specific Special Symbols
Specification
Name
—
A to Z
(9) Resonant Resistance
Specification
R
Description
16 mm wide emboss tape coiled 3,000 times
Description
No specifications, no taping specification
No specifications, with taping specification
Serial number for custom design
5
