DT32-20133AS: DescriptionTelecom Transformer; CategoryPower management transformer; File Size56KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

DT32-20133AS Overview

Telecom Transformer

DT32-20133AS Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1.6
Certification	UL
high	12.5 mm
length	15 mm
Manufacturer's serial number	DT32-20133AS
Installation features	SURFACE MOUNT
physical size	15.0mm X 14.0mm X 12.5mm
main impedance	100 OHMS
secondary impedance	25 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	14 mm
Base Number Matches	1

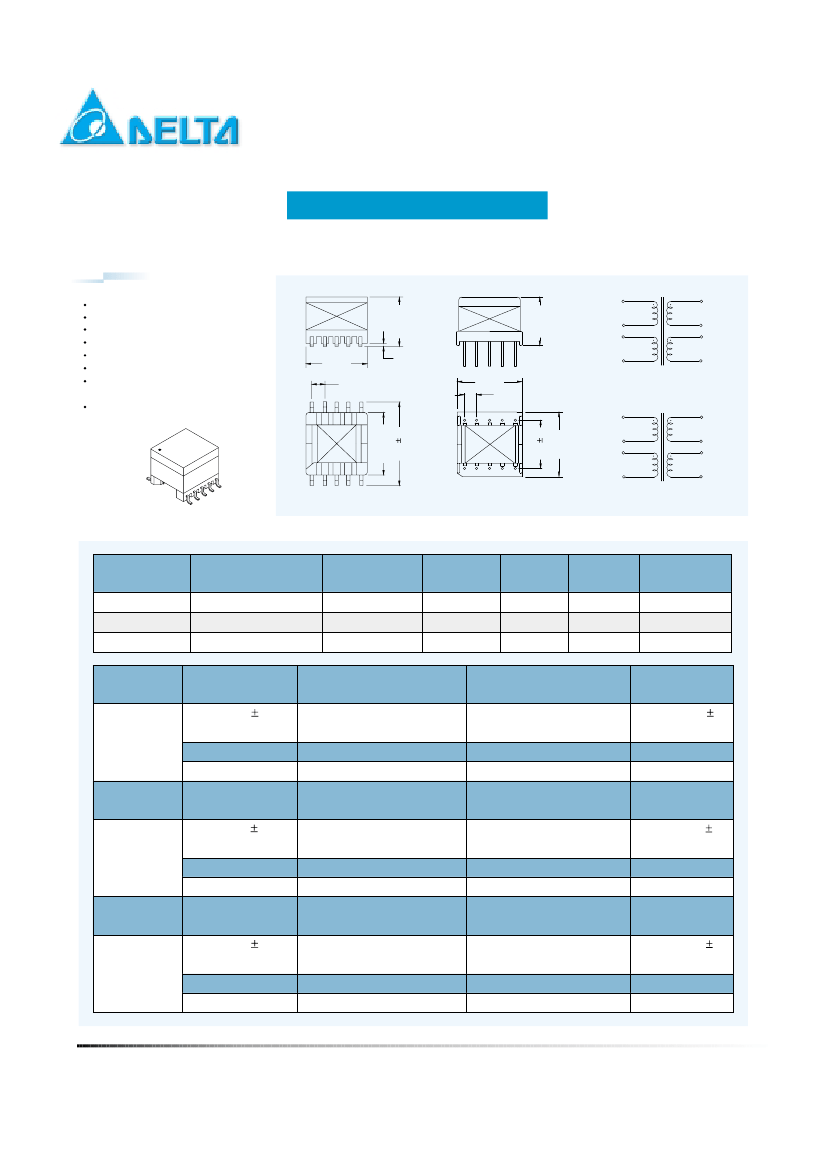

Preview

Download Datasheet

View All

Telecommunication

ADSL Transformer

Features

Designed to meet UL1950 requirements

Compatible with Alcatel chip

Good total harmonic distortion characteristics

Optimized design for size and performace

Customization available

Volume production and automated lines

For IC manufacturer approval status,

contact Delta

100 ohm line impedance

A

S

Components

12.5 MAX

12.7 MAX

1

N1

PRI

N3

10

7

9

N2

N4

4

2

5

SEC

14.0 MAX

2.54

0.3

14.0 MAX

2.54

6

(1)

1

17.10 0.2

10.16 0.3

15.0 MAX

14.0 MAX

10

N1

N3

LT

01

30

A

T

32

-2

PRI

3

2

N2

N4

8

9

7

(2)

SEC

D

E

4

SMD (Surface-mount)

THT (Through-Hole)

Globespan ADSL recommendations

Part Number

DT32-20130AS

DT32-20132AS

DT32-20133AS

Part Number

IC number

ATLAS

ALCATEL DYNAMITE

Inductance

@10KHz 0.1V

440uH 5

10-6@9-7,shorted

DT32-20130AS

Part Number

Insertion Loss

---

Inductance

@10KHz 0.1V

440uH 5

10-6@9-7,shorted

DT32-20132AS

Part Number

Insertion Loss

Inductance

@10KHz 0.1V

100uH 5

1-6@9-7,shorted

DT32-20133AS

Insertion Loss

---

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

Application

---

Mechanicals Schematic

SMD

1

Impedance

(PRI : SEC)

100 : 39

100 : 25

Safety Agency

UL1950

Turns Ratio

@10KHz 0.1V

2-4,9-7,shorted

Insolation Voltage

1875(Vrms)

Turns Ratio

@10KHz 0.1V

10-6 / 1-5:2.0 2%

2-4,9-7,shorted

Insolation Voltage

1875(Vrms)

Turns Ratio

@10KHz 0.1V

10-6 / 1-5:1.6 2%

2-4,9-7,shorted

Insolation Voltage

1875(Vrms)

Leakage Inductance

@100KHz 0.1V

11uH MAX@

9-7,1-2-4-5,shorted

THD

-90dB MAX@100KHz,12Vpp

Leakage Inductance

@100KHz 0.1V

10uH MAX@300KHz

9-7,1-2-4-5,shorted

THD

Leakage Inductance

@100KHz 0.1V

10uH MAX@

9-7,1-2-4-5,shorted

THD

-85dB MAX@100KHz,4.24Vrms

DC Resiatance

(Ohm)

R(1-5):1.5 MAX@2-4,shorted

L.B

40dB MIN@30-300KHz

DC Resiatance

(Ohm)

R(10-6):0.8 MAX@9-7,shorted

R(1-5):1.25 MAX@2-4,shorted

L.B

50dB MIN@20K-1MHz

DC Resiatance

(Ohm)

R(10-7)=R(9-6)=0.40

R(1-4)=R(2-5)=0.25

L.B

50dB MIN@150K-1MHz

R(10-6) : 2.3 MAX@9-7,shorted 10-6 / 1-5:1.6 2%

0.6dB@150K-1MKHz -85dB MAX@100KHz,4.24Vrms

TEL: 886-3-3591968; FAX: 886-3-3591991

Http://www.deltaww.com

1-4

DT32-20133AS Related Products

	DT32-20133AS	DT32-20130AS	DT32-20132AS
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer
Maker	Delta Electronics	Delta Electronics	Delta Electronics
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1.6	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 1.6	HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO: 2
Certification	UL	UL	UL
high	12.5 mm	12.5 mm	12.5 mm
length	15 mm	15 mm	15 mm
Manufacturer's serial number	DT32-20133AS	DT32-20130AS	DT32-20132AS
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	15.0mm X 14.0mm X 12.5mm	15.0mm X 14.0mm X 12.5mm	15.0mm X 14.0mm X 12.5mm
main impedance	100 OHMS	100 OHMS	100 OHMS
secondary impedance	25 OHMS	39 OHMS	25 OHMS
surface mount	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	14 mm	14 mm	14 mm
Base Number Matches	1	1	1
