2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Standard Option
TG30L =
0.76 [30] Min. Au Contact Area, Lubricated
2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Typically higher make order quantities as compared to TG30.
TG50 =
1.27 [50] Min. Au Contact Area, Lubricated
2.54 [100] Min. SnPb Terminal Area (RIA C2 & E2 apply)
1.27 [50] Min. Ni All over
Non-Standard Option (Available with longer lead times and
higher make order quantities, MOQ)
TS-2003-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™

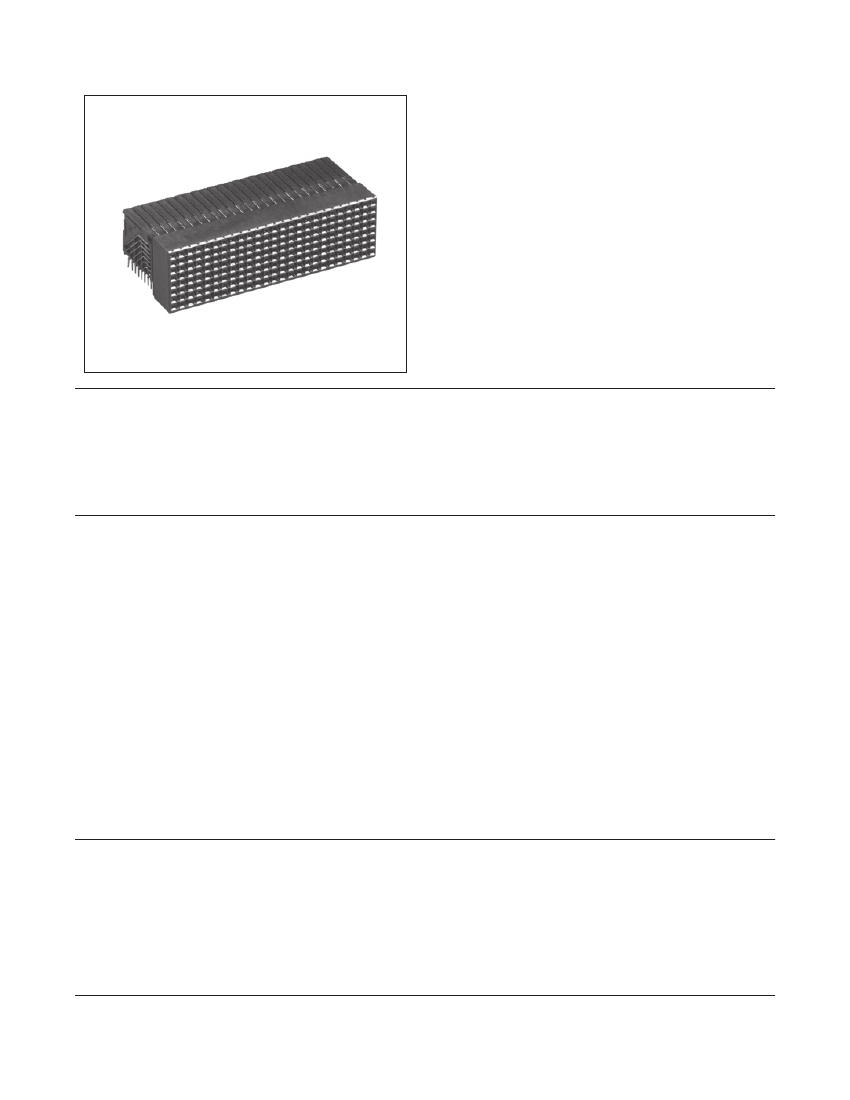

HSHM Press-Fit Socket

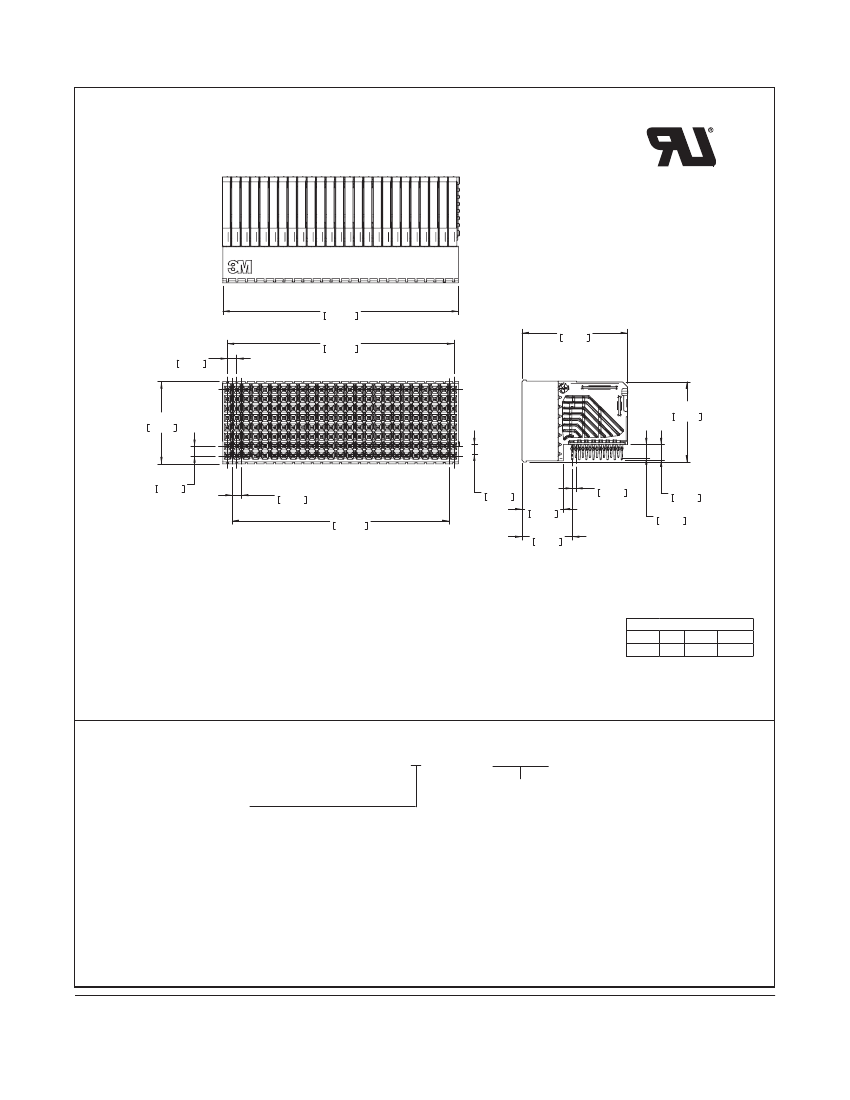

2 mm Type E, 200 Signal Contacts, 8 Rows, Right Angle
HSHM Series
48.00
2.00
1.00
1.50
0.75
-B-
10.50
I, Z
H
G
F
E
D
C
B
A
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9
8
7
6
5
4
3
2
1
-C-
1.50
Ø
DIM D
Plated thru holes
Ø
0.10
M
A B C
-A-

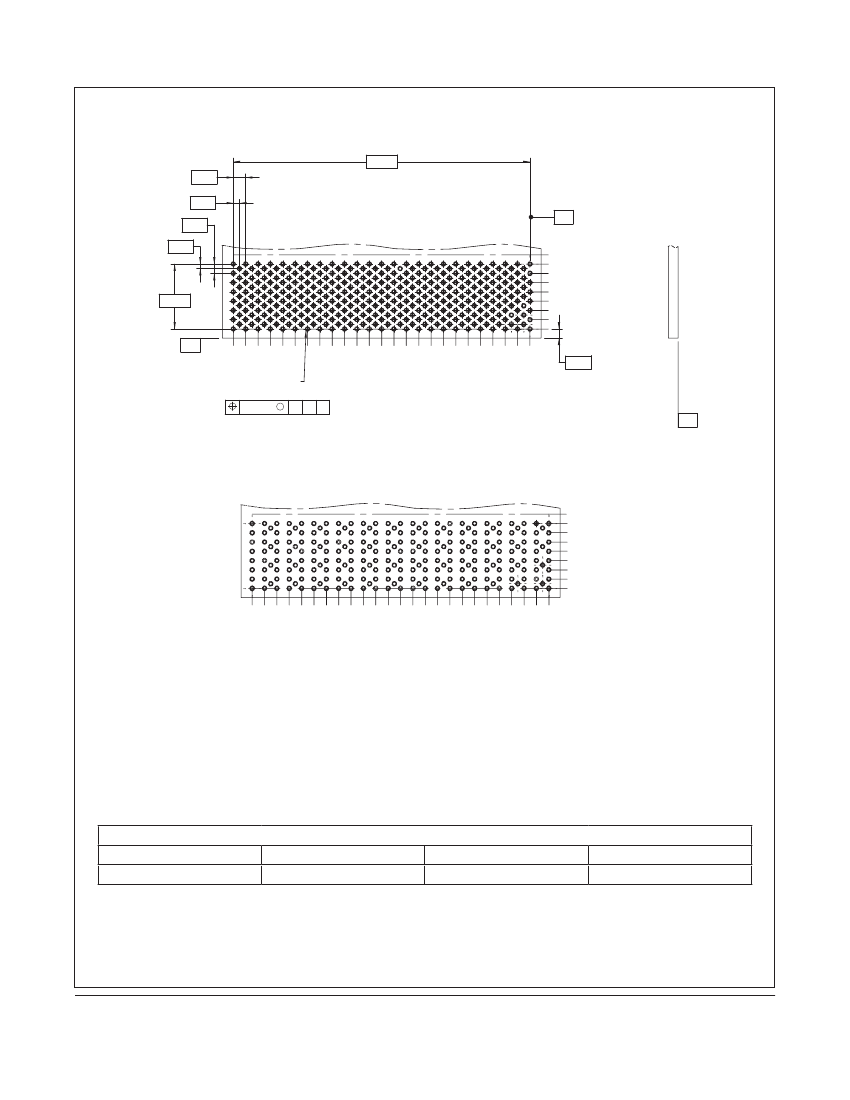

Recommended PCB hole mounting pattern for coaxial,
column differential, and stripline applications
I, Z
H
G
F
E
D
C
B
A
25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9
8
7
6
5
4
3
2
1
Recommended PCB hole mounting pattern for row
differential applications
(same geometry as above without the ground vias)
Hole Plating Table mm [in.]
Finsihed Hole Dia. “D”
0.457 - 0.559 [.0180 - .0220]
Cu. Thickness
0.025 - 0.045 [.0010 - .0018]
SnPb Thickness
0.008 -0.018 [.0003 - .0007]
Drilled Hole Dia.
0.584 - 0.625 [.0230 - .0246]
TS-2003-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
