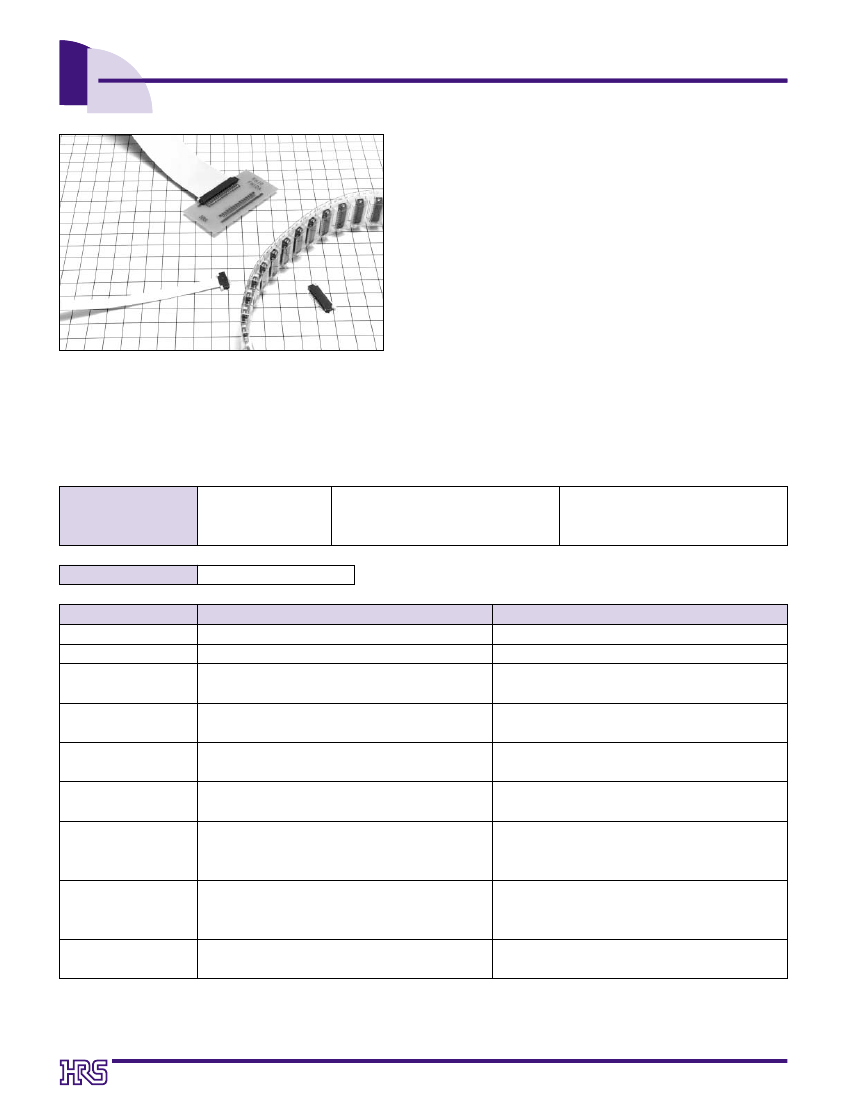

1mm Pitch FPC/FFC Connector
FH10A Series
sFeatures
1. ZIF Mechanism
ZIF mechanism allows a stable contact to slightly insert FPC
and FFC connectors and push movable members, so that
mounting serviceability can be secured.
2. 1mm Pitch Connector Suitable to SMT
This connector is installed in the board with high density, and
automatic mountable SMT type, while the contact pitch is 1mm.
3. Products Packaged in Embossed Tapes
Products packaged in embossed tapes are available,
correspondent to automatic mounting.
sApplications
HDD, facsimiles, printers, VTR, crystal liquid modules, etc.
sProduct
Specifications
Rating
Rated Current: 0.5A
Rated Voltage: 50V AC
Operating Temperature Range:-55~+85ç (Note 1) Storage Temperature Range:-10~+60ç (Note 2)
Operating Humidity Range:Relative humidity, 90% max. Storage Humidity Range:Relative humidity, 90% max.
(Not dewed)
Applicable FPC
Item
1. Insulation Resistance
2. Withstand voltage
3. Contact Resistance
4. Mechanical operation
5. Vibration
6. Shock
500Mø min
Neither short or breakdown should occur
25mø max.
* FPC conductor resistance included
Contact resistance : 25mø max.
No part should be broken, cracked or loosened
Electrical discontinuity, 1µs min.
No part should be broken, cracked or loosened
Electrical discontinuity, 1µs min.
No part should be broken, cracked or loosened
Contact resistance: 25mø max.
Insulation resistance: 50Mø min.
No part should be broken, cracked or loosened
Contact resistance: 25mø max.
Insulation resistance: 50Mø min.
No part should be broken, cracked or loosened
Neither appearance should be
deformed nor contact remarkably loosened.
t=0.3±0.5 Solder plating
Specification
Measured at 100V DC
500V AC for 1 minute
Measured at 100A
Condition
(Not dewed)
30 cycles
Frequency: 10~55Hz and full amplitude 1.52mm in
3 directions for 2 hours, respectively
Acceleration: 490m/S
2
, duration: 11ms, sine half-wave
in 3 directions for 3 times, respectively
7. Moisture Resistance in Steady State
Exposed to temperature 40ç and humidity 90~95% for 96 hours
8. Temperature Cycle
Temperature: -40ç¡+15~35¡+85¡+15~+35ç
Time: 30
¡
5~30 max.
¡
5 minutes
5 cycles under conditions as follows
Reflow: According to recommended temperature profile
Automatic soldering: 350±5 for 3 seconds
9. Resistance to Soldering heat
Note 1. Temperature rise included when energized
Note 2. This storage indicates a long-term storage state for the unusedproduct before board mounted.The operating temperature and
humidity ranges are applied to the non-energized state after the connector has been installed in the board.
Note 3. The above standards represent this series. The individual formal agreement should be based on the "Specification"
D10
sMaterial
Part
Insulator
Contact
Material
PBT
Phosphor bronze
Finish
Natural
Solder plating
Remarks
UL94V-0
–––––––
sOrdering
Information
Please determine the specific product. If needed, please select and order the product from the product No. as listed on
catalog page D12 and D13.
FH 10A - 10 S - 1 SH B (02)
q
q
Series Name
w
Series No.
: FH
: 10A
w
e
r
t
y
u
i
y
Contact Style
: SH : SMT type
B : With boss
i
Package style
: No symbol···Tube : packaging
(02)···Embossed tape packaging
u
Positioning boss : No symbol : Without boss
e
Number of Contacts: 6 to 30
r
Contact alignment: Single
t
Contacts Pitch : 1mm
BFPC
· FFC Dimensions
Unit : mm
Size
Number of Contacts
6
7
8
9
10
11
12
13
14
15
16
17
18
A
05
06
07
08
09
10
11
12
13
14
15
16
17
B
07
08
09
10
11
12
13
14
15
16
17
18
19
Size
Number of Contacts
19
20
21
22
23
24
25
26
27
28
29
30
A
18
19
20
21
22
23
24
25
26
27
28
29
B
20
21
22
23
24
25
26
27
28
29
30
31
Note: If FPC uses adhesive agent,
specify MIN 0.25 without
containing adhesive agent.

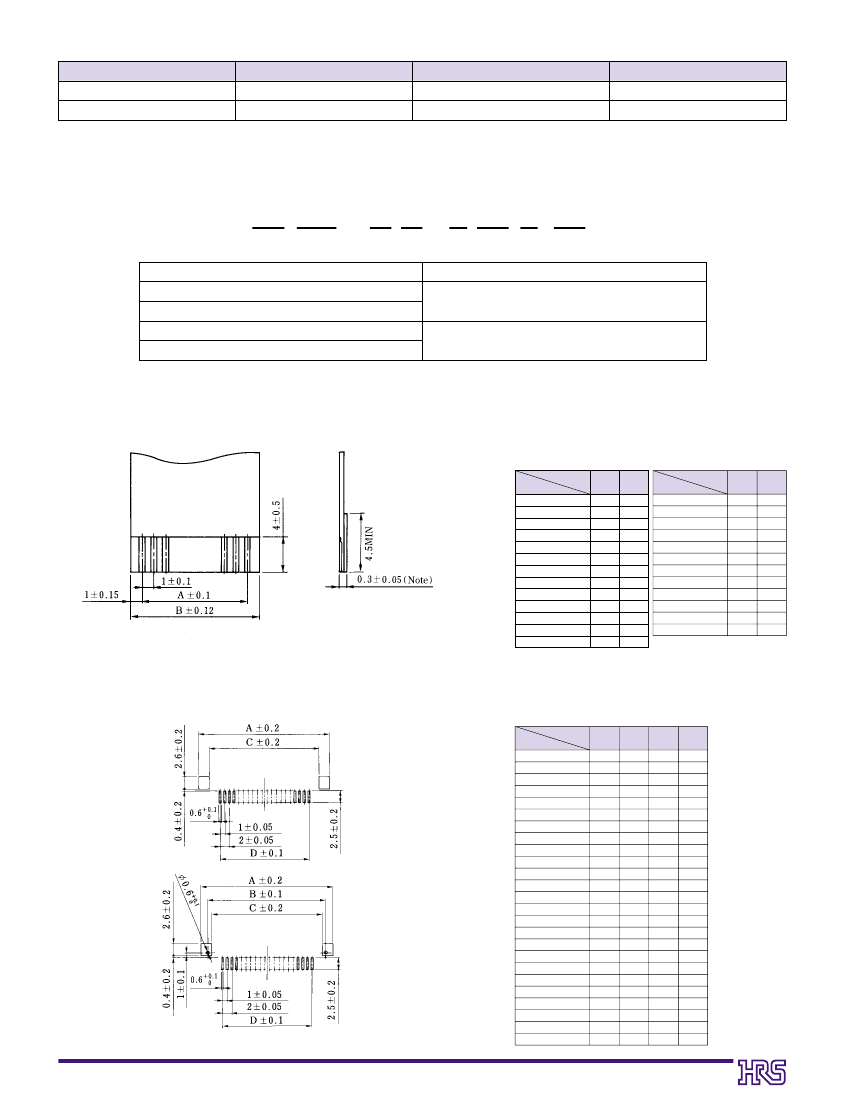

BPCB
Footprints
qWithout
boss
Size
Number of Contacts
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
A
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
B
10.9
11.9
12.9
13.9
14.9
15.9
16.9
17.9
18.9
19.9
20.9
21.9
22.9
23.9
24.9
25.9
26.9
27.9
28.9
29.9
30.9
31.9
32.9
33.9
34.9
Unit : mm
C
09.4
10.4
11.4
12.4
13.4
14.4
15.4
16.4
17.4
18.4
19.4
20.4
21.4
22.4
23.4
24.4
25.4
26.4
27.4
28.4
29.4
30.4
31.4
32.4
33.4
D
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
qWith
Boss
D11

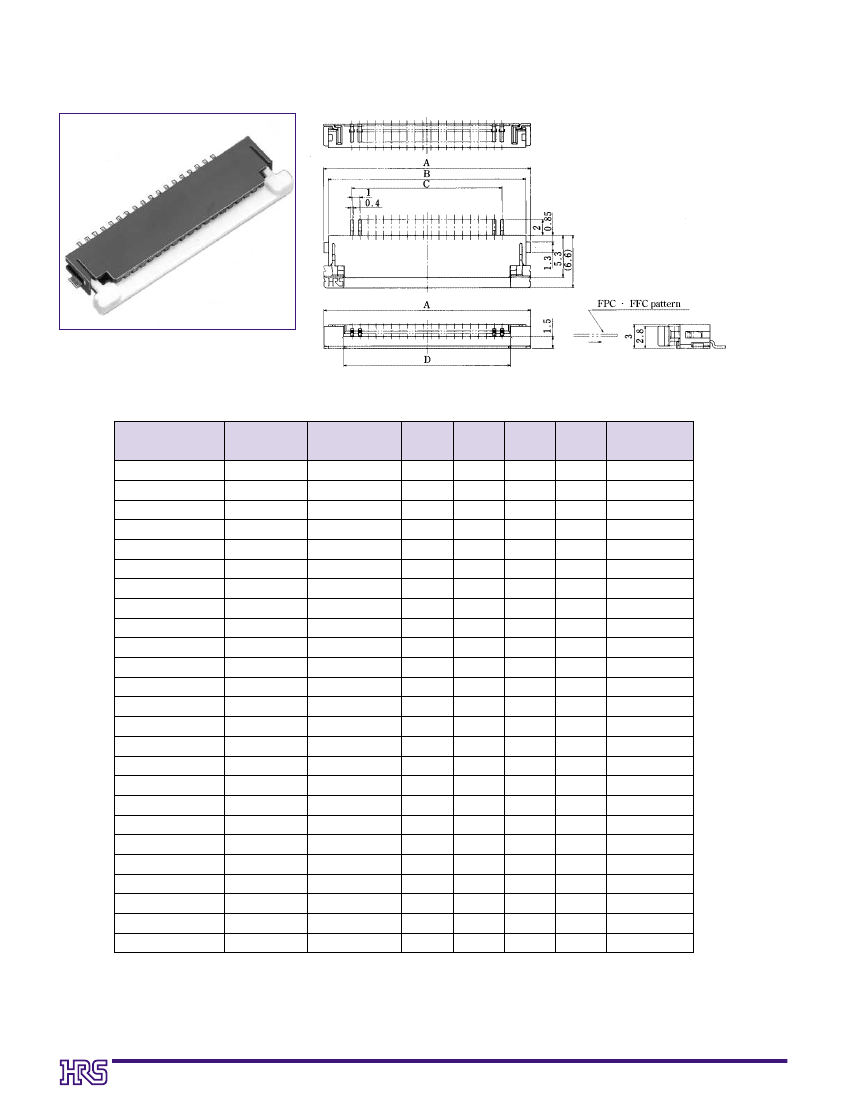

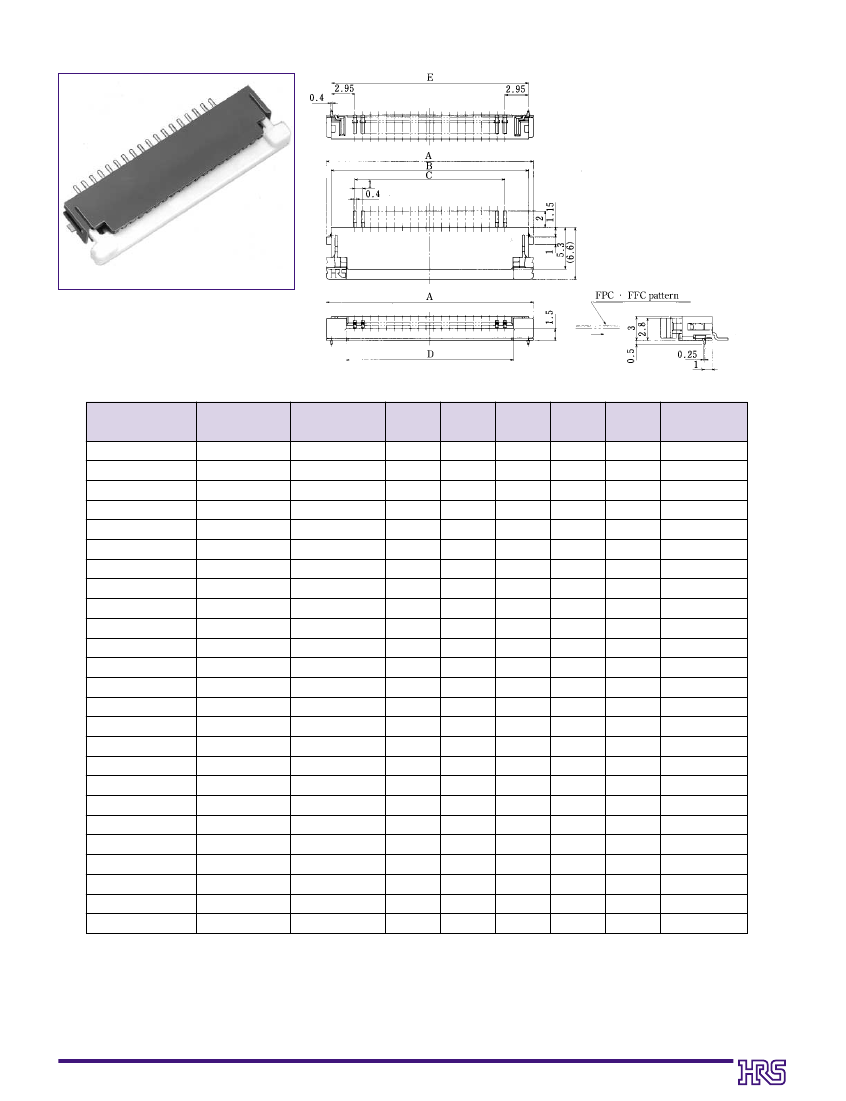

sWithout
Boss Type
Unit:mm
Product No.
FH10A-06S-1SH
FH10A-07S-1SH
FH10A-08S-1SH
FH10A-09S-1SH
FH10A-10S-1SH
FH10A-11S-1SH
FH10A-12S-1SH
FH10A-13S-1SH
FH10A-14S-1SH
FH10A-15S-1SH
FH10A-16S-1SH
FH10A-17S-1SH
FH10A-18S-1SH
FH10A-19S-1SH
FH10A-20S-1SH
FH10A-21S-1SH
FH10A-22S-1SH
FH10A-23S-1SH
FH10A-24S-1SH
FH10A-25S-1SH
FH10A-26S-1SH
FH10A-27S-1SH
FH10A-28S-1SH
FH10A-29S-1SH
FH10A-30S-1SH
HRS No.
CL586-0495-2
CL586-0496-5
CL586-0497-8
CL586-0498-0
CL586-0499-3
CL586-0500-0
CL586-0501-3
CL586-0502-6
CL586-0503-9
CL586-0504-1
CL586-0505-4
CL586-0506-7
CL586-0507-0
CL586-0508-2
CL586-0509-5
CL586-0510-4
CL586-0511-7
CL586-0512-0
CL586-0513-2
CL586-0514-5
CL586-0515-8
CL586-0516-0
CL586-0517-3
CL586-0518-6
CL586-0519-9
Number of Contacts
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
A
12.2
13.2
14.2
15.2
16.2
17.2
18.2
19.2
20.2
21.2
22.2
23.2
24.2
25.2
26.2
27.2
28.2
29.2
30.2
31.2
32.2
33.2
34.2
35.2
36.2
B
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
C
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
D
07.15
08.15
09.15
10.15
11.15
12.15
13.15
14.15
15.15
16.15
17.15
18.15
19.15
20.15
21.15
22.15
23.15
24.15
25.15
26.15
27.15
28.15
29.15
30.15
31.15
Tube packed
Quantity (pcs.)
39
36
33
31
29
27
26
25
23
22
21
20
19
19
18
17
17
16
15
15
14
14
14
13
13
Note 1. Please order the products, thus multiplying the tube packaging quantity by an integer.
Note 2. The emboss package specification is also provided. If needed, please contact Hirose Sales Department.
(Number of contacts: 8, 10, 11, 12, 14, 15, 16, 18, 19, 20, 22, 24, 25, 30 and others will be sequentially specified.)
In addition, the emboss package contains 1,000 pcs./reel.
D12
