3-794618-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794618-8

3-794618-8: Description08P MICRO MNL ASSY R/A HDR LF; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794618-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794618-8	-	-	View	Buy Now

3-794618-8 Overview

08P MICRO MNL ASSY R/A HDR LF

3-794618-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	POLARIZATION
Board mount options	PEG
body width	0.29 inch
subject depth	0.469 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	794617-8
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.138 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	2

Preview

Download Datasheet

View All

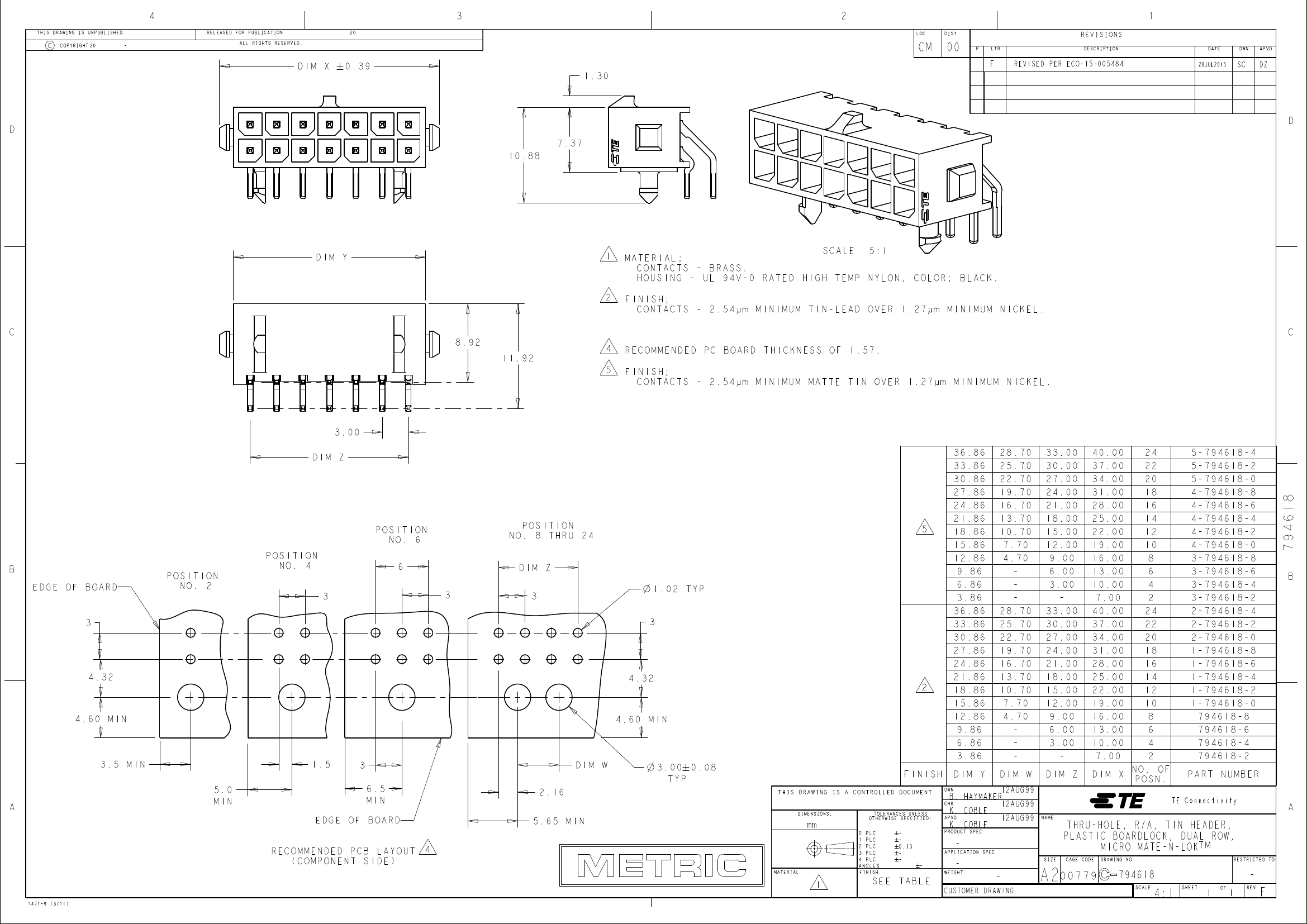

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

DIM X

# 0.39

1.30

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-15-005484

28JUL2015

10.88

7.37

DIM Y

SCALE

5:1

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON, COLOR; BLACK.

FINISH;

CONTACTS - 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM NICKEL.

8.92

11.92

RECOMMENDED PC BOARD THICKNESS OF 1.57.

FINISH;

CONTACTS - 2.54µm MINIMUM MATTE TIN OVER 1.27µm MINIMUM NICKEL.

3.00

DIM Z

36.86

33.86

30.86

27.86

24.86

POSITION

NO. 6

POSITION

NO. 8 THRU 24

DIM Z

1.02

TYP

21.86

18.86

15.86

12.86

9.86

6.86

36.86

33.86

30.86

27.86

4.32

24.86

4.32

21.86

18.86

15.86

4.60

MIN

4.60

MIN

12.86

9.86

6.86

3.5

MIN

5.0

MIN

1.5

6.5

MIN

EDGE OF BOARD

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

MATERIAL

28.70

25.70

22.70

19.70

16.70

13.70

10.70

7.70

4.70

28.70

25.70

19.70

16.70

10.70

7.70

4.70

DIM W

12AUG99

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

27.00

24.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

21.00

30.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

16.00

13.00

10.00

40.00

34.00

31.00

25.00

22.00

16.00

19.00

13.00

10.00

7.00

DIM X

28.00

37.00

7.00

19.00

5- 794618 -4

5- 794618 -2

5- 794618 -0

4- 794618 -8

4- 794618 -4

4- 794618 -2

4- 794618 -0

3- 794618 -8

3- 794618 -6

3- 794618 -4

2- 794618 -4

2- 794618 -0

1- 794618 -8

1- 794618 -4

1- 794618 -2

1- 794618 -0

794618 -8

794618 -6

794618 -4

794618 -2

PART NUMBER

TE Connectivity

EDGE OF BOARD

POSITION

NO. 2

POSITION

NO. 4

3.86

3- 794618 -2

22.70

2- 794618 -2

13.70

1- 794618 -6

DIM W

2.16

5.65

MIN

3.00

TYP

0.08

3.86

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

DIM Y

B. HAYMAKER

K. COBLE

NO. OF

POSN.

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

K. COBLE

NAME

APPLICATION SPEC

1471-9 (3/11)

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

THRU-HOLE, R/A, TIN HEADER,

PLASTIC BOARDLOCK, DUAL ROW,

MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794618

SCALE

4:1

SHEET

REV

794618

4- 794618 -6
