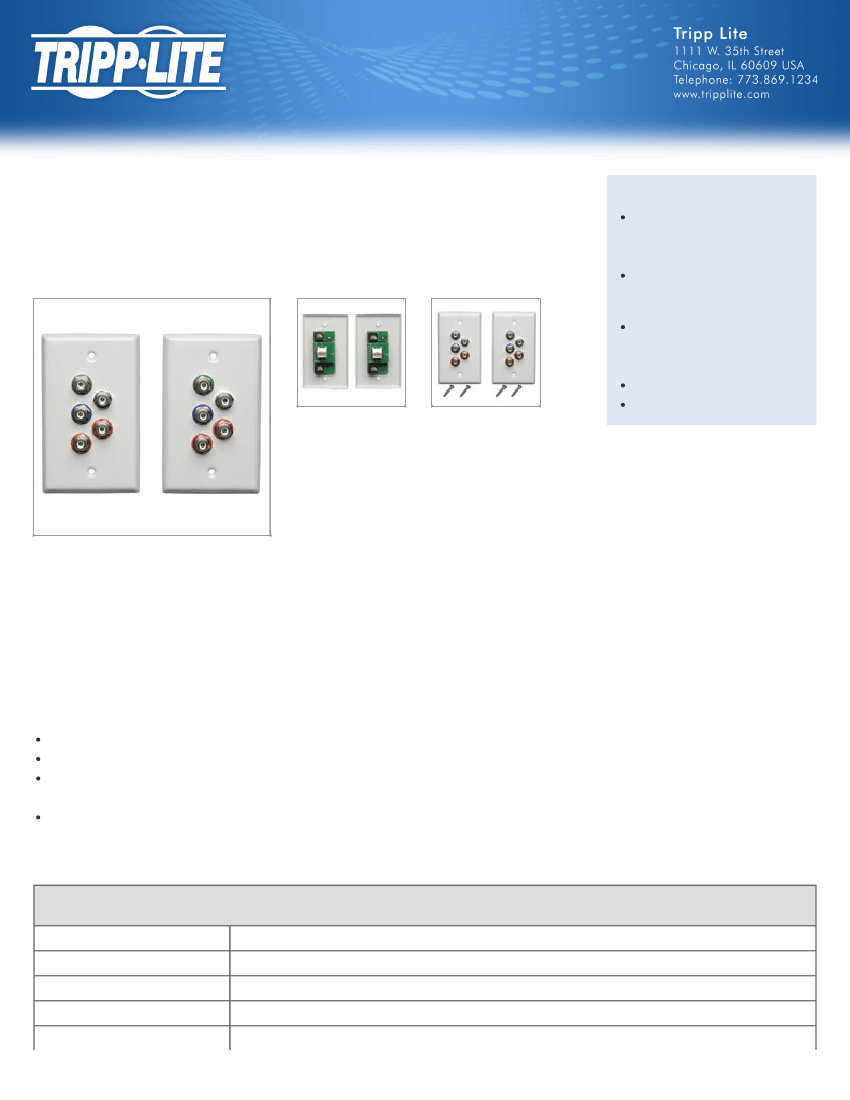

Component Video with Stereo Audio over Cat5/Cat6
Extender Kit, Wallplate Transmitter and Receiver,
Up to 700-ft.
MODEL NUMBER:
B136-101-WP-1
Highlights
Extends a 1080i (60Hz)
Component Video and Stereo
Audio signal up to 300 ft.
No external power required
Package Includes
B136-101-WP-1 Cat5 Extender
Wallplate Kit with Component
Video + Stereo Audio ( 2 pieces )
Wallplate Mounting Screws
Owner's Manual
Description
Tripp Lite's B136-101-WP-1 Cat5 Extender Wallplate Kit with Component Video + Stereo Audio comes with both local and remote wallplates, allowing you to
place a TV, Projector, etc up to 300 ft. away from the source. A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300 ft. when
using 24Awg, Solid Wire UTP cable (Tripp Lite
N022-01K-GY
or
N222-01K-GY);
or up to 400 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K).
A
480p (60Hz) Component Video and Stereo Audio signal can be extended up to 500 ft. when using 24Awg, Solid Wire UTP cable (Tripp Lite
N022-01K-GY
or
N222-01K-GY);
or up to 700 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K).
Simple RJ45 Jack connection on the back of the wallplates. No
external power required.
Features
Comes with both local and remote wallplates
Easy RJ45 rear connection jacks on both wallplates
A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300 ft. when using 24Awg, Solid Wire UTP cable (Tripp Lite
N022-01K-GY
or
N222-01K-GY);
or, up to 400 ft. when using Zero-Skew UTP cable (Tripp Lite
P524-01K)
No external power required
Specifications
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 480i Range (ft)
700
700
400
400
700
1/2
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
700
700
400
400
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
Side B - Connector 2
1
(5) RCA (FEMALE)
RJ45 (FEMALE)
(5) RCA (FEMALE)
RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
2/2
