3-794628-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794628-8

3-794628-8: DescriptionCombination Line Connector, 8 Contact(s), Male, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size203KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794628-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794628-8	-	-	View	Buy Now

3-794628-8 Overview

Combination Line Connector, 8 Contact(s), Male, Surface Mount Terminal, Plug

3-794628-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2040065590
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	08P MICRO MNL ASSY,R/A,SMT LF
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-07-24 15:50:11
YTEOL	6.95
Other features	MATE-N-LOK
subject depth	0.319 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	5A
Match contact row spacing	0.118 inch
Plug information	794617-8
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	5 A
Rated voltage	250 V
Guideline	UL
Terminal length	0.125 inch
Terminal pitch	3 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

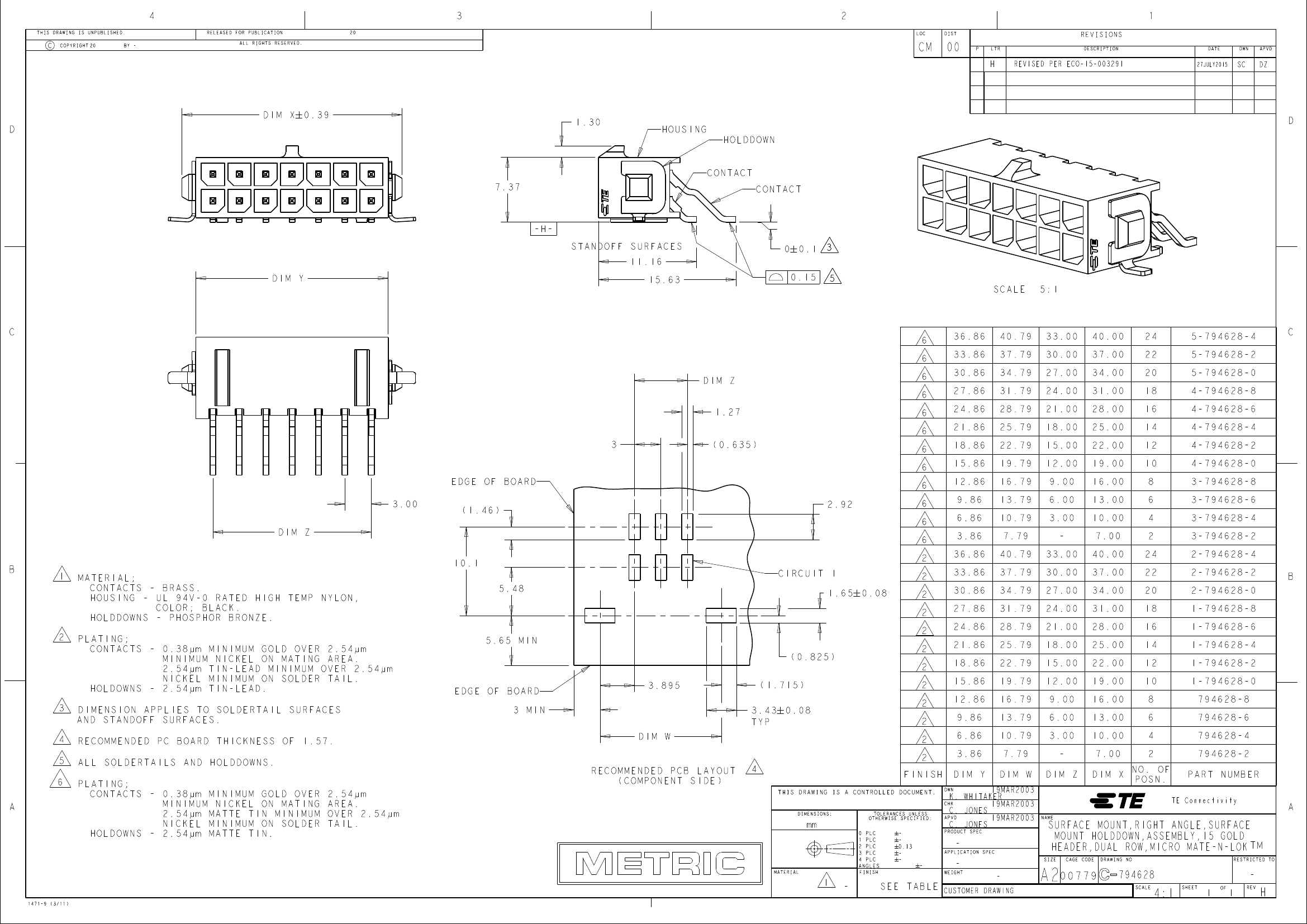

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-15-003291

27JULY2015

DIM X # 0.39

1.30

HOUSING

HOLDDOWN

CONTACT

7.37

-H-

STANDOFF SURFACES

11.16

DIM Y

15.63

0 # 0.1 3

SCALE

5:1

DIM Z

1.27

( 0.635 )

2.92

10.1

MATERIAL;

CONTACTS - BRASS.

HOUSING - UL 94V-0 RATED HIGH TEMP NYLON,

COLOR; BLACK.

HOLDDOWNS - PHOSPHOR BRONZE.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER 2.54µm

MINIMUM NICKEL ON MATING AREA.

2.54µm TIN-LEAD MINIMUM OVER 2.54µm

NICKEL MINIMUM ON SOLDER TAIL.

HOLDOWNS - 2.54µm TIN-LEAD.

DIMENSION APPLIES TO SOLDERTAIL SURFACES

AND STANDOFF SURFACES.

RECOMMENDED PC BOARD THICKNESS OF 1.57.

ALL SOLDERTAILS AND HOLDDOWNS.

PLATING;

CONTACTS - 0.38µm MINIMUM GOLD OVER

MINIMUM NICKEL ON MATING

2.54µm MATTE TIN MINIMUM

NICKEL MINIMUM ON SOLDER

HOLDOWNS - 2.54µm MATTE TIN.

2.54µm

AREA.

OVER 2.54µm

TAIL.

5.48

CIRCUIT 1

1.65

0.08

5.65

MIN

( 0.825 )

EDGE OF BOARD

3 MIN

DIM W

RECOMMENDED PCB LAYOUT

(COMPONENT SIDE)

3.895

( 1.715 )

3.43

TYP

0.08

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM Y

K. WHITAKER

C. JONES

40.79

37.79

34.79

31.79

28.79

25.79

22.79

19.79

16.79

13.79

10.79

7.79

40.79

37.79

34.79

31.79

28.79

25.79

22.79

19.79

16.79

13.79

10.79

7.79

DIM W

19MAR2003

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM X

NO. OF

POSN.

5- 794628 -4

5- 794628 -2

5- 794628 -0

4- 794628 -8

4- 794628 -6

4- 794628 -4

4- 794628 -2

4- 794628 -0

3- 794628 -8

3- 794628 -6

3- 794628 -4

3- 794628 -2

2- 794628 -4

2- 794628 -2

2- 794628 -0

1- 794628 -8

1- 794628 -6

1- 794628 -4

1- 794628 -2

1- 794628 -0

794628 -8

794628 -6

794628 -4

794628 -2

PART NUMBER

TE Connectivity

EDGE OF BOARD

3.00

DIM Z

( 1.46 )

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

PRODUCT SPEC

C. JONES

NAME

APPLICATION SPEC

1471-9 (3/11)

WEIGHT

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

SURFACE MOUNT,RIGHT ANGLE,SURFACE

MOUNT HOLDDOWN,ASSEMBLY,15 GOLD

HEADER,DUAL ROW,MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794628

SCALE

4:1

SHEET

REV
