GDCX-PA-66-50 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> GDCX-PA-66-50

Preview

GDCX-PA-66-50: DescriptionModular Connectors / Ethernet Connectors 6P6C RJ11 50uu0027 GOLD; CategoryThe connector The connector; File Size408KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

GDCX-PA-66-50 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GDCX-PA-66-50	-	-	View	Buy Now

GDCX-PA-66-50 Overview

Modular Connectors / Ethernet Connectors 6P6C RJ11 50uu0027 GOLD

GDCX-PA-66-50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.654 inch
subject depth	0.641 inch
body length	0.55 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	PBT THERMOPLASTIC
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

GDCX-PA-44

Part Number Builder

LR78160

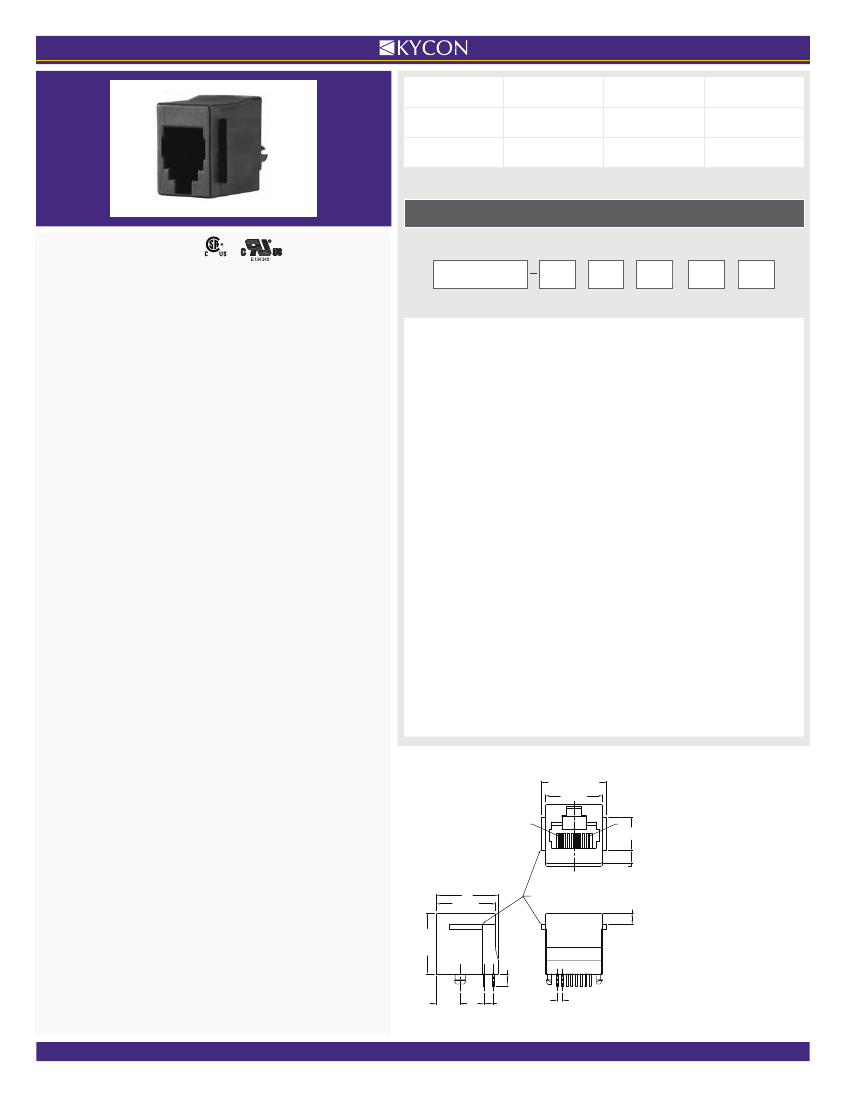

MODULAR JACKS AND PLUGS: GDCX-P Series

Vertical Through Hole

Product Features

Available in 4, 6, and 8 Position Housings

Vertical Mount

Through Hole Contacts

CSA/NRTL Certified File No. LR78160

UL File No. E134345

GDCX-P

Series

A

Panel Stop

Option

Shield

Option

44

Positions

& Contacts

Keyed

Option

Plating

Option

Series

GDCX-P

- Perpendicular Through Hole Modular Jacks

Panel Stops

A

- With Panel Stops

N

- Without Panel Stops

Shield Options

Blank

- Non-Shielded

S

- Shielded (Available Only with 8P8C Option)

Number of Positions / Contacts

44

- 4 Postions / 4 Contacts

64

- 6 Positions / 4 Contacts

66

- 6 Positions / 6 Contacts

88

- 8 Positions / 8 Contacts

Keyed Option

Blank

- Not Keyed

K

- Keyed (Only for 8P8C)

Performance Specifications

Materials and Finish

Housing Material

PBT Thermoplastic, UL 94V-0 Rated, Black Color

Contact Material

Phosphor Bronze

Electrical Characteristics

Insulation Resistance

500 Megohms Min.

Dielectric Withstanding Voltage

1000V RMS, 60Hz

Contact Resistance

20 milliohms Max.

Voltage Rating

125V DC

Current Rating

1.5A

Operating Temperature

-40°C to +85°C

Durability Rating

500 Mating Cycles Min.

Plating Option

Blank

- Gold Flash

50

- 50µ" Gold Plating

Contact Kycon for Other Options

GDCX-Px-88

Dimensions in mm

17.5

(optional panel stops)

15.26±0.25

8

1

9.0 ref.

(optional panel stops)

3.4 ref.

16.6

15.78±0.25

Optional panel stops

3.0

(optional panel stops)

16.29±0.25

3.25±0.25

6.35 ref.

6.35

2.54

1.27 typ.

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

0116
