LCBX4-0-12F-X

CategoryThe connector
File Size80KB,1 Pages
ManufacturerPanduit
Websitehttp://www.panduit.com
Download Datasheet Parametric View All

LCBX4-0-12F-X Online Shopping

Suppliers Part Number Price MOQ In stock
LCBX4-0-12F-X - - View Buy Now

LCBX4-0-12F-X Parametric

Parameter NameAttribute value
Product CategoryTerminals
ManufacturerPanduit
RoHSDetails
ProductLug Terminals
TypeCompression
Stud / Tab Size12.7 mm
Wire Gauge4/0 AWG
Termination StyleCrimp
GenderMale
ColorPurple
Factory Pack Quantity1
Unit Weight2.650 lbs

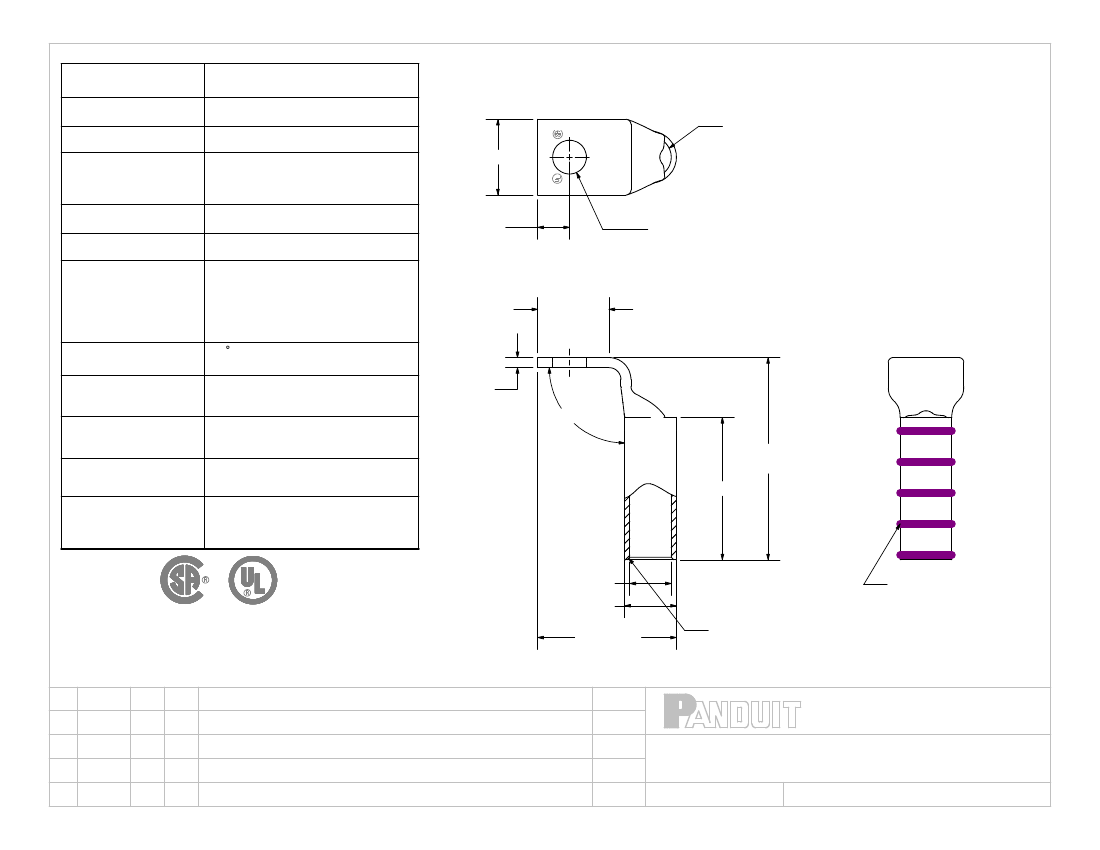

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
1.19±.04
PANDUIT
4/0 STR/FLEX
LCBX4/0-12F
4/0 STR/FLEX
Stranded Copper: Class B & C
Compact, Class G, H, I, K, M,
Locomotive
2-5/16 in.
1/2 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
PURPLE
.16±.01
Wire inspection
window
Wire Strip Length
Stud Size
UL Listed Wire
Connector
.50±.04
.53±.02 DIA
1.12±.04
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
90°±5°
3.18
REF
2.24±.04
PURPLE DIE P54 (15)
PANDUIT
Panduit Die Index No. P54
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(15)
.65±.01
CERTIFIED
LISTED
Wire Connector
.81±.01
2.18 REF
Beveled wire
entry
Color coded
barrel markings
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCBX4/0-12F-X
Copper Lug - One-Hole, Long Flex Barrel, 90° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCBX4_0-12F-CUST
