52602-2479

Description
Board to Board u0026 Mezzanine Connectors 10 BtB ST Rec Hsg Assy 24Ckt Stick Pkg
CategoryThe connector    The connector
File Size36KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52602-2479 Online Shopping

Suppliers Part Number Price MOQ In stock
52602-2479 - - View Buy Now

52602-2479 Overview

Board to Board u0026 Mezzanine Connectors 10 BtB ST Rec Hsg Assy 24Ckt Stick Pkg

52602-2479 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT & TUBE PACKAGE
Board mount optionsPEG
body width0.236 inch
subject depth0.303 inch
body length0.705 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance70 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage200VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
MIL complianceNO
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
Plating thickness10u inch
polarization keyENDS
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts24
UL Flammability Code94V-0
Base Number Matches1

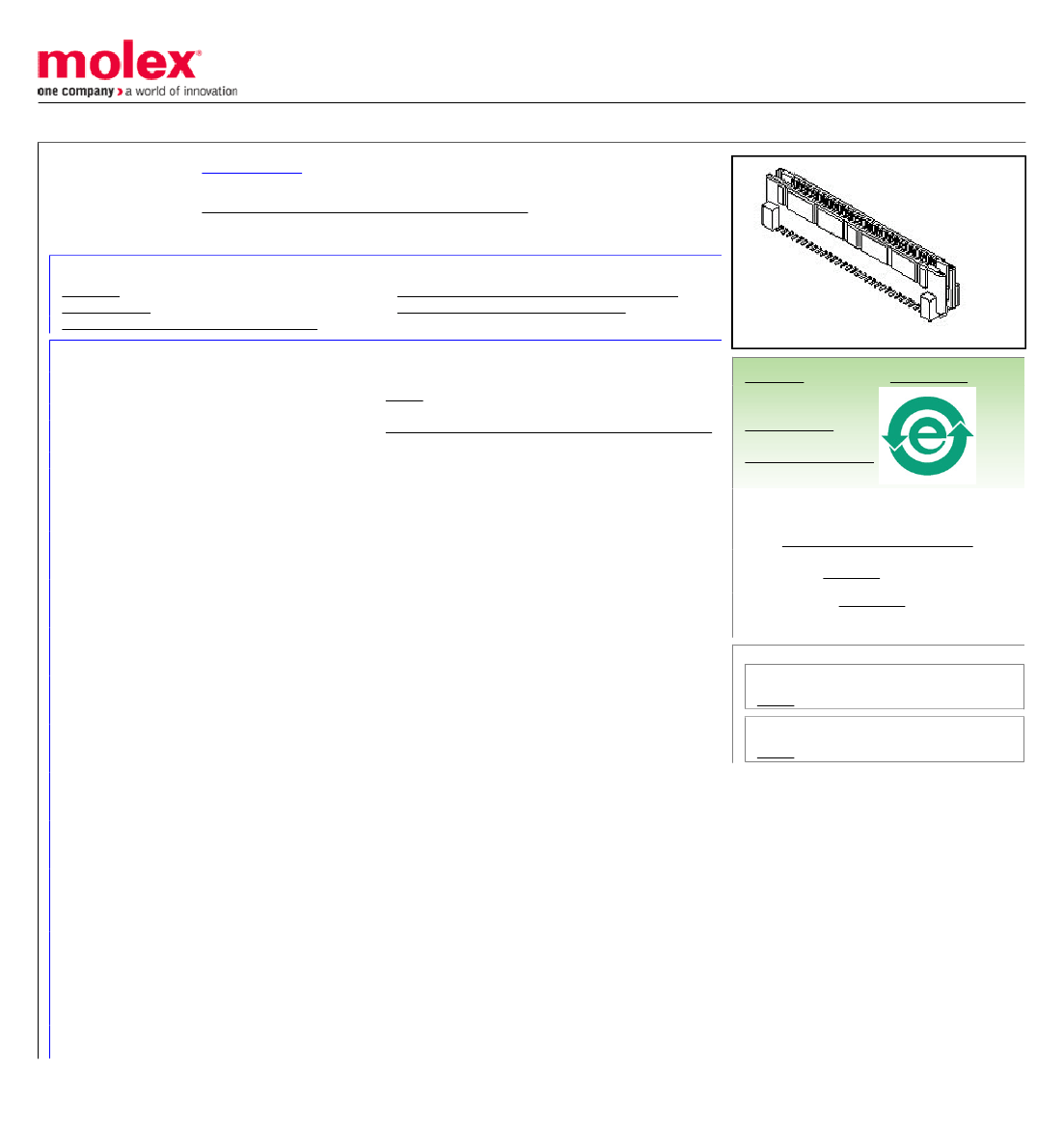

This document was generated on 10/07/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
52602-2479
Active
SlimStack™ 1.00mm Pitch Board-to-Board Connectors
1.00mm Pitch Receptacle, Dual Row Surface Mount, Vertical Stacking, Mated Stacking
Height 20.00mm, 24 Circuits, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-52584-003 (PDF)
Packaging Specification SPK-52602-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Application
Overview
Product Name
UPC
PCB Receptacles
52602
Board-to-Board, Signal
SlimStack™ 1.00mm Pitch Board-to-Board Connectors
SlimStack™
822348205011
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
24
24
White
50
No
20.00mm
Phosphor Bronze
Gold
Tin
505.048/mg
2
Vertical
1.80mm
Yes
None
1.80mm
Tube
1.00mm
0.254µm
1.016µm
Yes
N/A
-55°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52602Series
Mates With
53408
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
100V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-52602-001
PS-52584-003, RPS-52584-010
SD-52602-001, SD-52602-002
