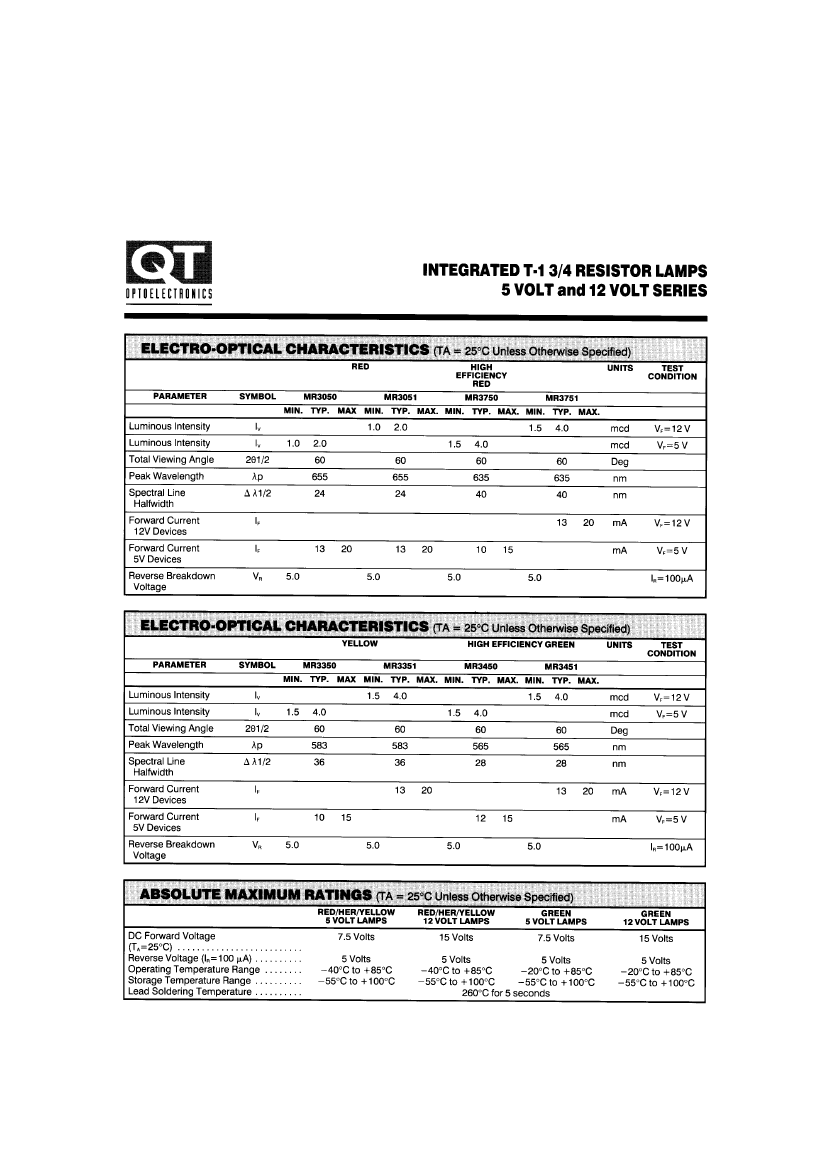

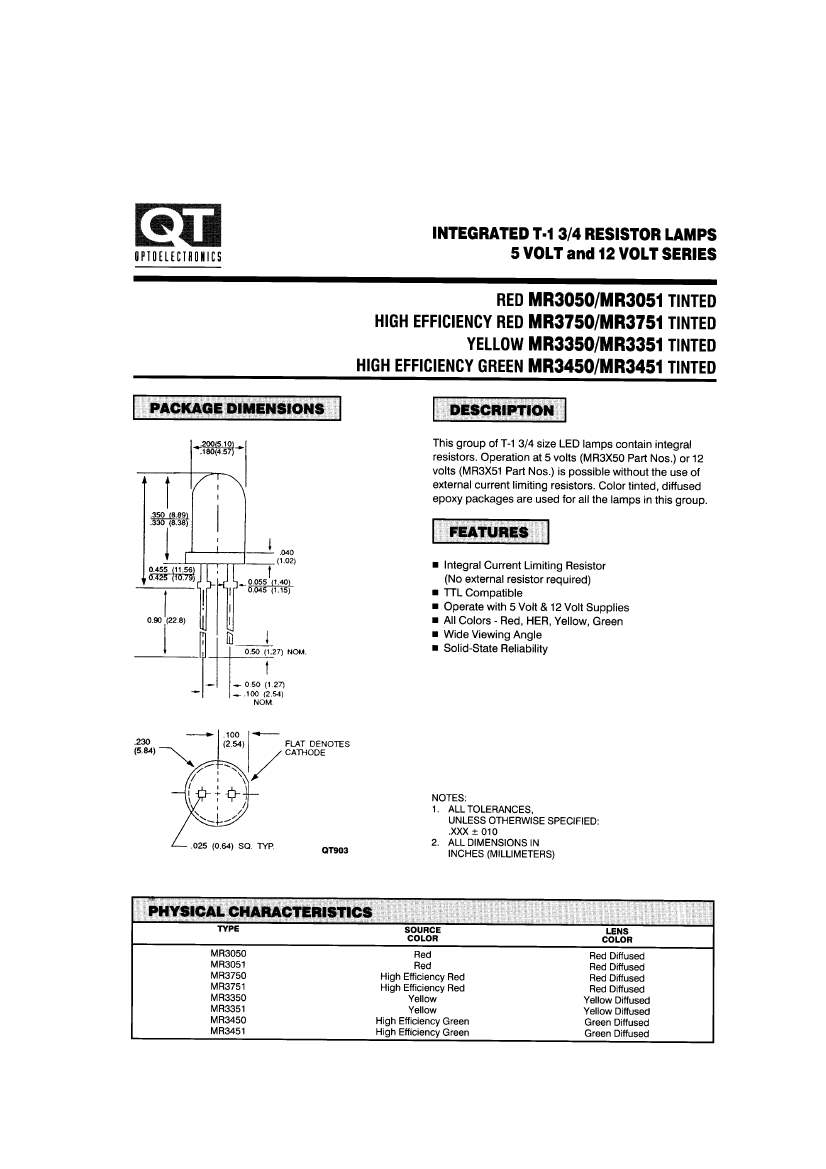

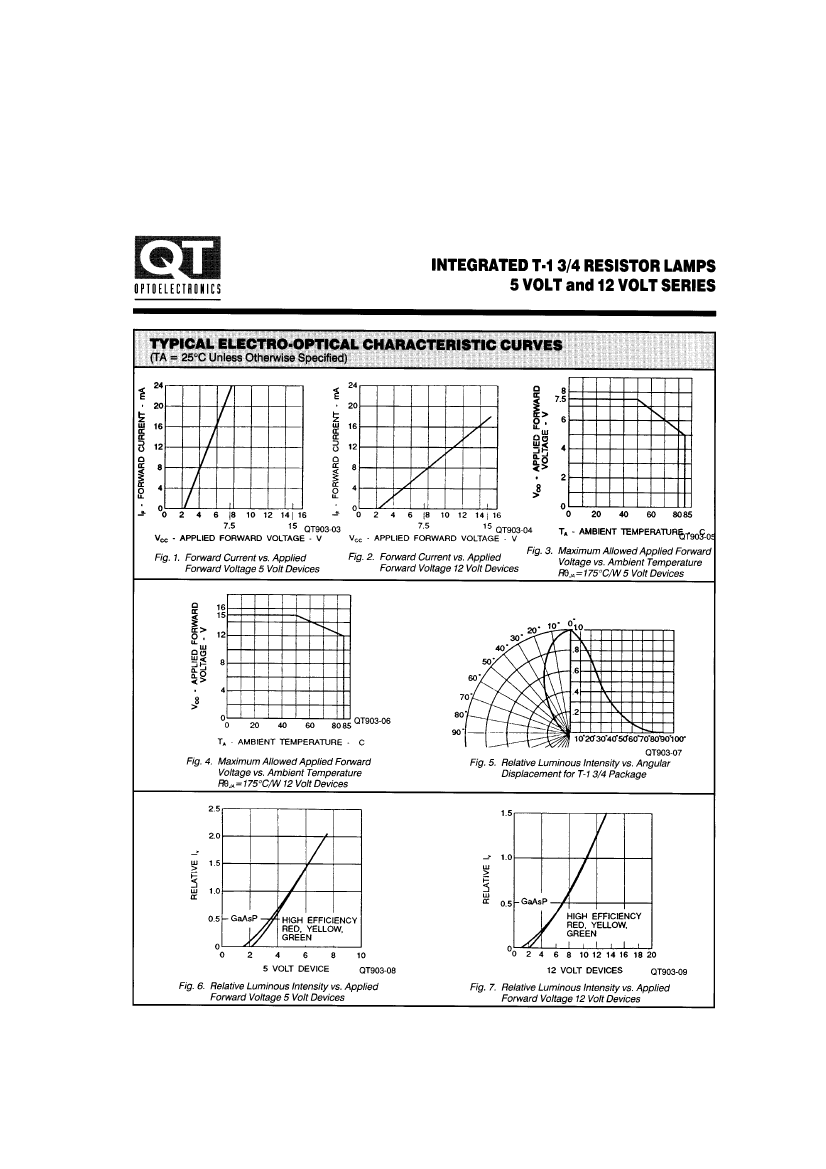

Preview

MR3750: DescriptionINTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES; CategoryLED optoelectronic/LED photoelectric; File Size265KB，3 Pages; ManufacturerQT Optoelectronics

Download Datasheet Parametric Compare View All

MR3750 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MR3750	-	-	View	Buy Now

MR3750 Overview

INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES

MR3750 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	TTL COMPATIBLE
color	HIGH EFFICIENCY RED
color@wavelength	Orange-Red
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.015 A
Maximum forward voltage	7.5 V
JESD-609 code	e0
Lens type	RED DIFFUSED
Nominal luminous intensity	4 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.64 mm
method of packing	BULK
peak wavelength	635 nm
Maximum reverse voltage	5 V
shape	ROUND
size	4.835 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

MR3750 Related Products

	MR3750	MR3751	MR3451	MR3450	MR3351	MR3350	MR3051	MR3050
Description	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES	INTEGRATED T-1 3/4 RESISTOR LAMPS 5 VOLT AND 12 VOLT SERIES
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	-	unknow	unknow	-	unknow	unknow	unknow
Other features	TTL COMPATIBLE	-	TTL COMPATIBLE	TTL COMPATIBLE	-	TTL COMPATIBLE	TTL COMPATIBLE	TTL COMPATIBLE
color	HIGH EFFICIENCY RED	-	HIGH EFFICIENCY GREEN	HIGH EFFICIENCY GREEN	-	YELLOW	RED	RED
color@wavelength	Orange-Red	-	Gree	Gree	-	Yellow	Red	Red
Configuration	SINGLE WITH BUILT-IN RESISTOR	-	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	-	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.015 A	-	0.02 A	0.015 A	-	0.015 A	0.02 A	0.02 A
Maximum forward voltage	7.5 V	-	15 V	7.5 V	-	7.5 V	15 V	7.5 V
JESD-609 code	e0	-	e0	e0	-	e0	e0	e0
Lens type	RED DIFFUSED	-	GREEN DIFFUSED	GREEN DIFFUSED	-	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	4 mcd	-	4 mcd	4 mcd	-	4 mcd	2 mcd	2 mcd
Installation features	RADIAL MOUNT	-	RADIAL MOUNT	RADIAL MOUNT	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	-	1	1	-	1	1	1
Number of terminals	2	-	2	2	-	2	2	2
Maximum operating temperature	85 °C	-	85 °C	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-20 °C	-20 °C	-	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.64 mm	-	8.64 mm	8.64 mm	-	8.64 mm	8.64 mm	8.64 mm
method of packing	BULK	-	BULK	BULK	-	BULK	BULK	BULK
peak wavelength	635 nm	-	565 nm	565 nm	-	583 nm	655 nm	655 nm
Maximum reverse voltage	5 V	-	5 V	5 V	-	5 V	5 V	5 V
shape	ROUND	-	ROUND	ROUND	-	ROUND	ROUND	ROUND
size	4.835 mm	-	4.835 mm	4.835 mm	-	4.835 mm	4.835 mm	4.835 mm
surface mount	NO	-	NO	NO	-	NO	NO	NO
T code	T-1 3/4	-	T-1 3/4	T-1 3/4	-	T-1 3/4	T-1 3/4	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	-	60 deg	60 deg	-	60 deg	60 deg	60 deg
