0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
FH26 Series
G
Space saving(51 pos. shown)
1.0mm
3.2mm
16.8mm
Metal fittings do no protrude
outside of the connector body

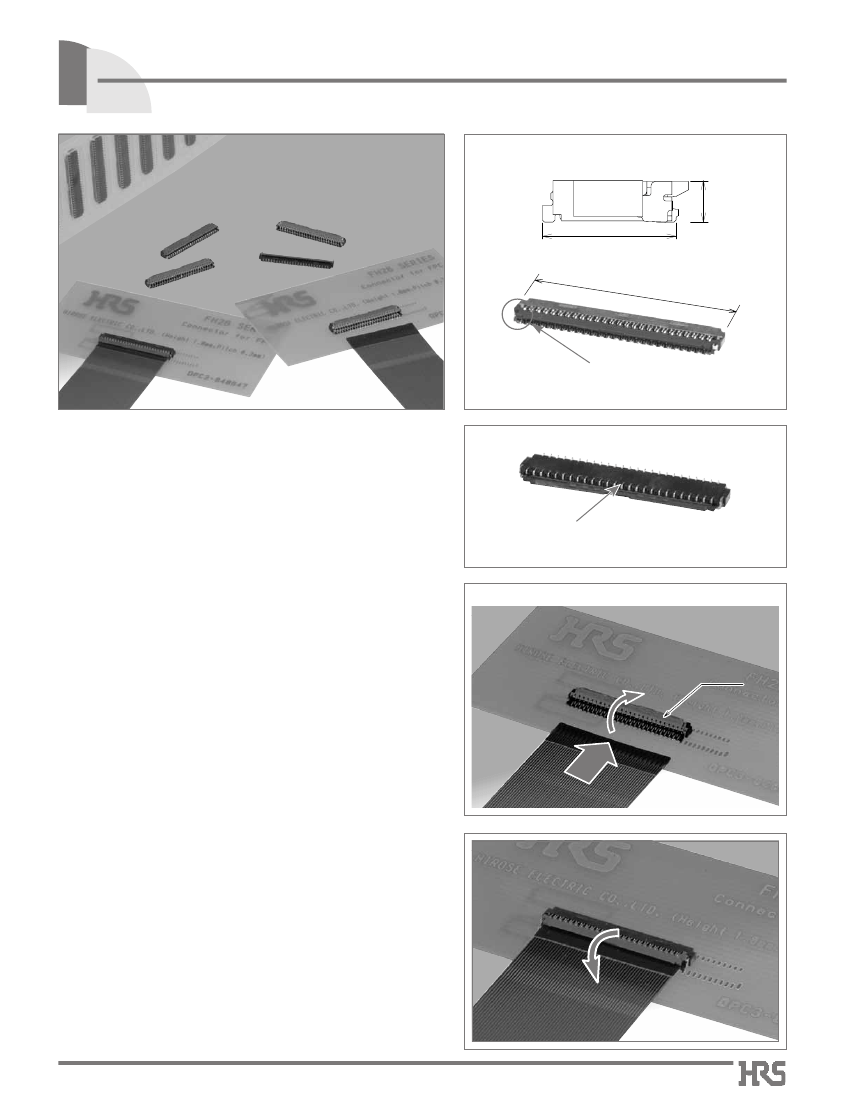

IFeatures
1. Extremely light weight
The typical version, with all 51 contacts loaded, weights
only 0.1 grams.
G
Can be mounted over conductive traces.
2. Easy solderability on the PC board
The soldering leads are on 0.6 mm pitch, exiting on front
and back of the connector.
No exposed contacts on the bottom
of the connector
3. Conductive traces on the PCB can run under the
connector
No exposed contacts on the bottom of the connector.
G
Operation
(1) Actuator open
(1) Actuator open
(2) Insert FPC
(2) Insert FPC
4. Easy FPC insertion and reliable electrical
connection
Proven Flip LockR actuator allows easy insertion of FPC.
Tactile sensation when fully closed confirms complete
electrical and mechanical connection.
Actuator
q
5. Accepts standard thickness FPC
0.2mm thick standard Flexible Printed Circuit board can be
used.
This is the only ultra-low profile ZIF connector allowing the
use of standard FPC.
w
6. Board placement with automatic equipment
Flat top surface and packaging on the tape-and-reel allows
use of vacuum nozzles.
Standard reel contains 5,000 connectors.
FPC
7. The connector does not use chlorine and
bromine exceeding standard limits.
(FH26W series)
* Defined in accordance with IEC61249-2-21
Br 900ppm or lower, Cl 900ppm or lower, Br + Cl
1,500ppm or lower
(3) Close the actuator
(3) Close the actuator
(4) FPC connected
(4) FPC connected
e
8. Available for 500 pieces packaging
Although the normal product is 5,000 pieces per reel,
500 winds per reel is also available.
(Emboss reel external diameter is Ø180mm.)
r
2010.9
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
ISpecifications
Rating
Current rating
Voltage rating
0.2A DC
30V AC
Operating temperature range -55
ç
to +85ç (Note 1)
Operating humidity range
Relative humidity 90%
max. (No condensation)
Storage temperature range -10ç to +50ç (Note 2)
Storage humidity range
Relative humidity 90% max.
Recommended FPC :
Item
Thickness: = 0.2±0.03mm gold plated
Specification
50 M ohms min.
No flashover or insulation breakdown.
100 m ohms max.
* Including FPC conductor resistance
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1
µ
s or more.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1µs. min.
Contact resistance: 100 m ohms max.
No damage, cracks, or parts dislocation.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No affect on appearance or performance.
Contact resistance: 100 m ohms max.
Insulation resistance: 50 M ohms min.
No damage, cracks, or parts looseness.
No deformation of components affecting performance.
100 V DC
90 V AC /one minute
1 mA
10 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 10 cycles, 3
directions.
Acceleration of 981 m/s
2
, 6 ms duration, sine half-wave waveform,
3 cycles in each of the 3 axis
Conditions
1.
Insulation resistance
2.
Withstanding voltage
3. Contact resistance
4. Durability
(Insertion/ withdrawal)
5. Vibration
6. Shock
7. Humidity
(Steady state)
96 hours at temperature of 40±2ç and humidity of 90% to 95%.
Temperature: -55 ç/+15ç
to +35ç/+85ç/+15ç to +35ç
Time: 30
/
2 to 3
/
30
/
2 to 3 (Minutes)
5 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç +/-10ç for 5±1 seconds
8. Temperature cycle
9. Resistance to soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
IMaterials
Part
Material
LCP
Insulator
PA
Finish
Color: Black
FH26 series: Deep brown
FH26W series: Light brown
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
---------------
---------------
Contacts
Metalfittings
Phosphor bronze
IOrdering
information
FH 26 W - 51S - 0.3 SHW (05)
1
1
Series name: FH
2
Series No.: 26
3
Blank: Standard
W:
Satisfies halogen-free requirements
(Flame retardance UL94HB).
2
3
4
5
6
7
6
Termination type SHW: SMT horizontal staggered mounting type
7
Specifications
(05)…Gold plating, 5,000 pieces / reel
(10)…Gold plating with nickel barrier, 5,000 pieces / reel
(98)…Gold plating, 500 pieces / reel
(99)…Gold plating with nickel barrier, 500 pieces / reel
4
Number of positions: 13 to 71
5
Contact pitch: 0.3mm
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors

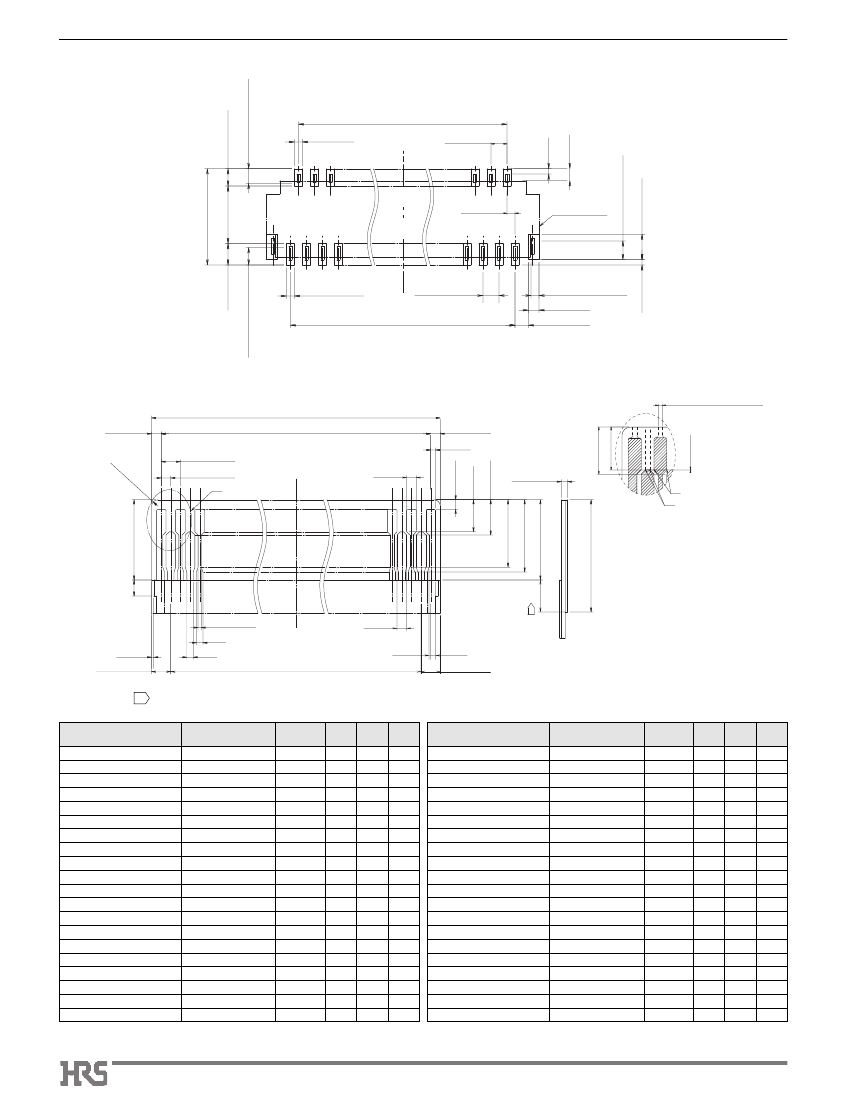

IConnector
Dimensions
0.3
0.6
A
B
(1.25)
(0.3)
3.2
(0.12)
0.6
Number of contacts indicator
(0.12)
C
0.5
3.2
(D: FPC insertion slot dimension)
E
1
0.1
1
0.1
0.3
Notes 1 The coplanarity of each terminal lead within specified dimension is 0.1 mm Max.
2 Packaged on tape and reel only. Check packaging specification.
3 Slight variations in color of the plastic compounds do not affect form, fit or function of the connector.
4 After reflow, the terminal plating may change color, however this does not represent a quality issue.
All dimensions: mm
Part Number
FH26-13S-0.3SHW(**)
FH26-15S-0.3SHW(**)
FH26-17S-0.3SHW(**)
FH26-21S-0.3SHW(**)
FH26-23S-0.3SHW(**)
FH26-25S-0.3SHW(**)
FH26-27S-0.3SHW(**)
FH26-29S-0.3SHW(**)
FH26-31S-0.3SHW(**)
FH26-33S-0.3SHW(**)
FH26-35S-0.3SHW(**)
FH26-37S-0.3SHW(**)
FH26-39S-0.3SHW(**)
FH26-41S-0.3SHW(**)
FH26-45S-0.3SHW(**)
FH26-51S-0.3SHW(**)
FH26-55S-0.3SHW(**)
FH26-57S-0.3SHW(**)
FH26-61S-0.3SHW(**)
FH26-71S-0.3SHW(**)
Part Number
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
CL No.
580-0209-3-**
580-0218-4-**
580-0217-1-**
580-0207-8-**
580-0203-7-**
580-0208-0-**
580-0204-0-**
580-0216-9-**
580-0214-3-**
580-0210-2-**
580-0205-2-**
580-0224-7-**
580-0201-1-**
580-0206-5-**
580-0211-5-**
580-0200-9-**
580-0221-9-**
580-0212-8-**
580-0213-0-**
580-0202-4-**
CL No.
580-2401-1-**
580-2402-4-**
580-2403-7-**
580-2437-9-**
580-2404-0-**
580-2405-2-**
580-2406-5-**
580-2400-9-**
580-2407-8-**
580-2408-0-**
580-2409-3-**
580-2410-2-**
580-2411-5-**
580-2412-8-**
580-2413-0-**
580-2414-3-**
580-2415-6-**
580-2417-1-**
580-2418-4-**
580-2419-7-**
Number of Contacts
13
15
17
21
23
25
27
29
31
33
35
37
39
41
45
51
55
57
61
71
Number of Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
A
5.4
6.0
6.6
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.2
13.8
15.0
16.8
18.0
18.6
19.8
22.8
A
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.2
13.8
15.0
16.8
18.6
19.8
22.8
B
3.0
3.6
4.2
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
15.6
16.2
17.4
20.4
B
3
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.2
16.8
18.0
21.0
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
D
4.23
4.83
5.43
6.63
7.23
7.83
8.43
9.03
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.63
16.83
17.43
18.63
21.63
D
4.23
4.83
5.43
6.03
6.63
7.23
7.83
8.43
9.03
9.63
10.23
10.83
11.43
12.03
12.63
13.83
15.63
17.43
18.63
21.63
E
4.9
5.5
6.1
7.3
7.9
8.5
9.1
9.7
10.3
10.9
11.5
12.1
12.7
13.3
14.5
16.3
17.5
18.1
19.3
22.3
E
4.9
5.5
6.1
6.7
7.3
7.9
8.5
9.1
9.7
10.3
10.9
11.5
12.1
12.7
13.3
14.5
16.3
18.1
19.3
22.3
Note1 : Embossed tape reel packaging. Order by number of reels.
Note2 : ** : Specification. Refer to ordering information.
1
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors

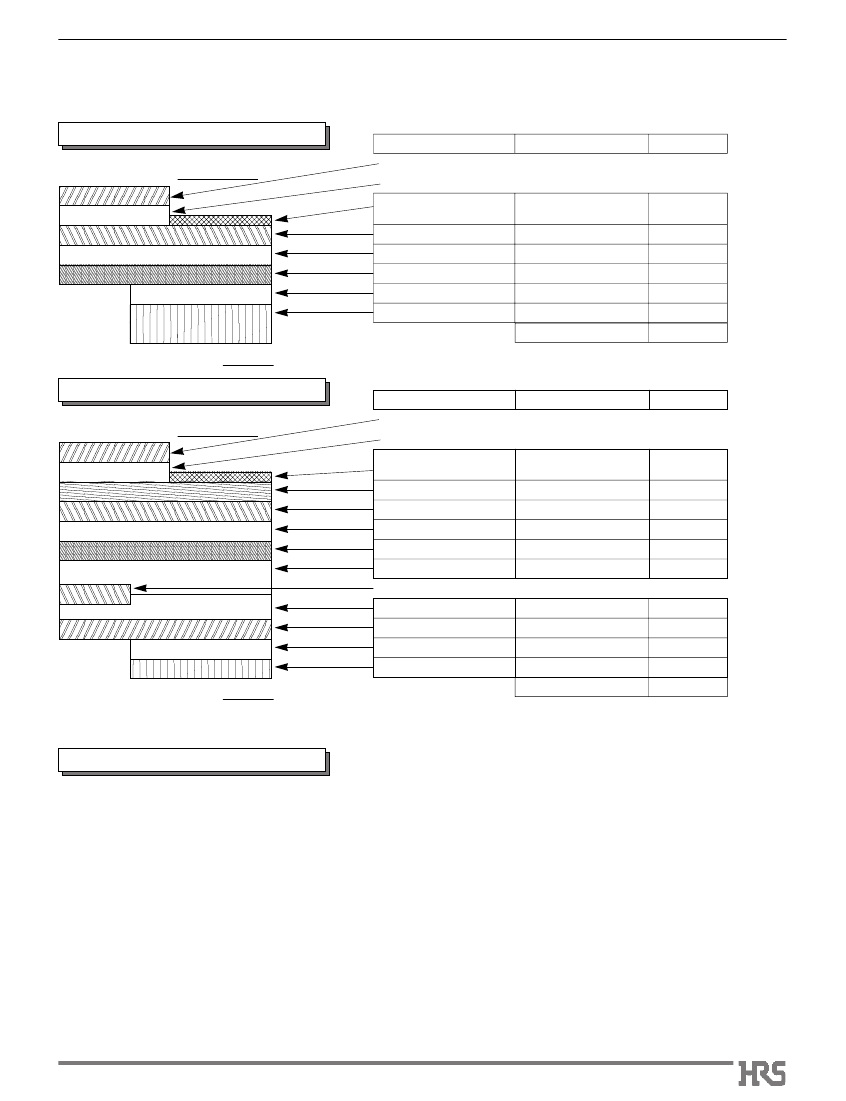

IRecommended
PCB mounting pattern and metal mask dimensions
(0.55:Metal mask)
Recommended metal mask thickness: t=0.1
B±0.05
(0.23:Metal mask)
(0.45)
(0.2)
0.3±0.03
0.6±0.05
0.65±0.05
(0.7:Metal mask)
2.15±0.05
(3.6)
0.3±0.05
Outline of
the connector
0.8±0.05
(0.65:Metal mask)
0.3±0.03
(0.23:Metal mask)
C±0.05
0.6±0.05
(0.3:Metal mask)
0.4±0.05
0.5±0.05
IRecommended
FPC Dimensions
F±0.05
1.1±0.1
1±0.1
0.3±0.07
R0
Detail H
(Lead plated 0.1 MAX)
0.3±0.07
(0.15)
πRELATIVE
POSITIONS
OF POINT-A dnd B
C±0.03
0.6±0.02
0.2±0.05
0.95±0.05
1±0.1
.2
M
AX
0.3±0.02
H
0.3
+0.04
-0.03
0.3±0.1
1.1±0.1
0.2±0.03
B
A
3.5 MIN.(Stiffener)
2.25±0.1
2.1±0.1
2.5±0.3
(0.5)
(2.5)
0.1±0.02
(0.07)
0.6±0.07
(0.2)
(0.2)
B±0.03
0.3
+0.04
-0.03
(0.05)
(0.15)
0.6±0.07
1
Part Number
Dimention M must be 0.5mm minimum when the stiffener is shorter than 3.5 min.
All dimensions: mm
CL No.
580-0209-3-**
580-0218-4-**
580-0217-1-**
580-0207-8-**
580-0203-7-**
580-0208-0-**
580-0204-0-**
580-0216-9-**
580-0214-3-**
580-0210-2-**
580-0205-2-**
580-0224-7-**
580-0201-1-**
580-0206-5-**
580-0211-5-**
580-0200-9-**
580-0221-9-**
580-0212-8-**
580-0213-0-**
580-0202-4-**
Number of
Contacts
13
15
17
21
23
25
27
29
31
33
35
37
39
41
45
51
55
57
61
71
B
3.0
3.6
4.2
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
15.6
16.2
17.4
20.4
C
3.6
4.2
4.8
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.2
16.8
18.0
21.0
F
4.2
4.8
5.4
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.8
15.6
16.8
17.4
18.6
21.6
Part Number
FH26W-13S-0.3SHW(**)
FH26W-15S-0.3SHW(**)
FH26W-17S-0.3SHW(**)
FH26W-19S-0.3SHW(**)
FH26W-21S-0.3SHW(**)
FH26W-23S-0.3SHW(**)
FH26W-25S-0.3SHW(**)
FH26W-27S-0.3SHW(**)
FH26W-29S-0.3SHW(**)
FH26W-31S-0.3SHW(**)
FH26W-33S-0.3SHW(**)
FH26W-35S-0.3SHW(**)
FH26W-37S-0.3SHW(**)
FH26W-39S-0.3SHW(**)
FH26W-41S-0.3SHW(**)
FH26W-45S-0.3SHW(**)
FH26W-51S-0.3SHW(**)
FH26W-57S-0.3SHW(**)
FH26W-61S-0.3SHW(**)
FH26W-71S-0.3SHW(**)
CL No.
580-2401-1-**
580-2402-4-**
580-2403-7-**
580-2437-9-**
580-2404-0-**
580-2405-2-**
580-2406-5-**
580-2400-9-**
580-2407-8-**
580-2408-0-**
580-2409-3-**
580-2410-2-**
580-2411-5-**
580-2412-8-**
580-2413-0-**
580-2414-3-**
580-2415-6-**
580-2417-1-**
580-2418-4-**
580-2419-7-**
Number of
Contacts
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
45
51
57
61
71
B
3.0
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
14.4
16.2
17.4
20.4
C
3.6
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
13.2
15.0
16.8
18.0
21.0
F
4.2
4.8
5.4
6.0
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.0
12.6
13.8
15.6
17.4
18.6
21.6
FH26-13S-0.3SHW(**)
FH26-15S-0.3SHW(**)
FH26-17S-0.3SHW(**)
FH26-21S-0.3SHW(**)
FH26-23S-0.3SHW(**)
FH26-25S-0.3SHW(**)
FH26-27S-0.3SHW(**)
FH26-29S-0.3SHW(**)
FH26-31S-0.3SHW(**)
FH26-33S-0.3SHW(**)
FH26-35S-0.3SHW(**)
FH26-37S-0.3SHW(**)
FH26-39S-0.3SHW(**)
FH26-41S-0.3SHW(**)
FH26-45S-0.3SHW(**)
FH26-51S-0.3SHW(**)
FH26-55S-0.3SHW(**)
FH26-57S-0.3SHW(**)
FH26-61S-0.3SHW(**)
FH26-71S-0.3SHW(**)
4
1
M
0±0.03
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
FH26 SeriesG0.3mm Contact Pitch, 1mm above the board, Flexible Printed Circuit ZIF Connectors
IRecommended
FPC Construction
G
Contact FPC manufacturer for specific details.
1. Using Single-sided FPC
Connecting side
Material Name
Covering film layer.
Cover adhesive
Surface treatment
Copper foil
Base adhesive
Base film
Reinforcement material adhesive
Stiffener
Material
Polyimide
1 mil thick.
Thickness (µm)
25
25
1µm to 5µm Nickel underplated
0.2µm Gold plated
Cu
1/2oz
3
35
25
25
40
75
203
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Polyimide
Total
3 mil thick
Back side
2. Using Double-sided FPC
Connecting side
Material Name
Covering layer film
Cover adhesive
Surface treatment
Through-hole copper
Copper foil
Base adhesive
Base film
Base adhesive
Copper foil
Cover adhesive
Covering layer film
Material
Polyimide
1 mil thick
Thickness (µm)
25
25
1µm to 5µm Nickel underplated
0.2µm Gold plated
Cu
Cu
1/2oz
3
15
18
18
25
18
18
25
25
25
25
197
Thermosetting adhesive
Polyimide
1 mil thick
Thermosetting adhesive
Cu
1/2oz
Thermosetting adhesive
Polyimide
1 mil thick
Reinforcement material adhesive Thermosetting adhesive
Stiffener
Back side
Polyimide
Total
1 mil thick
G
To prevent release of the FPC due to it's bending, use of double sided FPC with copper foil on the back side is NOT RECOMMENDED.
3. Precautions
1. This specification is a recommendation for the construction of the FH26 Series FPC and FFC (t=0.2 ± 0.03).
2. For details about the construction, please contact the FPC/FFC manufacturers.
_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD_pdf/1.png)
_pdf/2.png)
_pdf/3.png)
_pdf/4.png)
_pdf/5.png)
_pdf/pg_0002.png)
_pdf/pg_0003.png)
_pdf/pg_0004.png)
_pdf/pg_0005.png)
