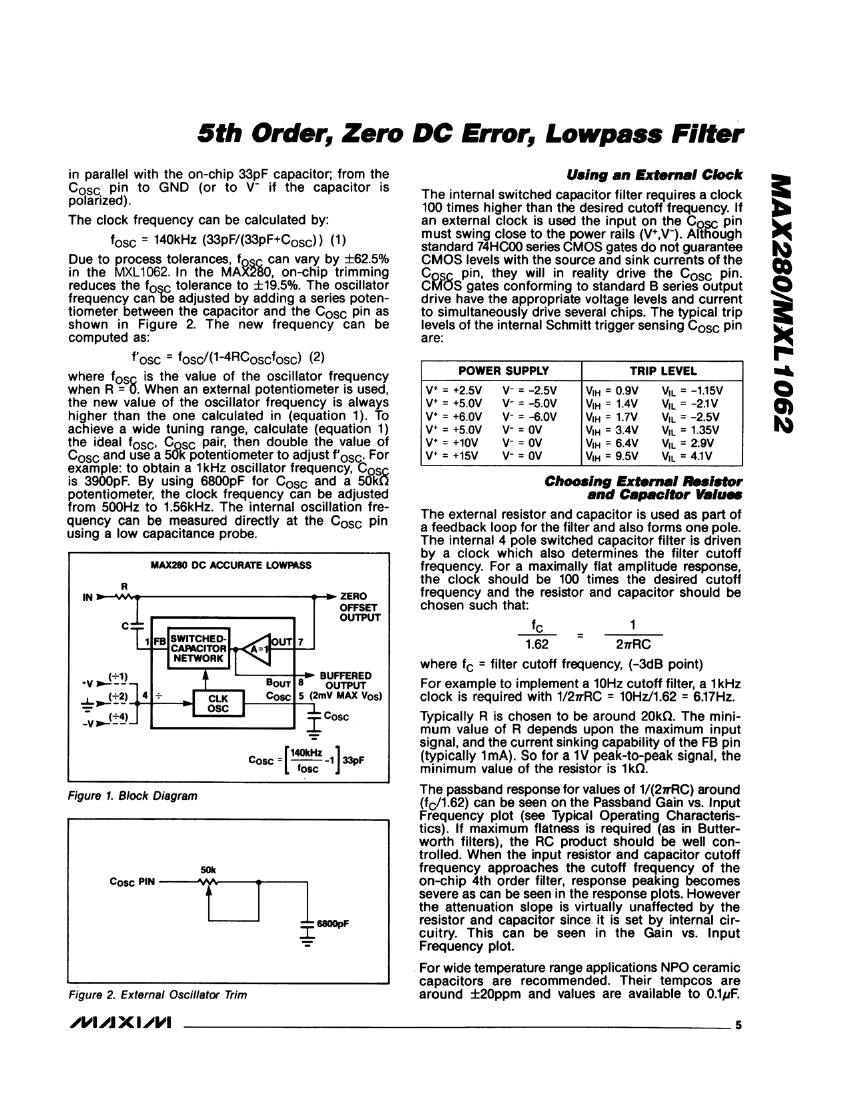

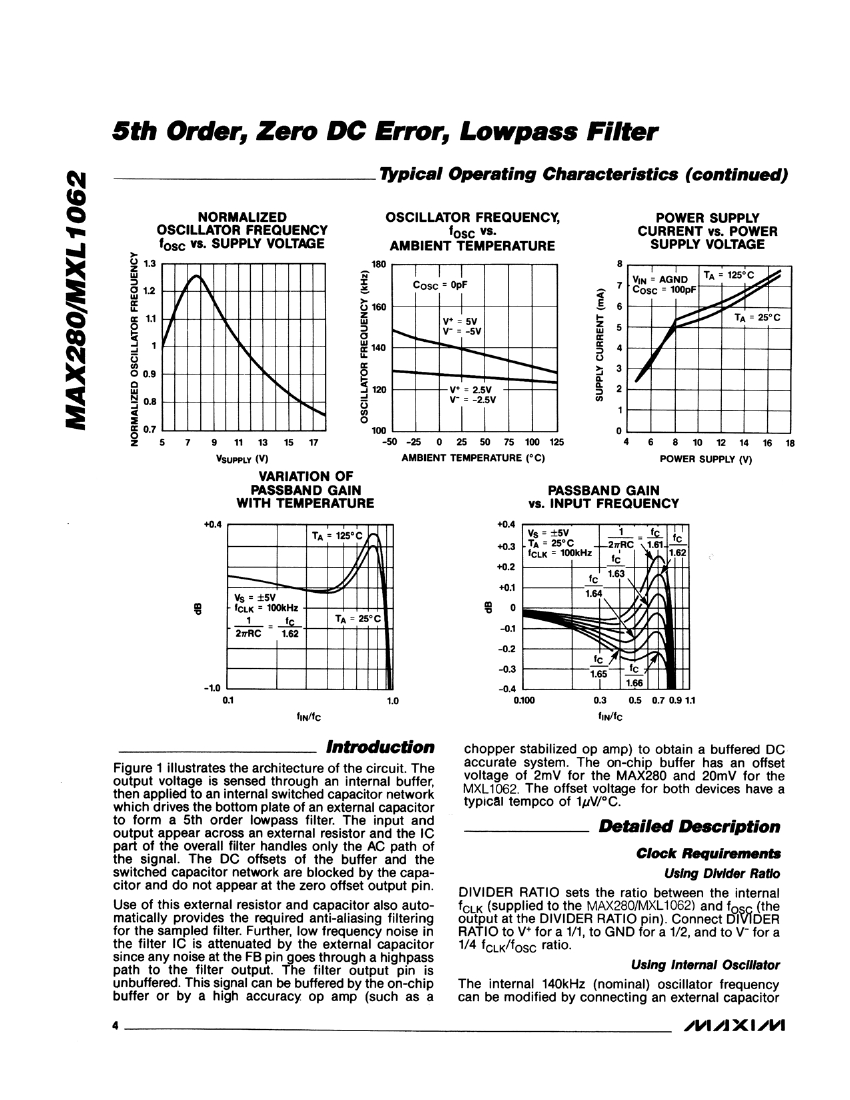

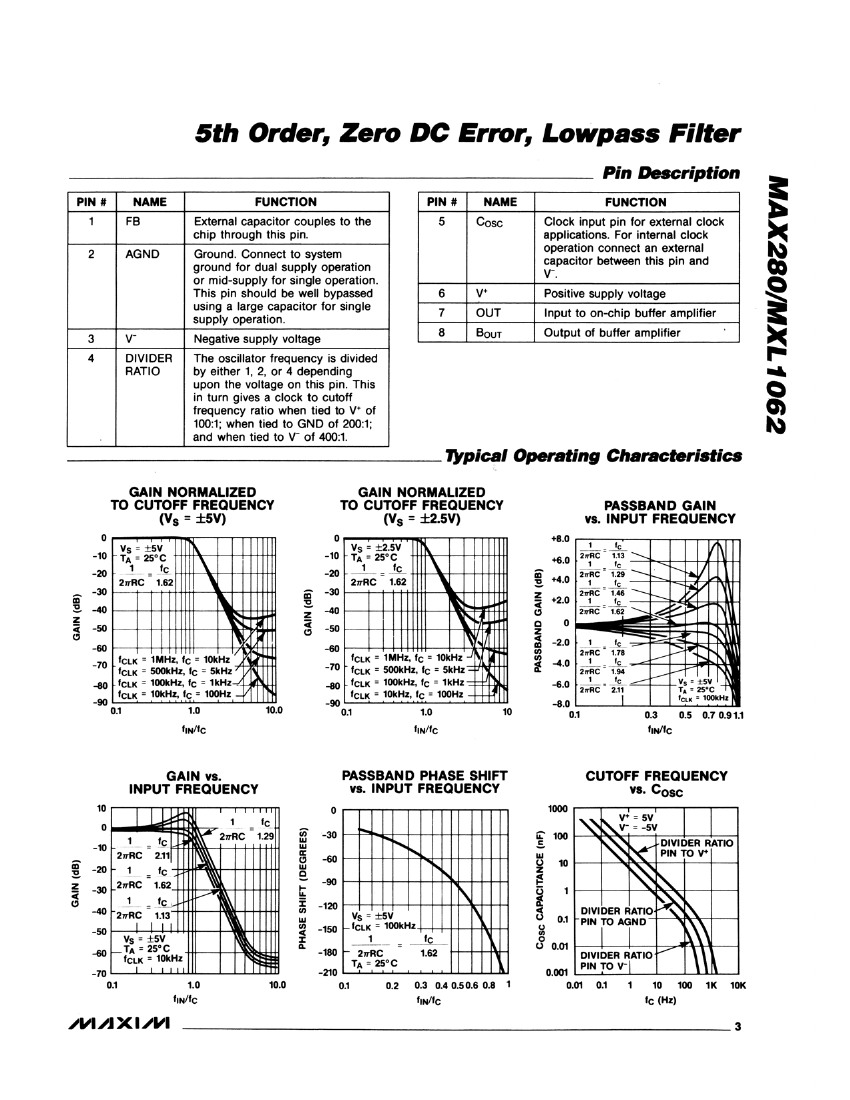

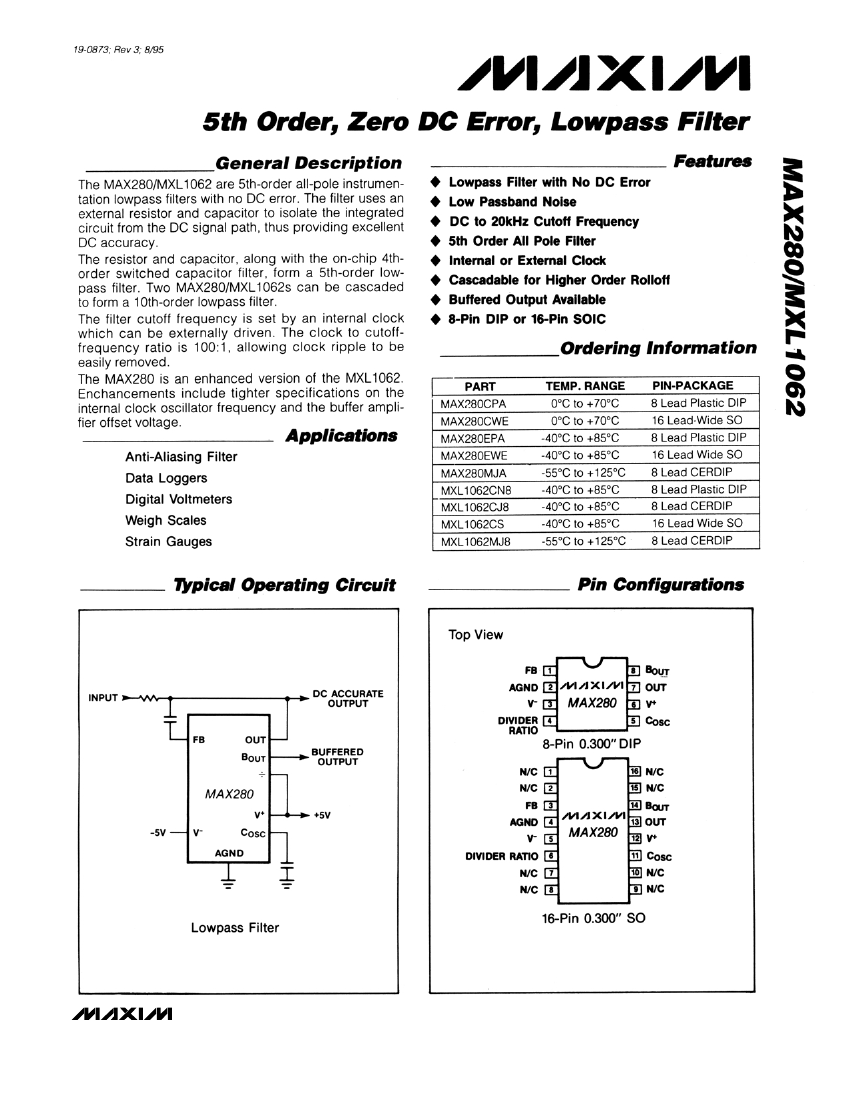

Active Filters 5th-Order Zero-Error Butterworth

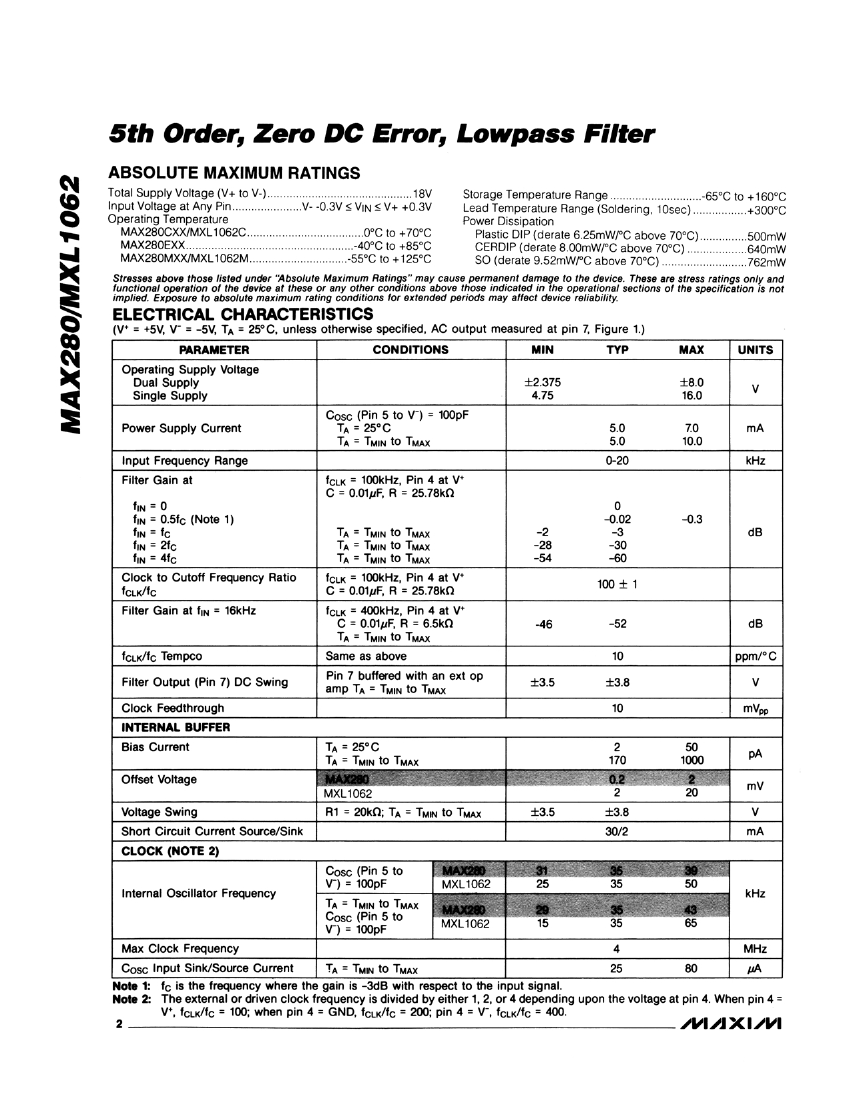

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Maxim |
| Parts packaging code | SOIC |
| package instruction | SOIC-16 |
| Contacts | 16 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Active filter type | SWITCHED CAPACITOR FILTER |
| Other features | ZERO DC ERROR |
| Center frequency or cutoff frequency maximum range | 20 kHz |
| Center frequency or cutoff frequency minimum range | |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Humidity sensitivity level | 1 |
| Maximum negative supply voltage (Vsup) | -8 V |
| Negative supply voltage minimum (Vsup) | -2.375 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Order | 5TH |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.4 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 240 |
| poles and zeros | 5 AND 0 |
| power supply | +-5 V |
| Certification status | Not Qualified |
| response | LOWPASS |
| Maximum seat height | 2.642 mm |
| Maximum supply current (Isup) | 10 mA |
| Maximum supply voltage (Vsup) | 8 V |
| Minimum supply voltage (Vsup) | 2.375 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn85Pb15) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 20 |
| transfer characteristics | BUTTERWORTH |
| width | 7.6745 mm |
