XC6217
Series
200mA High Speed "Green Operation" LDO Voltage Regulators
ETR03022_014
The XC6217 series are precise, low noise, high speed, low dropout regulators with green operation (GO) function. They are
fabricated using Torex’s CMOS process. Performance features of the series include high ripple rejection and low dropout
voltage, and the series include a reference voltage source, an error amplifier, a current limiter, and a phase compensation
circuit.
GO provides high speed operation, low power consumption and high efficiencies by automatically switching between a high
speed mode (HS) and a power save mode (PS) depending upon the load current level. The switching point of the GO to the
output current is being fixed inside the IC. When only high-speed operation is required, it can be fixed by inputting a high level
signal to the GO pin, thus providing operating conditions with the most suitable level of supply current for the application.
The CE function enables the output to be turned off resulting in greatly reduced power consumption. In this state, with the
XC6217 series B/D Type, the IC turns on the internal switch located between the V
OUT
and V
SS
pins. This short enables the
electric charge at the output capacitor (C
L
) to be discharged via the internal auto-discharge resistance, and as a result the V
OUT
pin quickly returns to the V
SS
level. The series' output stabilization capacitor (C
L
) is also compatible with low ESR ceramic
capacitors.
Output voltage is selectable in 0.05V increments within a range of 0.80V~4.00V, using laser trimming technologies.
The current limiter's foldback circuit also operates as a short circuit protection for the output current limiter and the output pin.
■GENERAL
DESCRIPTION
☆GreenOperation
Compatible
■APPLICATIONS
●Cellular
phones
●Cordless
phones
●Wireless
communication equipment
●Portable
games
●Cameras,
VCRs
●Portable
AV equipment
●PDAs
■FEATURES
: 200mA <Limit: 250mA
TYP.>
: 80mV@ I
OUT
=100mA, V
OUT
=3.0V
: 1.6V ~ 6.0V (0.8V≦V
OUT
≦1.55V
1.8V ~ 6.0V (1.6V≦V
OUT
≦4.0V
Output Voltage Range
: 0.80V~4.00V (0.05V increments)
Accuracy
: +2% (HS: V
OUT
>2.00V) (Standard)
+30mV (HS: V
OUT
≦1.95V)
(Standard)
+2.5%, -3.5% (PS: V
OUT
>2.60V) (Standard)
+3.5%, -4.5% (PS:1.60≦V
OUT
≦2.55V)
(Standard)
+70mV, -90mV (PS:0.80≦V
OUT
≦1.55V)
(Standard)
+1% (HS: V
OUT
>2.00V) (High Accuracy)
+20mV (HS: V
OUT
≦1.95V)
(High Accuracy)
+1.5%, -2.5% (PS: V
OUT
>2.60V) (High Accuracy)
+2.5%, -3.5% (PS:1.60≦V
OUT
≦2.55V)
(High Accuracy)
+50mV, -70mV (PS:0.80≦V
OUT
≦1.55V)
(High Accuracy)
Low Power Consumption
:
TYP.4.5μA
when PS mode
TYP.25μA
when HS mode
Standby Current
: Less than 0.1μA
High Ripple Rejection
: 70dB @ 1kHz (When HS mode)
Low ESR Capacitor
: 1.0μF Ceramic capacitor
Regulators with Green Operation (GO) Function
C
L
High-Speed-Discharge (XC6217B/D)
Operating Ambient Temperature
:-40℃~+85℃
Packages
: USP-4D, SOT-25(XC6217 Series A/B Type)
SSOT-24,USPN-4(XC6217 Series C/D Type)
Environmentally Friendly
: EU RoHS Compliant, Pb Free
Output Current
Dropout Voltage
Operating Voltage Range
■TYPICAL
APPLICATION CIRCUIT
■
TYPICAL PERFORMANCE
CHARACTERISTICS
XC6217B281MR
2.9
V
IN
=3.8V,Tr=Tf=5usec, Ta=25℃
C
IN
=C
L
=1.0uF(Ceramic)
3
2.95
V
IN
V
OUT
2.85
2.8
V
OUT
_HSmode
2.9
CE
C
IN
1.0μF
(ceramic)
GO
V
SS
C
L
1.0μF
(ceramic)
2.7
2.65
2.6
2.55
2.5
2.45
2.4
I
OUT
=0.1mA
V
OUT
_GOmode
2.8
2.75
2.7
2.65
Output Current I
OUT
=50mA
I
OUT
=0.1mA
2.6
2.55
2.5
Time (500usec/div)
VOUT_GOmode(V)
VOUT_HSmode(V)
2.75
2.85
1/32
XC6217
Series
■PIN
CONFIGURATION
V
OUT
5
GO
GO
V
OUT
V
OUT
2
1
5
V
SS
V
SS
3
4
GO
4
V
IN
4
V
OUT
3
V
SS
V
OUT
2
1
3
4
CE
CE
V
IN
V
IN
CE
V
IN
The USP-4D heat dissipation pad is
recommended to solder in use of the
reference mount pattern and metal mask
pattern for the mounting strength and
heat dissipation.
1
V
IN
2
V
SS
3
CE
1
CE
2
V
SS
The USPN-4 is recommended to solder in
use of the reference mount pattern and
metal mask pattern for the mounting
strength.
USP-4D
(BOTTOM VIEW)
SOT-25
(TOP VIEW)
SSOT-24
(TOP VIEW)
USPN-4
(BOTTOM VIEW)
■PIN
ASSIGNMENT
PIN NUMBER
USP-4D
4
1
2
5
3
SOT-25
1
5
4
2
3
SSOT-24
4
3
-
2
1
USPN-4
4
1
-
2
3
PIN NAME
V
IN
V
OUT
GO
V
SS
CE
FUNCTION
Power Input
Output
Green Operation Mode Switch
Ground
ON/OFF Control
* XC6217 Series A/B type: USP-4D package
XC6217 Series A/B type: SOT-25 package
XC6217 Series C/D type: SSOT-24 package
XC6217 Series C/D type: USPN-4 package
2/32
XC6217
Series
■PRODUCT
CLASSIFICATION
●Ordering
Information
XC6217①②③④⑤⑥-⑦
(
*1
)
DESIGNATOR
DESCRIPTION
SYMBOL
A
①
Type of Regulator
B
C
D
②③
Output Voltage
08 ~ 40
DESCRIPTION
CE High Active, no C
L
discharge resistor
CE High Active, with C
L
discharge resistor
CE High Active, no C
L
discharge resistor, no GO pin
CE High Active, with C
L
discharge resistor, no GO pin
ex.) V
OUT(T)
= 3.00V
→ ②
= 3,
③
= 0
0.1V increments (Standard)
V
OUT(*2)
HS mode
2
PS mode
V
OUT(T)
-90mV
V
OUT(T)
-4.5%
V
OUT(T)
-4.5%
V
OUT(T)
-3.5%
0.80V ½ 1.50V
V
OUT(T)
±30mV
V
OUT(T)
+70mV,
1.60V ½ 1.90V
V
OUT(T)
±30mV
V
OUT(T)
+3.5%,
2.00V ½ 2.50V
V
OUT(T)
±2%
V
OUT(T)
+3.5%,
2.60V ½ 4.00V
V
OUT(T)
±2%
V
OUT(T)
+2.5%,
ex.) 2.00V Standard
→ ②=2, ③=0, ④=2
0.05V increments (Standard)
V
OUT(*2)
HS mode
PS mode
V
OUT(T)
-90mV
V
OUT(T)
-4.5%
V
OUT(T)
-4.5%
V
OUT(T)
-3.5%
A
④
Output Accuracy
0.85V ½ 1.55V
V
OUT(T)
±30mV
V
OUT(T)
+70mV,
1.65V ½ 1.95V
V
OUT(T)
±30mV
V
OUT(T)
+3.5%,
2.05V ½ 2.55V
V
OUT(T)
±2%
V
OUT(T)
+3.5%,
2.65V ½ 3.95V
V
OUT(T)
±2%
V
OUT(T)
+2.5%,
ex.) 2.05V Standard
→ ②=2, ③=0, ④=A
0.1V increments (High Accuracy)
V
OUT(*2)
HS mode
PS mode
V
OUT(T)
-70mV
V
OUT(T)
-3.5%
V
OUT(T)
-3.5%
V
OUT(T)
-2.5%
1
0.80V ½ 1.50V
V
OUT(T)
±20mV
V
OUT(T)
+50mV,
1.60V ½ 1.90V
V
OUT(T)
±20mV
V
OUT(T)
+2.5%,
2.00V ½ 2.50V
V
OUT(T)
±1%
V
OUT(T)
+2.5%,
2.60V ½ 4.00V
V
OUT(T)
±1%
V
OUT(T)
+1.5%,
ex.) 2.00V High Accuracy
→ ②=2, ③=0, ④=1
0.05V increments (High Accuracy)
V
OUT(*2)
HS mode
PS mode
V
OUT(T)
-70mV
V
OUT(T)
-3.5%
V
OUT(T)
-3.5%
V
OUT(T)
-2.5%
B
⑤⑥-⑦
Packages
(Order Unit)
GR
GR-G
MR
MR-G
NR
NR-G
7R-G
0.85V ½ 1.55V
V
OUT(T)
±20mV
V
OUT(T)
+50mV,
1.65V ½ 1.95V
V
OUT(T)
±20mV
V
OUT(T)
+2.5%,
2.05V ½ 2.55V
V
OUT(T)
±1%
V
OUT(T)
+2.5%,
2.65V ½ 3.95V
V
OUT(T)
±1%
V
OUT(T)
+1.5%,
ex.) 2.05V High Accuracy
→ ②=2, ③=0, ④=B
USP-4D (XC6217 Series A/B type) (3,000/Reel)
USP-4D (XC6217 Series A/B type) (3,000/Reel)
SOT-25 (XC6217 Series A/B type) (3,000/Reel)
SOT-25 (XC6217 Series A/B type) (3,000/Reel)
SSOT-24 (XC6217 Series C/D type) (3,000/Reel)
SSOT-24 (XC6217 Series C/D type) (3,000/Reel)
(*2)
USPN-4 (XC6217 Series C/D type) (5,000/Reel)
(*1)
(*2)
The “-G” suffix denotes Halogen and Antimony free as well as being fully RoHS compliant.
Output Range of USPN-4 1.6V≦V
OUT
≦4.00V
3/32
XC6217
Series
■PRODUCT
CLASSIFICATION
●Selection
Guide
Type
A
B
C
D
GO Pin
YES
YES
NO
NO
C
L
Discharge
NO
YES
NO
YES

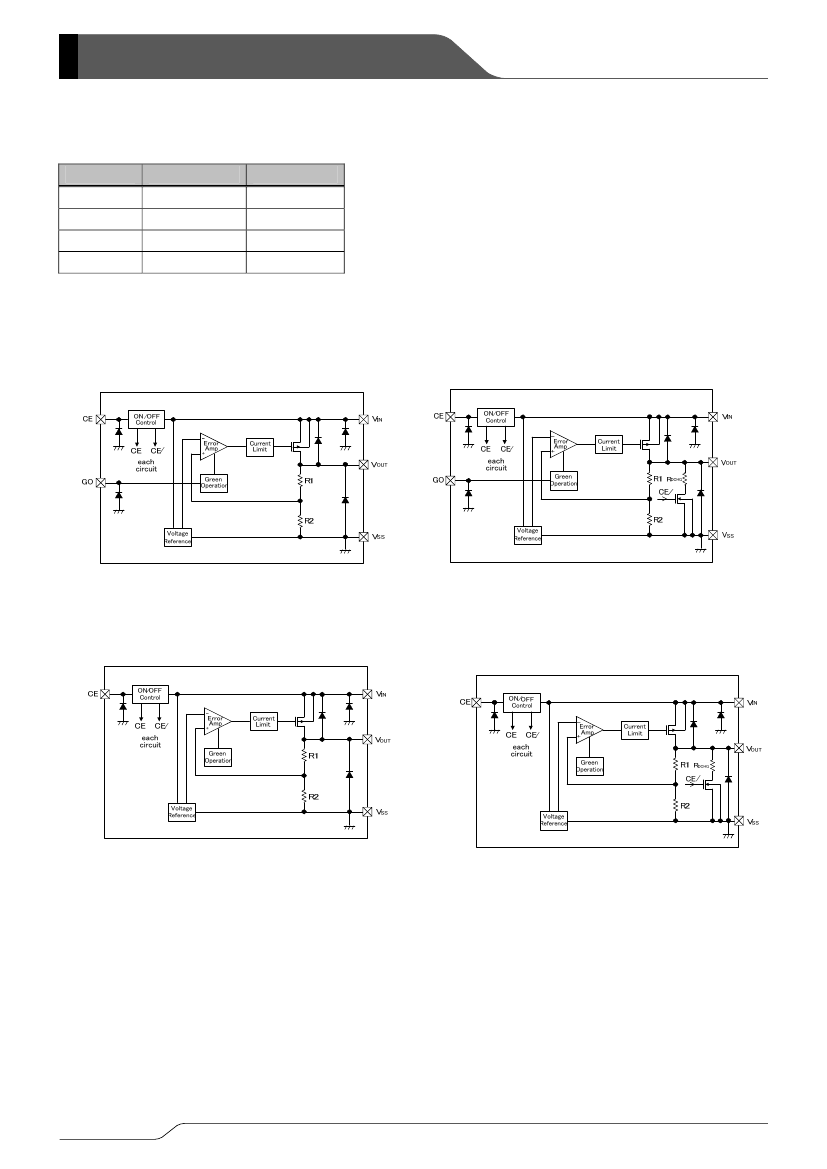

■BLOCK
DIAGRAMS
●XC6217
Series A Type
●XC6217
Series B Type
●XC6217
Series C Type
●XC6217
Series D Type
*Diodes inside the circuit are an ESD protection diode and a parasitic diode.
4/32
XC6217
Series
■FUNCTION
CHART
PIN NAME
CE
LOGIC
L
H
OPEN
L
GO
(*1)
H
OPEN
IC CONDITION
OFF
ON
Undefined operation
GO Mode
(*2)
HS Mode
Undefined operation
(*1) Since there is no GO pin about SSOT-24 and USPN-4, they always operate by GO Mode.
(*2) GO mode = PS/HS auto switching
PowerSave(PS) mode：Low supply current
HighSpeed(HS) mode：High Speed
(*3) CE pin and GO pin should not be left open. Each should have a certain voltage.
■ABSOLUTE
MAXIMUM RATINGS
Ta=25℃
PARAMETER
Input Voltage
Output Current
Output Voltage
CE/GO Input Voltage
USP-4D
Power Dissipation
SOT-25
SSOT-24
USPN-4
Operating Ambient Temperature
Storage Temperature
Topr
Tstg
Pd
SYMBOL
V
IN
I
OUT
V
OUT
V
CE
/V
GO
RATINGS
V
SS
-0.3 ~ +6.5
400 *1
V
SS
– 0.3 ~ V
IN
+ 0.3
V
SS
– 0.3 ~ +6.5
120
650 (PCB mounted)*2
250
150
100
600 (PCB mounted)*2
- 40 ~ + 85
- 55 ~ +125
UNITS
V
mA
V
V
mW
℃
℃
*1: I
OUT
≦
Pd / (V
IN
-V
OUT
)
*2: This power dissipation figure shown is PCB mounted and is for reference only. Please refer to page 26-27 for details.
5/32
