LM193, LM293, LM393
Low-power, dual-voltage comparators
Datasheet - production data
Description
The LM193, LM293, and LM393 devices consist
of two independent low voltage comparators
designed specifically to operate from a single
supply over a wide range of voltages. Operation
from split power supplies is also possible.
These comparators also have a unique
characteristic in that the input common-mode
voltage range includes ground even though
operated from a single power supply voltage.
Features
Wide single-supply voltage range or dual
supplies: 2 V to 36 V or ±1 V to ±18 V
Very low supply current (0.45 mA)
independent of supply voltage
(1 mW/comparator at 5 V)
Low input bias current: 20 nA typ.
Low input offset current: ±3 nA typ.
Low input offset voltage: ±1 mV typ.
Input common-mode voltage range includes
ground
Low output saturation voltage: 80 mV typ.
(I
sink
= 4 mA)
Differential input voltage range equal to the
supply voltage
TTL, DTL, ECL, MOS, CMOS compatible
outputs

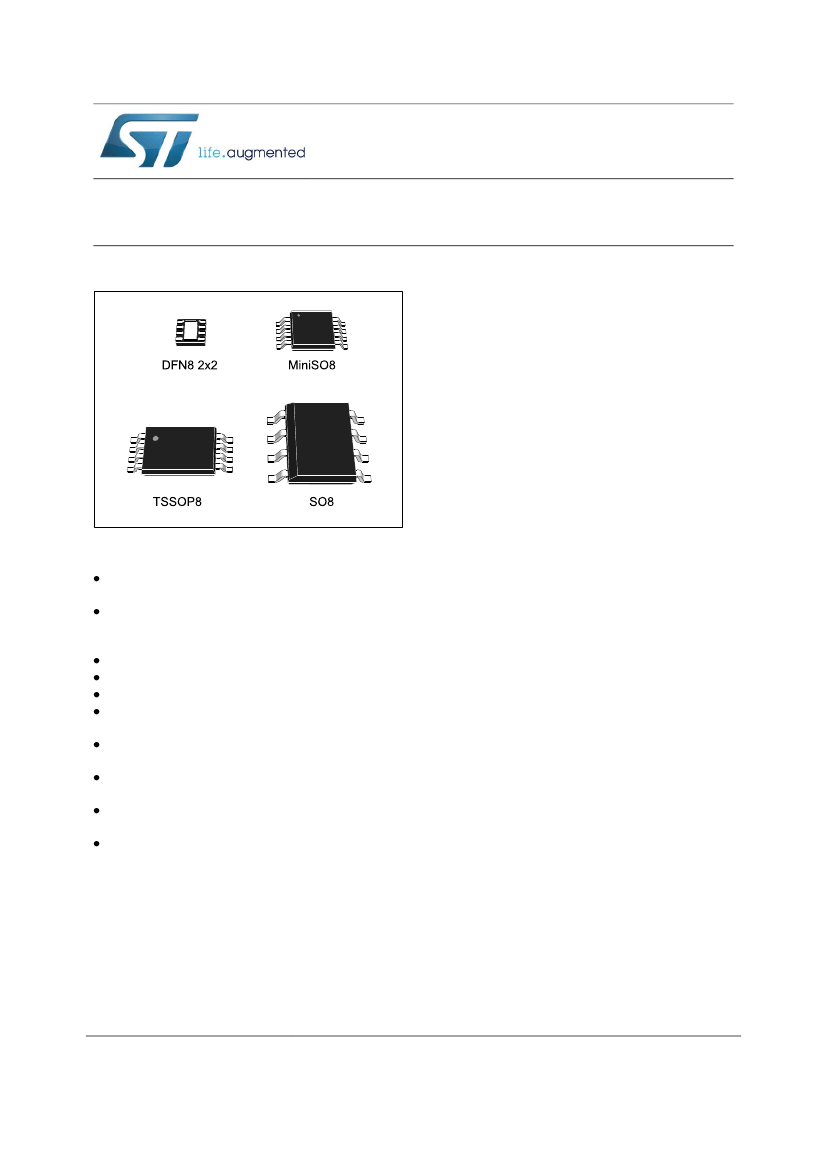

Available in DFN8 2x2, MiniSO8, TSSOP8,
and SO8 packages
February 2016
DocID2164 Rev 15
1/21
www.st.com
This is information on a product in full production.
Contents
LM193, LM293, LM393
Contents
1
2
3
4
5
6
7
Schematic diagram.......................................................................... 3
Package pin connections................................................................ 4
Absolute maximum ratings and operating conditions ................. 5
Electrical characteristics ................................................................ 7
Electrical characteristic curves ...................................................... 8
Typical applications ........................................................................ 9
Package information ..................................................................... 12
7.1
7.2
7.3
7.4
DFN8 2x2 package information ....................................................... 13
MiniSO8 package information ......................................................... 15
TSSOP8 package information ......................................................... 16
SO8 package information ................................................................ 17
8
9
Ordering information..................................................................... 18
Revision history ............................................................................ 19
2/21
DocID2164 Rev 15
LM193, LM293, LM393
Schematic diagram
1
Schematic diagram
Figure 1: Schematic diagram (1/2 LM193)
DocID2164 Rev 15
3/21
Package pin
connections
LM193, LM293, LM393
2
Package pin connections
Figure 2: Pin connections (top view)
1.
The exposed pad of the DFN8 2x2 can be left floating or connected to ground
4/21
DocID2164 Rev 15
LM193, LM293, LM393
Absolute maximum
ratings and operating
conditions
3
Symbol
V
CC
V
id
V
in
Absolute maximum ratings and operating conditions
Table 1: Absolute maximum ratings
Parameter
Supply voltage
Differential input voltage
Input voltage
Output short-circuit to ground
(1)
Value
±18 or 36
±36
-0.3 to 36
Infinite
DFN8 2x2
57
190
120
125
—
39
37
40
150
-65 to 150
H1B
M2
Unit
V
R
thja
Thermal resistance junction to ambient
(2)
MiniSO8
TSSOP8
SO8
DFN8 2x2
°C/W
R
thjc
Thermal resistance junction to case
(2)
MiniSO8
TSSOP8
SO8
T
j
T
stg
ESD class
(3)
Maximum junction temperature
Storage temperature range
HBM: human body model
MM: machine model
(5)
(6)
(4)
°C
CDM: charged device model
Notes:
(1)
C5
Short-circuits from the output to V
CC
+ can cause excessive heating and potential destruction. The maximum output current is
approximately 20 mA independent of the magnitude of V
CC
+.
(2)
(3)
(4)
(5)
(6)
Short-circuits can cause excessive heating and destructive dissipation. Values are typical.
ESD class definition from AEC-Q100:
HBM class H1B: ESD voltage level from 500 V to 1000 V
MM class M2: ESD voltage level from 100 V to 200 V
CDM class C5: ESD voltage level greater than 1500 V.
DocID2164 Rev 15
5/21
