LM317LBZRAG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM317LBZRAG

LM317LBZRAG: DescriptionLDO Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 T/R; CategoryPower/power management The power supply circuit; File Size299KB，15 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

LM317LBZRAG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM317LBZRAG	-	-	View	Buy Now

LM317LBZRAG Overview

LDO Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 T/R

LM317LBZRAG Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TO-92
package instruction	TO-92, 3 PIN
Contacts	3
Manufacturer packaging code	29-11
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
Adjustability	ADJUSTABLE
Nominal dropback voltage 1	3 V
Maximum Differential Input-Output Voltage	40 V
Minimum Differential Input-Output Voltage	3 V
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Maximum grid regulation rate (%/V)	0.07
Maximum load regulation (%)	1.5%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	37 V
Minimum output voltage 1	1.2 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

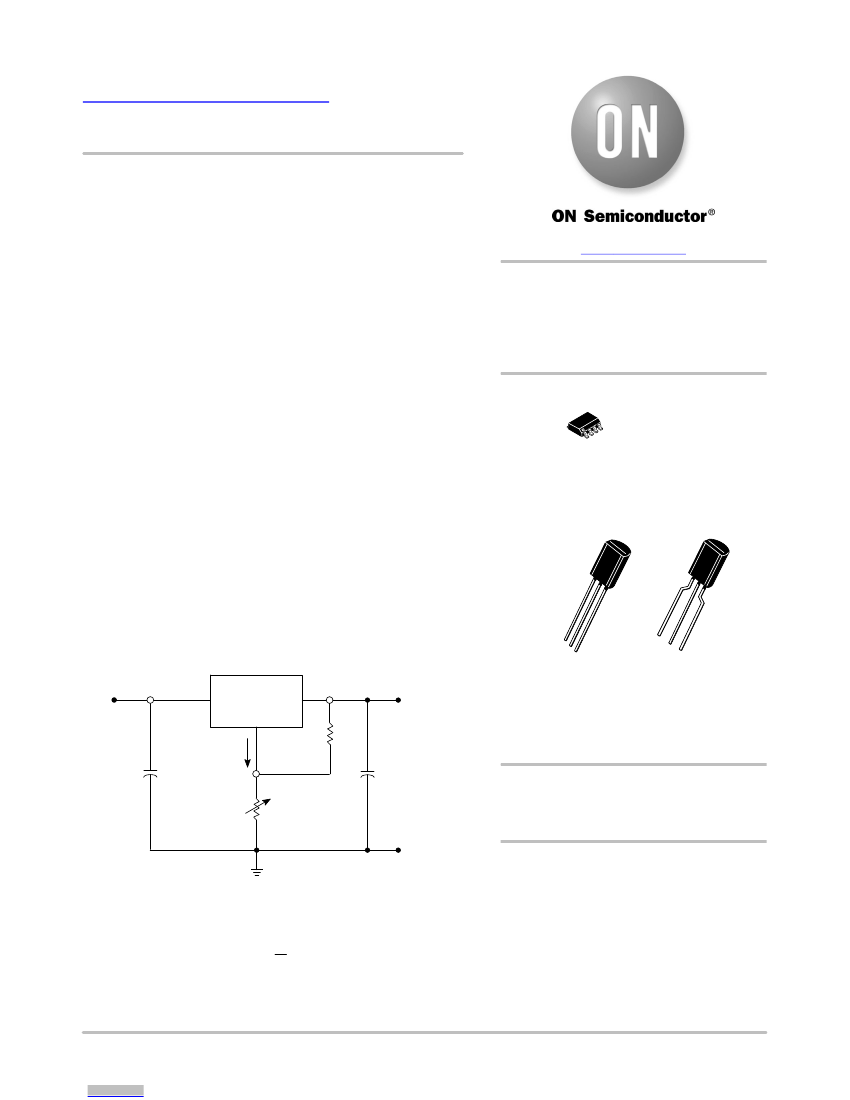

Voltage Regulator

Adjustable Output, Positive

100 mA

LM317L, NCV317L

The LM317L is an adjustable 3−terminal positive voltage regulator

capable of supplying in excess of 100 mA over an output voltage range

of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use

and requires only two external resistors to set the output voltage.

Further, it employs internal current limiting, thermal shutdown and

safe area compensation, making them essentially blow−out proof.

The LM317L serves a wide variety of applications including local,

on card regulation. This device can also be used to make a

programmable output regulator, or by connecting a fixed resistor

between the adjustment and output, the LM317L can be used as a

precision current regulator.

Features

www.onsemi.com

LOW CURRENT

THREE−TERMINAL

ADJUSTABLE POSITIVE

VOLTAGE REGULATOR

•

Output Current in Excess of 100 mA

Output Adjustable Between 1.2 V and 37 V

Internal Thermal Overload Protection

Internal Short Circuit Current Limiting

Output Transistor Safe−Area Compensation

Floating Operation for High Voltage Applications

Standard 3−Lead Transistor Package

Eliminates Stocking Many Fixed Voltages

NCV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These are Pb−Free Devices

Simplified Application

LM317L

240

Adj

0.1mF

Adjust

+ C **

1.0mF

out

SOIC−8

D SUFFIX

CASE 751

Pin 1.

out

Adjust

N.C.

out

N.C.

STRAIGHT LEAD

TO−92

Z SUFFIX

CASE 29−10

BENT LEAD

Pin 1. Adjust

2. V

out

3. V

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 9 of this data sheet.

DEVICE MARKING INFORMATION

* C

is required if regulator is located an appreciable

distance from power supply filter.

** C

is not needed for stability, however,

it does improve transient response.

Vout

1.25 V 1

)

IAdj R2

Since I

Adj

is controlled to less than 100

mA,

the error

associated with this term is negligible in most applications.

See general marking information in the device marking

section on page 9 of this data sheet.

Semiconductor Components Industries, LLC, 2013

April, 2021

−

Rev. 14

Publication Order Number:

LM317L/D

LM317LBZRAG Related Products

	LM317LBZRAG	LM317LZRMG	LM317LZREG	LM317LBDR2G	LM317LDR2G
Description	LDO Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 T/R	LDO Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 Fan-Fold	LDO Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 T/R	LDO Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R	LDO Regulator Pos 1.2V to 37V 0.1A 8-Pin SOIC N T/R
EU restricts the use of certain hazardous substances	-	Compliant	Compliant	Compliant	Compliant
ECCN (US)	-	EAR99	EAR99	EAR99	EAR99
Part Status	-	Active	Active	Active	Active
HTS	-	8542.39.00.01	8542.39.00.01	8542.39.00.01	8542.39.00.01
Type	-	LDO	LDO	LDO	LDO
Number of Outputs	-	1	1	1	1
Polarity	-	Positive	Positive	Positive	Positive
Output Type	-	Adjustable	Adjustable	Adjustable	Adjustable
Output Voltage (V)	-	1.2 to 37	1.2 to 37	1.2 to 37	1.2 to 37
Maximum Output Current (A)	-	0.02(Typ)	0.02(Typ)	0.1(Min)	0.1(Min)
Minimum Input Voltage (V)	-	2.8	2.8	3.1	2.8
Maximum Input Voltage (V)	-	40	40	40	40
Reference Voltage (V)	-	1.3	1.3	1.3	1.3
Line Regulation	-	0.07%/V	0.07%/V	0.04%/V	0.04%/V
Load Regulation	-	0.5%	0.5%	0.5%	0.5%
Junction to Ambient	-	160°C/W	160°C/W	180°C/W	180°C/W
Junction to Case	-	83°C/W	83°C/W	45°C/W	45°C/W
Special Features	-	Current Limit\|Safe Area Protection\|Short Circuit Protection\|Thermal Shutdown Protection	Current Limit\|Safe Area Protection\|Short Circuit Protection\|Thermal Shutdown Protection	Thermal Shutdown Protection\|Short Circuit Protection\|Current Limit\|Safe Area Protection	Safe Area Protection\|Current Limit\|Thermal Shutdown Protection\|Short Circuit Protection
Maximum Operating Temperature (°C)	-	125	125	125	125
Packaging	-	Fan-Fold	Tape and Reel	Tape and Reel	Tape and Reel
Supplier Package	-	TO-92	TO-92	SOIC N	SOIC N
Pin Count	-	3	3	8	8
Standard Package Name	-	TO-92	TO-92	SOP	SOP
Mounting	-	Through Hole	Through Hole	Surface Mount	Surface Mount
Package Height	-	5.33(Max)	5.33(Max)	1.5(Max)	1.5(Max)
Package Length	-	5.2(Max)	5.2(Max)	5(Max)	5(Max)
Package Width	-	4.19(Max)	4.19(Max)	4(Max)	4(Max)
PCB changed	-	3	3	8	8
Lead Shape	-	Through Hole	Through Hole	Gull-wing	Gull-wing
