D5S9M-4015

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, ITO-220, 2 PIN
CategoryDiscrete semiconductor    diode
File Size428KB,2 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric Compare View All

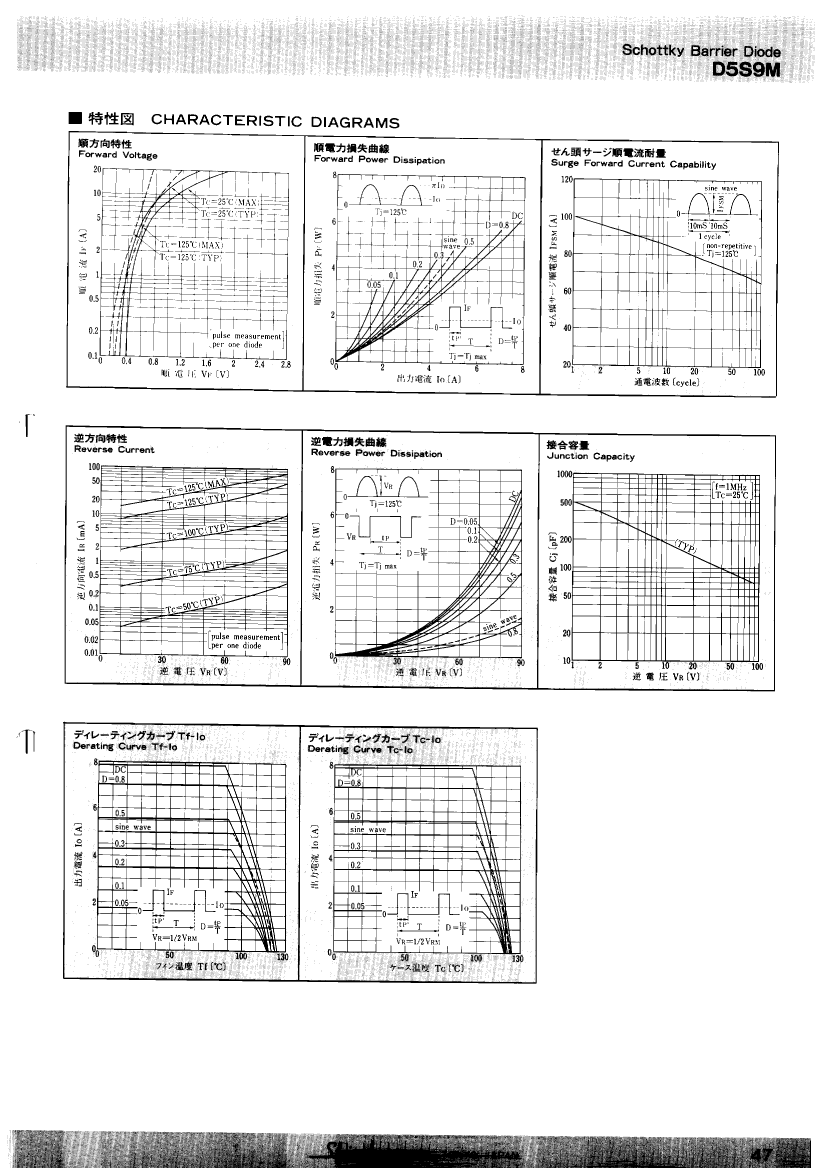

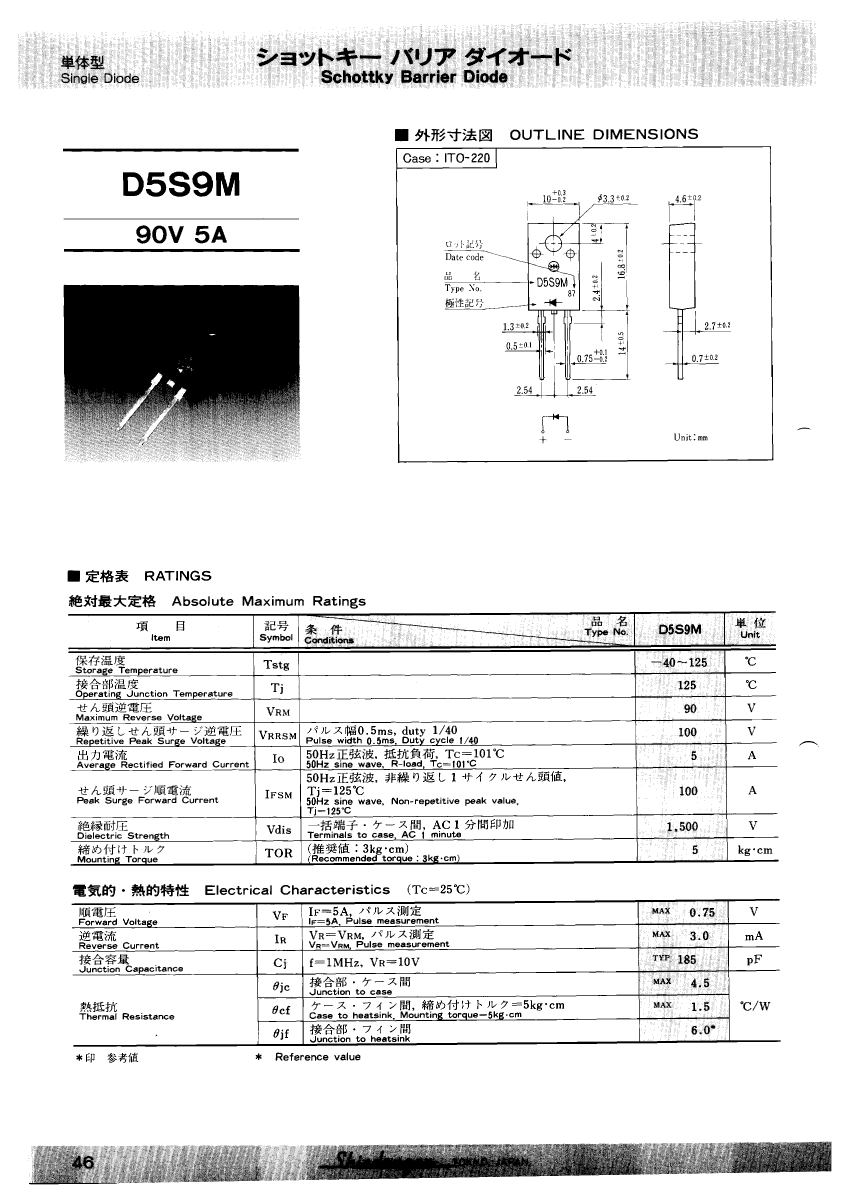

D5S9M-4015 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, ITO-220, 2 PIN

D5S9M-4015 Parametric

Parameter NameAttribute value
MakerSHINDENGEN
Parts packaging codeTO-220AC
package instructionR-PSFM-T2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.75 V
JESD-30 codeR-PSFM-T2
Maximum non-repetitive peak forward current100 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Maximum output current5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum reverse current3000 µA
surface mountNO
technologySCHOTTKY
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Base Number Matches1

D5S9M-4015 Related Products

D5S9M-4015 D5S9M-4022
Description Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, ITO-220, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, Silicon, ITO-220, 2 PIN
Maker SHINDENGEN SHINDENGEN
Parts packaging code TO-220AC TO-220AC
package instruction R-PSFM-T2 R-PSFM-T2
Contacts 2 2
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
application GENERAL PURPOSE GENERAL PURPOSE
Shell connection ISOLATED ISOLATED
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.75 V 0.75 V
JESD-30 code R-PSFM-T2 R-PSFM-T2
Maximum non-repetitive peak forward current 100 A 100 A
Number of components 1 1
Phase 1 1
Number of terminals 2 2
Maximum operating temperature 125 °C 125 °C
Maximum output current 5 A 5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified
Maximum reverse current 3000 µA 3000 µA
surface mount NO NO
technology SCHOTTKY SCHOTTKY
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Base Number Matches 1 1
