AD584SQ/HR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AD584SQ/HR

AD584SQ/HR: DescriptionVoltage Reference, 10V, BIPolar, CDIP8; CategoryPower/power management The power supply circuit; File Size516KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

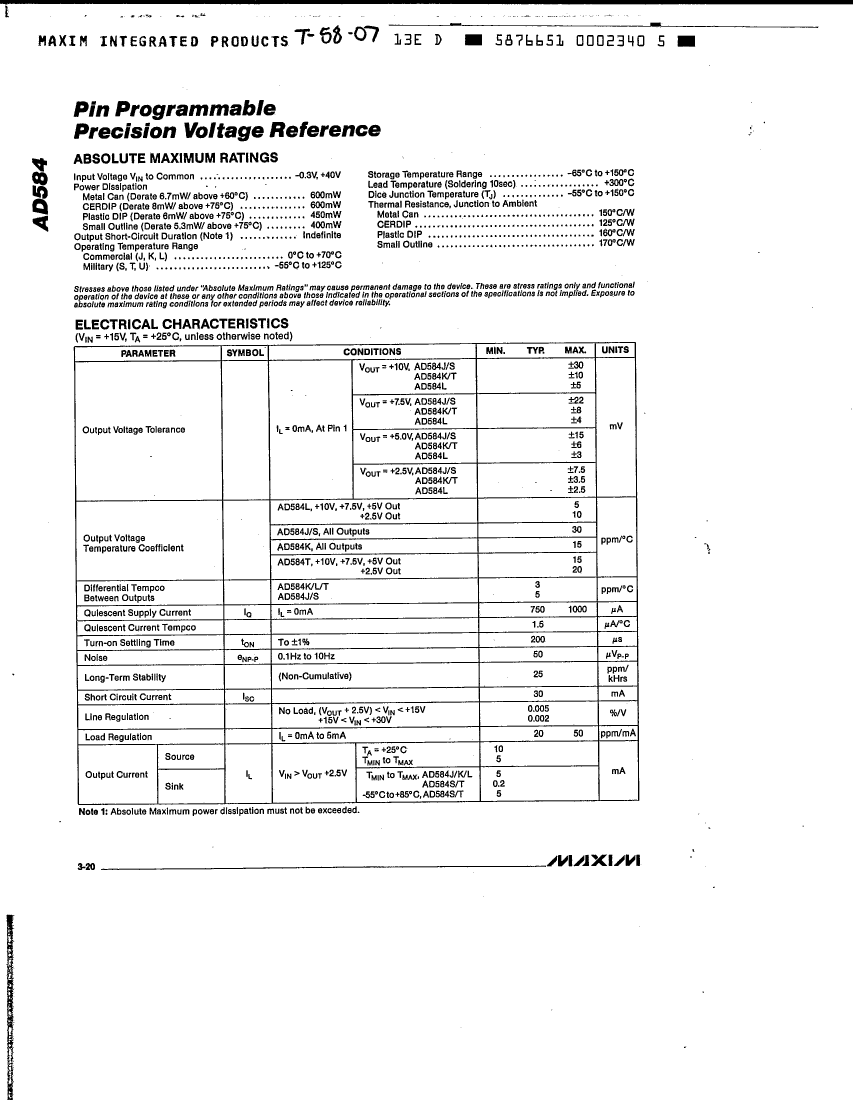

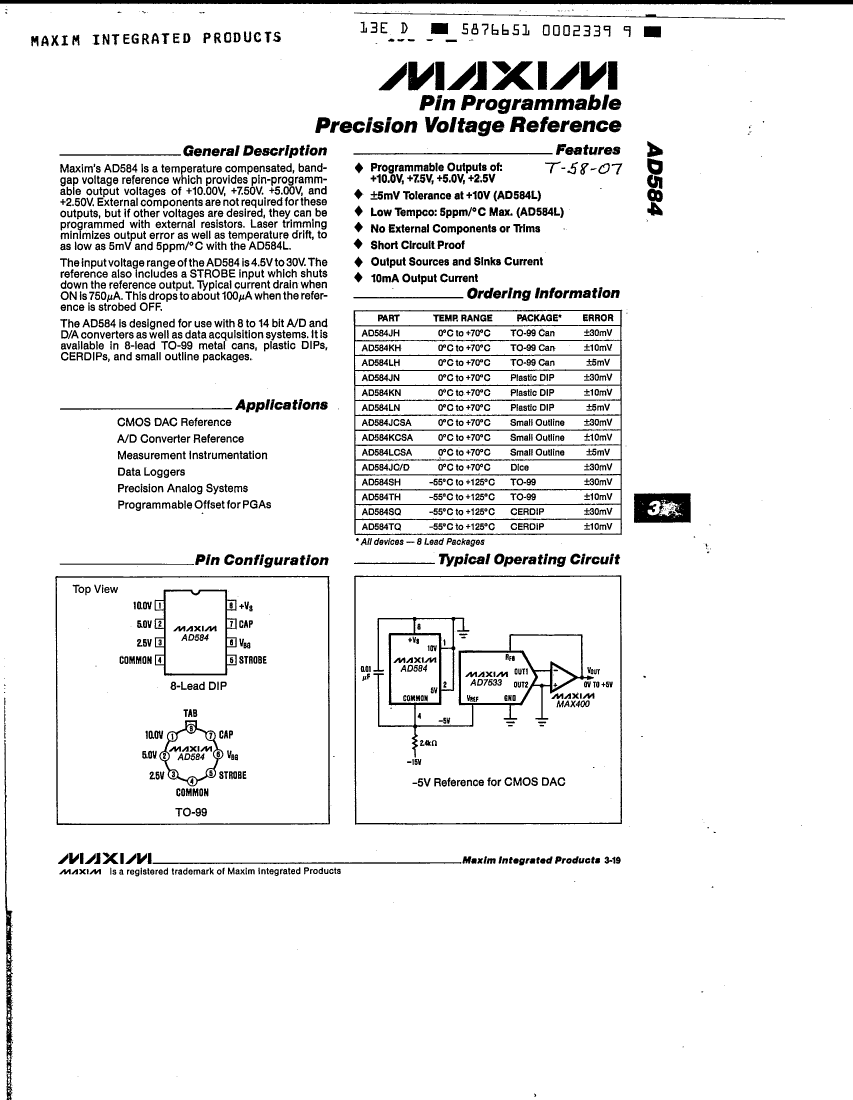

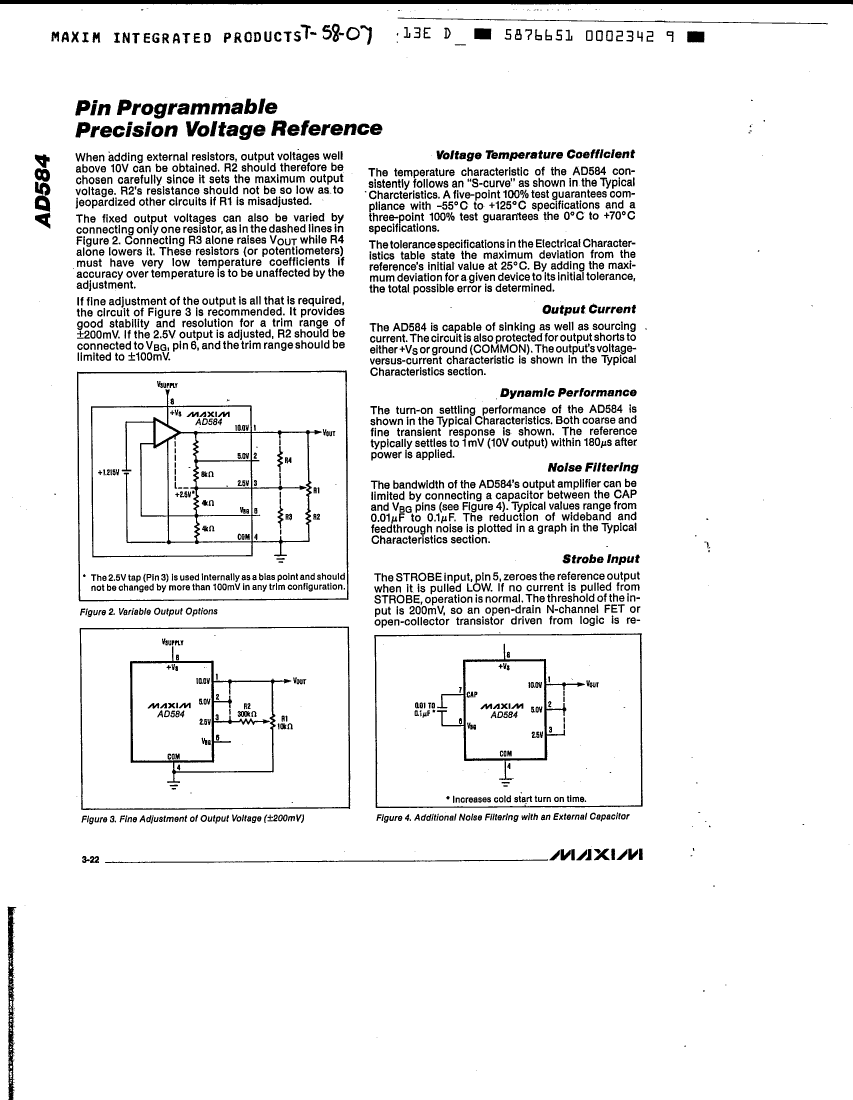

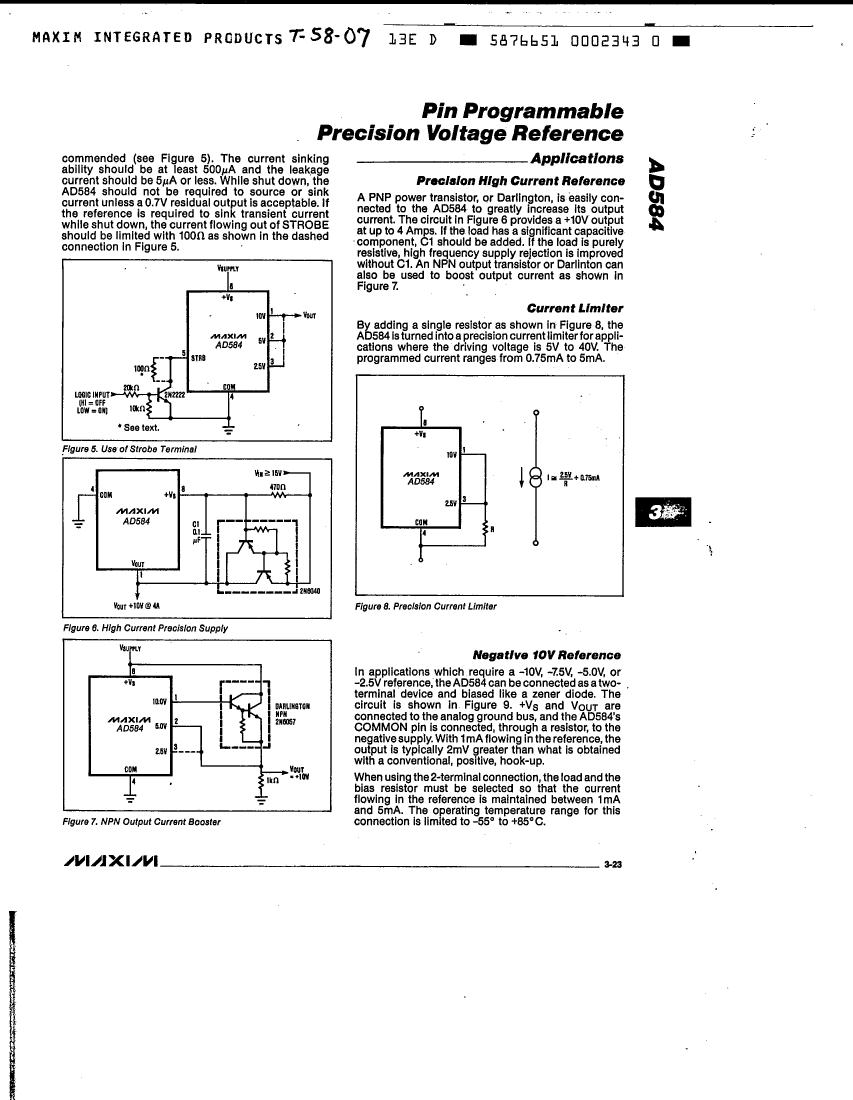

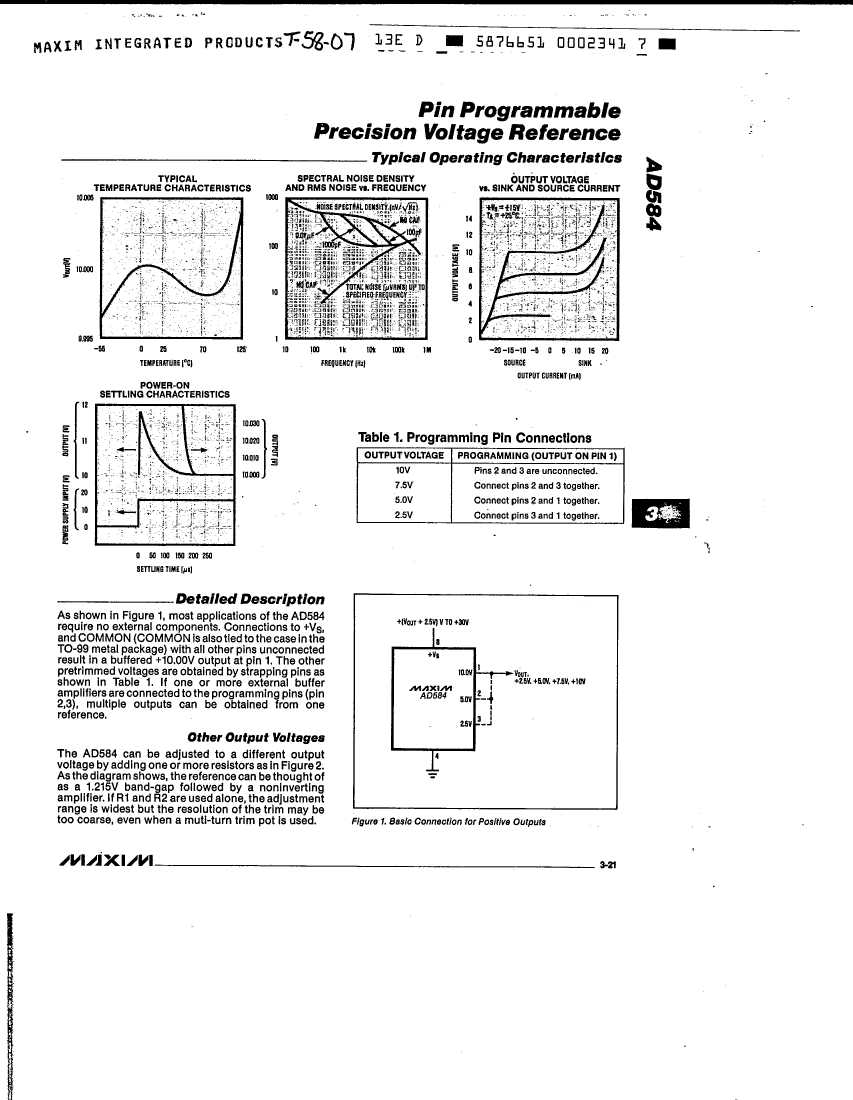

AD584SQ/HR Overview

Voltage Reference, 10V, BIPolar, CDIP8

AD584SQ/HR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	_compli
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Nominal output voltage	10 V
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	30 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum voltage tolerance	0.3%

Preview

Download Datasheet

View All

AD584SQ/HR Related Products

	AD584SQ/HR	AD584S/D	AD584SH/883	AD584SH/HR	AD584SQ/883	AD584J/D	MX584TQ/HR	AD584TH/883	MX584SQ/883	MX584TH/HR
Description	Voltage Reference, 10V, BIPolar, CDIP8	Voltage Reference, 10V, BIPolar,	Voltage Reference, 10V, BIPolar, MBCY8	Voltage Reference, 10V, BIPolar, MBCY8	Voltage Reference, 10V, BIPolar, CDIP8	Voltage Reference, 10V, BIPolar	Voltage Reference, 10V, BIPolar, CDIP8	Voltage Reference, 10V, BIPolar, MBCY8	Voltage Reference, 10V, BIPolar, CDIP8	Voltage Reference, 10V, BIPolar, MBCY8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Nominal output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Encapsulate equivalent code	DIP8,.3	DIE OR CHIP	CAN8,.2	CAN8,.2	DIP8,.3	DIE OR CHIP	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	30 ppm/°C	30 ppm/°C	30 ppm/°C	30 ppm/°C	30 ppm/°C	30 ppm/°C	20 ppm/°C	20 ppm/°C	30 ppm/°C	20 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Maximum voltage tolerance	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%	0.14%	0.14%	0.3%	0.14%
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	-	Maxim	Maxim	Maxim
JESD-30 code	R-XDIP-T8	-	O-MBCY-W8	O-MBCY-W8	R-XDIP-T8	-	R-XDIP-T8	O-MBCY-W8	R-XDIP-T8	O-MBCY-W8
JESD-609 code	e0	-	e0	e0	e0	-	e0	e0	e0	e0
Number of terminals	8	-	8	8	8	-	8	8	8	8
Package body material	CERAMIC	-	METAL	METAL	CERAMIC	-	CERAMIC	METAL	CERAMIC	METAL
Package shape	RECTANGULAR	-	ROUND	ROUND	RECTANGULAR	-	RECTANGULAR	ROUND	RECTANGULAR	ROUND
Package form	IN-LINE	-	CYLINDRICAL	CYLINDRICAL	IN-LINE	-	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL
Filter level	MIL-STD-883 Class B (Modified)	-	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	-	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	WIRE	WIRE	THROUGH-HOLE	-	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE
Terminal location	DUAL	-	BOTTOM	BOTTOM	DUAL	-	DUAL	BOTTOM	DUAL	BOTTOM
