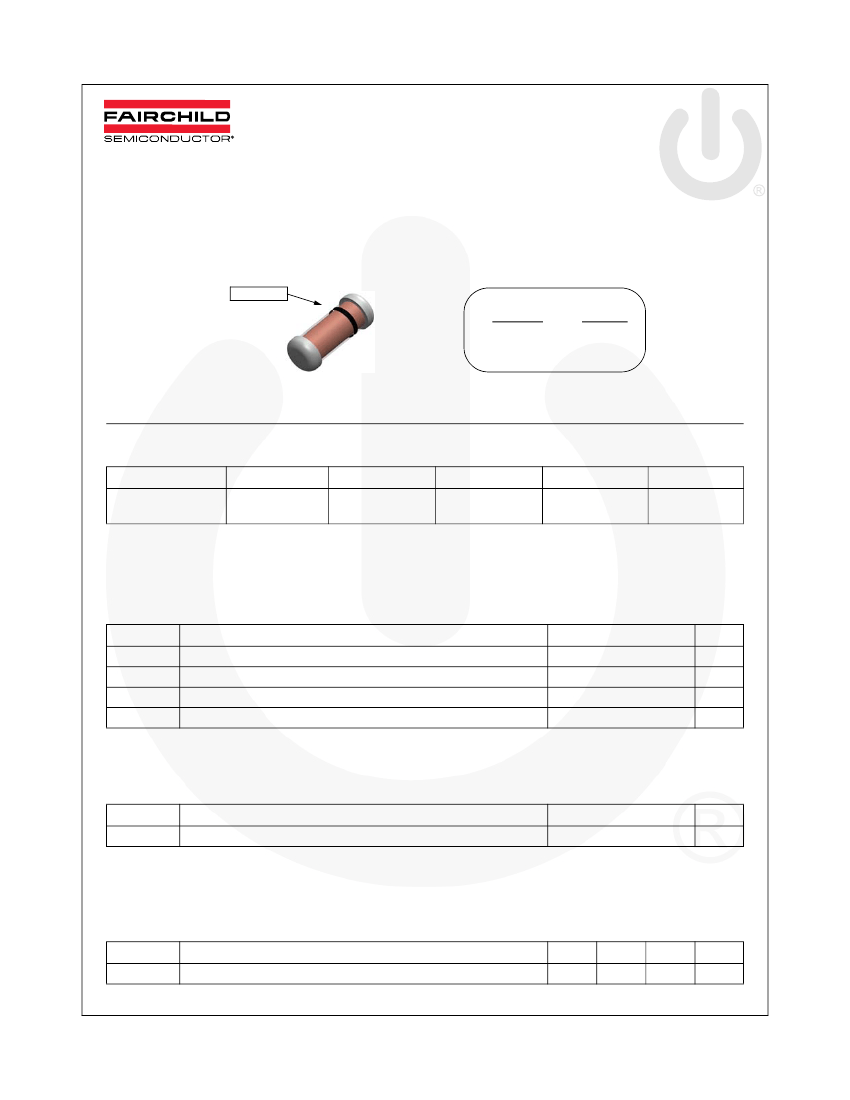

FLZ2V2 - FLZ39V — Zener Diodes
April 2013
FLZ2V2 - FLZ39V
Zener Diodes
Cathode Band
Color Band Marking
Tolerance
A
B
C
D
1st Band
Black
Black
Black
Black
SOD80
Ordering Information
Device Marking
Device
Package
SOD-80
Reel Size
7”
Tape Width
8 mm
Quantity
2,500
Color Band Marking
Refer to
Per Tolerance
Product table list
Absolute Maximum Ratings
(1)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
T
STG
T
J
I
ZM
Power Dissipation
Parameter
Storage Temperature Range
Junction Operating Temperature Range
Maximum Regulator Current
Value
500
-65 to +175
-65 to +175
P
D
/V
Z
Units
mW
°C
°C
mA
Note:
1. These ratings are limiting values above which the serviceability of the diode may be impaired.
Thermal Characteristics
(2)
Symbol
R
θJA
Parameter
Thermal Resistance, Junction to Ambient
Value
300
Unit
°C/W
Note:
2. Device mounted on FR-4 PCB with 3’’
×
4.5”
×
0.06 with only signal trace.
Electrical Characteristics
Values are at T
A
=25°C unless otherwise noted.
Symbol
V
F
Parameter / Test condition
Forward Voltage / I
F
=200 mA
Min.
Typ.
Max.
1.2
Unit
V
© 2005 Fairchild Semiconductor Corporation
FLZ2V2 - FLZ39V Rev. 1.1.0
www.fairchildsemi.com
1
FLZ2V2 - FLZ39V — Zener Diodes
Electrical Characteristics
(Continued) Values are at T
A
= 25°C unless otherwise noted.
Product
Group
FLZ27V
Product
Name
FLZ27VA
FLZ27VB
FLZ27VC
FLZ27VD
V
Z
(3)
(V) @ I
ZT
Min.
24.26
24.97
25.63
26.29
26.99
27.70
28.36
29.02
29.68
30.32
30.90
31.49
32.14
32.79
33.40
34.01
34.68
35.36
36.00
36.63
Z
ZT
(Ω)
@ I
ZT
Max.
38
38
38
38
46
46
46
46
55
55
55
55
63
63
63
63
72
72
72
72
I
ZT
(mA)
-
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZK
(Ω)
@ I
ZK
Max.
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
210
I
ZK
(mA)
-
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
(μA)
@ V
R
Max
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
V
R
(V)
-
21
21
21
21
23
23
23
23
25
25
25
25
27
27
27
27
30
30
30
30
Typ.
24.89
25.62
26.29
26.97
27.69
28.41
29.09
29.77
30.45
31.10
31.70
32.30
32.96
33.63
34.27
34.89
35.57
36.26
36.92
37.58
Max.
25.52
26.26
26.95
27.64
28.39
29.13
29.82
30.51
31.22
31.88
32.50
33.11
33.79
34.49
35.13
35.77
36.47
37.19
37.85
38.52
FLZ30V
FLZ30VA
FLZ30VB
FLZ30VC
FLZ30VD
FLZ33V
FLZ33VA
FLZ33VB
FLZ33VC
FLZ33VD
FLZ36V
FLZ36VA
FLZ36VB
FLZ36VC
FLZ36VD
FLZ39V
FLZ39VA
FLZ39VB
FLZ39VC
FLZ39VD
Note:
3. Zener Voltage(V
z
): The zener voltage is measured with the device junction in the thermal equilibrium at the lead
temperature (TL) at 30°C ± 1°C and 3/8” lead length.
© 2005 Fairchild Semiconductor Corporation
FLZ2V2 - FLZ39V Rev. 1.1.0
www.fairchildsemi.com
4
