Document No.: FT_000173
FT2232D DUAL USB TO SERIAL UART
/FIFO IC
Datasheet
Version 2.05
Clearance No.: FTDI# 127
Future Technology
Devices International Ltd
FT2232D
Dual USB to
Serial UART/FIFO IC

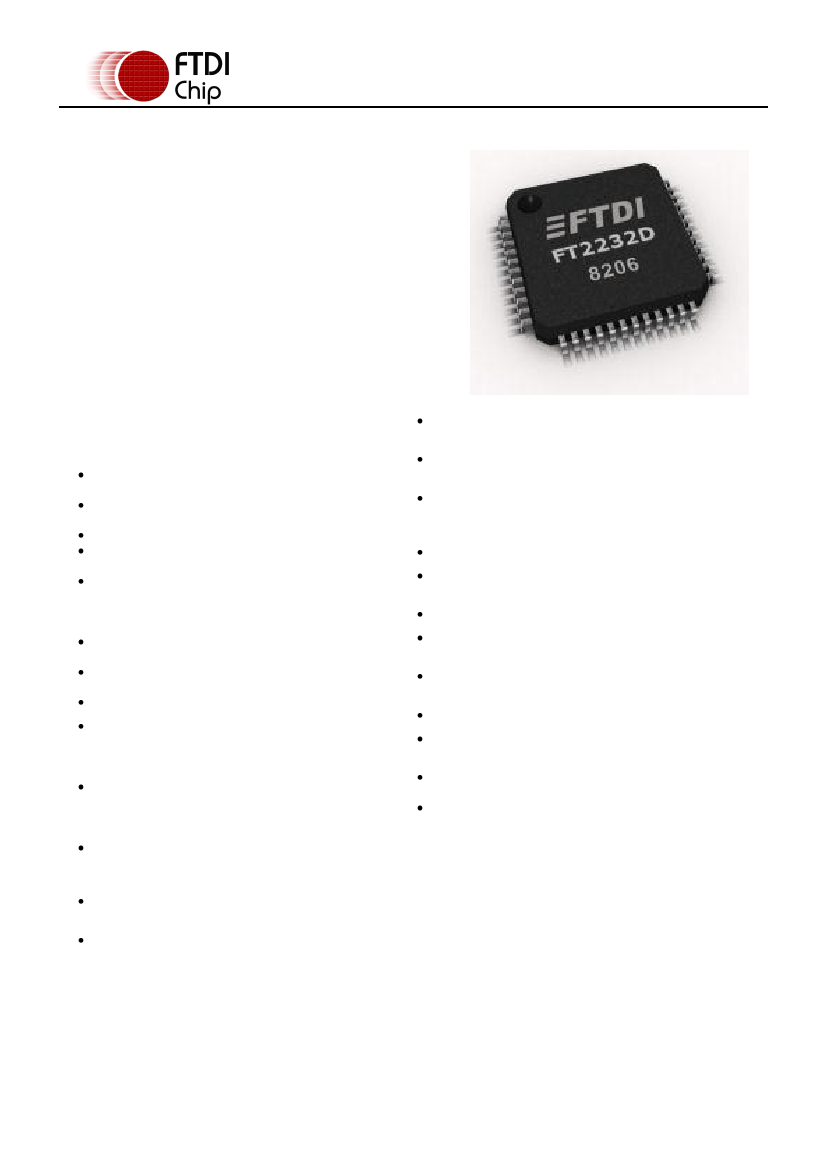

The FT2232D is a dual USB to serial UART or
FIFO interface with the following advanced
features:
Single chip USB to dual channel serial / parallel
ports with a variety of configurations.
Entire USB protocol handled on the chip. No
USB specific firmware programming required.
Transfer Data Rate 300 to 3 Mbaud.
USB to parallel FIFO transfer data rate up to 1
megabyte / second.
Multi-Protocol Synchronous Serial Engine
(MPSSE) to simplify synchronous serial
protocol (USB to JTAG, USB to I
2
C, USB to
SPI) design.
CPU-style FIFO interface mode simplifies CPU
interface design.
MCU host bus emulation mode configuration
option.
Fast Opto-Isolated serial interface option.
FTDI‟s royalty-free Virtual Com Port (VCP) and
Direct
(D2XX)
drivers
eliminate
the
requirement for USB driver development in
most cases.
Highly integrated design includes 3.3V LDO
regulator for USB I/O, integrated POR function
and on chip clock multiplier PLL (6MHz –
48MHz).
Asynchronous serial UART interface option with
full hardware handshaking and modem
interface signals.
Enhanced bit-bang Mode interface option with
RD# and WR# strobes.
Configurable I/O drive strength.
Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced
in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are
supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology
Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your
statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in
which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminary
information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by
the publication of this document. Future Technology Devices International Ltd, Unit 1, 2 Seaward Place, Centurion Business Park,
Glasgow, G41 1HH, United Kingdom. Scotland Registered Number: SC136640
Fully assisted hardware
software handshaking.
or
X-On
/
X-Off
UART Interface supports 7/8 bit data, 1/2 stop
bits, and Odd/Even/Mark/Space/No Parity.
Operational configuration mode and USB
Description strings configurable in external
EEPROM over the USB interface.
Low operating and USB suspend current.
Supports bus powered, self powered and high-
power bus powered USB configurations.
UHCI/OHCI/EHCI host controller compatible.
USB
2.0
compatible.
Full
Speed
(12Mbits/Second)
Extended -40°C to 85°C industrial operating
temperature range.
Compact 48-LD Lead Free LQFP package
+4.35V to +5.25V single supply
voltage range.
operating
Dedicated Windows DLLs available for USB to
JTAG, USB to SPI, and USB to I
2
C applications.
ESD protection for FT2232D IO‟s:
Human Body Model (HBM) ±2kV,
Machine Mode (MM) ±100V,
Charge Device Model (CDM) ±500V,
Latch-up free..
Copyright © 2010 Future Technology Devices International Limited
1
Document No.: FT_000173
FT2232D DUAL USB TO SERIAL UART
/FIFO IC
Datasheet
Version 2.05
Clearance No.: FTDI# 127
1
Typical Applications
USB to Dual Port RS232 Converters
USB to Dual Port RS422 / RS485 Converters
Upgrading Legacy Peripheral Designs to USB
USB Instrumentation
USB JTAG Programming
USB to SPI Bus Interfaces
USB Industrial Control
Field Upgradable USB Products
Galvanically Isolated Products with USB
Interface
USB to synchronous serial interface
Cellular and cordless phone USB data
transfer cables and interfaces.
USB Audio and Low Bandwidth Video data
transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader / Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Bar Code Readers
Interfacing MCU / PLD / FPGA based designs to
USB
1.0 Driver Support
The FT2232D requires USB drivers (listed below), available free from
http://www.ftdichip.com,
which
are used to make the FT2232D appear as a virtual COM port (VCP). This then allows the user to
communicate with the USB interface via a standard PC serial emulation port (for example TTY). Another
FTDI USB driver, the D2XX driver, can also be used with application software to directly access the
FT2232D though a DLL.
Royalty free VIRTUAL COM PORT
(VCP) DRIVERS for...
Windows 98, 98SE, ME, 2000, Server 2003, XP
and Server 2008
Windows XP and XP 64-bit
Windows Vista and Vista 64-bit
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Mac OS 8/9, OS-X
Windows 7 32,64 bit
Linux 2.4 and greater
Royalty free D2XX Direct Drivers
(USB Drivers + DLL S/W Interface)
Windows 98, 98SE, ME, 2000, Server 2003, XP
and Server 2008
Windows XP and XP 64-bit
Windows Vista and Vista 64-bit
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Windows 7 32,64 bit
Linux 2.4 and greater
For driver installation, please refer to the application note AN232B-10.
1.1 Part Numbers
Part Number
Package
FT2232D
Table 1.1 Part Numbers
48 Pin LQFP
Copyright © 2010 Future Technology Devices International Limited
2
Document No.: FT_000173
FT2232D DUAL USB TO SERIAL UART
/FIFO IC
Datasheet
Version 2.05
Clearance No.: FTDI# 127
1.2 USB Compliant
The FT2232D is fully compliant with the USB 2.0 specification and has been given the USB-IF Test-ID
(TID) 40680003.
Copyright © 2010 Future Technology Devices International Limited
3
Document No.: FT_000173
FT2232D DUAL USB TO SERIAL UART
/FIFO IC
Datasheet
Version 2.05
Clearance No.: FTDI# 127
2

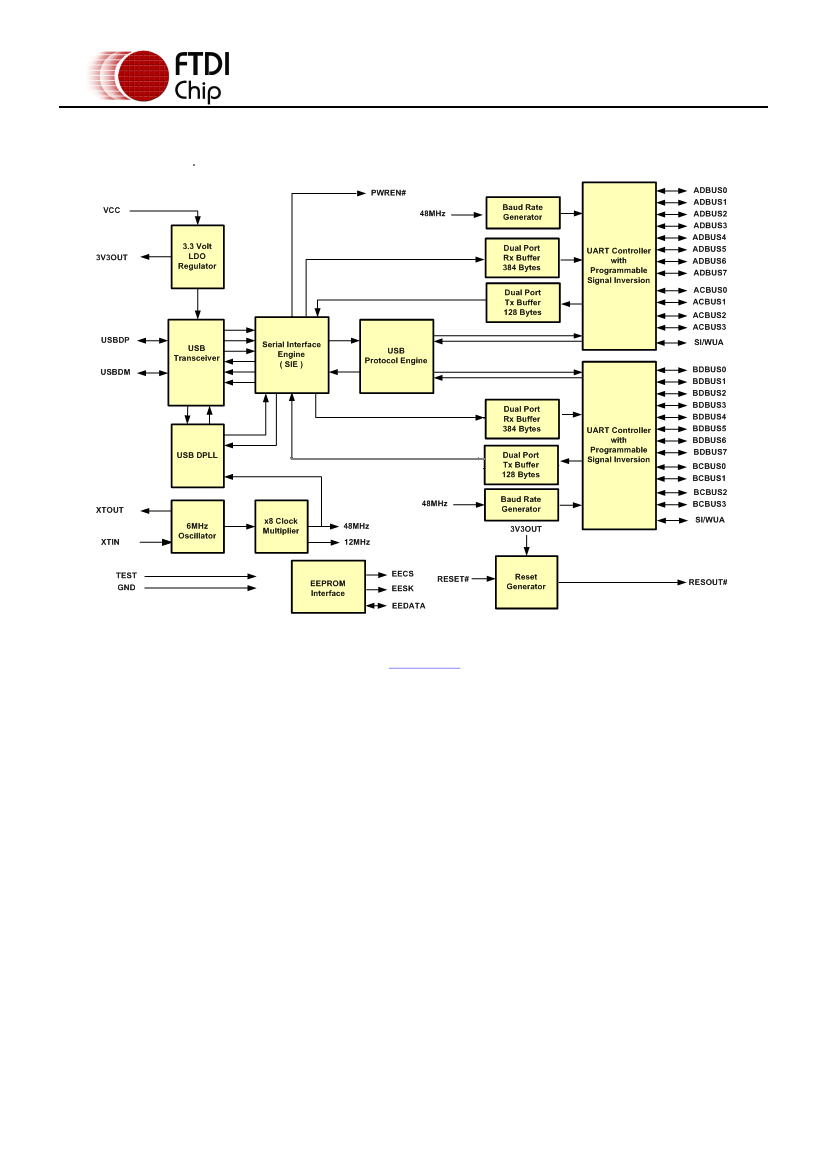

FT2232D Block Diagram
Figure 2.1 FT2232D Block Diagram
For a description of each function please refer to
Section 4.1.
Copyright © 2010 Future Technology Devices International Limited
4
Document No.: FT_000173
FT2232D DUAL USB TO SERIAL UART
/FIFO IC
Datasheet
Version 2.05
Clearance No.: FTDI# 127
Table of Contents
1
Typical Applications ........................................................................ 2
1.0
1.1
1.2
Driver Support .................................................................................... 2
Part Numbers...................................................................................... 2
USB Compliant .................................................................................... 3
2
3
FT2232D Block Diagram .................................................................. 4
Device Pin Out and Signal Description ............................................ 7
3.0
3.1
3.2
3.3
3.4
48-Pin LQFP Package .......................................................................... 7
Pin Out Description ............................................................................. 8
Common Pins ...................................................................................... 8
IO Pin Definitions by Chip Mode .......................................................... 10
IO Mode Command Hex Values .......................................................... 12
Key Features ..................................................................................... 13
Functional Block Descriptions ........................................................... 15
Absolute Maximum Ratings............................................................... 16
DC Characteristics............................................................................. 17
ESD Tolerance ................................................................................... 20
USB Bus Powered Configuration ...................................................... 21
USB Self Powered Configuration ...................................................... 22
Interfacing to 3.3V Logic ................................................................... 23
Power Switching Configuration ......................................................... 25
Oscillator Configurations .................................................................. 27
EEPROM Configurations .................................................................... 29
4
Function Description ..................................................................... 13
4.0
4.1
5
Devices Characteristics and Ratings.............................................. 16
5.0
5.1
5.2
6
USB Power Configurations ............................................................ 21
6.0
6.1
6.2
6.3
7
Standard Device Configuration Examples ...................................... 27
7.0
7.1
8 Signal Descriptions by IO Mode and Interface Channel
Configurations .................................................................................... 31
8.0 232 UART Interface Mode Signal Descriptions and Interface
Configurations ........................................................................................... 31
8.1
232 UART Mode LED Interface ........................................................... 35
8.2 245 FIFO Interface Mode Signal Descriptions and Interface
Configurations ........................................................................................... 37
8.3
245 FIFO Mode Timing Diagram ........................................................ 38
8.4 Enhanced Asynchronous and Synchronous Bit-Bang Modes - Signal
Description and Interface Configuration .................................................... 40
Copyright © 2010 Future Technology Devices International Limited
5
