15220442601000

Description
Board Stacking Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
CategoryThe connector    The connector
File Size102KB，1 Pages
ManufacturerHARTING
Download Datasheet Parametric View All

15220442601000 Online Shopping

Suppliers Part Number Price MOQ In stock
15220442601000 - - View Buy Now

15220442601000 Overview

Board Stacking Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

15220442601000 Parametric

Parameter NameAttribute value
MakerHARTING
Reach Compliance Codecompliant
Board mount optionsFITTING NAIL
body width0.291 inch
subject depth0.356 inch
body length1.3 inch
Connector typeBOARD STACKING CONNECTOR
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleSQ PIN-SKT
Durability500 Cycles
maximum insertion force.5004 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number1522
Plug contact pitch0.05 inch
Match contact row spacing0.053 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.4864 mm
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts44
Evacuation force-minimum value.5004 N
Base Number Matches1

Preview

Download Datasheet

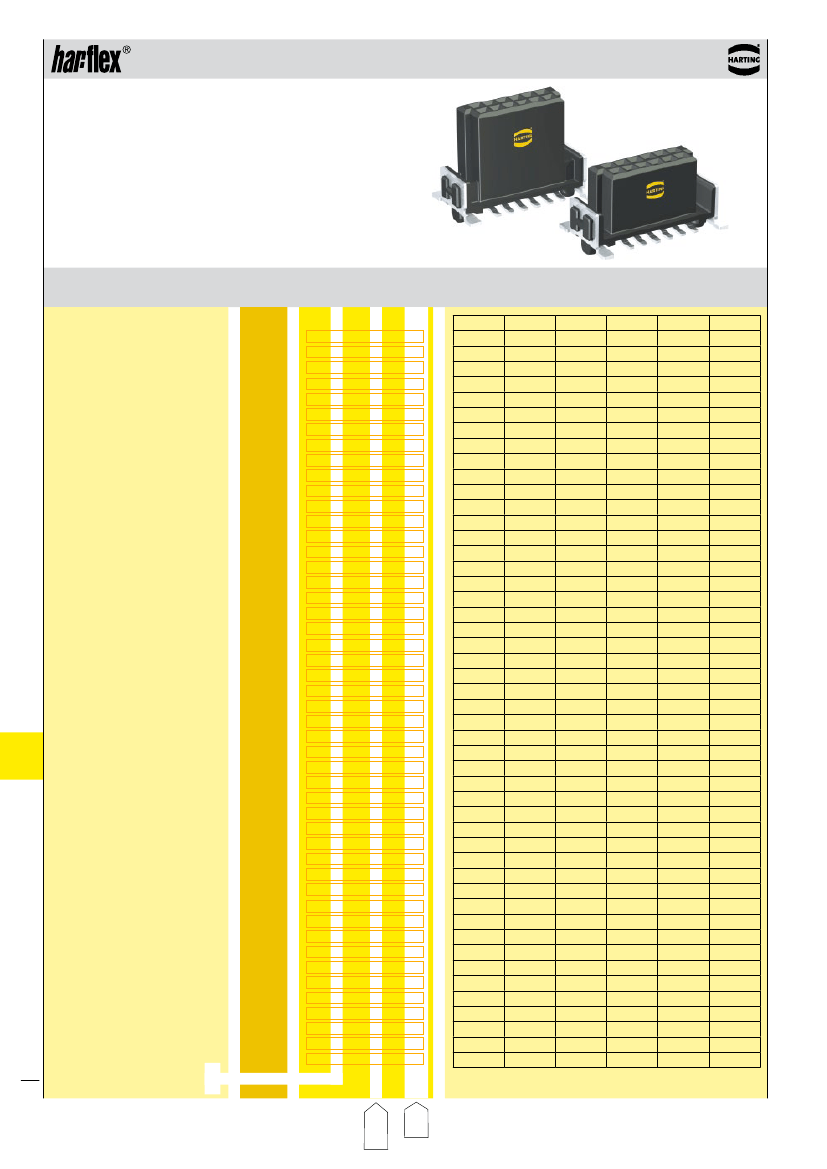

Female connectors, straight
Identification
Number
of contacts
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
15 2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Part No.
006
008
010
012
014
016
018
020
022
024
026
028
030
032
034
036
038
040
042
044
046
048
050
052
054
056
058
060
062
064
066
068
070
072
074
076
078
080
082
084
086
088
090
092
094
096
098
100
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
601
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
A
2.54
3.81
5.08
6.35
7.62
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
38.10
39.37
40.64
41.91
43.18
44.45
45.72
46.99
48.26
49.53
50.80
52.07
53.34
54.61
55.88
57.15
58.42
59.69
60.96
62.23
B
6.96
8.23
9.50
10.77
12.04
13.31
14.58
15.85
17.12
18.39
19.66
20.93
22.20
23.47
24.74
26.01
27.28
28.55
29.82
31.09
32.36
33.63
34.90
36.17
37.44
38.71
39.98
41.25
42.52
43.79
45.06
46.33
47.60
48.87
50.14
51.41
52.68
53.95
55.22
56.49
57.76
59.03
60.30
61.57
62.84
64.11
65.38
66.65
C
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
38.10
39.37
40.64
41.91
43.18
44.45
45.72
46.99
48.26
49.53
50.80
52.07
53.34
54.61
55.88
57.15
58.42
59.69
60.96
62.23
63.50
64.77
66.04
67.31
68.58
D
5.56
6.83
8.10
9.37
10.64
11.91
13.18
14.45
15.72
16.99
18.26
19.53
20.80
22.07
23.34
24.61
25.88
27.15
28.42
29.69
30.96
32.23
33.50
34.77
36.04
37.31
38.58
39.85
41.12
42.39
43.66
44.93
46.20
47.47
48.74
50.01
51.28
52.55
53.82
55.09
56.36
57.63
58.90
60.17
61.44
62.71
63.98
65.25
Dimensions in mm
E
4.56
5.83
7.10
8.37
9.64
10.91
12.18
13.45
14.72
15.99
17.26
18.53
19.80
21.07
22.34
23.61
24.88
26.15
27.42
28.69
29.96
31.23
32.50
33.77
35.04
36.31
37.58
38.85
40.12
41.39
42.66
43.93
45.20
46.47
47.74
49.01
50.28
51.55
52.82
54.09
55.36
56.63
57.90
59.17
60.44
61.71
62.98
64.25
G
1.19
1.19
2.46
2.46
3.73
3.73
5.00
5.00
6.27
6.27
7.54
7.54
8.81
8.81
10.08
10.08
11.35
11.35
12.62
12.62
13.89
13.89
15.16
15.16
16.43
16.43
17.70
17.70
18.97
18.97
20.24
20.24
21.51
21.51
22.78
22.78
24.05
24.05
25.32
25.32
26.59
26.59
27.86
27.86
29.13
29.13
30.40
30.40
Female connector,
straight,
stacking heights
6.25 / 9.05 mm
har
-flex
Please insert digit
for stacking height
14
10
6.25 mm
9.05 mm
þ
þ
1
2
for performance level 1
for performance level S4
for performance level 2
2
5
6
333
000
for samples
for 280 pieces on reel
