PHYSICAL INFRASTRUCTURE SYSTEMS
QuickNet
™

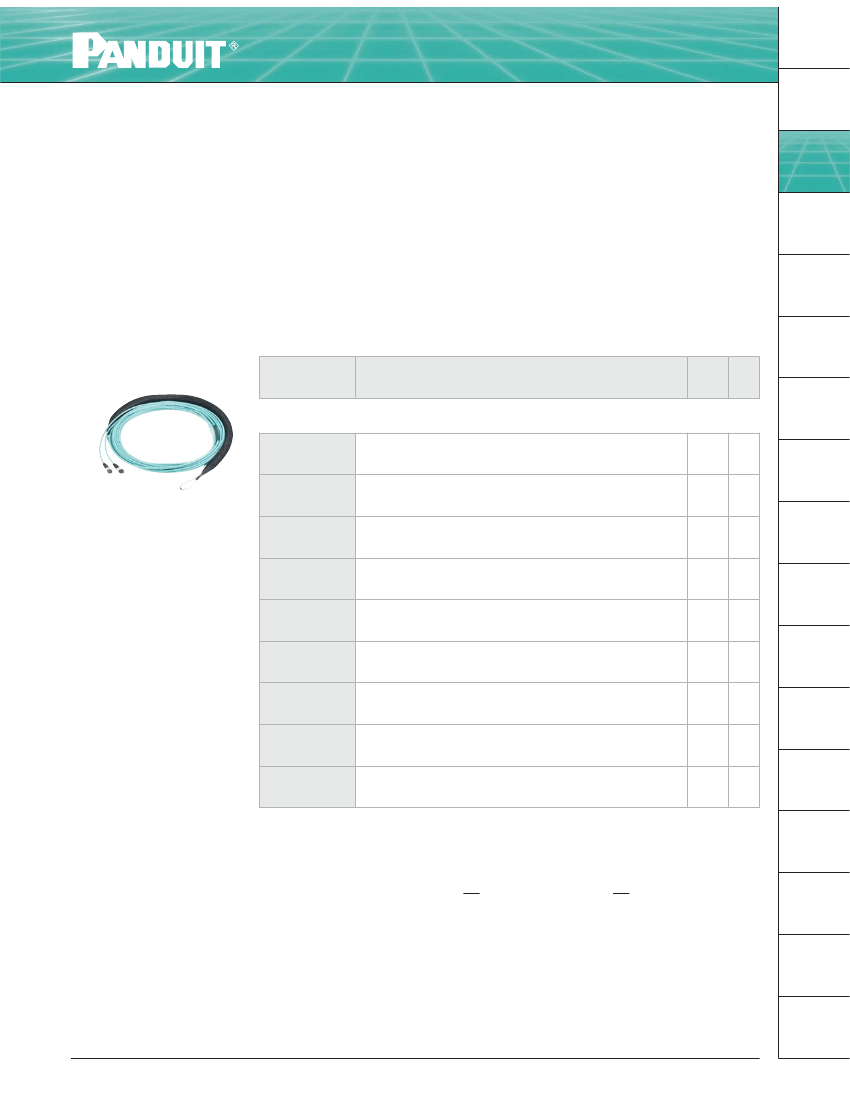

MTP* Trunk Cable Assemblies
• Connectivity meets or exceeds TIA/EIA-568-B.3 and
ISO/IEC 11801 performance requirements
• Jacketed cable is compliant with NFPA 262 (OFNP)
flame rating
• MTP* (12-fiber) connectors are FOCIS-5 compliant
• Insertion loss per mated pair: 0.50dB typical, 0.75dB max.
• Panduit proprietary MTP* polishing provides low
insertion loss and high return loss, minimizing variability
for improved channel link loss performance
• Factory terminated and 100% tested for insertion loss
(test data supplied with each assembly); singlemode and
10Gig
™
Multimode Trunk Cable Assemblies are also
tested for return loss
• TIA/EIA-568-B.1-7 (Method A) standards based polarity
supports 10 Gb/s, multimode, and singlemode fiber types,
and allows infrastructure backwards compatibility for
component interchangeability and a lower cost
of ownership
• 10Gig
™
laser optimized fiber is tested per IEEE 802.3ae
10 GbE to support network transmission speeds up to 10
Gb/s for link lengths up to 300 meters at 850nm
• Application specific designs available to tailor
configuration, reach, and breakout construction to
application requirements; for more information contact
Panduit or visit www.panduit.com
A.
System
Overview
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
F.
Wireless
Part Number
Part Description
Std.
Length Pkg.
(Ft.)^ Qty.
G.
Outlets
Female MTP* to Female MTP*
–
10Gig
™
OM3 Multimode Plenum Trunk
Cable Assemblies
FSPX1255F100A
Female MTP* to female MTP* 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX1255F150A
Female MTP* to female MTP* 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX1255F200A
Female MTP* to female MTP* 12-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX2455F100A
Female MTP* to female MTP* 24-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX2455F150A
Female MTP* to female MTP* 24-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX2455F200A
Female MTP* to female MTP* 24-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX4855F100A
Female MTP* to female MTP* 48-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX4855F150A
Female MTP* to female MTP* 48-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
FSPX4855F200A
Female MTP* to female MTP* 48-fiber 10Gig
™
50/125µm OM3
Multimode Plenum Rated Trunk Cable Assembly with pulling eye
on one end.
100
1
150
1
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
FSPX2455F***A
200
1
100
1
150
1
200
1
100
1
150
1
200
1
^Additional lengths and availability: The above lengths and configurations are stock items. For other lengths or
configurations, contact Customer Service for actual lead times.
For MTP* Connector Cleaning Tools, see page C.109
of SA-NCCB51.
*MTP is a registered trademark of US Conec Ltd.
Additional lengths and availability: Trunk cable assemblies are available from 40 to 200 ft. in 5 ft. increments in
OM3 and OM4 plenum rated. Ex: FSPX1255F040A (40ft. length) to FSPX1255F100A 100ft. length.)
N.
Industrial
O.
Labeling &
Identification
P.
Cable
Management
Accessories
Q.
Index
Table continues on page C.98
www.panduit.com
For service and technical support, call 866-405-6654 (outside the U.S. and Canada, see
catalog
back cover).
C.97
A.
System
Overview
PHYSICAL INFRASTRUCTURE SYSTEMS
QuickNet
™

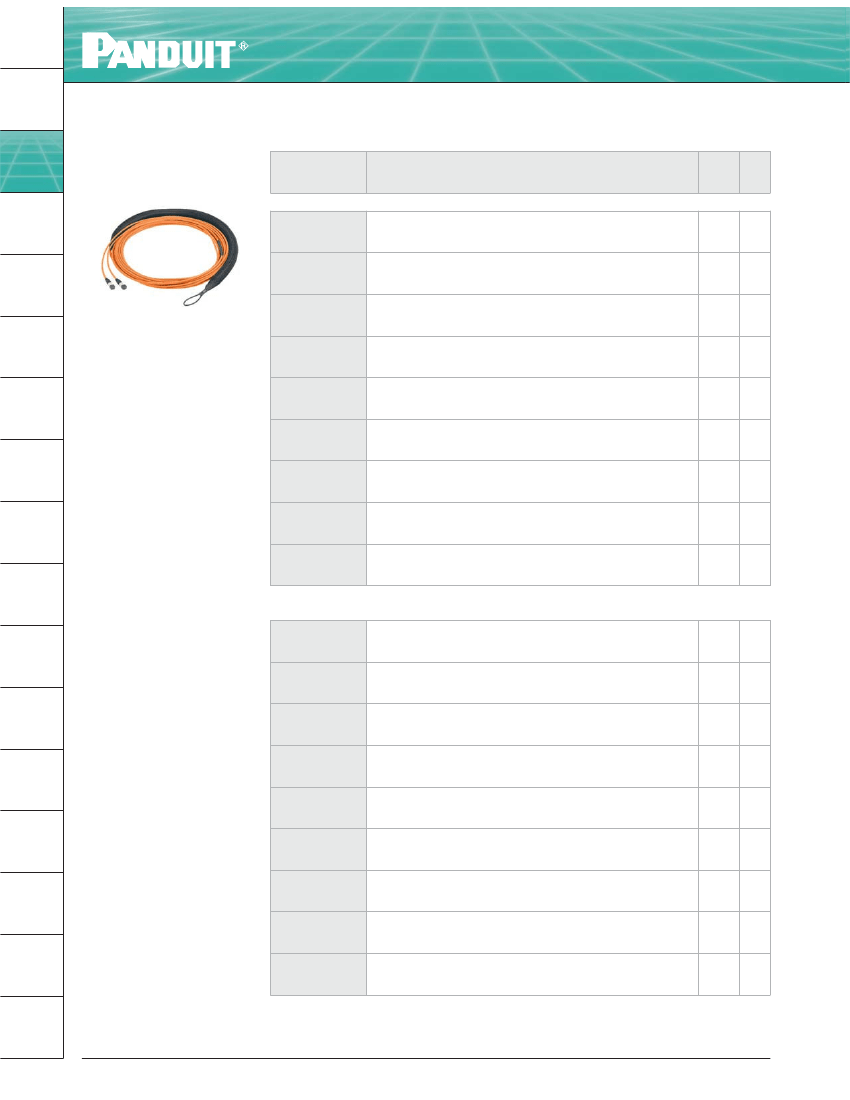

MTP* Trunk Cable Assemblies (continued)
B.
Copper
Systems
C.
Fiber
Optic
Systems
D.
Power
over
Ethernet
E.
Zone
Cabling
Part Number
FSP51255F100A
Part Description
Female MTP* to female MTP* 12-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 12-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 12-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 50/125µm OM2
multimode plenum rated trunk cable assembly with pulling eye
on one end.
Std.
Length Pkg.
(Ft.)^ Qty.
100
1
Female MTP* to Female MTP*
–
OM2 Multimode Plenum Trunk Cable Assemblies
FSP51255F150A
150
1
FSP51255F200A
FSP52455F***A
200
1
F.
Wireless
FSP52455F100A
100
1
FSP52455F150A
G.
Outlets
150
1
FSP52455F200A
H.
Media
Distribution
I.
Physical
Infrastructure
Management
J.
Overhead &
Underfloor
Routing
K.
Surface
Raceway
L.
Cabinets,
Racks &
Cable
Management
M.
Grounding &
Bonding
200
1
FSP54855F100A
100
1
FSP54855F150A
150
1
FSP54855F200A
200
1
Female MTP* to Female MTP*
–
OS1/OS2 Singlemode Plenum Trunk
Cable Assemblies
FSP91255F100A
Female MTP* to female MTP* 12-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 12-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 12-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 24-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
Female MTP* to female MTP* 48-fiber 9/125µm OS1/OS2
singlemode plenum rated trunk cable assembly with pulling eye
on one end.
100
1
FSP91255F150A
150
1
FSP91255F200A
200
1
FSP92455F100A
100
1
FSP92455F150A
150
1
N.
Industrial
FSP92455F200A
200
1
FSP94855F100A
O.
Labeling &
Identification
P.
Cable
Management
Accessories
100
1
FSP94855F150A
150
1
FSP94855F200A
200
1
Q.
Index
^Additional lengths and availability: The above lengths and configurations are stock items. For other lengths or
configurations, contact Customer Service for actual lead times.
For MTP* Connector Cleaning Tools, see page C.107
of SA-NCCB51.
*MTP is a registered trademark of US Conec Ltd.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in
BOLD.
