NB4N527S

3.3V, 2.5Gb/s Dual

AnyLevel™ to LVDS

Receiver/Driver/Buffer/

Translator with Internal

Input Termination

http://onsemi.com

MARKING

DIAGRAM*

NB4N527S is a clock or data Receiver/Driver/Buffer/Translator

capable of translating AnyLevel

input signal (LVPECL, CML,

HSTL, LVDS, or LVTTL/LVCMOS) to LVDS. Depending on the

distance, noise immunity of the system design, and transmission line

media, this device will receive, drive or translate data or clock signals

up to 2.5 Gb/s or 1.5 GHz, respectively.

The NB4N527S has a wide input common mode range of

GND + 50 mV to V

−

50 mV combined with two 50

internal

termination resistors is ideal for translating differential or

single−ended data or clock signals to 350 mV typical LVDS output

levels without use of any additional external components (Figure 6).

The device is offered in a small 3 mm x 3 mm QFN−16 package.

NB4N527S is targeted for data, wireless and telecom applications as

well as high speed logic interface where jitter and package size are

main requirements. Application notes, models, and support

documentation are available on www.onsemi.com.

•

Maximum Input Clock Frequency up to 1.5 GHz

•

Maximum Input Data Rate up to 2.5 Gb/s (Figure 5)

•

470 ps Maximum Propagation Delay\

•

1 ps Maximum RMS Jitter

•

140 ps Maximum Rise/Fall Times

•

Single Power Supply; V

= 3.3 V

$10%

•

Temperature Compensated TIA/EIA−644 Compliant LVDS Outputs

•

Internal 50

Termination Resistor per Input Pin

•

GND + 50 mV to V

−

50 mV V

CMR

Range

•

These are Pb−Free Devices

QFN−16

MN SUFFIX

CASE 485G

NB4N

527S

ALYW

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

(Note: Microdot may be in either location)

*For additional marking information, refer to

Application Note AND8002/D.

VTD0

VTD1

VOLTAGE (130 mV/div)

Device DDJ = 10 ps

VTD1

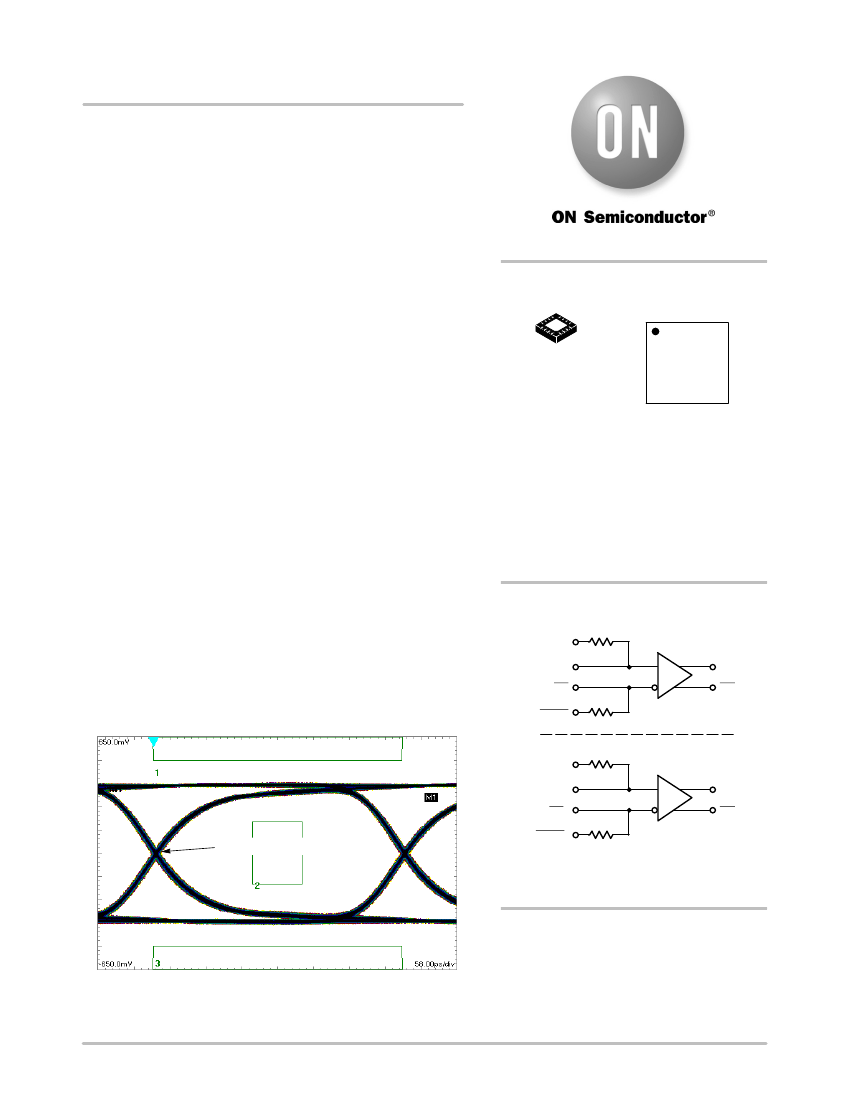

Figure 1. Functional Block Diagram

TIN

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 9 of this data sheet.

Figure 2. Typical Output Waveform at 2.488 Gb/s with

PRBS 2

23−1

INPP

= 400 mV; Input Signal DDJ = 14 ps)

TIME (58 ps/div)

Semiconductor Components Industries, LLC, 2011

June, 2011

−

Rev. 5

Publication Order Number:

NB4N527S/D
