DLV-3.3/6-1.5/7-D12 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> DLV-3.3/6-1.5/7-D12

DLV-3.3/6-1.5/7-D12: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 37W, Hybrid, PLASTIC, SMT-9/7; CategoryPower/power management The power supply circuit; File Size129KB，5 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric View All

DLV-3.3/6-1.5/7-D12 Overview

DC-DC Regulated Power Supply Module, 2 Output, 37W, Hybrid, PLASTIC, SMT-9/7

DLV-3.3/6-1.5/7-D12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
Parts packaging code	MODULE
package instruction	,
Contacts	9/7
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ALSO HAS 1.5V ADDITIONAL OUTPUT
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	10 V
Nominal input voltage	12 V
JESD-30 code	S-PDMA-P7
JESD-609 code	e0
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	7
Maximum output voltage	3.333 V
Minimum output voltage	3.267 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	37 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

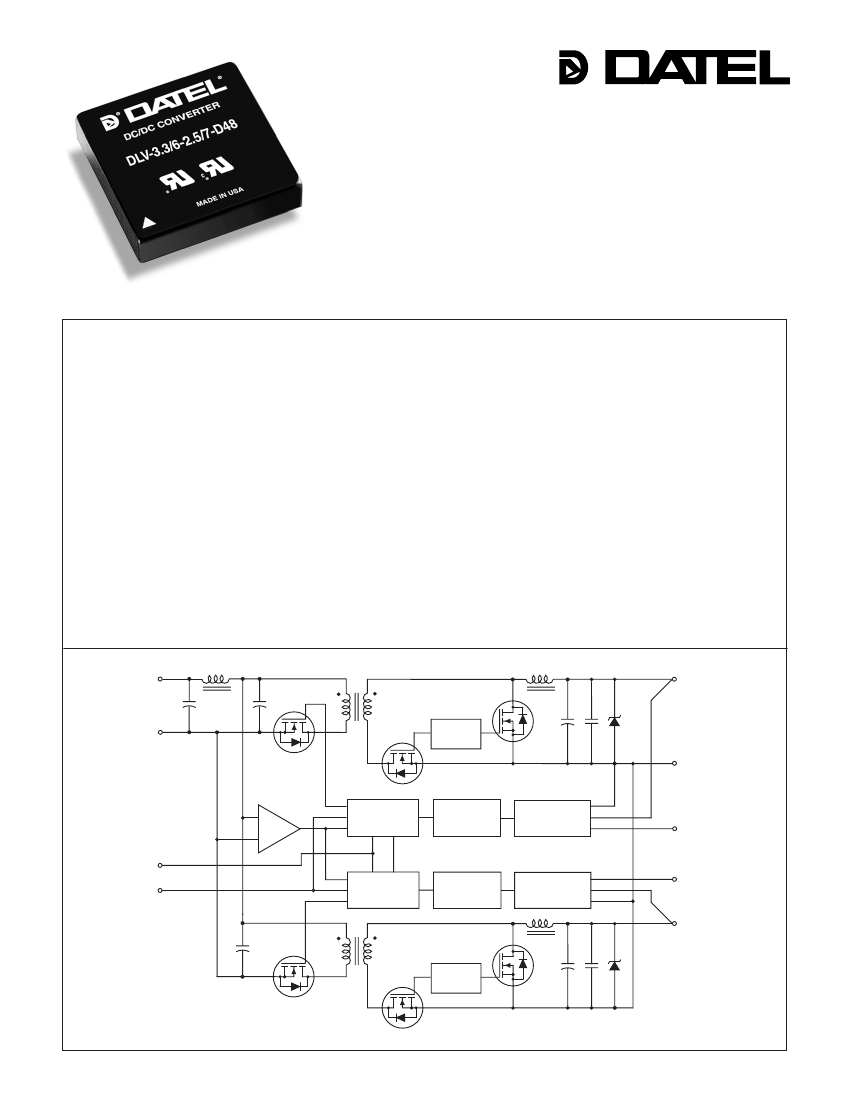

INNOVATION and EXCELLENCE

Dual Output

Mixed Voltage, DLV Models

OUT

Combinations of 3.3/2.5/1.8/1.5/1.2 Volts

30 Watt, DC/DC Converters

PRELIMINARY

Features

Two independently regulated outputs:

3.3V @ 6A; 2.5V, 1.8V, 1.5V or 1.2V @ 7A

30 Watts total output power

Available input voltage ranges:

10-18V, 18-36V or 36-75V

Independent output voltage adjustment

Remote On/Off Control

Synchronous rectiﬁer; No load operation

2" x 2" package; Industry standard pinout

IEC950/UL60950/EN60950 certiﬁed

CE mark available (75V

models)

Input under and overvoltage shutdown

Output overvoltage protection

Thermal shutdown

Fully Isolated (1500Vdc)

The DLV (Dual Low Voltage) Series from DATEL provides both digital I/O and

core logic supply voltages from a single 2" x 2" industry-standard pinout, plastic

package. The DLV series allows for any dual-output combination of 3.3, 2.5, 1.8, 1.5

or 1.2 Volts with associated output currents of 6 Amps for 3.3V outputs and 7 Amps

for 1.2-2.5V outputs. Any combination of these output currents is permissable to a

total of 30 Watts of output power. All models are available with input ranges of 10 to

18V (-D12), 18 to 36V (-D24) or 36 to 75V (-D48).

Plug-in compatibility with a number of converters from other leading manufactur-

ers is possible because DATEL offers these 30 Watt converters with the ﬂexibility to

add/remove the higher-voltage trim (pin 5). Each output is independently regulated

with its own control loop to provide ±1.0% line and load regulation. Fully synchro-

nous output topology allows no load operation and high efﬁciencies. Models are

available with either positive or negative on/off control. Both outputs are internally

synchronized to eliminate asynchronous beat frequencies.

All models include input Pi ﬁltering, input overvoltage and undervoltage shut-

down circuitry, output overvoltage protection, output short-circuit and current limiting

protection and thermal shutdown. These devices meet IEC950, UL60950 and

EN60950 safety standards. CB reports are available on request. "-D48" models are

CE marked (meet LVD requirements).

+INPUT

V1 OUTPUT

–INPUT

SWITCH

CONTROL

OUTPUT

RETURN

INPUT UNDERVOLTAGE

AND OVERVOLTAGE

COMPARATORS

ON/OFF

CONTROL

SYNC

(OPTION)

PWM

CONTROLLER

OPTO

ISOLATION

REFERENCE &

ERROR AMP

V1 TRIM

(OPTION)

PWM

CONTROLLER

OPTO

ISOLATION

REFERENCE &

ERROR AMP

V2 TRIM

V2 OUTPUT

SWITCH

CONTROL

Figure 1. Simpliﬁed Schematic
