NLV74VHCT244ADTRG datasheet, PDF

Datasheet> All Categories > logic> logic> NLV74VHCT244ADTRG

NLV74VHCT244ADTRG: DescriptionFixed Inductors 47uH 20% SMD 1038 AEC-Q200; Categorylogic logic; File Size92KB，7 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric View All

NLV74VHCT244ADTRG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NLV74VHCT244ADTRG	-	-	View	Buy Now

NLV74VHCT244ADTRG Overview

Fixed Inductors 47uH 20% SMD 1038 AEC-Q200

NLV74VHCT244ADTRG Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ON Semiconductor
package instruction	TSSOP,
Manufacturer packaging code	9.48
Reach Compliance Code	compliant
Factory Lead Time	20 weeks
series	AHCT/VHCT/VT
JESD-30 code	R-PDSO-G20
JESD-609 code	e4
length	6.5 mm
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	1
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	8.4 ns
Filter level	AEC-Q100
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

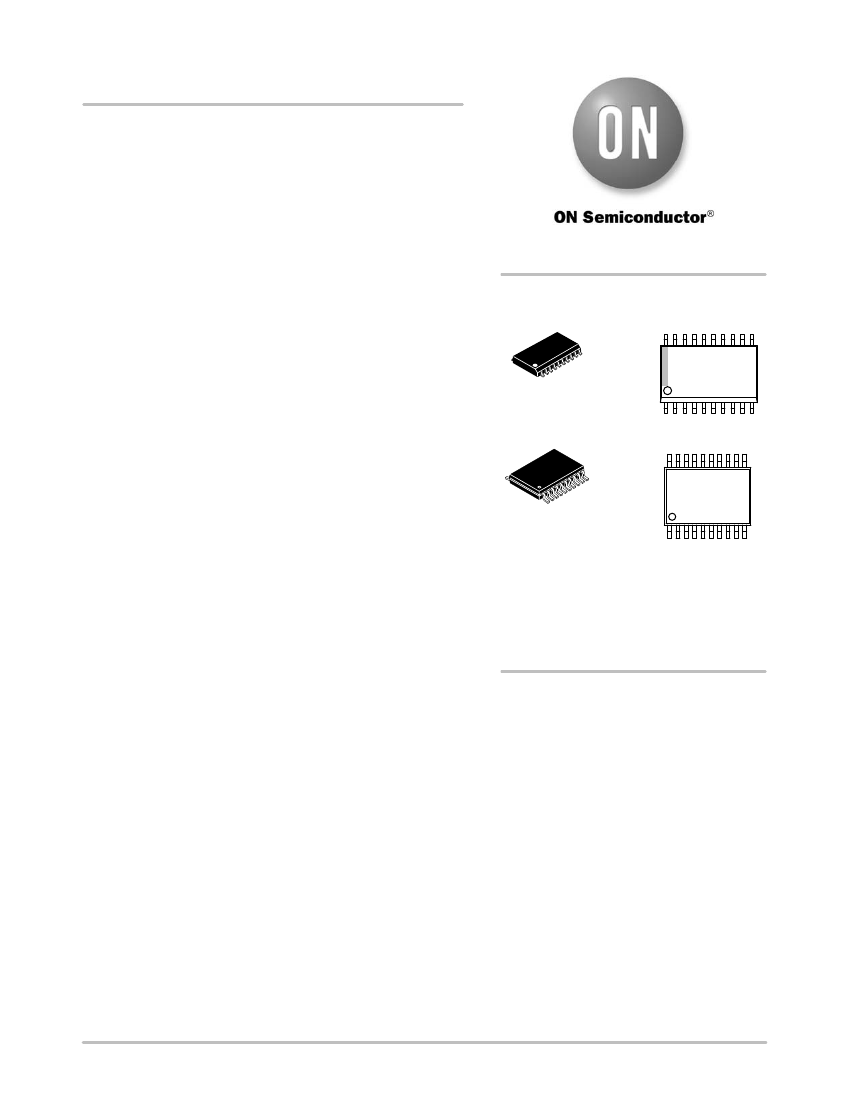

MC74VHCT244A

Octal Bus Buffer/Line Driver

with 3-State Outputs

The MC74VHCT244A is an advanced high speed CMOS octal bus

buffer fabricated with silicon gate CMOS technology. It achieves high

speed operation similar to equivalent Bipolar Schottky TTL while

maintaining CMOS low power dissipation.

The MC74VHCT244A is a noninverting 3−state buffer, and has two

active−low output enables. This device is designed to be used with

3−state memory address drivers, etc.

The VHCT inputs are compatible with TTL levels. This device can

be used as a level converter for interfacing 3.3 V to 5.0 V, because it

has full 5.0 V CMOS level output swings.

The VHCT244A input and output (when disabled) structures

provide protection when voltages between 0 V and 5.5 V are applied,

regardless of the supply voltage. These input and output structures

help prevent device destruction caused by supply voltage−input/

output voltage mismatch, battery backup, hot insertion, etc.

Features

http://onsemi.com

MARKING

DIAGRAMS

VHCT244A

AWLYYWWG

SOIC−20WB

SUFFIX DW

CASE 751D

VHCT

244A

ALYWG

•

High Speed: t

= 5.6 ns (Typ) at V

= 5.0 V

Low Power Dissipation: I

= 4.0

(Max) at T

= 25°C

TTL−Compatible Inputs: V

= 0.8 V; V

= 2.0 V

Power Down Protection Provided on Inputs and Outputs

Balanced Propagation Delays

Designed for 4.5 V to 5.5 V Operating Range

Low Noise: V

OLP

= 1.1 V (Max)

Pin and Function Compatible with Other Standard Logic Families

Latchup Performance Exceeds 300 mA

ESD Performance:

Human Body Model > 2000 V;

Machine Model > 200 V

•

Chip Complexity: 112 FETs or 28 Equivalent Gates

•

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These Devices are Pb−Free and are RoHS Compliant

TSSOP−20

SUFFIX DT

CASE 948E

= Assembly Location

WL, L

= Wafer Lot

YY, Y

= Year

WW, W = Work Week

G or

= Pb−Free Package

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 4 of this data sheet.

Semiconductor Components Industries, LLC, 2014

May, 2014 − Rev. 9

Publication Order Number:

MC74VHCT244A/D
