1GH45TPA1 datasheet, PDF - EEWORLD Datasheet

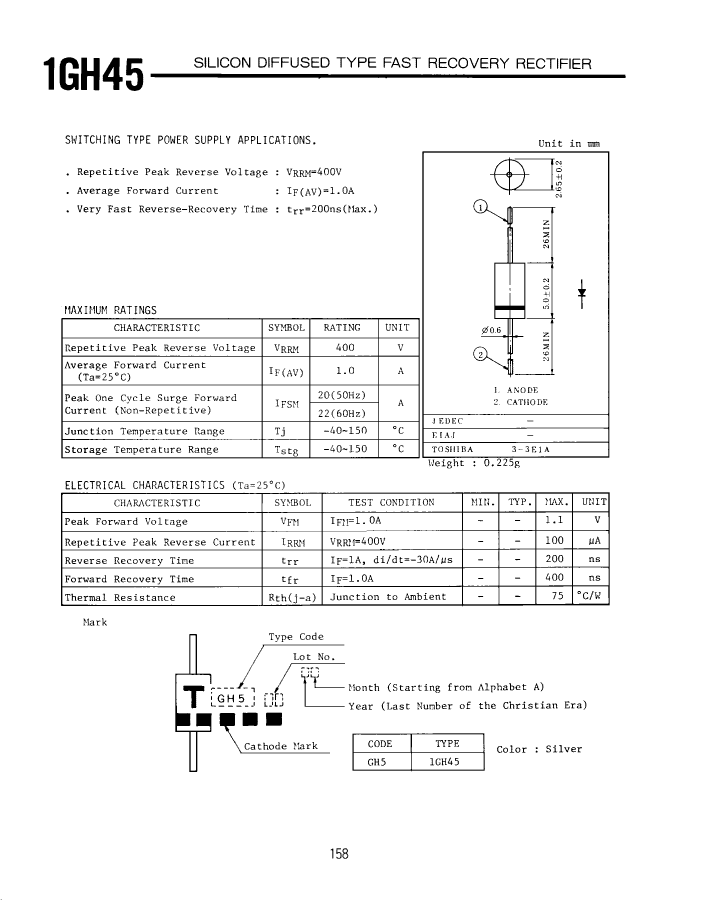

1GH45TPA1: DescriptionDIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size63KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

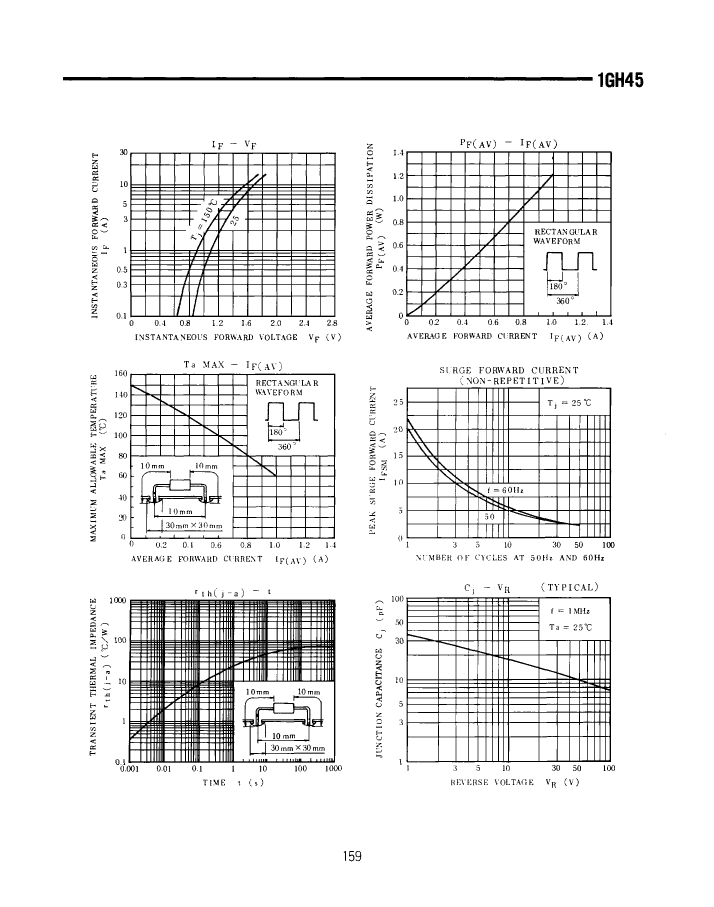

1GH45TPA1 Overview

DIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode

Parameter Name	Attribute value
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	1GH45TPA1	1GH45TPA2	1GH45TPA3	1GH45TPB2
Description	DIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 1 A, 400 V, SILICON, SIGNAL DIODE, Signal Diode
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	400 V	400 V	400 V
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1
