47080-4002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 47080-4002

47080-4002: DescriptionStandard LEDs - SMD RGB 624/527/470nm 700/1200/400mcd; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

47080-4002 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	47080-4002	-	-	View	Buy Now

47080-4002 Overview

Standard LEDs - SMD RGB 624/527/470nm 700/1200/400mcd

47080-4002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	I/O Connectors SATA SYSTEM PLUG R/A SMT TYPE
Other features	ROHS AND ELV COMPLIANT
Board mount options	PEG
body width	0.23 inch
subject depth	0.455 inch
body length	0.691 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED PLASTIC
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

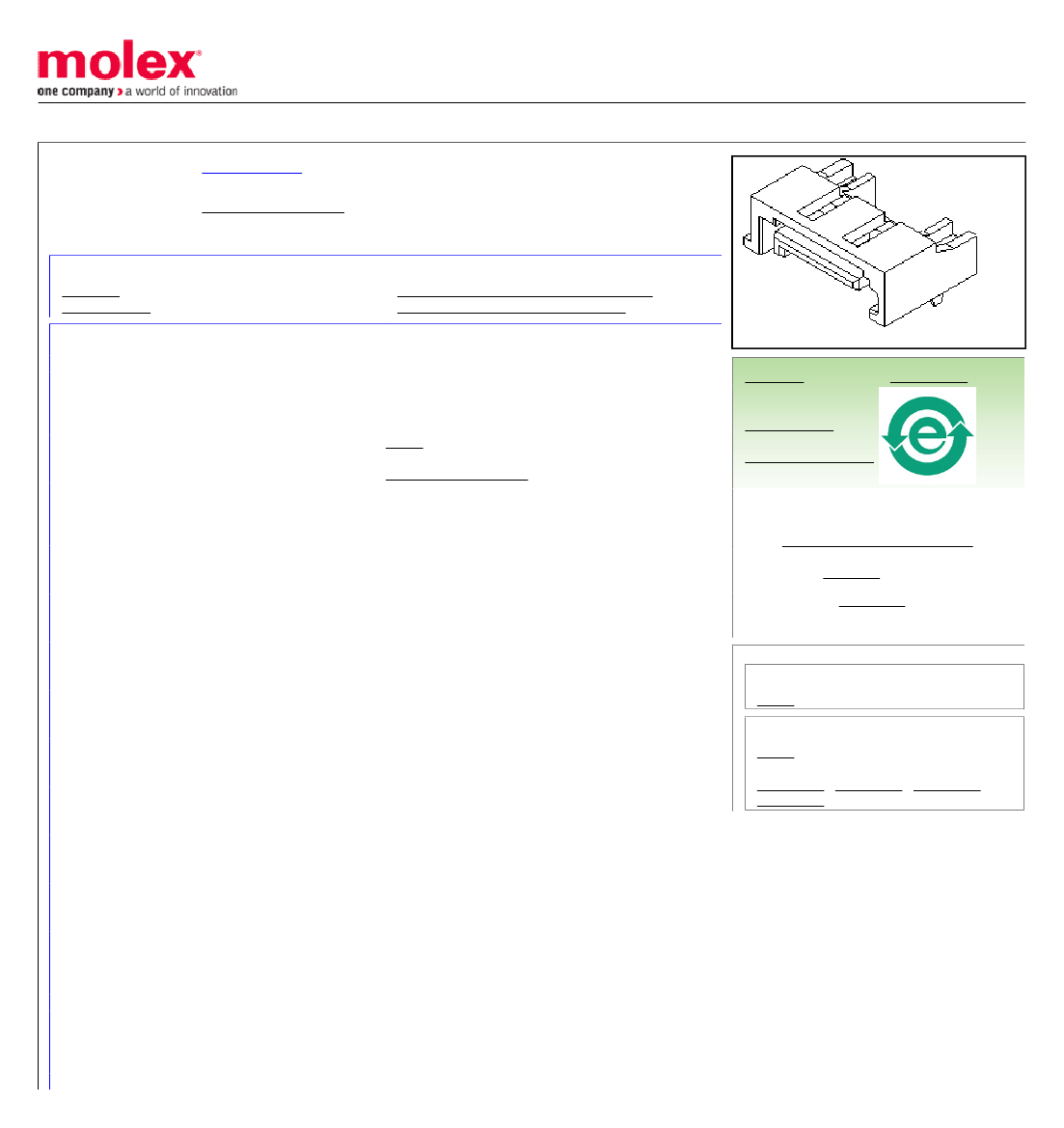

This document was generated on 10/25/2012

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

47080-4002

Active

Serial ATA Signal Plugs

1.27mm Pitch Serial ATA Shrouded Signal Plug, Surface Mount, 7 Circuits, with Peg

and Locking Latch, Color Black, 0.76µm Gold (Au) Plating, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-67490-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

47080

Board-to-Board, Signal, Wire-to-Board

Serial ATA Signal Plugs

Serial ATA

822348644728

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

500

94V-0

None

Yes

Gold

Tin

1004.620/mg

Right Angle

Yes

1.60mm

Embossed Tape on Reel

1.27mm

Yes

-35°C to +85°C

Surface Mount

Search Parts in this Series

47080Series

Mates With

67489 Serial ATA Signal Connect, ATA

Straight to Straight Signal Cable Assembly
