Power entry modules without line filter
https://www.schurter.com /PG05
8842/8843

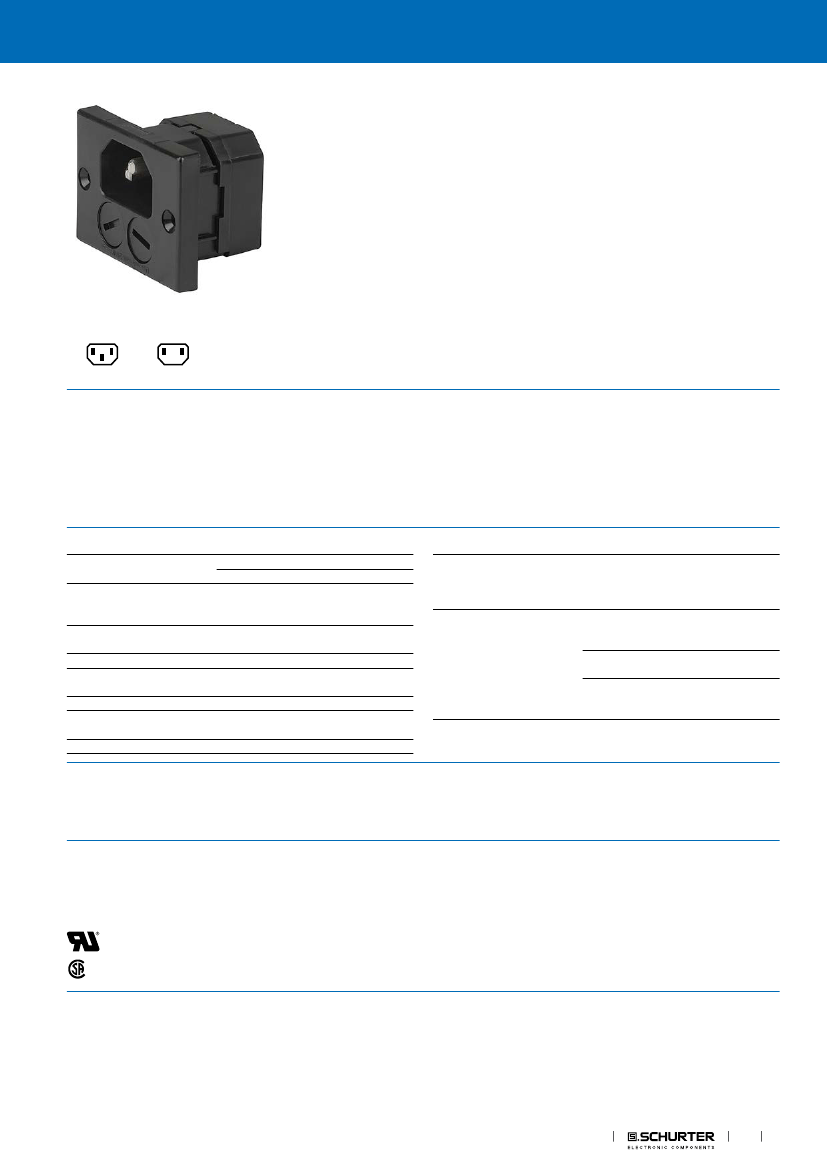

IEC Appliance Inlet C14 with Fuseholder 2-pole
C14
70° C
C18
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on mounting from front side
- 2 Functions :
Appliance Inlet protection class I or II , Fuseholder for fuse-links
5 x 20 mm , 1- or 2-pole
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
- All single elements are already wired
- With slotted screw type fuseholder
- Suitable for use in equipment according to IEC/UL 60950
References
Weblinks
We recommend for new applications the new type
4707
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
6 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 4 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I or II
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 1.6 W (1 pole)/ 1,2 W (2-pole)
per pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Fuseholder
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 8842 / 8843
Approval Logo
Certificates
UL Approvals
CSA Approvals
Certification Body
UL
CSA
Description
UL File Number: E93617
CSA Certification Record: 70111
Connectors
1
8842/8843
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG
Dimensions [mm]
6.2x90˚
3.2
40
37.5
32.5
M3
40
50
26.5
6
max. R1.5
33.3
+0.2
0
2
Connectors
33.3
+0.2
0
Power entry modules without line filter
https://www.schurter.com /PG05
8842/8843

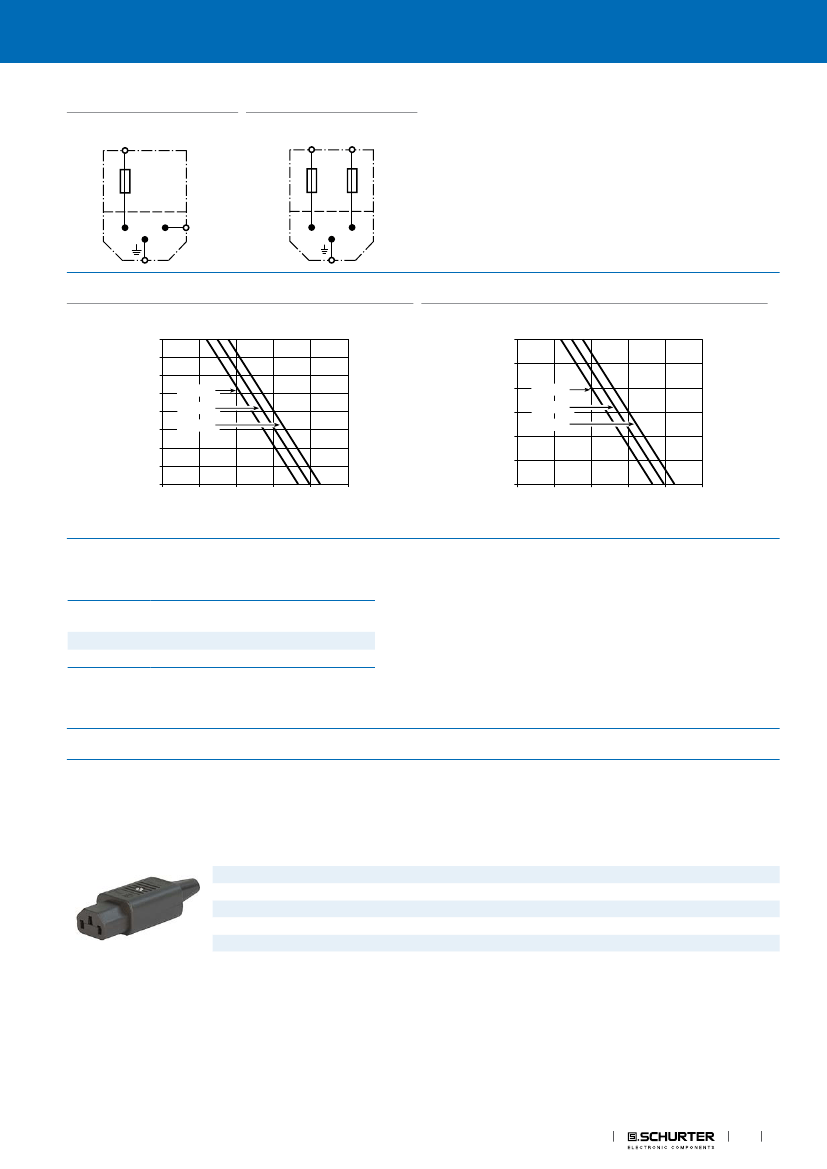

Diagrams
L
L
N
L
N
E
L
E
N
Derating Curves
1-pole
Admissible power acceptance in Watt
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
2-pole
Admissible power acceptance in Watt
per pole
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature T
a
°C
Ambient Air Temperature T
a
°C
All Variants
Protection Class
I
II
█
Most Popular.
Fuseholder
2-pole
2-pole
Housings
black
black
Order Number
0040.5000.2
0040.5015
█
Availability for all products can be searched real-time:https://www.schurter.
com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
100 Pcs
Mating Outlets/Connectors
Category / Description
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
Connector further types to 8842/8843
4782
4022
4785
4300-06
4012
...
Connectors
3
8842/8843
Power entry modules without line filter
https://www.schurter.com /PG05
Interconnection Cord Overview complete
Cord Sets 10 A, Interconnection, 2.0 m, IEC H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 1.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Interconnection Cord further types to 8842/8843
6007.0204
6007.0212
6007.0214
Power Supply Cord Overview complete
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, United Kingdom, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Power Supply Cord further types to 8842/8843
6004.0215
6003.0215
6000.0224
6000.0214
6044.0215
...
Power Supply or Interconnection Cord Overview complete
Cord Sets 10 A, United Kingdom, 2.0 m, Connector IEC H05VV-F3G1.0, black
Power Supply or Interconnection Cord further types to 8842/8843
6044.0204
4
Connectors
