ROHS COMPLIANT

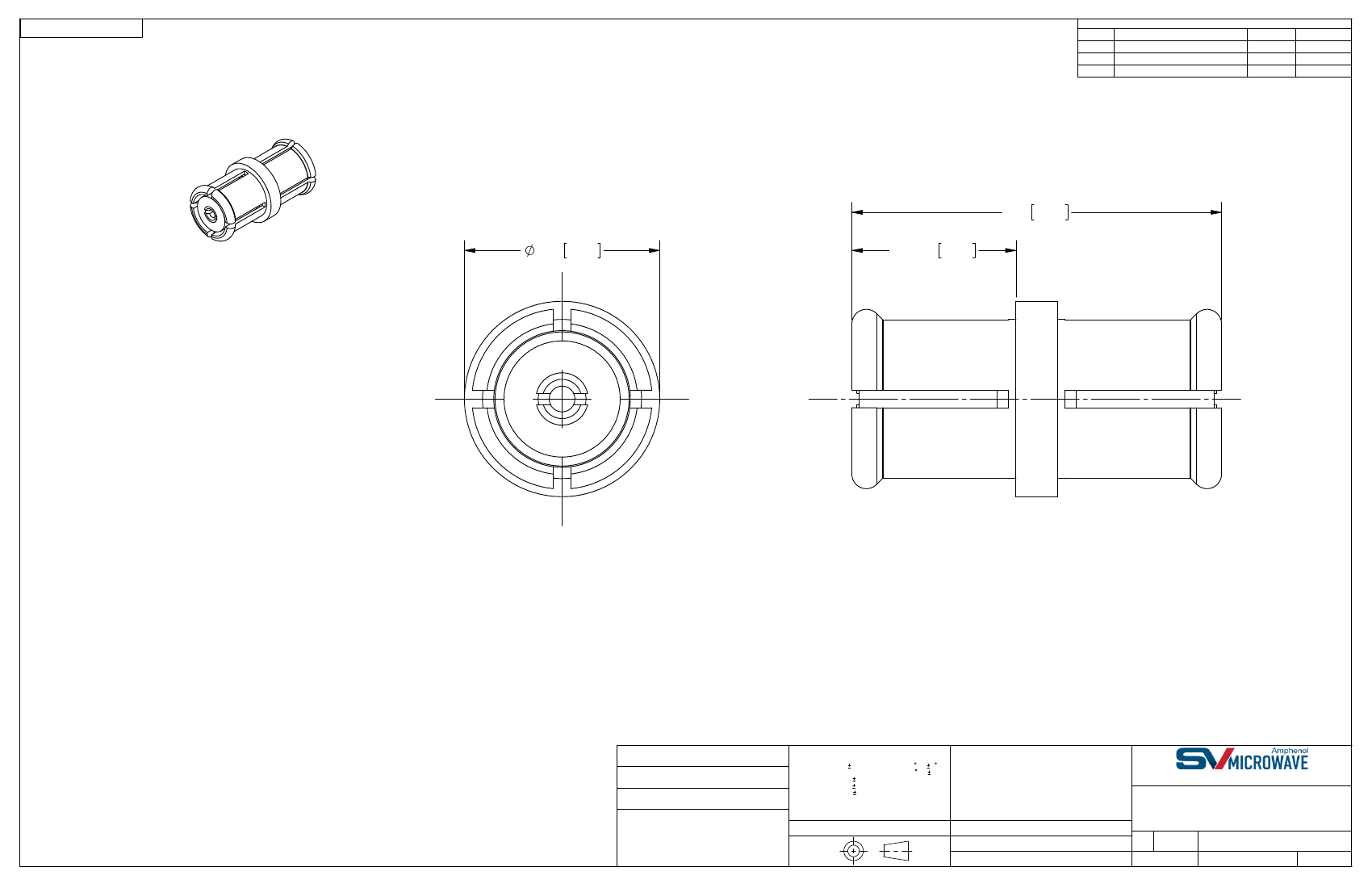

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
A
DCN 41727
10/15
DAL
.255 6.46
.135 3.42
2X .113 2.87
MATERIAL:
BODY &
CONTACT:
INSULATOR:
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
FINISH:
BODY &
CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 40.0 GHz
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
JMC 05/13/04
STW 05/13/04
STW 05/13/04
SMP FEMALE TO FEMALE
ADAPTER
95077
SIZE CAGE CODE DWG. NO.
B
1290-4008
SHEET 1 OF 1
SCALE: 12:1
