741C083334GP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 741C083334GP

741C083334GP: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.252W, 330000ohm, 25V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size177KB，4 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

741C083334GP Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.252W, 330000ohm, 25V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0408, CHIP, ROHS COMPLIANT

741C083334GP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
package instruction	SMT, 0408
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.063 W
The first element resistor	330000 Ω
JESD-609 code	e3
Manufacturer's serial number	741
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.375 mm
Package length	2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.252 W
Rated temperature	70 °C
resistance	330000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	74X
size code	0408
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	25 V
Base Number Matches	1

Preview

Download Datasheet

View All

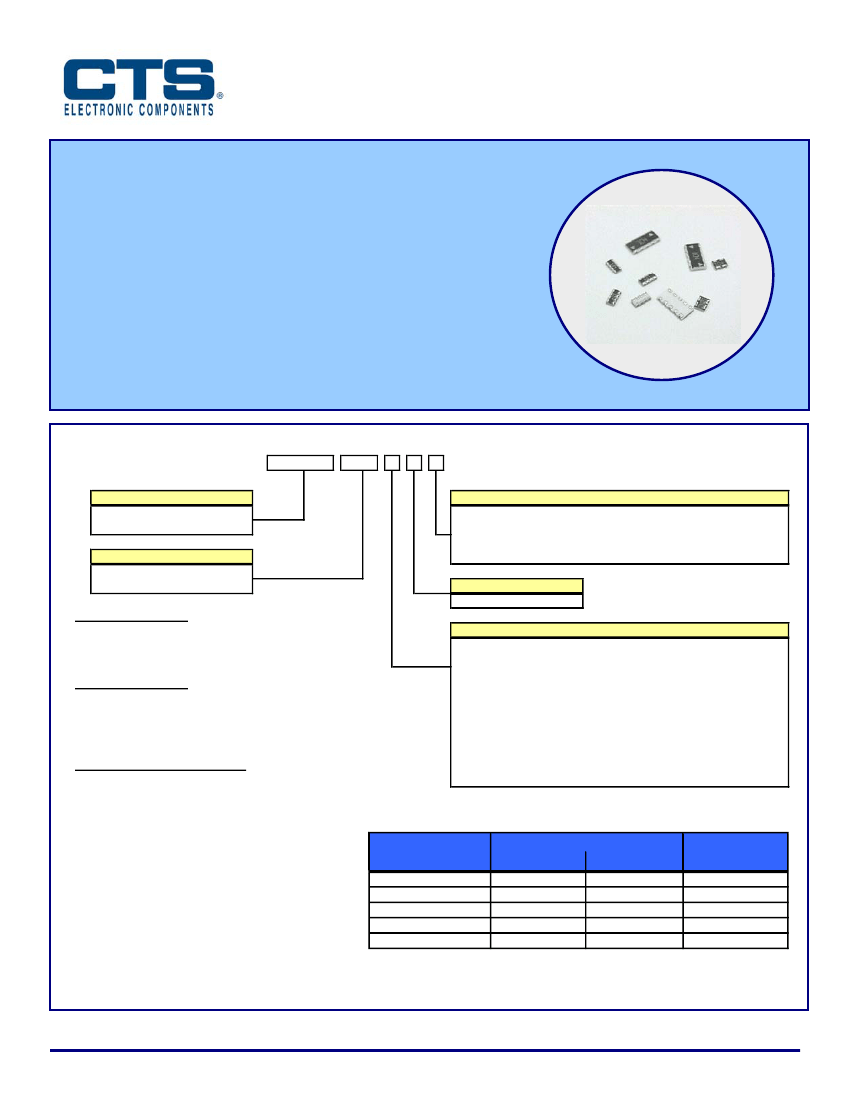

Chip Resistor Arrays

Series 74x

FEATURES

•

Low Cost

•

Thick Film Technology

•

High Density Packaging

•

- Up to 30% less space per resistor than 0603 chip resistors

- Up to 75% less space per resistor than 0805 chip resistors

Low Profile; can be used in PCMCIA cards

Leadless Surface Mount Construction

Concave or Convex Terminations

Solder Coated Nickel Barrier Pads

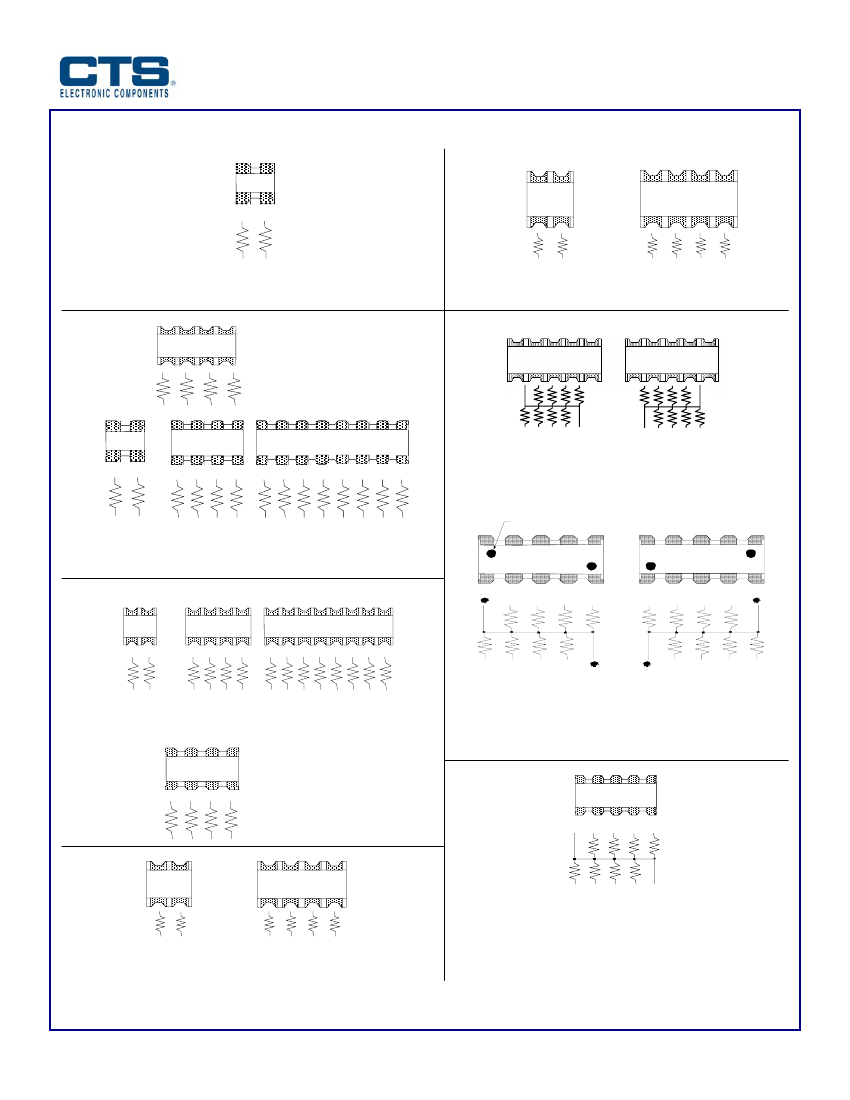

Isolated and Bussed Circuits

Resistor Arrays Require Fewer Placements Than Discrete Components

Tape and Reel Packaging

RoHS Compliant in Accordance with EU Directive 2011/65/EU

- Lead-Free Termination Finish

- Exemption 7(c)-I, Electrical and electronic components containing lead [Pb] in glass

ORDERING INFORMATION

742C083

PART CODE

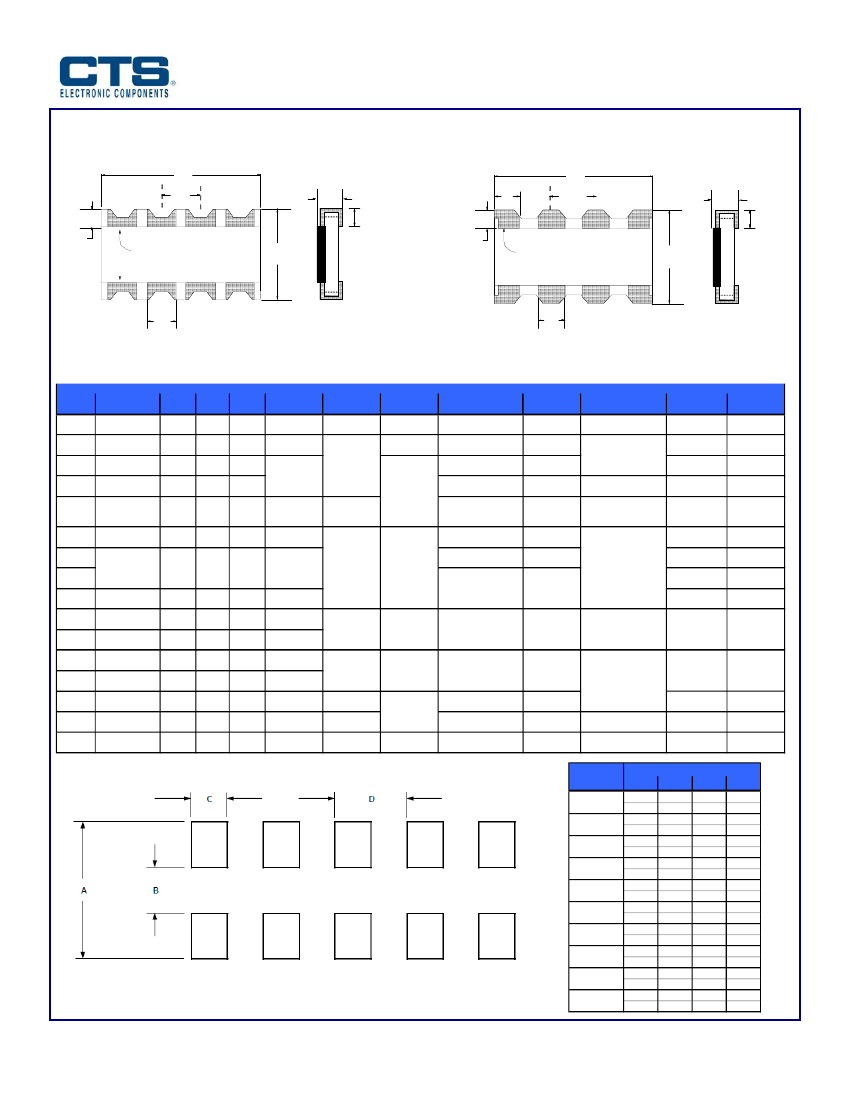

See Available Package

Outlines Page 3

RESISTOR CODE

See Table Page 2

3 Digit Resistor Code

(For 5% and 2% tolerance only)

1st and 2nd Digit is the value. 3rd Digit is number of zeros.

ex. 102 = 1000 ohm = 1k ohm

ex. 683 = 68000 ohm = 68k ohm

4 Digit Resistor Code

(For 1% tolerance only)

The first three digits are significant and fourth digit is multiplier.

1st, 2nd and 3rd Digit is the value. 4th Digit is number of zeros.

ex. 1001 = 1000 ohm = 1k ohm

ex. 6802 = 68000 ohm = 68k ohm

For Resistance Value <100 ohm

“R” indicates decimal on values less than 100 ohms.

ex. 49R9 = 49.9 ohm

101

PACKAGE CODE

741X163 PACKAGE ONLY!

- Specifies 8mm carrier width for tape & reel packaging.

C12 -

Specifies 12mm carrier width for tape & reel packaging.

Blank

- Carrier width can be 12mm [typical] or 8mm.

Reference Tape & Reel Information table for packaging details for other package outlines.

RoHS COMPLIANT

Matte Sn Finish

TOLERANCE

J = ± 5% (Standard) 3-digit code

(Available for 740-746 Series)

G = ± 2% 3-digit code

(Available for 741-745 Series only except for 741X163,

745X101 and 745X102)

F = ± 1% 4-digit code

(Available for 741-745 Series only except for 745X101 and

745X102)

X = zero ohm jumper

G and F tolerance for 740X043, please consult factory.

Part Number Examples

Value\Tolerance

10 Ohm

49.9 Ohm

120 Ohm

1K Ohm

68 Kohm

3-Digit Code

J (±5%)

742C083100JP

Not Available

742C083121JP

742C083102JP

742C083683JP

G (±2%)

742C083100GP

Not Available

742C083121GP

742C083102GP

742C083683GP

4-Digit Code

F (±1%)

742C08310R0FP

742C08349R9FP

742C0831200FP

742C0831001FP

742C0836802FP

Not all performance combinations and resistor values may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

Document No. 008-0335-0

Page 1 - 4

Rev. H

www.ctscorp.com
