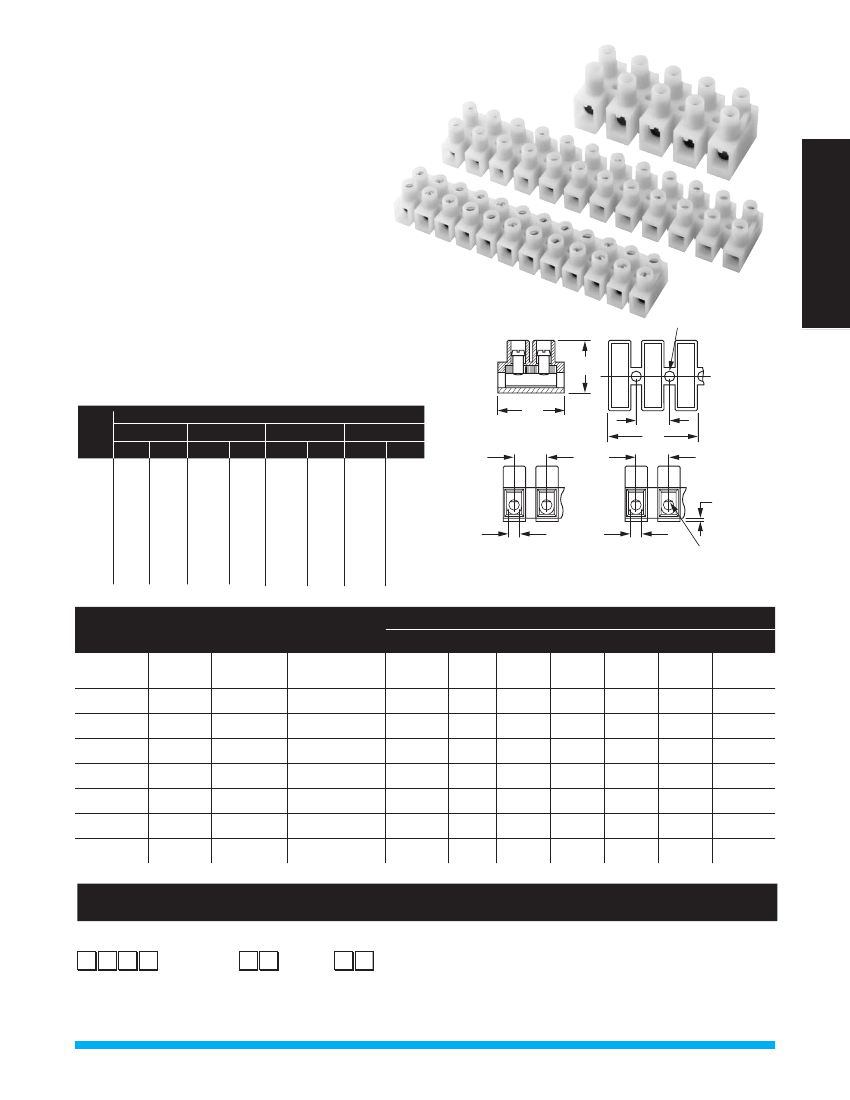

Series TS - Standard Base
Terminal Blocks; 8.00, 10.00,
12.00, 13.50mm Centers
SPECIFICATIONS
Rating:
TS08 – 20A, 600V
TS10 – 30A, 600V
TS12 – 35A, 600V
TS14 – 50A, 600V
Wire Range:
See Table
Housing Material:
Polyamide Type 6/6, 94V2 (white)
Contact Material:
Nickel Plated Brass
Wire Protector:
Stainless Steel
Screw Size:
See Table
Operating Temperature:
105°C (221°F) max., -30°C (-22°F) min.
Torque Rating:
See Table
Construction:
Mold to Length
Agency Information:
UL/CSA; CE Certified
A Dimensions
# 0f
Poles
2
3
4
5
6
7
8
9
10
11
12
TS08
mm
15.80
23.80
31.80
39.80
47.80
55.80
63.80
71.80
79.80
87.80
95.80
in
TS10
mm
in
TS12
mm
20.70
32.70
44.70
56.70
68.70
80.70
92.70
104.70
116.70
128.70
140.70
in
0.815
1.287
1.760
2.232
2.705
3.177
3.650
4.122
4.594
5.067
5.539
TS14
mm
23.00
36.50
50.00
63.50
77.00
90.50
104.00
117.50
131.00
144.50
158.00
in
0.906
1.437
1.969
2.500
3.031
3.563
4.094
4.626
5.157
5.689
6.220
D
B
D
A
D
Single & Double Row
Filtered Connectors
E
C
Euro-MAG Series
PCB – Spring Clamp
o.622 17.50 0.689
0.937 27.50 1.083
1.252 37.50 1.476
1.567 47.50 1.870
1.882 57.50 2.264
2.232 67.50 2.657
2.512 77.50 3.051
2.827 87.50 3.445
3.142 97.50 3.839
3.457 107.50 4.232
3.772 117.50 4.626
1.2mm
STANDOFF
F
F
WIRE PROTECTOR
Base & Rail Mount
Connectors
Position
TS0801
TS0802
TS1001
TS1002
TS1201
TS1202
TS1401
TS1402
Torque
in-lb
3.5
3.5
4.4
4.4
7.0
7.0
12.0
12.0
Clamping
Area
4.0mm
2
1.5mm
2
6.0mm
2
2.5mm
2
10.0mm
2
6.0mm
2
16.0mm
2
10.0mm
2
Wire Range
AWG (cu.)
22-12
Sol./Str.
22-12
Sol./Str
22-10 Sol.
14-10 Str.
22-12 Sol./Str.
10 Sol.
22-10
Sol./Str.
22-10
Sol./Str.
20-8
Sol./Str.
20-8
Sol./Str.
Dimensions (mm/in.)
Screw
M2.6x5
M2.6x5
M3.0x6
M3.0x6
M3.5x7
M3.5x7
M4.0x9
M4.0x9
Unit
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
(mm)
(in)
B
17.00
0.67
17.00
0.67
20.20
0.80
20.20
0.80
23.80
0.94
23.80
0.94
25.60
1.01
25.60
1.01
C
14.50
0.57
14.50
0.57
17.00
0.67
17.00
0.67
19.00
0.75
19.00
0.75
25.20
0.99
25.20
0.99
D
8.00
0.32
8.00
0.32
10.00
0.39
10.00
0.39
12.00
0.47
12.00
0.47
13.50
0.53
13.50
0.53
E
2.90
0.11
2.90
0.11
3.60
0.14
3.60
0.14
3.90
0.14
3.90
0.15
4.40
0.17
4.40
0.17
F
2.8±0.1
0.11
2.8±0.1
0.11
3.4±0.1
0.13
3.4±0.1
0.13
4.2±0.1
0.15
4.2±0.1
0.15
5.0±0.1
0.19
5.0±0.1
0.19
Power Distribution Blocks
Part Numbering System
WIRE MANAGEMENT PRODUCTS
Spacing
Base
Positions
T S
08
10
12
14
01
- std
02
- std w/
wire protector
02
to
12
37
