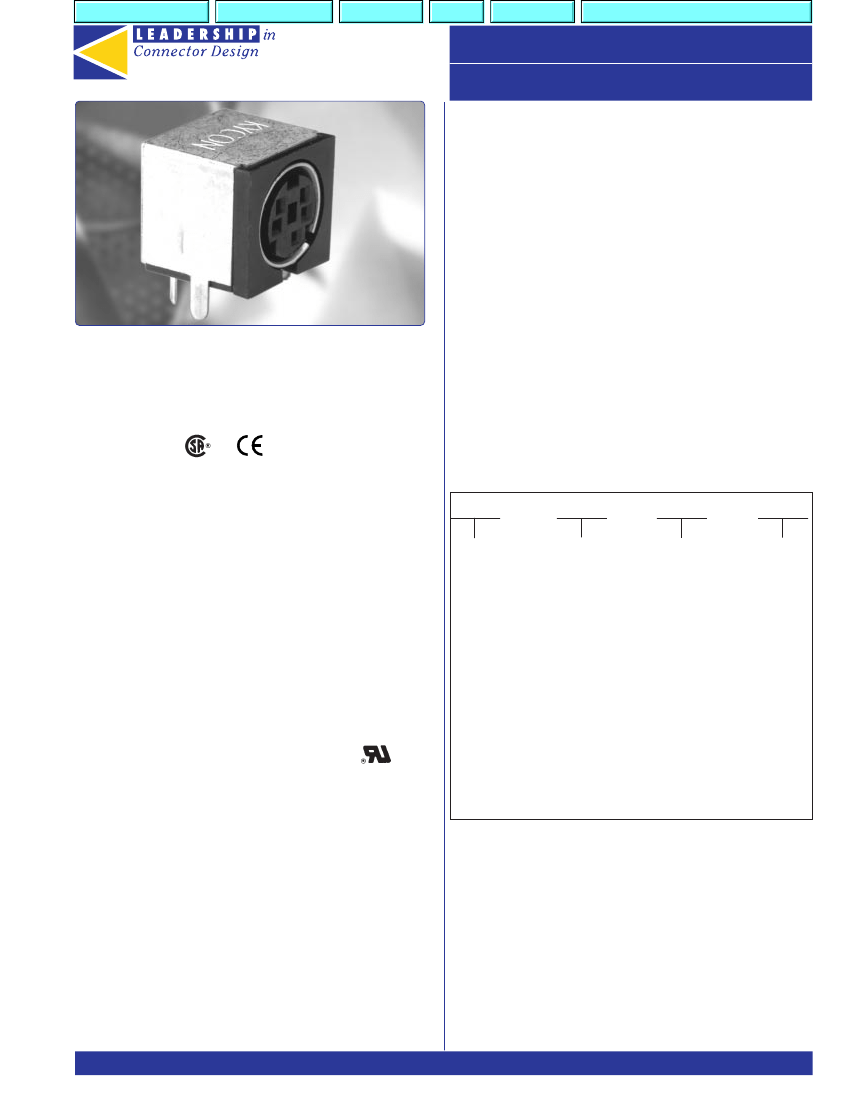

KYCON Mini-DIN Connectors
KYCON
http://www.kycon.com
Electrical Characteristics
Contact Current Rating
1.5 Amp Max. at 12V DC
Insulation Resistance
100 Megohms Min
Contact Resistance
Before Durability Test
Plug to Shield: 50 Milliohms Max.
Plug to Terminals: 30 Milliohms Max
After Durability Test
Plug to Shield: 100 Milliohms Max
Plug to Terminals: 60 Milliohms Max.
Dielectric Withstanding Voltage
250V AC RMS For 1 Minute
Operating Temperature
-25°C to +80°C
(888)KYCON-22
KMDL Series
Snap and Lock
Right Angle Mini-DIN
Features
NRTL /C
• Audio, Video, Computer, and Digital Equipment Applications
• Backward Compatible
• Works With Standard and Snap and Lock Plugs
• Shielded Options Available for Good Conductivity, Grounding,
and EMI/RFI Protection
• Visual and Mechanical Polarization for Plug Insertion
• Various Circuit Sizes
• CSA/NRTL Certified File No. LR78160
Ordering Information
KMDL
Series
_
6
Number
of
Contacts
S
Contact
Type
_
AS
Shielding
Options
Series
KMDL - Kycon Right Angle PCB Mount Mini Din
Number Of Contacts
3, 4, 5, 6, 7, 8
Contact Type
S - Receptacle
Shielding Options
N - Non-Shielded
AS - Sides and Back Shielded
BS - Fully Shielded
Performance Specifications
Body
PBT Thermoplastic, Black Color, UL94V-0 Rated
Contacts
Phosphor Bronze, Silver Plated
Shield
Tin Plated Copper Alloy
Mechanical Characteristics
Insertion Force
0.5 kg - 4.5 kg
Extraction Force
0.4 kg - 3.5 kg
Durability
5000 Cycles Minimum with Test Plug
KYCON, Inc. San Jose, CA (408) 494-0330 Fax: (408) 494-0325
