COMPONENTS PRODUCT INFORMATION
NEW

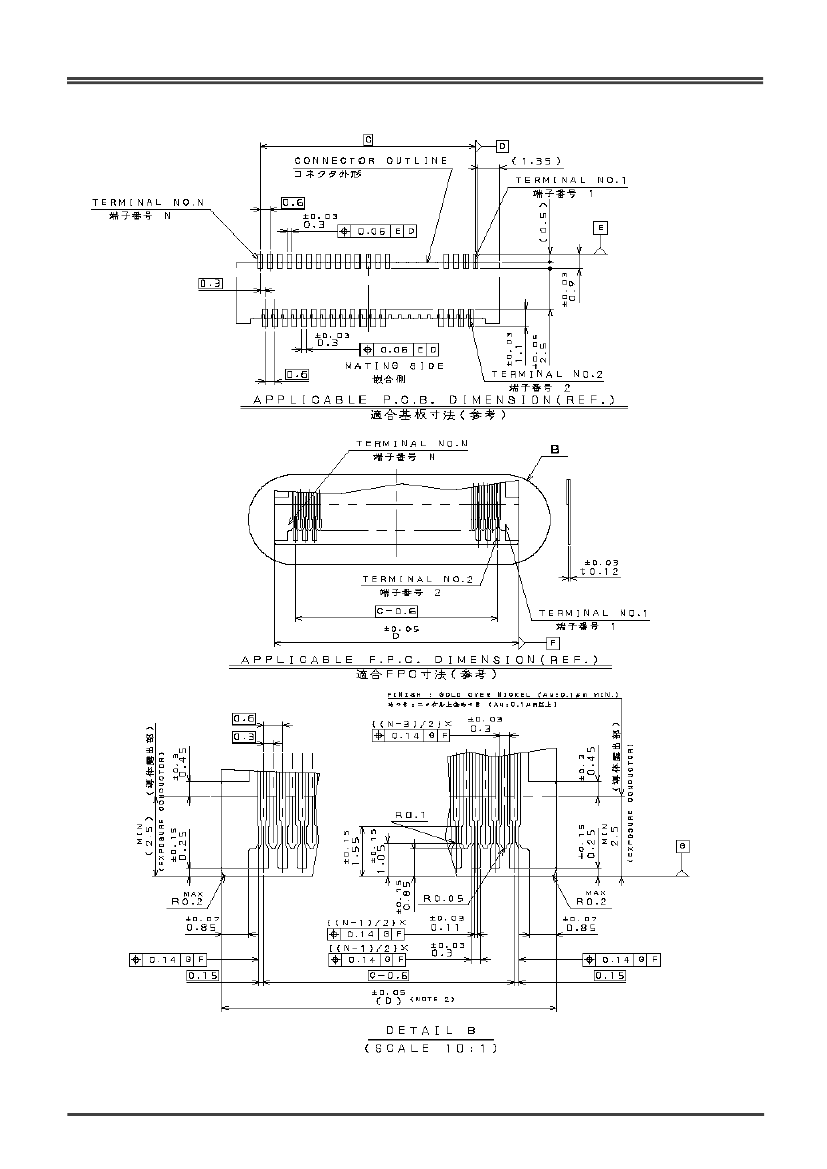

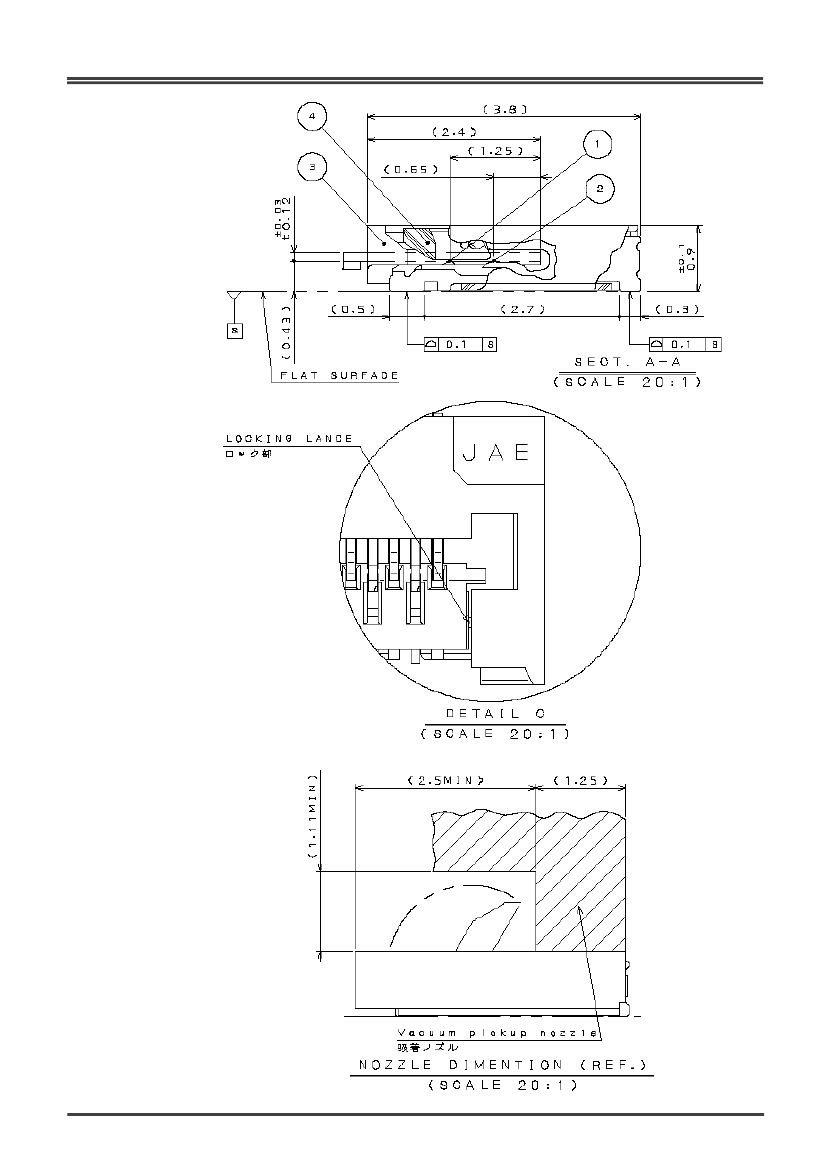

0.3mm Pitch Connector for FPC
CONNECTOR
MB-0146-2
July 2006
FF02S Series
RoHS Compliant
Outline

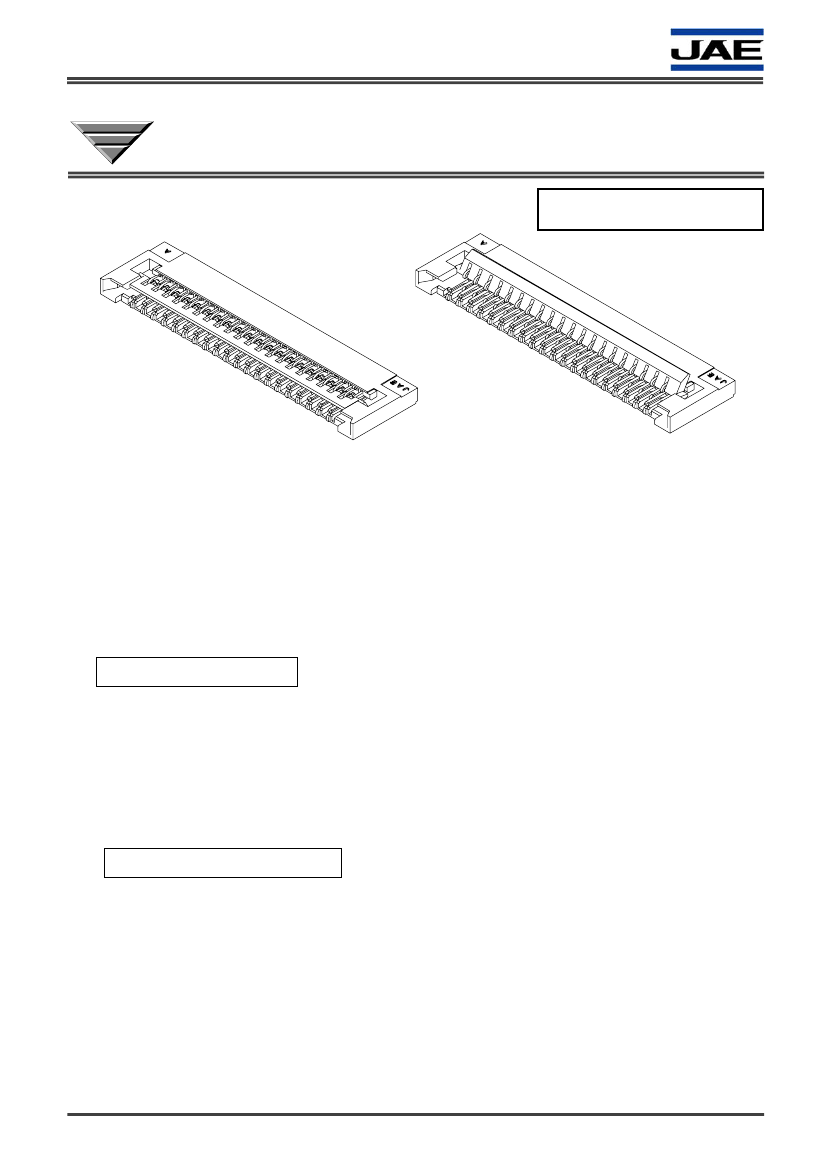

The FF02S Series is a 0.3mm pitch low-profiled connector used for FPC
connection with drop impact and vibration resistance responding to slim, compact
information communication-related devices including mobile phones, LCDs and
PDAs.
Features
* Compact and low-profiled connector, 0.9mm height and 3.8mm depth.
* Built-in actuator cam with proprietary structure that holds FPC at all contact points
and enables complete mating even for multi-contacts.
* Pb-free (solder migration prevented by nickel barrier in contact)
General Specifications
No. of contacts : 25, 31, 33, 40, 45, 55,
(15, 17, 27, 29, 35, 60, 65)
Numbers shown in parentheses are planned
Contact resistance:
40m ohm max.
Insulation resistance:
100M ohm min.
Dielectric withstanding voltage:
AC250Vr.m.s per minute
Applicable FPC thickness:
t=0.12 +0.03,-0.03
1/8
Rated current:
AC, DC 0.35A per pin, each
Rated voltage: AC, DC 50V
Operating temperature:
-40 Deg. C to +85 Deg. C
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
MB-0146-2
Materials and Finishes
Components
Actuator
Base insulator
Contact
Materials & Finishes
PPS (UL94V-0, Color: Black)
LCP (UL94V-0, Color: White)
Copper Alloy/ Partial Au Plating over Ni
Contact area: 0.1um Au min.
Terminal area: 0.03um Au min.
Ordering Information
FF02S ** S * 1 - R3000
Series
No. of pos.
S: Socket
Modification code
Reel No. (note1)
Contact plating specification
1: Partial Au plating over Ni
Note1) An embossed tape reel contains 3000 pieces.
Please contact us for embossed tape specifications.
JAE PMK Div. Proprietary. Copyright © 2006，Japan Aviation Electronics Industry, Ltd.
2/8
