54809-1175 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54809-1175

54809-1175: DescriptionAccelerometers 3-Axis Low g Digital-Output; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54809-1175 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54809-1175	-	-	View	Buy Now

54809-1175 Overview

Accelerometers 3-Axis Low g Digital-Output

54809-1175 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Samacsys Description	FFC & FPC Connectors 11P RA SMT FPC CONN BOTTOM CONT STYLE
Other features	EASY ON
body width	0.051 inch
subject depth	0.171 inch
body length	0.22 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	3.7592 mm
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

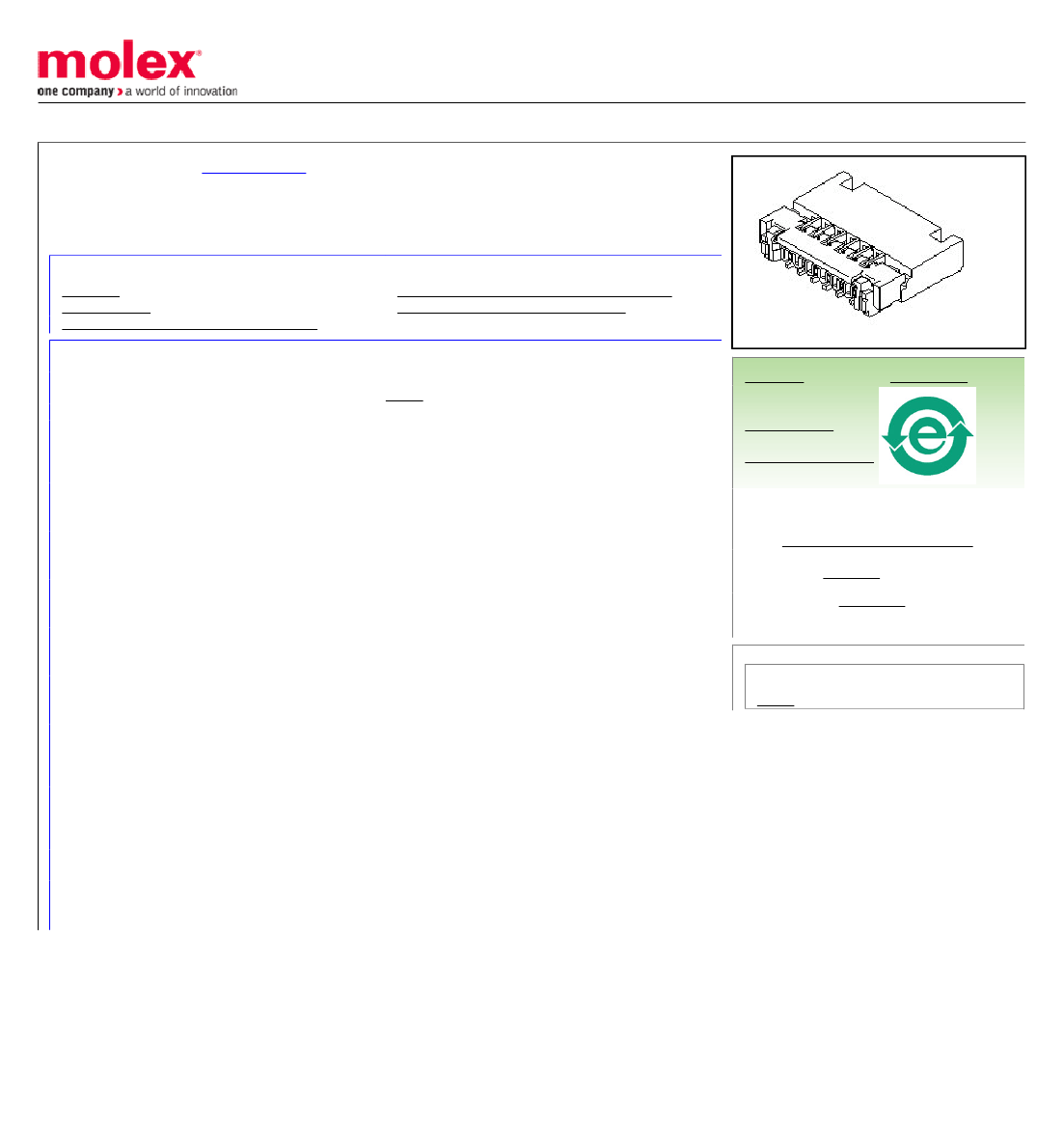

Preview

Download Datasheet

View All

This document was generated on 10/18/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0548091175

Active

0.30mm (.012") Pitch Easy-On™ Type FPC Connector, 1.30mm (.051") Mated Height,

Right Angle, SMT, ZIF, Bottom Contact Style, 11 Circuits, Lead-Free, Gold Contact

Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54809-034 (PDF)

Application Specification AS-54809-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

General

Product Family

Series

Product Name

FFC/FPC Connectors

54809

Easy-On™

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Bottom

90° Angle

1.30mm (.051")

Phosphor Bronze

Gold

Right Angle

Yes

Embossed Tape on Reel

0.30mm (.012")

Yes

-20°C to +85°C

Surface Mount

FPC only

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

54809Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.2A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

AS-54809-001

PS-54809-034, RPS-54809-066, RPS-54809-070

SD-54809-038, SD-54809-039

This document was generated on 10/18/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
