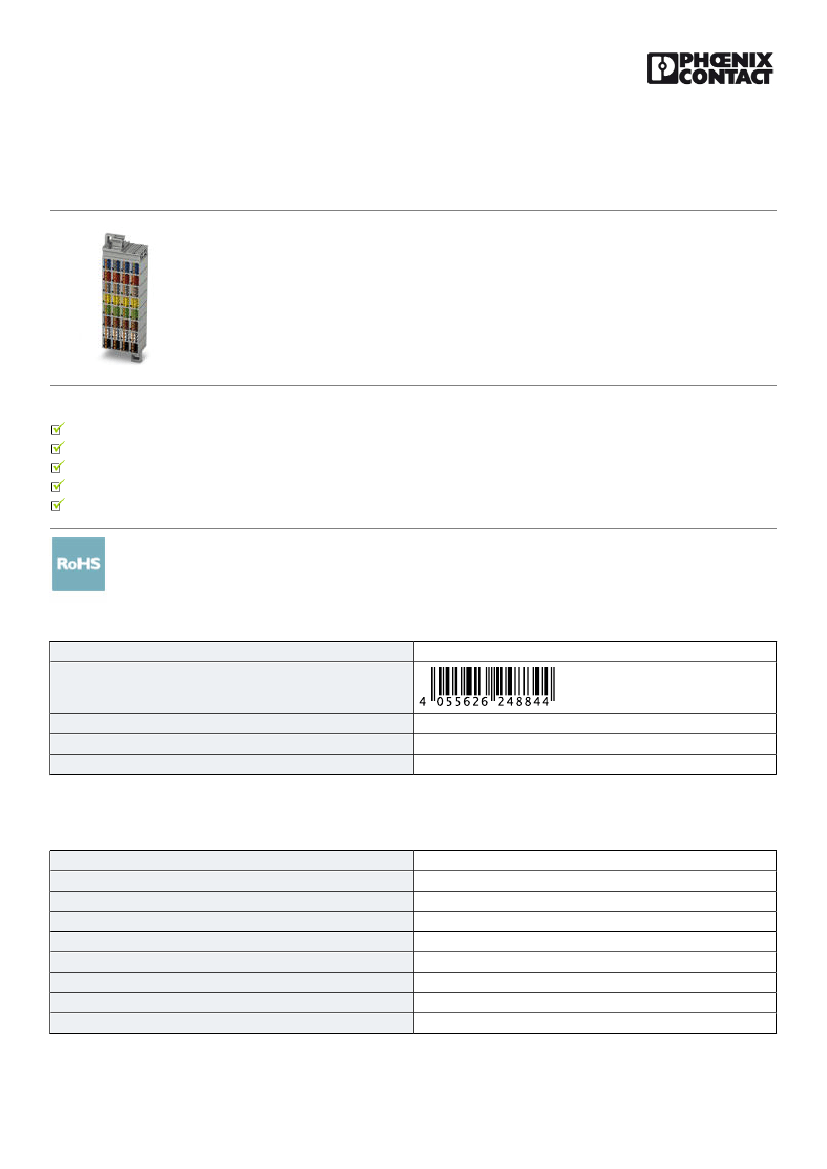

Marshalling patchboard - PTMC 1,5/32-3 VDE0815 19Z - 3270394
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling patchboard, Nom. voltage: 500 V, Nominal current: 17.5 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 14 - 26, Connection type: Push-in connection, Number of positions: 32, Number of connections: 192,
Width: 44 mm, Length: 111 mm, Color: gray, Assembly: Wall mounting, 19" rack
Why buy this product
For mounting in 19" racks
Color configuration according to VDE 0815
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Tool-free wiring in a confined space thanks to compact size
Clear representation of actuation and terminal points through vertical conductor routing
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626248844
85369010
Made to Order (non-returnable)
18 STK
Technical data
General
Note
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Labeled from 1 - 32
32
1
192
1.5 mm²
gray
PA
V0
6 kV
01/26/2017 Page 1 / 8
https://www.phoenixcontact.com/hq/products/3270394
Marshalling patchboard - PTMC 1,5/32-3 VDE0815 19Z - 3270394
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
3
III
I
24 A (for a conductor cross section of 2.5 mm², the total current of all
connected conductors must not exceed the maximum load current.)
12 A (for a conductor cross section of 2.5 mm², the total current of all
connected conductors must not exceed the maximum load current.)
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
17.5 A
500 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.14 mm² / 0.2 kg
1.5 mm² / 0.4 kg
2.5 mm² / 0.7 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Test passed
0.14 mm²
10 N
1.5 mm²
40 N
2.5 mm²
50 N
Test passed
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
1.5 mm²
0.18 kA
01/26/2017 Page 2 / 8
https://www.phoenixcontact.com/hq/products/3270394
Marshalling patchboard - PTMC 1,5/32-3 VDE0815 19Z - 3270394
Technical data
General
Conductor cross section short circuit testing
Short-time current
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
2.5 mm²
0.3 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.964 (m/s ) /Hz
0.58 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
44 mm
01/26/2017 Page 3 / 8
https://www.phoenixcontact.com/hq/products/3270394
Marshalling patchboard - PTMC 1,5/32-3 VDE0815 19Z - 3270394
Technical data
Dimensions
Length
Height
111 mm
30 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

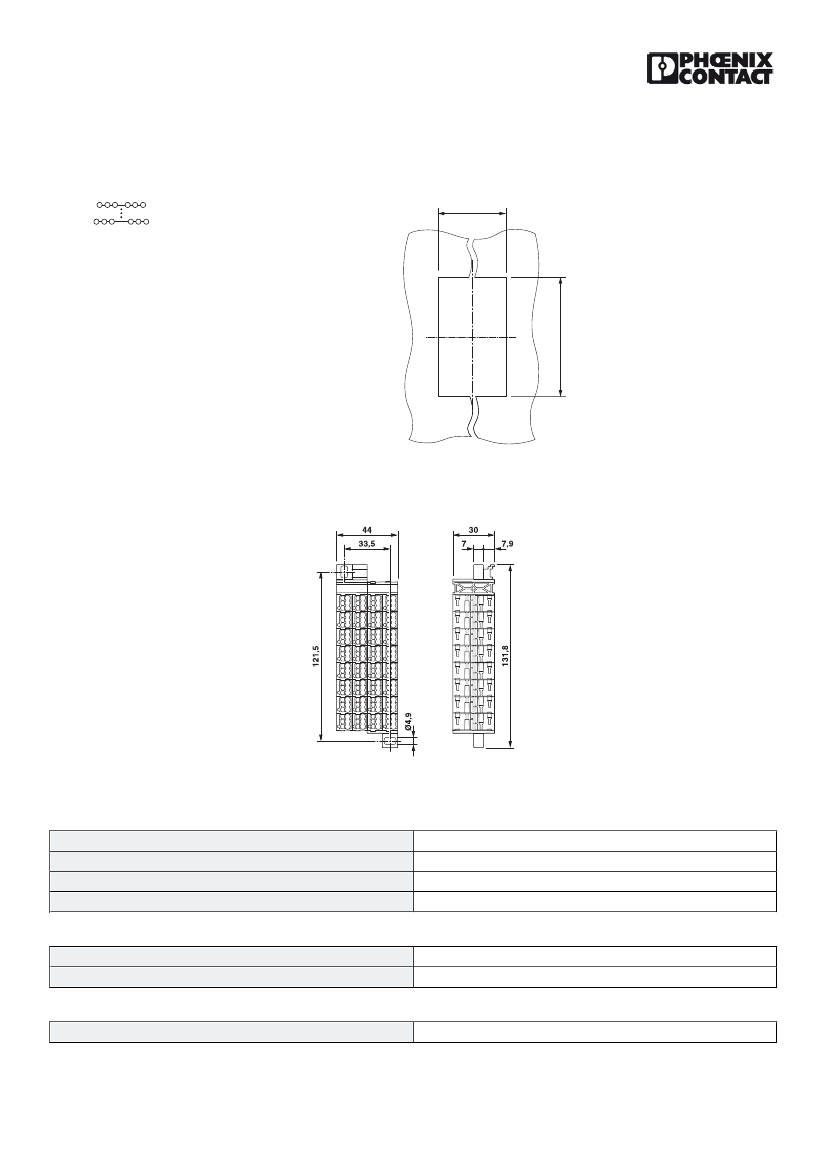

Drawings
01/26/2017 Page 4 / 8
https://www.phoenixcontact.com/hq/products/3270394
Marshalling patchboard - PTMC 1,5/32-3 VDE0815 19Z - 3270394
Circuit diagram
Dimensional drawing
+1
45
+1
Panel cutout
Dimensional drawing
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141124
27141124
27141120
27141120
ETIM
ETIM 5.0
ETIM 6.0
EC000897
EC000897
UNSPSC
UNSPSC 13.2
39121410
01/26/2017 Page 5 / 8
