Plug - PP-H 2,5/1-M RD - 3061938
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

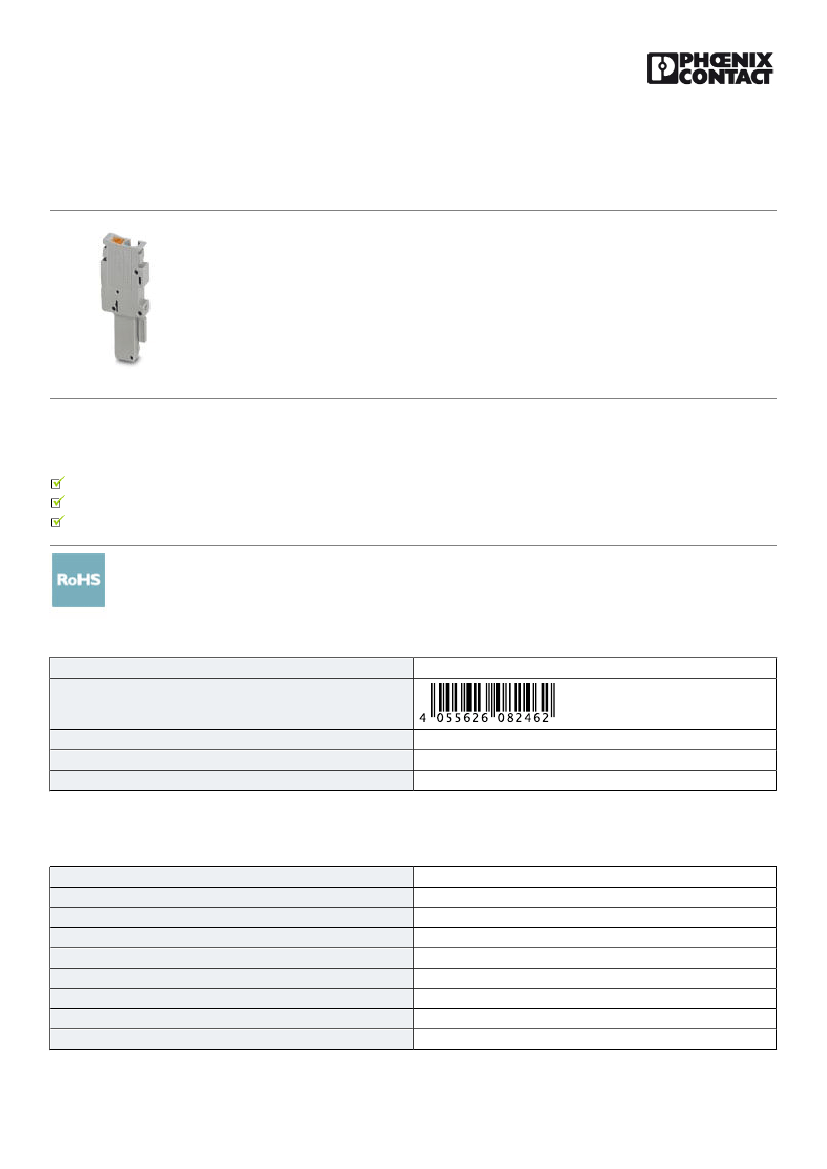

Plug, Connection method: Push-in connection, Number of positions: 1, Cross section: 0.14 mm² - 4 mm²,
AWG: 26 - 12, Width: 5.2 mm, Height: 39 mm, Color: red
Image shows the version in gray
Product Description
Connector element center, left housing with engagement pin, right opened without cover
Why buy this product
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
The plug is assembled directly on site by snapping together single-position plug elements
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626082462
85366990
Made to Order (non-returnable)
50 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
1
1
1
1
2.5 mm²
red
PA
V0
24 A (with a 2.5 mm² conductor cross section)
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3061938
Plug - PP-H 2,5/1-M RD - 3061938
Technical data
General
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
6 kV
3
III
I
24 A (with 4 mm² conductor cross section)
24 A
500 V
No
125 °C
125 °C
-60 °C
Dimensions
Width
Length
Height
Pitch
5.2 mm
15.8 mm
39 mm
24 mm
5.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Push-in connection
IEC 61984
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
10 mm
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 61984
V0
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3061938
Plug - PP-H 2,5/1-M RD - 3061938
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

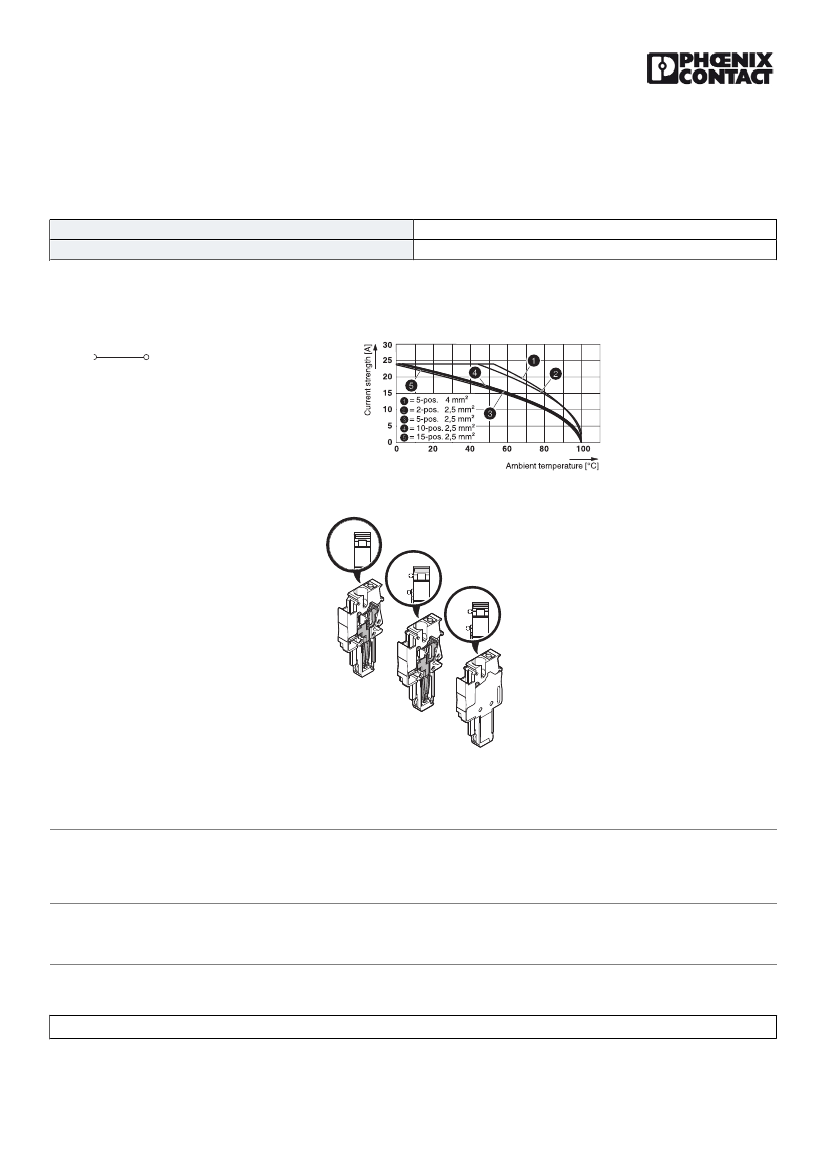

Drawings
Circuit diagram
Diagram
Schematic diagram
.../1-L
.../1-M
.../1-R
Approvals
Approvals
Approvals
NK / CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
NK http://www.classnk.or.jp/hp/en/ 14ME0912
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3061938
Plug - PP-H 2,5/1-M RD - 3061938
Approvals
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
26-12
20 A
300 V
C
26-12
20 A
300 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-12
20 A
300 V
C
26-12
20 A
300 V
D
26-12
5A
600 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
