AD7534JNZ datasheet, PDF - EEWORLD Datasheet

AD7534JNZ: DescriptionVoltage References HI PREC 10V IC REF; Categorysemiconductor Analog mixed-signal IC; File Size518KB，13 Pages; ManufacturerADI; Websitehttps://www.analog.com

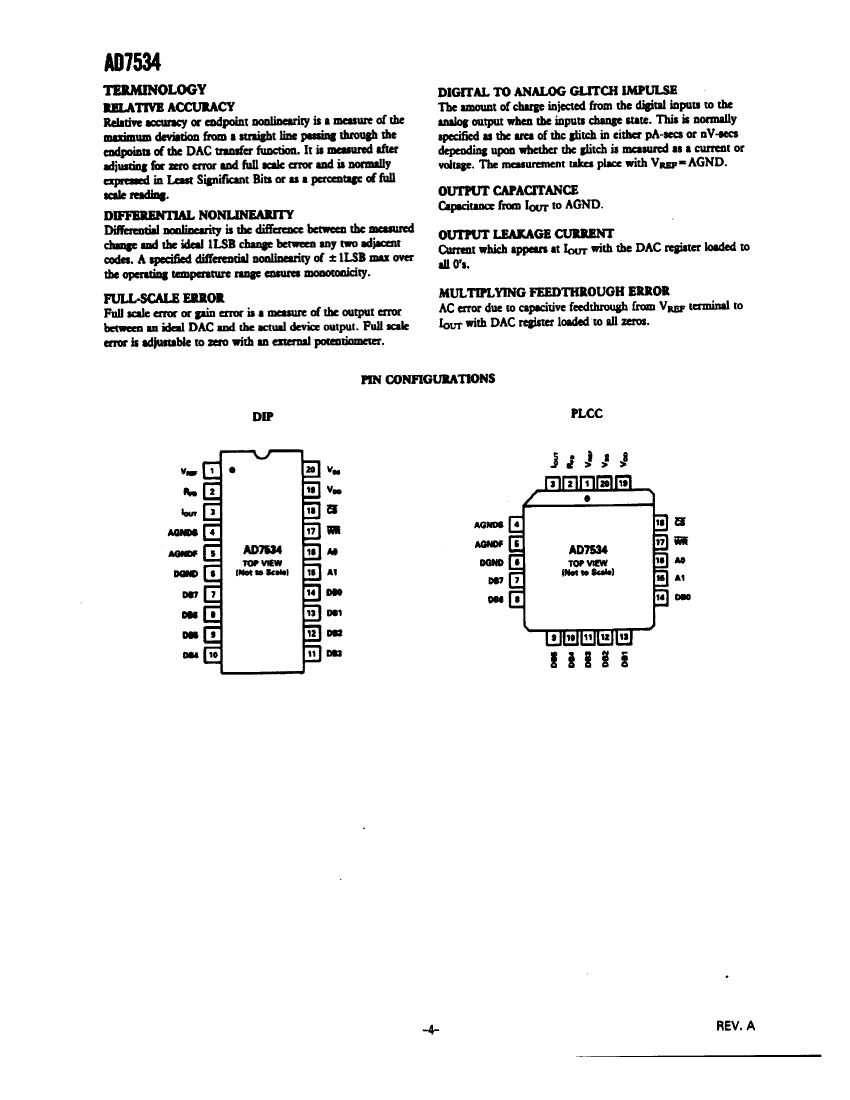

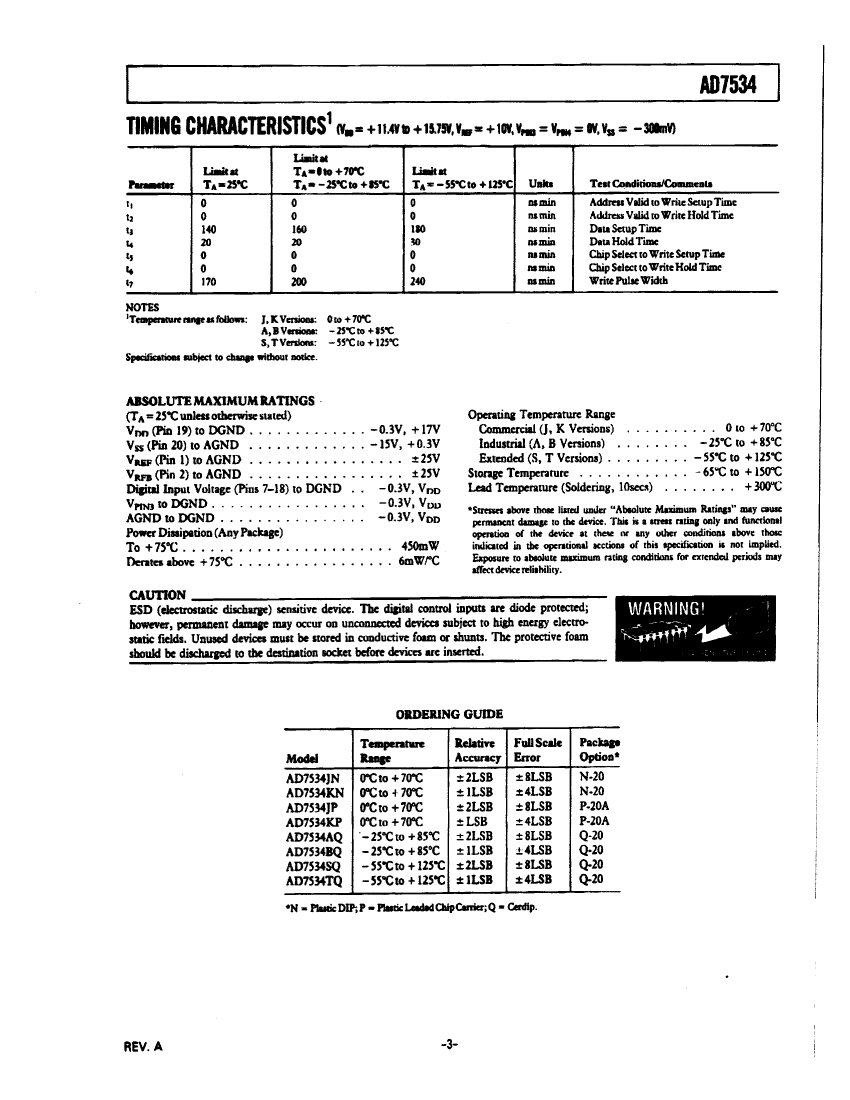

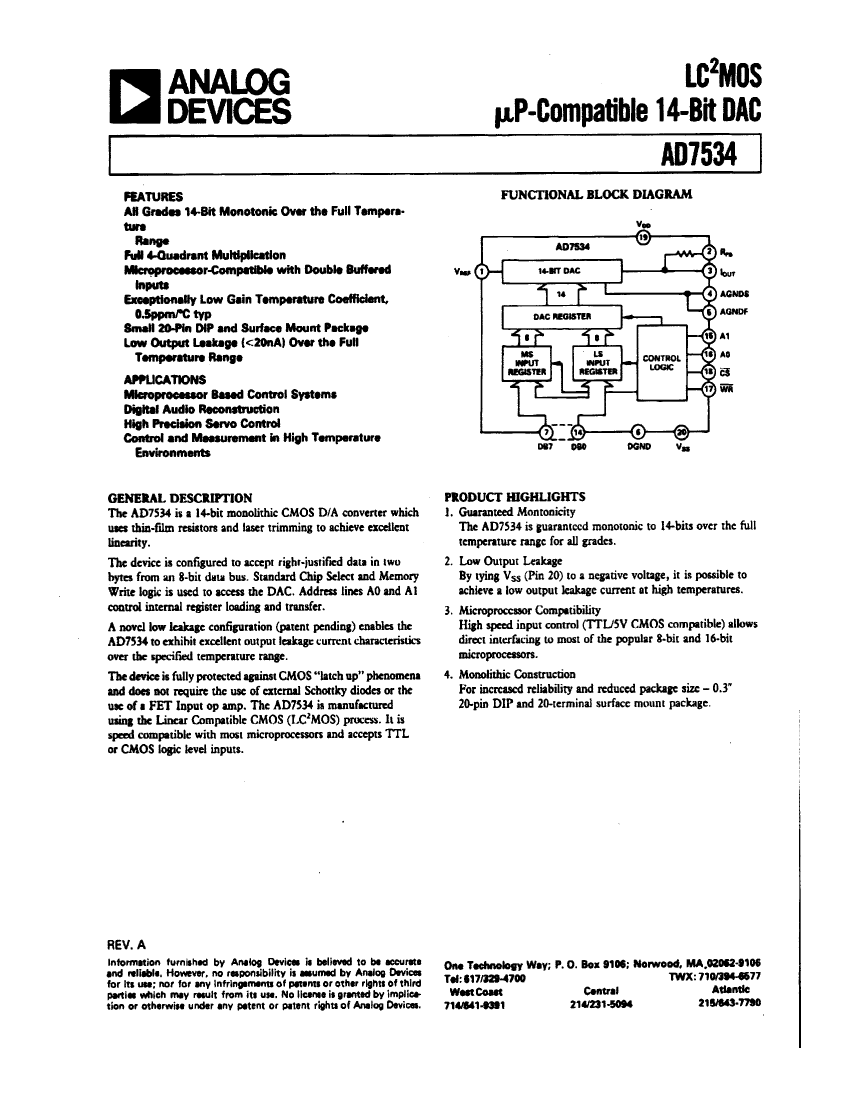

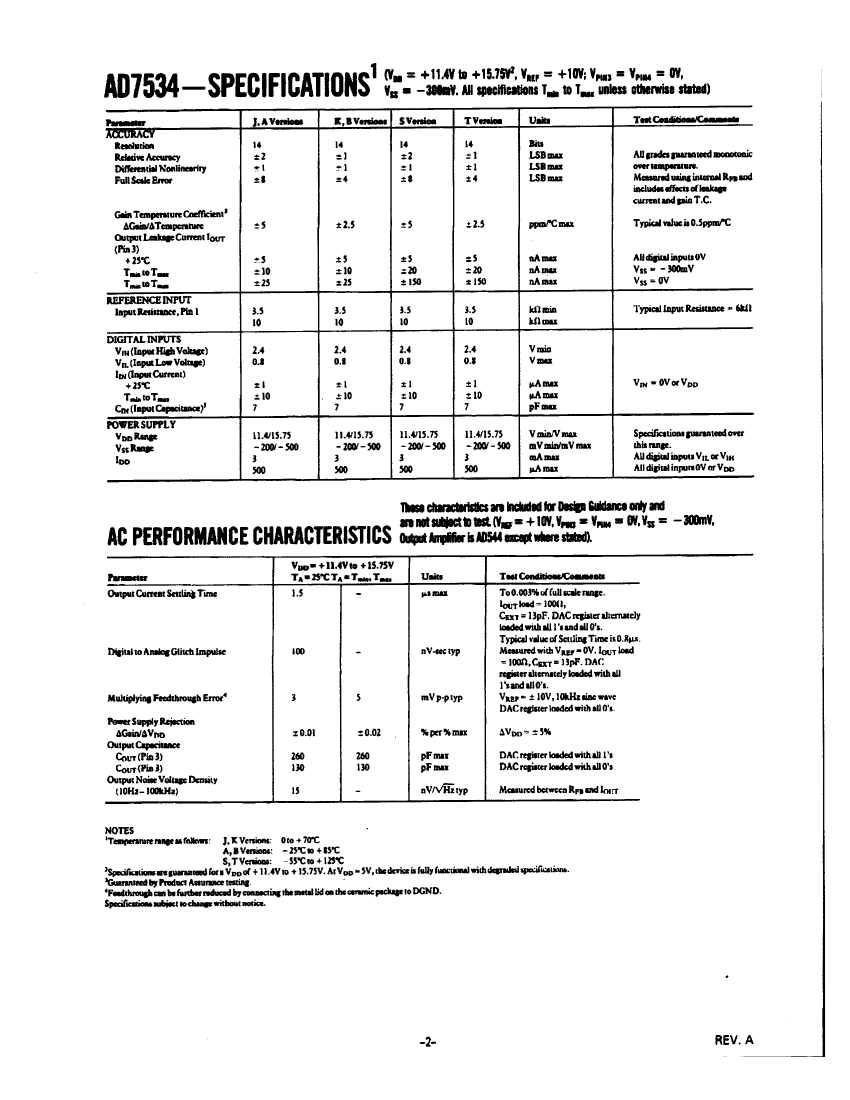

Download Datasheet Download user manual Parametric Compare View All

AD7534JNZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD7534JNZ	-	-	View	Buy Now

Voltage References HI PREC 10V IC REF

Parameter Name	Attribute value
Product Category	Digital to Analog Converters - DAC
Manufacturer	ADI
RoHS	Details
Resolution	14 bit
Sampling Rate	667 kS/s
Number of Channels	1 Channel
Settling Time	1.5 us
Supply Voltage - Max	15.75 V
Supply Voltage - Min	11.4 V
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Mounting Style	Through Hole
Package / Case	PDIP-20
Packaging	Tube
Number of Converters	1 Converter
Pd - Power Dissipation	45 mW
Product	Digital to Analog Converters
Reference Type	External
Factory Pack Quantity	18
Unit Weight	0.079719 oz

	AD7534JNZ	AD7534BQ
Description	Voltage References HI PREC 10V IC REF	Digital to Analog Converters - DAC uP-Compatible 14-Bit CMOS IC
Product Category	Digital to Analog Converters - DAC	Digital to Analog Converters - DAC
Manufacturer	ADI	ADI
RoHS	Details	No
Resolution	14 bit	14 bit
Sampling Rate	667 kS/s	667 kS/s
Number of Channels	1 Channel	1 Channel
Settling Time	1.5 us	1.5 us
Supply Voltage - Max	15.75 V	15.75 V
Supply Voltage - Min	11.4 V	11.4 V
Maximum Operating Temperature	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C
Mounting Style	Through Hole	Through Hole
Package / Case	PDIP-20	CDIP-20
Packaging	Tube	Tube
Number of Converters	1 Converter	1 Converter
Pd - Power Dissipation	45 mW	45 mW
Product	Digital to Analog Converters	Digital to Analog Converters
Reference Type	External	External
Factory Pack Quantity	18	18
Unit Weight	0.079719 oz	0.007760 oz
