SMSC LAN91C96 5v&3v
PRODUCT PREVIEW
Non-PCI Single-Chip Full Duplex Ethernet Controller with Magic Packet
General Description
The LAN91C96 is a VLSI Ethernet Controller that combines Local Bus, PCMCIA, and Motorola 68000 bus
interfaces in one chip. LAN91C96 integrates all MAC and physical layer functions, as well as the packet
RAM, needed to implement a high performance 10BASE-T (twisted pair) node. For 10BASE5 (thick coax),
10BASE2 (thin coax), and 10BASE-F (fiber) implementations, the LAN91C96 interfaces to external
transceivers via the provided AUI port. Only one additional IC is required for most applications. The
LAN91C96 comes with Full Duplex Switched Ethernet (FDSWE) support allowing the controller to provide
much higher throughput. 6K bytes of RAM is provided to support enhanced throughput and compensate
for any increased system service latencies. The controller implements multiple advanced power-down
modes including Magic Packet to conserve power and operate more efficiently. The LAN91C96 can
directly interface with the Local Bus, PCMCIA, and 68000 buses and deliver no-wait-state operation. For
Local Bus and PCMCIA interfaces, the LAN91C96 occupies 16 I/0 locations and no memory space except
for PCMCIA attribute memory space. The same I/O space is used for both LOCAL BUS and PCMCIA
operations. Its shared memory is sequentially accessed with 40ns access times to any of its registers,
including its packet memory. DMA services are not used by the LAN91C96, virtually de-coupling network
traffic from local or system bus utilization. For packet memory management, the LAN91C96 integrates a
unique hardware Memory Management Unit (MMU) with enhanced performance and decreased software
overhead when compared to ring buffer and linked list architectures. The LAN91C96 is portable to
different CPU and bus platforms due to its flexible bus interface, flat memory structure (no pointers), and
its loosely coupled buffered architecture (not sensitive to latency).
The LAN91C96 is available in 100-pin QFP and TQFP (1.0 mm body thickness) packages. The low profile
TQFP is ideal for mobile applications such as PC Card LAN adapters. The LAN91C96 operates with a
single power supply voltage of 5.0V. Revisions E and later will also operate using a single 3.3V power
supply.
SMSC LAN91C96 5v&3v
Page 3
Revision 1.0 (10-24-08)
PRODUCT PREVIEW
Non-PCI Single-Chip Full Duplex Ethernet Controller with Magic Packet
Block Diagram
PCMCIA CONNECTOR
nCE1, nCE2, nREG, nWE
A0-9, A15
nIORD, nIOWR
STSCHG
RESET
nIREQ
D0-15
10BASE-T / AUI
INTERFACE
LAN91C96
nIOIS16, nINPACK
nWAIT
nOE
nFWE
nFCS
nWE
nOE
nCE
CS,SK,DI,DO
Extended
D0-7
Attribute
Eprom
A0-X
2816
(PCMCIA)
Serial Eprom
(ISA-Hy9346)
SINGLE FUNCTION PCMCIA
CARD WITH THE LAN91C96
Figure 1 - LAN91C96 System Block Diagram
Revision 1.0 (10-24-08)
Page 4
SMSC LAN91C96 5v&3v
PRODUCT PREVIEW
Non-PCI Single-Chip Full Duplex Ethernet Controller with Magic Packet

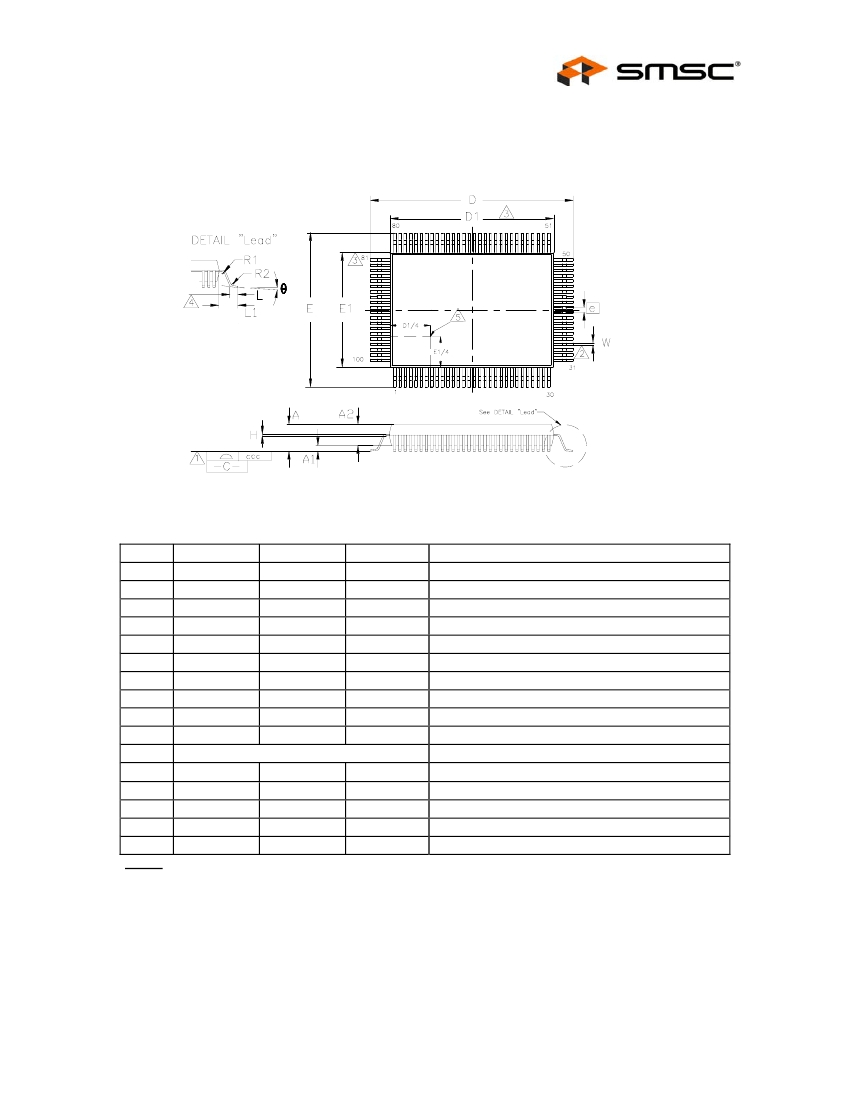

Package Outlines
Figure 2 - 100 Pin QFP Package
MIN
~
0.05
2.55
23.65
19.90
17.65
13.90
0.11
0.73
~
NOMINAL
~
~
~
~
~
~
~
~
0.88
1.95
0.65 Basic
~
MAX
3.4
0.5
3.05
24.15
20.10
18.15
14.10
0.23
1.03
~
REMARKS
Overall Package Height
Standoff
Body Thickness
X Span
X body Size
Y Span
Y body Size
Lead Frame Thickness
Lead Foot Length
Lead Length
Lead Pitch
Lead Foot Angle
A
A1
A2
D
D1
E
E1
H
L
L1
e
o
0
o
7
θ
W
0.20
~
0.40
Lead Width
R1
0.10
~
0.25
Lead Shoulder Radius
R2
0.15
~
0.40
Lead Foot Radius
ccc
~
~
0.10
Coplanarity
Notes:
1
Controlling Unit: millimeter.
2
Tolerance on the true position of the leads is ± 0.065 mm maximum
3
Package body dimensions D1 and E1 do not include the mold protrusion.
Maximum mold protrusion is 0.25 mm.
4
Dimension for foot length L measured at the gauge plane 0.25 mm above the seating plane.
5
Details of pin 1 identifier are optional but must be located within the zone indicated.
