LND150N3-G-P014 datasheet, PDF

Datasheet> All Categories > LND150N3-G-P014

LND150N3-G-P014: DescriptionTrans MOSFET N-CH 500V 0.03A 3-Pin TO-92 Ammo; File Size316KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Download user manual Parametric Compare View All

LND150N3-G-P014 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LND150N3-G-P014	-	-	View	Buy Now

LND150N3-G-P014 Overview

Trans MOSFET N-CH 500V 0.03A 3-Pin TO-92 Ammo

LND150N3-G-P014 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Depletion
Channel Type	N
Number of Elements per Chip	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	0.03
Maximum Drain Source Resistance (MOhm)	1000000@0V
Typical Input Capacitance @ Vds (pF)	7.5@25V
Maximum Power Dissipation (mW)	740
Typical Fall Time (ns)	1300
Typical Rise Time (ns)	450
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	90
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	150
Packaging	Ammo
Supplier Package	TO-92
Pin Count	3
Standard Package Name	TO-92
Mounting	Through Hole
Package Height	5.33(Max)
Package Length	5.21(Max)
Package Width	4.19(Max)
PCB changed	3

User Manual

Preview

Download Datasheet

View All

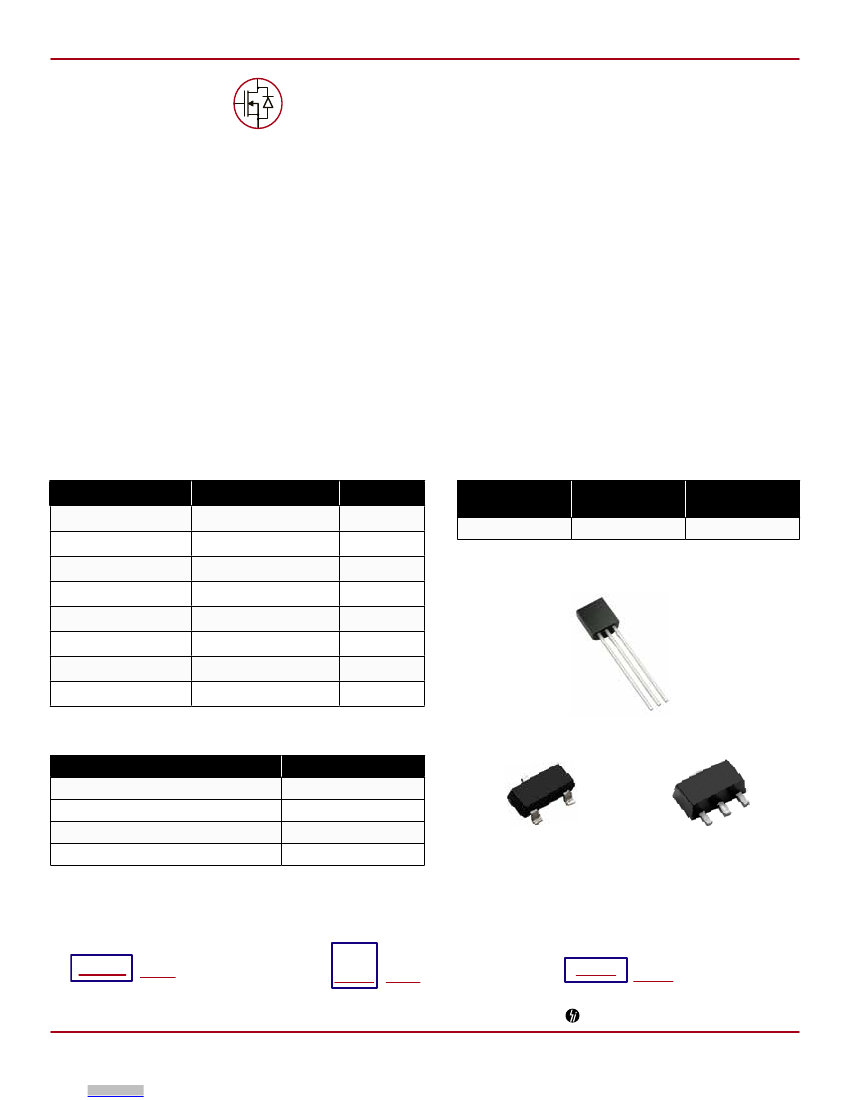

Supertex inc.

N-Channel Depletion-Mode

DMOS FET

Features

►

Free from secondary breakdown

Low power drive requirement

Ease of paralleling

Excellent thermal stability

Integral source-drain diode

High input impedance and low C

ISS

ESD gate protection

LND150

General Description

The LND150 is a high voltage N-channel depletion mode

(normally-on) transistor utilizing Supertex’s lateral DMOS

technology. The gate is ESD protected.

The LND150 is ideal for high voltage applications in the

areas of normally-on switches, precision constant current

sources, voltage ramp generation and amplification.

Applications

►

Solid state relays

Normally-on switches

Converters

Power supply circuits

Constant current sources

Input protection circuits

Ordering Information

Part Number

LND150K1-G

LND150N3-G

LND150N3-G P002

LND150N3-G P003

LND150N3-G P005

LND150N3-G P013

LND150N3-G P014

LND150N8-G

Package Options

TO-236AB (SOT-23)

TO-92

TO-243AA (SOT-89)

Packing

3000/Reel

1000/Bag

2000/Reel

Product Summary

DSX

/BV

DGX

(V)

DS(ON)

(max)

DSS

(min)

500

1.0kΩ

1.0mA

Pin Configuration

SOURCE

DRAIN

-G denotes a lead (Pb)-free / RoHS compliant package

Absolute Maximum Ratings

Parameter

Drain-to-source

Drain-to-gate

Gate-to-source

Operating and storage temperature

TO-92

Value

DSX

DGX

±20V

-55

C to +150

DRAIN

GATE

SOURCE

GATE

SOURCE

DRAIN

SOURCE

GATE

TO-236AB (SOT-23)

TO-243AA (SOT-89)

Absolute Maximum Ratings are those values beyond which damage to the device may

occur. Functional operation under these conditions is not implied. Continuous operation

of the device at the absolute rating level may affect device reliability. All voltages are

referenced to device ground.

Product Marking

NDEW

W = Code for Week Sealed

= “Green” Packaging

SiLN

D 1 50

YYWW

YY = Year Sealed

WW = Week Sealed

= “Green” Packaging

LN1EW

W = Code for Week Sealed

= “Green” Packaging

TO-236AB (SOT-23)

Doc.# DSFP-LND150

C041114

TO-92

Packages may or may not include the following marks: Si or

TO-243AA (SOT-89)

Supertex inc.

www.supertex.com
