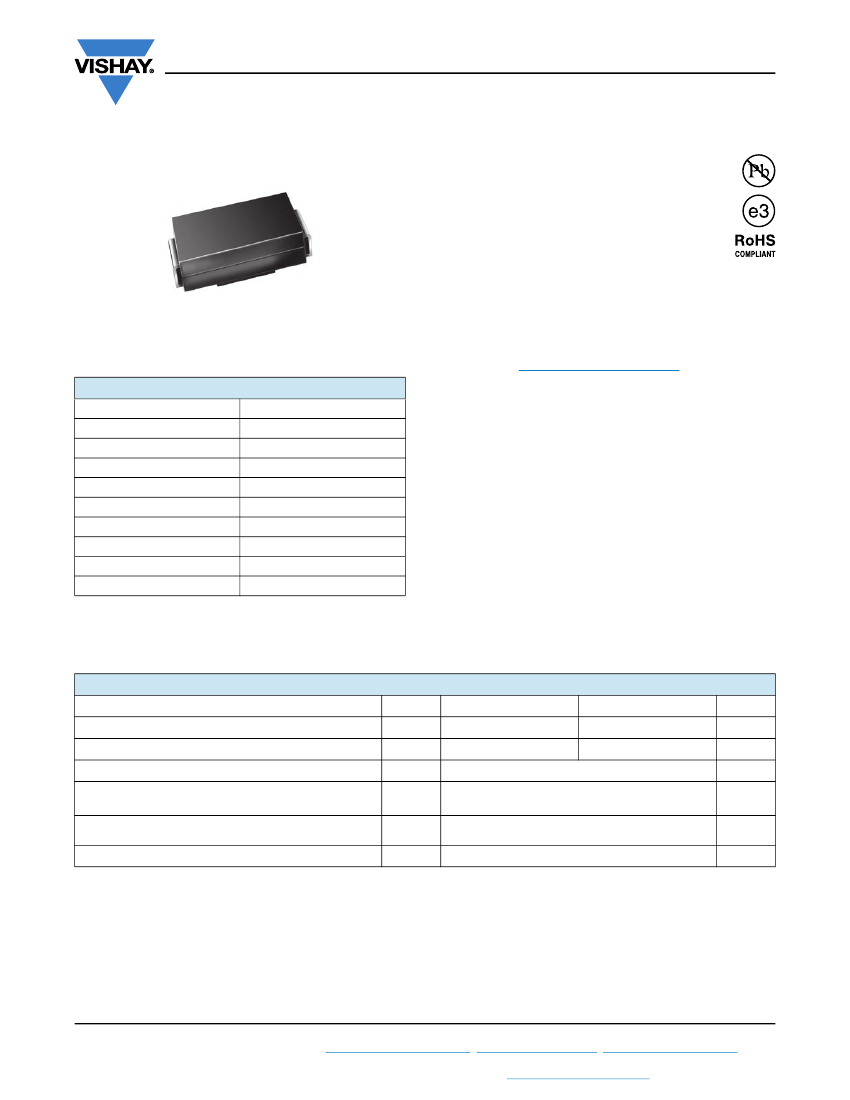

BYG21K-E3/HE3, BYG21M-E3/HE3
www.vishay.com
Vishay General Semiconductor
Fast Avalanche SMD Rectifier
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Low reverse current
• Soft recovery characteristic
• Fast reverse recovery time
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SMA
(DO-214AC)
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
I
R
V
F
t
rr
E
R
T
J
max.
Package
Diode variation
1.5 A
800 V, 1000 V
30 A
1.0 μA
1.6 V
120 ns
20 mJ
150 °C
SMA (DO-214AC)
Single
TYPICAL APPLICATIONS
For use in fast switching rectification of power supply,
inverters, converters, and freewheeling diodes for
consumer, automotive, and telecommunication.
MECHANICAL DATA
Case:
SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,...)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
Color band denotes the cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Average forward current
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Pulse energy in avalanche mode, non repetitive
(inductive load switch off) I
(BR)R
= 1 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
R
T
J
, T
STG
SYMBOL
BYG21K
BYG21K
800
1.5
30
20
-55 to +150
BYG21M
BYG21M
1000
V
A
A
mJ
°C
UNIT
Revision: 08-Mar-17
Document Number: 88961
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG21K-E3/HE3, BYG21M-E3/HE3
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum reverse current
Maximum reverse
recovery time
TEST CONDITIONS
I
F
= 1 A
I
F
= 1.5 A
V
R
= V
RRM
T
J
= 25 °C
T
J
= 25 °C
T
J
= 100 °C
SYMBOL
V
F (1)
I
R
t
rr
BYG21K
1.5
1.6
1
10
120
BYG21M
UNIT
V
µA
ns
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance, junction to lead, T
L
= const.
Typical thermal resistance, junction to ambient
SYMBOL
R
JL
R
JA
(1)
R
JA
(2)
R
JA
(3)
Notes
Mounted on epoxy-glass hard tissue
(2)
Mounted on epoxy-glass hard tissue, 50 mm
2
35 μm Cu
(3)
Mounted on Al-oxide-ceramic (Al O ), 50 mm
2
35 μm Cu
2 3
(1)
BYG21K
25
150
125
100
BYG21M
UNIT
°C/W
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
BYG21K-E3/TR
BYG21K-E3/TR3
BYG21KHE3_A/H
(1)
BYG21KHE3_A/I
(1)
Note
(1)
AEC-Q101 qualified
UNIT WEIGHT (g)
0.064
0.064
0.064
0.064
PREFERRED PACKAGE CODE
TR
TR3
H
I
BASE QUANTITY
1800
7500
1800
7500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel

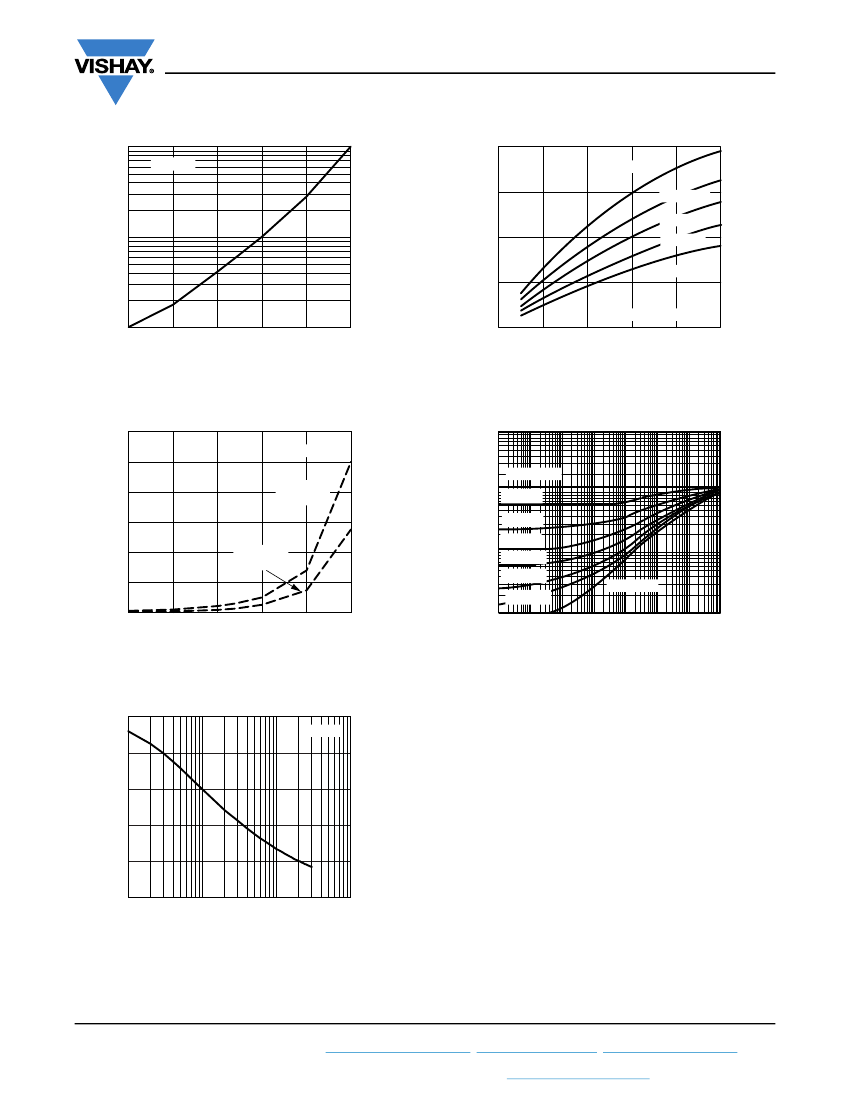

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
10
T
J
= 150 °C
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.001
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.0
0
25
50
75
100
125
150
R
θJA
= 150 K/W
R
θJA
= 125 K/W
R
θJA
= 25 K/W
V
R
=
V
RRM
Half Sine-Wave
Forward Current (A)
1
T
J
= 25 °C
0.1
0.01
Forward
Voltage
(V)
Average Forward Current (A)
Ambient Temperature (°C)
Fig. 1 - Forward Current vs. Forward Voltage
Fig. 2 - Max. Average Forward Current vs. Ambient Temperature
Revision: 08-Mar-17
Document Number: 88961
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG21K-E3/HE3, BYG21M-E3/HE3
www.vishay.com
Vishay General Semiconductor
200
100
Reverse Recovery Charge (nC)
V
R
=
V
RRM
T
A
= 125 °C
150
T
A
= 100 °C
T
A
= 75 °C
100
T
A
= 50 °C
T
A
= 25 °C
50
Reverse Current (µA)
10
I
R
= 0.5 A, i
R
= 0.125 A
1
25
50
75
100
125
150
0
0
0.2
0.4
0.6
0.8
1.0
Junction Temperature (°C)
Forward Current (A)
Fig. 3 - Reverse Current vs. Junction Temperature
Fig. 6 - Max. Reverse Recovery Charge vs. Forward Current
Thermal Resistance for Pulse Cond. (K/W)
120
1000
Reverse Power Dissipation (mW)
V
R
=
V
RRM
100
P
R
- Limit
at 100 %
V
R
125 K/W DC
100
t
p
/T = 0.5
t
p
/T = 0.2
t
p
/T = 0.1
10
t
p
/T = 0.05
t
p
/T = 0.02
Single Pulse
t
p
/T = 0.01
1
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
80
60
P
R
- Limit
at
80
%
V
R
40
20
0
25
50
75
100
125
150
Junction Temperature (°C)
Pulse Length (s)
Fig. 4 - Max. Reverse Power Dissipation vs. Junction Temperature
Fig. 7 - Thermal Response
25
f = 1 MHz
Diode Capacitance (pF)
20
15
10
5
0
0.1
1
10
100
Reverse
Voltage
(V)
Fig. 5 - Diode Capacitance vs. Reverse Voltage
Revision: 08-Mar-17
Document Number: 88961
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYG21K-E3/HE3, BYG21M-E3/HE3
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMA
(DO-214AC)
Cathode Band
Vishay General Semiconductor
Mounting Pad Layout
0.066 (1.68)
MIN.
0.074 (1.88)
MAX.
0.065 (1.65)
0.049 (1.25)
0.110 (2.79)
0.100 (2.54)
0.177 (4.50)
0.157 (3.99)
0.012 (0.305)
0.006 (0.152)
0.060 (1.52)
MIN.
0.208 (5.28)
REF.
0.090 (2.29)
0.078 (1.98)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0 (0)
0.208 (5.28)
0.194 (4.93)
Revision: 08-Mar-17
Document Number: 88961
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
