MX7845KR- datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> MX7845KR-

MX7845KR-: DescriptionDigital to Analog Converters - DAC 12-Bit Precision ADC; Categorysemiconductor Analog mixed-signal IC; File Size1MB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MX7845KR- Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MX7845KR-	-	-	View	Buy Now

MX7845KR- Overview

Digital to Analog Converters - DAC 12-Bit Precision ADC

MX7845KR- Parametric

Parameter Name	Attribute value
Product Category	Digital to Analog Converters - DAC
Manufacturer	Maxim
RoHS	Details
Resolution	12 bit
Packaging	Tube
Product	Digital to Analog Converters
Factory Pack Quantity	30

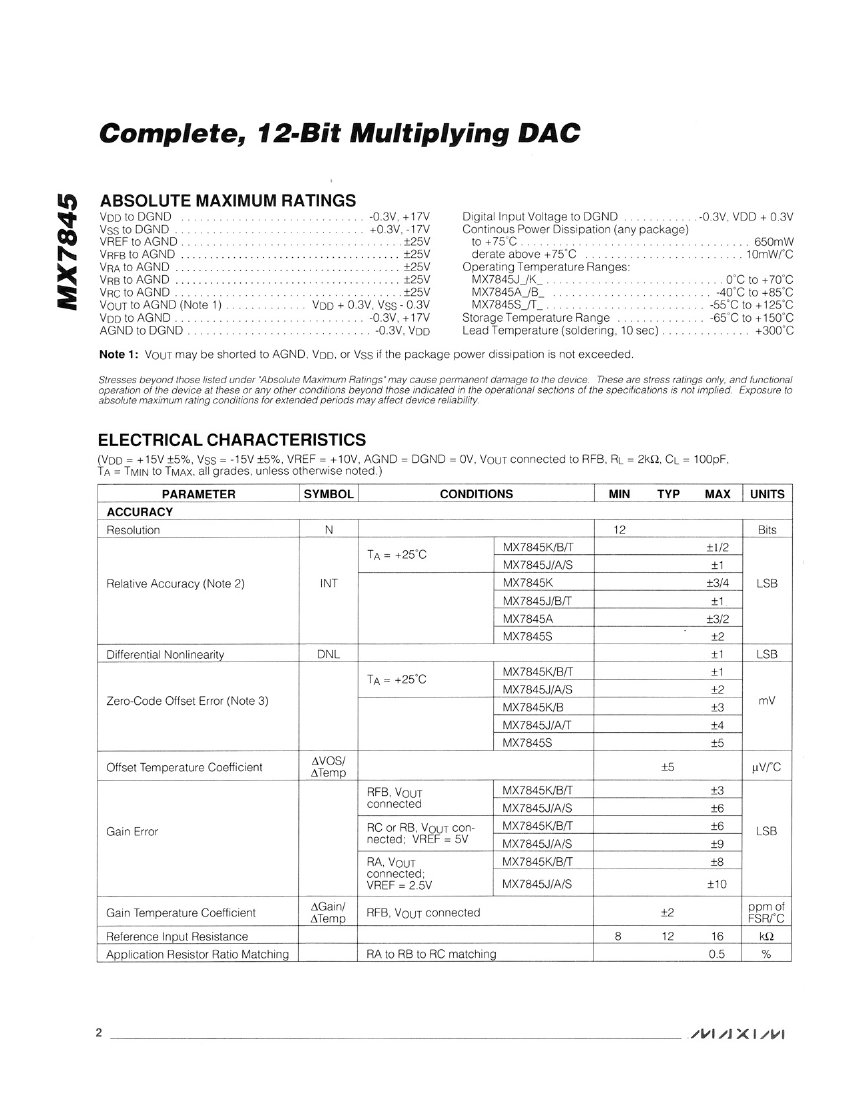

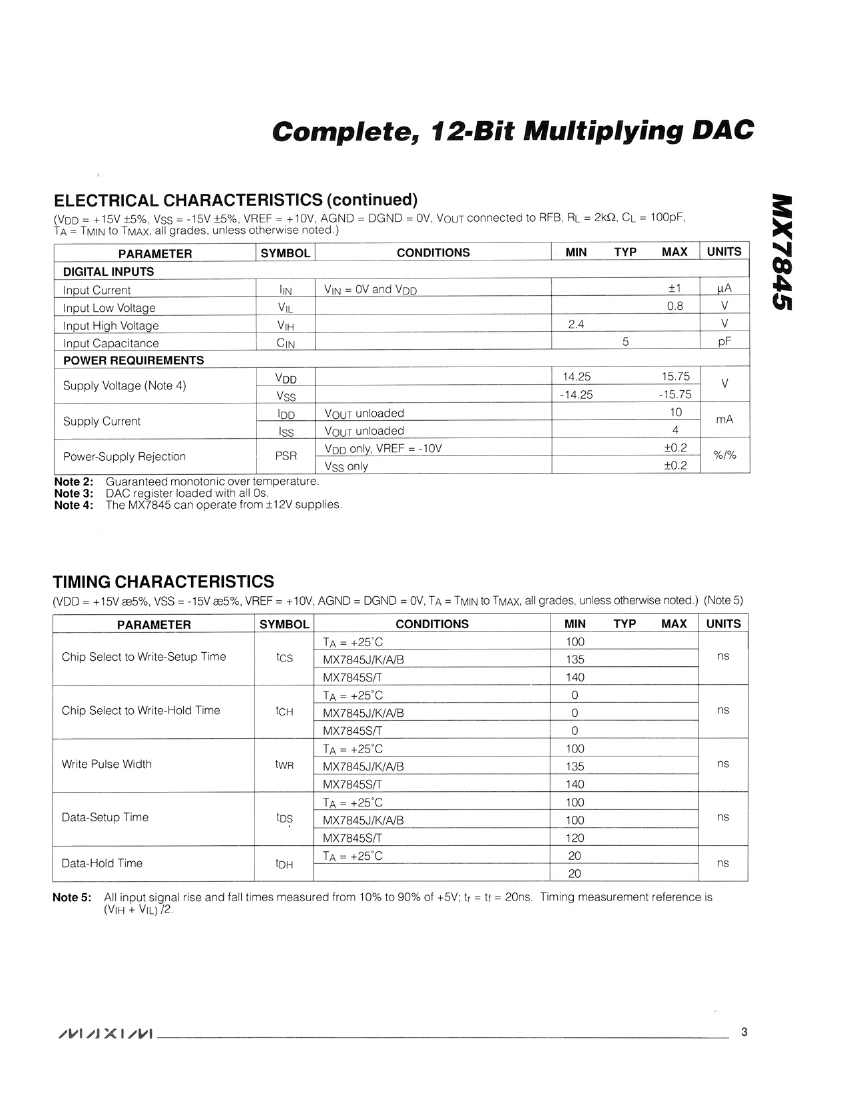

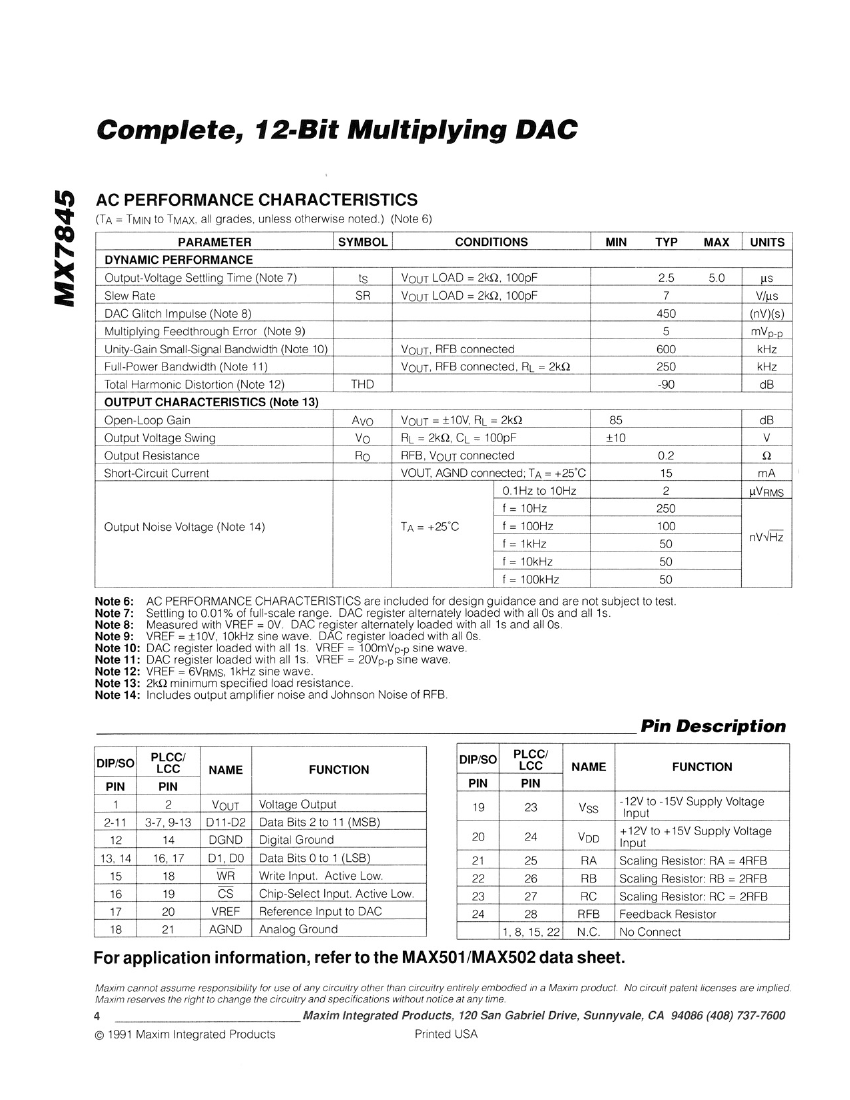

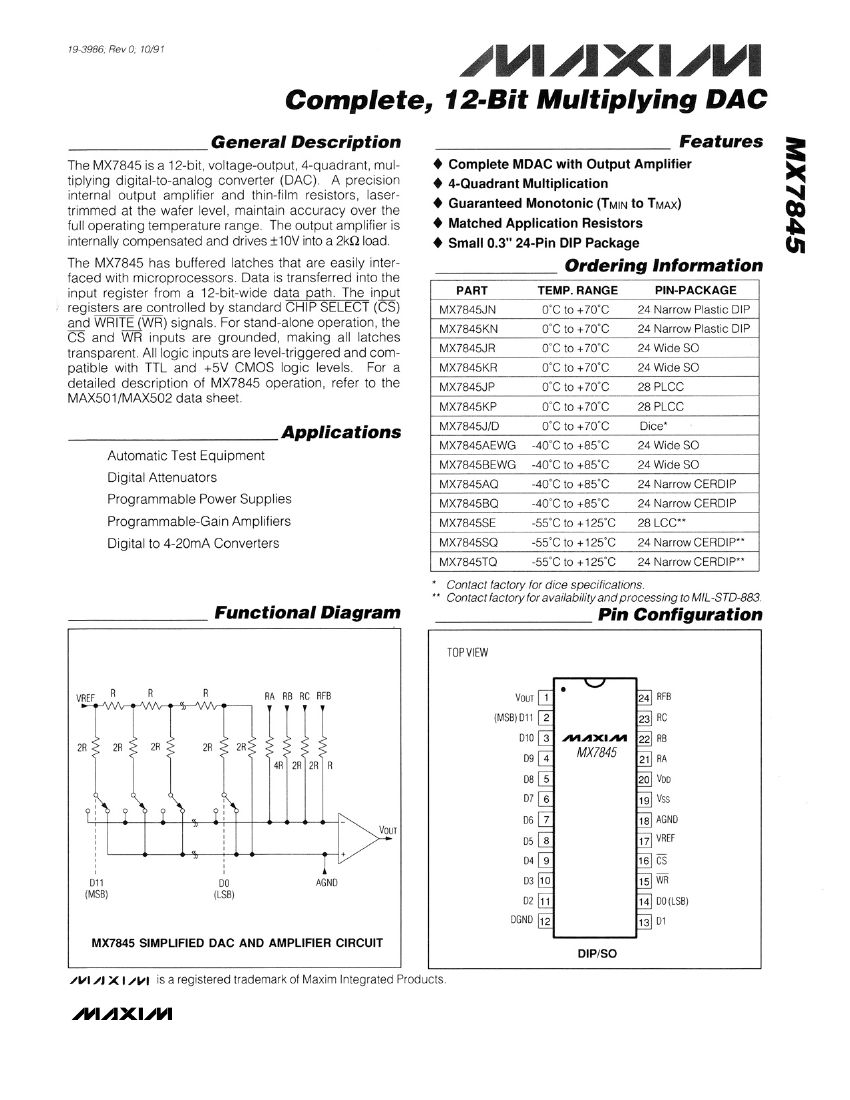

Preview

Download Datasheet

View All

____________________________________________________________________________

Maxim

Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

MX7845KR- Related Products

	MX7845KR-	MX7845KP	MX7845AEWG	MX7845KR	MX7845BEWG-T	MX7845JP	MX7845JR-T	MX7845KN	MX7845BEWG	MX7845JN-
Description	Digital to Analog Converters - DAC 12-Bit Precision ADC		Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC Complete, 12-Bit Multiplying DAC	Digital to Analog Converters - DAC 12-Bit Precision ADC
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-
Parts packaging code	-	QLCC	SOIC	SOIC	SOIC	QLCC	SOIC	DIP	SOIC	-
package instruction	-	PLASTIC, LCC-28	0.300 INCH, SO-24	0.300 INCH, SO-24	0.300 INCH, SO-24	PLASTIC, LCC-28	0.300 INCH, SO-24	0.300 INCH, PLASTIC, DIP-24	0.300 INCH, SO-24	-
Contacts	-	28	24	24	24	28	24	24	24	-
Reach Compliance Code	-	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	-
Maximum analog output voltage	-	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	-
Minimum analog output voltage	-	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-
Converter type	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	-
Enter bit code	-	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	-
Input format	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	-
JESD-30 code	-	S-PQCC-J28	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	S-PQCC-J28	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	-
JESD-609 code	-	e0	e0	e0	e0	e0	e0	e0	e0	-
length	-	11.505 mm	15.4 mm	15.4 mm	15.4 mm	11.505 mm	15.4 mm	-	15.4 mm	-
Maximum linear error (EL)	-	0.0183%	0.0366%	0.0183%	0.0244%	0.0244%	0.0244%	0.0183%	0.0244%	-
Humidity sensitivity level	-	1	1	1	1	1	-	1	1	-
Nominal negative supply voltage	-	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-
Number of digits	-	12	12	12	12	12	12	12	12	-
Number of functions	-	1	1	1	1	1	1	1	1	-
Number of terminals	-	28	24	24	24	28	24	24	24	-
Maximum operating temperature	-	70 °C	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	-
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	-	QCCJ	SOP	SOP	SOP	QCCJ	SOP	DIP	SOP	-
Encapsulate equivalent code	-	LDCC28,.5SQ	SOP24,.4	SOP24,.4	SOP24,.4	LDCC28,.5SQ	SOP24,.4	DIP24,.3	SOP24,.4	-
Package shape	-	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	-	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	-	245	245	245	240	245	245	245	245	-
power supply	-	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	-	4.57 mm	2.65 mm	2.65 mm	2.65 mm	4.57 mm	2.65 mm	5.72 mm	2.65 mm	-
Maximum stabilization time	-	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	5 µs	-
Nominal settling time (tstl)	-	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs	-
Maximum slew rate	-	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	-
Nominal supply voltage	-	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	-
surface mount	-	YES	YES	YES	YES	YES	YES	NO	YES	-
technology	-	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	-
Temperature level	-	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	-
Terminal surface	-	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	-	J BEND	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	THROUGH-HOLE	GULL WING	-
Terminal pitch	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	-
Terminal location	-	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	-	11.505 mm	7.5 mm	7.5 mm	7.5 mm	11.505 mm	7.5 mm	7.62 mm	7.5 mm	-
